Practical Guide to Reading and Designing Electronic Circuit Schematics

Begin by labeling every component with reference identifiers–R1, C2, U3–in sequential order. Non-compliance here introduces ambiguity: boards fabricated from ambiguous layouts demand manual trace validation, increasing debug time by 30-50%. Adopt KiCad’s annotation tool to automate numbering; it reduces labeling errors to near-zero.

Position power rails at the top (+VCC) and bottom (GND) of the sketch. Vertical routing minimizes signal crossovers, lowering parasitic capacitance by 20% compared to horizontal runs. Use 0.25 mm line width for analog signals and 0.5 mm for digital buses; this differentiation ensures impedance consistency. Avoid 90° bends–replace with 45° chamfers to prevent EMI radiation spikes.

Implement decoupling capacitors (100 nF ceramic) within 2 mm of each pin on ICs requiring stable voltage. Omitting this step invites transient voltage drops of ±200 mV, enough to reset microcontrollers during switching. Place bulk capacitors (10 µF tantalum) at board edges for supply stabilization; their radius covers 90% of noise susceptibility zones.

Limit schematic sheet density to 50 components per A3 layout. Exceeding this threshold reduces readability–engineers spend 4x longer tracing nets on congested sheets. Isolate high-frequency sections (RF modules, PLLs) onto separate pages; overlapping clocks above 1 MHz create unintended coupling paths. Use Altium’s hierarchical sheets: assign sub-circuits to child documents and link them with global nets for modular reuse.

Adopt standardized symbol libraries (IEEE-315) for passive elements. Custom symbols–common with potentiometers and relays–confuse assembly teams: inconsistent representations lead to misplaced parts in 12% of prototype builds. Verify pin orientation against datasheets: a mirrored MOSFET symbol inverts functionality, risking permanent damage to gate oxide at 8 V.

Mastering Visual Blueprints for Hardware Design

Start every project by selecting symbols that follow IEEE Std 315 or ISO 11091 standards. Non-standard glyphs confuse collaborators and slow down debugging. Keep a reference sheet nearby–common pitfalls include misaligned pins, inconsistent ground symbols, or reversed polarity marks. Use vector-based tools like KiCad or Altium Designer to ensure scalability; raster images pixelate when zoomed, obscuring critical connections.

• Label net names with clear, descriptive terms (VCC_5V instead of V1).
• Group related components (e.g., resistors in a voltage divider) visually with dashed boxes.
• Avoid crossing lines–use junction dots only at intentional intersections.
• Color-code signal types: red for power, blue for data, green for ground.

For complex assemblies, split the layout into hierarchical sheets. Each sheet should fit on a single A3 page printed at 100% scale–engineers often need to trace signals physically during prototyping. Include a bill of materials (BOM) directly on the printout with:

1. Reference designators (R1, C3).
2. Component values (10kΩ, 100nF).
3. Footprint types (0805, TO-220).
4. Manufacturer part numbers.

Omit this, and assembly errors multiply.

Review drafts with a checklist: verify every connection matches the PCB netlist, check for orphaned components, and simulate critical paths (e.g., op-amp gain, transistor biasing) using SPICE models. A single missing trace or incorrect resistor value can waste days of debugging–validate twice, build once.

How to Read Basic Symbols in Wiring Blueprints

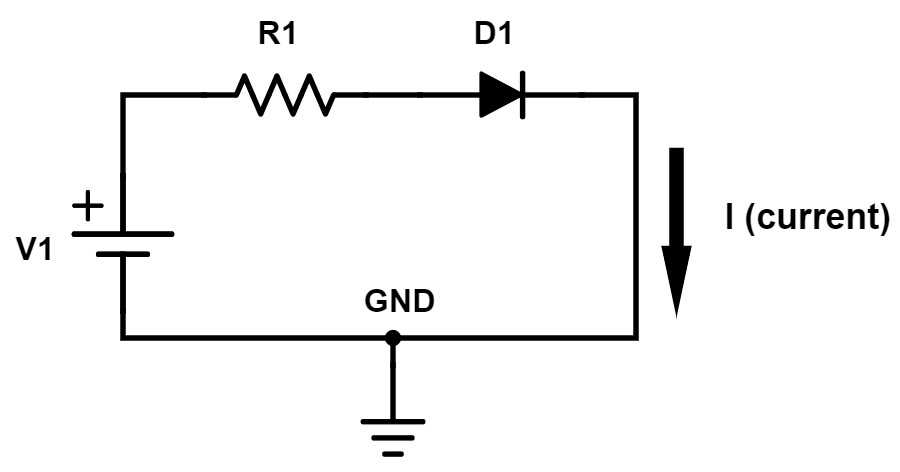

Begin by memorizing passive components: resistors use zigzag lines with values in ohms (e.g., “10k” or “47R”). Capacitors appear as two parallel lines (non-polarized) or a curved line with a straight one (polarized), labeled in farads (“10µF”). Inductors show coiled lines with henry units (“1mH”).

Identify power sources instantly: batteries display unequal parallel lines with a “+” and clear voltage (“9V”), while DC symbols show a circle with a single horizontal line (“5V”). AC sources use a sine wave inside a circle (“120V”). Ground symbols come in three types–earth (three descending lines), chassis (a single line with perpendicular dashes), and signal (a triangle pointing downward).

Spot active parts quickly: NPN/PNP transistors use a circle, a vertical line, and angled lines–emitter arrow points inward (PNP) or outward (NPN). Diodes show a triangle hitting a line, with the anode at the triangle’s base (“1N4007”). LEDs replace the line with two angled arrows. MOSFETs combine a vertical line with parallel lines for gate, drain, and source.

Follow signal paths by tracing solid lines; junctions use dots to confirm connections. Crossovers without dots mean no electrical contact. Switches appear as mechanical breaks: SPST shows a single gap (“SW1”), SPDT adds a second path, and rotary switches use curved arrows. Relays combine a coil (inductor symbol) with switch contacts.

Decode ICs by counting pins: rectangles with numbered sides (“U1”), power pins typically at corners (“VCC” top, “GND” bottom). Op-amps show a “>” symbol for inputs and a “+” for output. Logic gates use distinct shapes: AND (flat front), OR (curved front), NOT (triangle with dot), NAND/ NOR (dots at output).

Read resistors in series/parallel: series add values directly (“10k + 22k = 32k”), parallel use reciprocal sums (“(10k × 22k)/(10k + 22k) = 6.88k”). Capacitors in parallel sum (“10µF + 10µF = 20µF”), series divide (“(10µF × 10µF)/(10µF + 10µF) = 5µF”). Inductors follow resistor rules (“5mH + 5mH = 10mH”).

Interpret labels precisely: “R1 10k” means resistor 1, 10 kilo-ohms. “C2 47p” is capacitor 2, 47 picofarads. “Q3 BC547” identifies transistor 3 as an NPN type. Multipliers use “M” (mega), “k” (kilo), “m” (milli), “µ” (micro), “n” (nano), “p” (pico). Voltage rails appear as “V+” or “V-” with clear values (“+12V”).

Use orientation for clarity: dotted lines indicate shields or optional paths. Arrows on wires show signal direction. Polarized components (diodes, electrolytic caps) mark positive terminals. Transformers show primary/secondary coils with dots for phase alignment. Incomplete circles on inductors/caps mean ferrite cores or variable types (e.g., “100pF ~ 10pF trimmer”).

Step-by-Step Guide to Drawing Your First Blueprint

Start with a ruler and grid paper–preferably 5mm squares–to maintain precision. Sketch power rails at the top and bottom of the page as horizontal lines, labeling the upper “+5V” and the lower “GND” (ground). Keep component symbols compact: resistors as zigzag lines, capacitors as parallel lines (one curved for polarized types), and ICs as rectangular blocks with numbered pins. Align all elements vertically or horizontally to avoid confusion; diagonal placement complicates readability. Use a soft pencil (HB or 2B) for easy corrections, and trace final lines with a fine-tip pen (0.3mm or 0.5mm).

Organizing Connections and Labels

Draw signal paths as straight lines, intersecting only at right angles. Number each wire junction with small circles or dots to indicate solder points. Label components sequentially (R1, R2, C1, etc.) near their symbols, adding values in parentheses–e.g., “R1 (220Ω)” or “C3 (10µF).” For ICs, mark pin numbers clockwise starting from the top-left notch (for DIP packages). Include a reference designator like “U1” (e.g., “U1 LM358”) beneath the block. Avoid crowding; leave at least 2cm margins for annotations or revisions.

Verify connectivity by simulating the flow: trace power from the source to each load, then back to ground. Check for floating nodes (components with no path to ground) and unintended short circuits (crossed lines without a junction dot). Erase stray pencil marks before finalizing with ink. Scan the blueprint at 600 DPI in grayscale for digital sharing, or photograph it under even lighting to avoid glare. Store the original flat to prevent creases, which distort reprocessing.

Common Pitfalls in Blueprint Creation and How to Sidestep Them

Avoid jumbling net labels. Assigning identical names to unrelated nodes–e.g., labeling multiple grounds “GND”–forces unintended connections during PCB derivation. Use descriptive, unique identifiers like “AGND,” “DGND,” or append functional suffixes (“VCC_3V3_USB,” “VCC_5V_MAIN”). Verify labels in the netlist exporter’s preview; mismatches propagate silently.

Oversights in power decoupling manifest early as erratic behavior. Place bypass capacitors (100 nF X7R) within 2 mm of every IC’s supply pin, pairing them with bulk electrolytic (10 µF) near voltage regulators. Document capacitor values directly on the drawing; missing annotations cause assembly rework. For high-speed designs, add ferrite beads (30 Ω at 100 MHz) to isolate analog and digital rails.

Neglecting hierarchical organization complicates debugging. Split complex designs into modular sheets, each containing ≤50 components; excessive density obscures errors. Number sheets sequentially–Sheet 1/5, Sheet 2/5–so errors referenced in DRC (Design Rule Check) reports (e.g., “Sheet 3, pin mismatch U12”) map directly to physical documentation. Use off-page connectors with matching labels to link sub-circuits.

Inconsistent grid snapping misaligns symbols, causing shorts or broken nets during autorouting. Standardize on a 50-mil grid for schematics and enforce it in the library editor. Snap pins precisely to grid dots; off-grid pins appear connected graphically but fail electrical checks. Toggle grid visibility (Ctrl+G) while placing components to confirm alignment.

Omitting series resistors in signal paths–especially for pull-ups, LEDs, or feedback loops–introduces vulnerability to transient currents. Specify exact values (e.g., 330 Ω for LEDs, 4.7 kΩ for I²C pull-ups) instead of generic placeholders (“R” or “R1”). Validate critical paths with SPICE simulations pre-layout; post-layout adjustments waste fabrication iterations.
