Step-by-Step ESC Wiring Guide for Beginners and Hobbyists
Use 12–16 AWG cables for power leads–any thinner risks voltage drop under load. Solder connections directly to the regulator’s input terminals, then insulate with heat-shrink tubing rated for 150°C. For brushed motors, pair the red wire to the positive (+) terminal and black to negative (-). Brushless setups demand a 3-phase arrangement: link each motor wire to its corresponding regulator output, verifying phase order with a multimeter before powering up. Never exceed the regulator’s current limit–check the datasheet for peak ratings.
Mount the regulator to a metal chassis using thermal adhesive if the case lacks mounting holes. Keep signal wires twisted and shielded: throttle (PWM) to the designated pin, ground to the nearest common point. For reverse polarity protection, install a Schottky diode (30V, 5A minimum) in series with the power input. When integrating with a microcontroller, ensure the signal voltage matches–standard is 3.3V or 5V–using a logic-level converter if necessary.
Test connections with a bench supply set to 50% of the regulator’s maximum input voltage. Observe heat levels–if the regulator exceeds 80°C under load, add a heatsink or reduce current draw. For lithium battery packs, wire a low-voltage cutoff in series: connect the regulator’s BEC (if present) to power auxiliary circuits, but disable it if using a dedicated BEC module to avoid interference.
Label all wires at both ends. Use crimp connectors rated for at least 20A if avoiding solder–ensure a gas-tight connection to prevent corrosion. For reliability, route power cables away from signal lines and EMI sources. Verify all joints with a continuity tester before first startup.
Throttle Regulator Connection Guide
Connect the power input terminals directly to a lithium-polymer battery rated for at least 30A continuous discharge. Use 12AWG silicone wire for currents above 20A to prevent voltage sag, which causes erratic motor behavior. Avoid copper-clad aluminum wire–its resistance rises at high loads, risking overheating. Verify polarity with a multimeter before securing terminals; reversed leads will destroy the unit instantly.

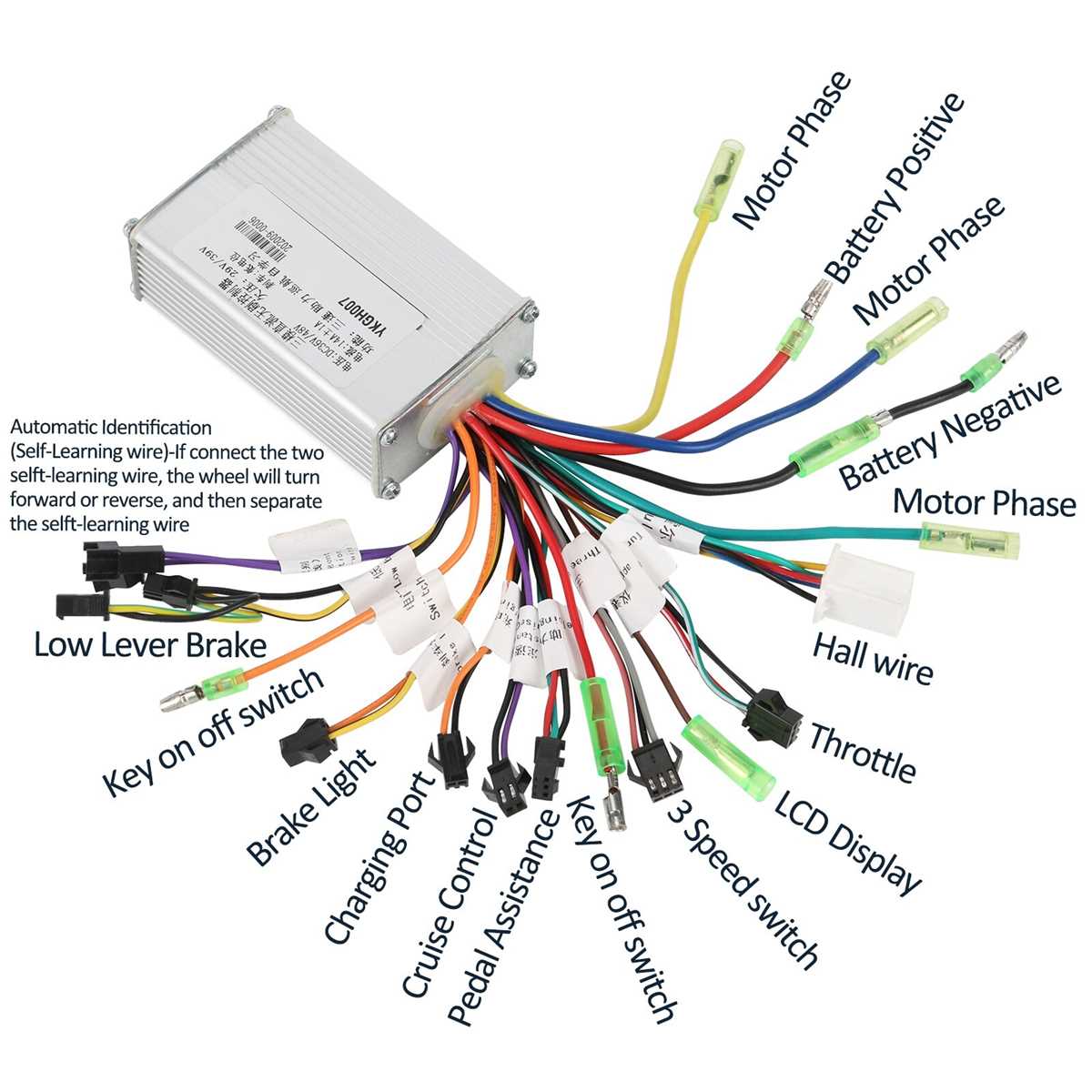

Match the motor phase wires by identifying the hall sensor sequence if present: A (green), B (blue), C (yellow). Swapping any two phases reverses rotation, while misaligned sensors trigger rough startup or failure to synchronize. For sensorless setups, rely on the startup ramp setting in firmware–typically 0.5–2.0 seconds–to avoid motor stalling. Below is a typical pinout reference:
| Component | Terminal | Wire Gauge | Color Code |
|---|---|---|---|
| Battery | + / – | 12AWG | Red / Black |
| Motor Phase | A / B / C | 14AWG | Green / Blue / Yellow |
| Signal Input | PWM | 22AWG | White |
Ground the casing to the vehicle’s frame using a dedicated 16AWG wire if operating near high-frequency electronics. Stray currents induce noise in adjacent sensors, corrupting telemetry signals. Use ferrite rings on all cables longer than 150mm to suppress electromagnetic interference–especially critical with brushless motors spinning above 10,000 RPM.
Set the low-voltage cutoff to 3.3V per cell for LiPo packs to prevent irreversible damage while ensuring sufficient runway for failsafe procedures. Most firmware defaults to 2.8V, but this risks deep discharge during extended glides. Calibrate throttle endpoints at 1100–1900μs; values outside this range void warranty and may trigger firmware lockouts. Test with a servo tester before connecting to flight systems–incorrect trim throws cause uncontrolled acceleration.
Seal all exposed connections with heat-shrink tubing and silicone adhesive. Water ingress, even from humidity, corrodes traces within hours, leading to intermittent faults. Route cables away from rotating parts; a single nicked wire strand can create a short under G-forces, melting insulation and igniting nearby components. Use nylon zip ties every 80mm for aerospace applications to prevent vibration-induced fatigue.
How to Hook Up a Brushless Motor Regulator to Your Drive System
Begin by identifying the three phase wires on your brushless motor–these are typically color-coded to distinguish them. Match these colors to the corresponding outputs on your throttle management unit, ensuring no crossed connections. A single misaligned wire will cause erratic spinning or complete failure. If colors are unclear, use a multimeter in continuity mode to trace each lead back to its origin on the regulator’s output side.
Secure the power source correctly: most setups require a LiPo battery (3S to 6S for typical RC applications) connected to the input terminals of your throttle unit. Observe polarity–reversed connections will instantly fry the circuitry. For safety, insert a high-rating fuse (40A–100A, depending on motor draw) between the battery positive and the regulator to prevent catastrophic shorts.
Avoid soldering wires without heat-shrink tubing; exposed joints invite short circuits under vibration. Crimp connectors (e.g., XT60 or 4mm bullet types) provide cleaner, more reliable connections than bare solder. When joining motor leads, stagger the crimps if possible–this prevents accidental bridging between adjacent wires when covered with heat-shrink.
Mount the throttle unit near the motor, but shield it from direct spinning parts and excessive heat. A lightweight bracket or 3M VHB tape works; avoid loose zip-ties that can loosen under vibration. Route signal cables away from high-current power lines to minimize electromagnetic interference that can disrupt throttle response.
Signal integration varies by model: standard RC receivers use a single PWM wire; flight controllers may require a three-pin servo lead (signal, +5V, ground) or a dedicated telemetry bus. Plug the signal cable into the designated receiver channel–typically throttle channel number three–before powering the system. Test without propeller: arm the setup, confirm smooth throttle ramp with no clicking or jerking, then gradually increase RPM to full before attaching the load.
After physical connections, calibrate the throttle range via the unit’s beep sequence. Most models enter calibration mode by holding full throttle while powering on, then dropping to minimum throttle. Follow the audible cues–different pulses indicate high and low endpoints. Failure to calibrate results in inconsistent throttle response, motor desync, or overheating from uneven phase alignment.
Connecting Your Throttle Regulator to a LiPo Power Source: Precise Installation
First, verify the LiPo cell count matches your regulator’s voltage range. Most 30A–100A units accept 3S–6S (11.1V–22.2V), but check the label–exceeding specs risks immediate failure. If unsure, measure open-circuit voltage with a multimeter: 4.2V × cell count should not surpass the regulator’s upper limit.
Remove all load before connecting. Disconnect motors, servos, or any attached peripherals–even a small residual current can arc during attachment. Use silicone-insulated leads (12–16 AWG) with bullet connectors sized to your regulator’s terminals (typically 3.5mm or 4.0mm). Pre-tin wires to prevent fraying.
Required tools:
- Heat-shrink tubing (3–5mm diameter, 3:1 shrink ratio)
- 2mm hex wrench for terminal screws
- Voltage tester (accuracy ±0.1V)
- Soldering iron (60W, fine tip)
- Wire strippers calibrated to 14 AWG
Align the battery’s positive (red) lead to the regulator’s “B+” or “Vin” pad–never reverse polarity. Confirm orientation by cross-referencing silkscreen markings; some regulators print a tiny “+” symbol. Secure the connection with a single hex screw, torque to 0.5–0.7 Nm to avoid stripping brass threads. Repeat for the ground (black) lead to “B–” or “GND”.
Slide heat-shrink tubing over each joint before soldering. Use rosin-core solder (60/40, 0.8mm diameter); avoid acid-core to prevent corrosion. Apply heat evenly with a butane torch for 3–5 seconds until the tubing conforms–do not allow the regulator’s plastic housing to melt (thermal limit ≈120°C).
Test initial engagement without full throttle. Power the system and observe the regulator’s LED sequence: solid green indicates nominal voltage, flashing red signals undervoltage (
After initial success, discharge the LiPo to 50% capacity (≈3.7V/cell) before rechecking all joints under load. Secure the battery with double-sided foam tape or a Velcro strap–never rely on lead tension alone. Weight limits vary: 150g for 3S, 300g for 6S; exceeding these may fatigue solder pads.
Store the assembly in an ESD-safe bag when not in use. LiPo cells self-discharge at ≈1% per day; recharge within 72 hours if voltage drops below 3.7V/cell to prevent irreversible cell degradation. Repeat this installation cycle every 50–100 flight hours, inspecting for cold solder joints or heat discoloration on connectors.
Common Mistakes When Soldering Regulator Power Leads
Avoid using excessive heat on delicate components–most motor drivers tolerate only 2-3 seconds of direct soldering iron contact before insulation melts or circuit traces delaminate. Keep the iron at 350°C (660°F) or lower, and use a temperature-controlled station to prevent irreversible damage. Pre-tin both the wire and pad, then join them quickly with minimal reheating to reduce thermal stress.
Cross-threading strands during stripping causes intermittent connections. Use a precision wire stripper with the correct gauge setting, stripping no more than 3mm of insulation. Twist the exposed copper tightly before tinning to prevent fraying. Loose strands increase resistance and risk short circuits–check continuity with a multimeter after soldering.
Ignoring Heat Sink Requirements
Thick power cables (12-14 AWG) act as heat conductors, drawing heat away before proper wetting occurs. Clamp the wire near the joint with needle-nose pliers or attach a small alligator clip as a temporary heat sink. For larger joints, preheat the board with a hot air gun (100°C for 10 seconds) to accelerate solder flow without overheating.
Flux residue left on joints corrodes copper over time. Use a flux pen (rosin-based, no-clean) and remove excess with 99% isopropyl alcohol and a stiff-bristled brush. Avoid water-soluble flux–it leaves conductive deposits that cause short circuits. Inspect joints under magnification for shiny, concave fillets; dull or grainy surfaces indicate cold joints requiring rework.
Bridging adjacent pads occurs when solder overflows between high-density connectors. Apply liquid flux sparingly, and use desoldering braid to remove excess without lifting pads. For SMD regulators, use a fine-tip iron (0.4mm) and 0.5mm solder wire. High-power modules (e.g., 60A units) require 2oz copper PCBs–check manufacturer specs before soldering to prevent trace failure under load.
Improper Strain Relief
Rigid solder joints snap under vibration–reinforce power leads with silicone adhesive or a zip tie anchored to a nearby mounting hole. For high-current applications, route leads through PCB slots or strain-relief loops before soldering. Test joints by flexing wires 10mm from the board; cracks indicate insufficient mechanical support.
