Complete ELM327 Circuit Schematic for OBD-II Adapter Hardware Design

For reliable vehicle diagnostics, connect the primary microcontroller via a 16-pin J1850 PWM/VPW or ISO 9141-2 interface. Use a PIC18F25K80 or STM32F103 as the processing core–these handle CAN bus speeds up to 500 kbps without dropping frames. Power the board with a buck converter (e.g., LM2596) set to 5V, ensuring stable current delivery for both the MCU and Bluetooth/Wi-Fi module (HC-05 or ESP8266).

Isolate the CAN transceiver (TJA1050) from the MCU with 120Ω termination resistors on the high/low lines. For J1850 PWM, add a MAX232 level shifter between the ISO interface and UART to prevent voltage mismatches. Ground the OBD-II pin 4 (chassis) and pin 5 (signal) separately through a 10KΩ resistor to avoid ground loops. Avoid sharing power rails with inductive loads like relays, which can induce noise.

Program the MCU to parse OBD-II PIDs (mode 01) using standard frames: request 01 0C for RPM, 01 0D for speed. For extended diagnostics, implement multi-frame responses (ISO 15765-4) with a 32-byte buffer. Debugging? Log raw CAN data via UART at 115200 baud–filter IDs 7DF (requests) and 7E8 (responses).

If signal integrity issues arise, verify waveform symmetry with an oscilloscope on the CAN_H/CAN_L lines. A scope should show a 2.5V differential (no bus load)–deviations suggest weak termination or a faulty transceiver. For low-power designs, disable the Wi-Fi module when idle; the ESP8266 draws ~80mA even in deep sleep. Test the final board with FORScan or Torque Pro before enclosure assembly.

Understanding the OBD-II Interface Schematic

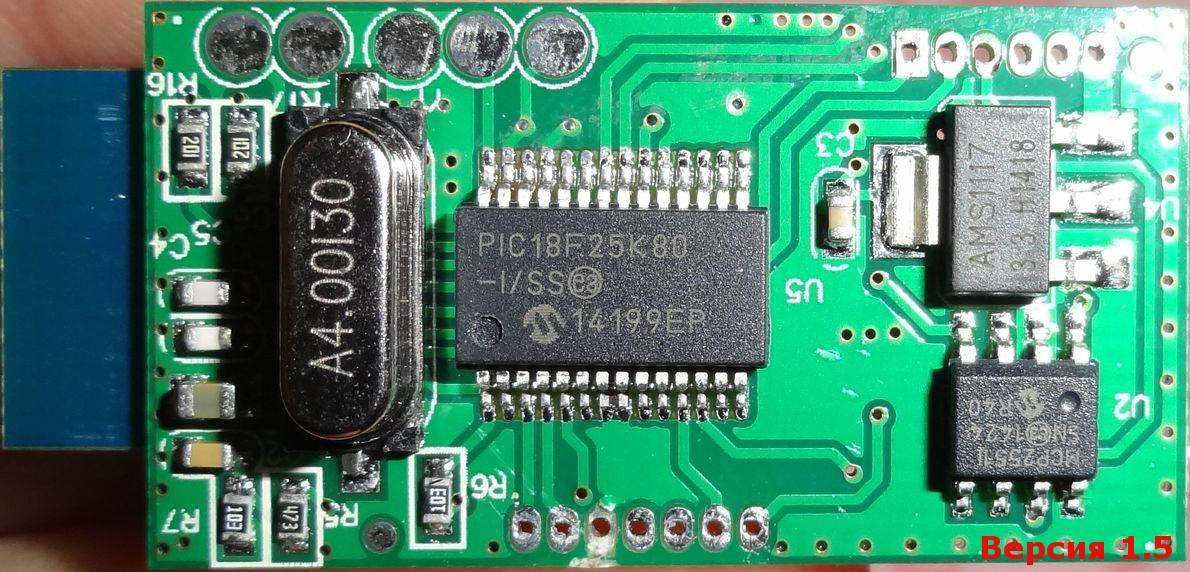

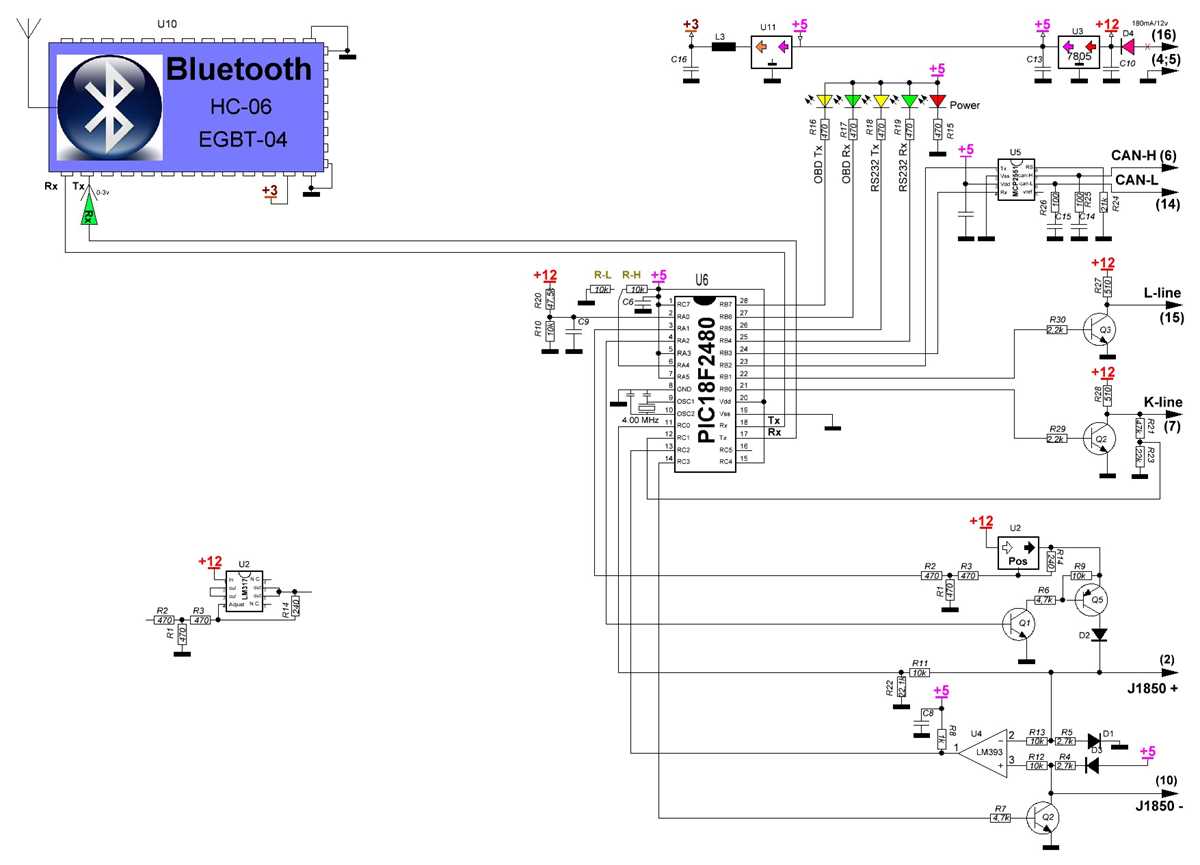

Start by identifying the core components: a PIC microcontroller (typically PIC18F25K80), an MCP2551 CAN transceiver, and a Bluetooth or USB module. The PIC handles data processing and protocol interpretation, while the MCP2551 manages communication over the vehicle’s bus. Ensure the microcontroller’s firmware matches the device’s intended protocol suite (e.g., CAN, ISO 9141, J1850 PWM).

Power regulation is critical–use an AMS1117 5V regulator or equivalent to step down the 12V vehicle supply. Connect the regulator’s input to pin 16 of the OBD-II connector and ground pin 4/5. Add a 10µF electrolytic capacitor between the regulator’s output and ground to stabilize voltage. Verify the absence of voltage spikes, which can corrupt data or damage components.

The CAN transceiver’s TXD and RXD pins must link directly to the microcontroller’s corresponding UART or SPI pins. For ISO 9141 or K-line protocols, replace the MCP2551 with a MAX232 or similar level shifter. Confirm signal integrity by measuring voltage levels: CAN requires 2.5V differential, while K-line operates at 12V logic swings. Incorrect levels lead to communication failure.

For wireless variants, pair a HC-05 or HC-06 Bluetooth module to the microcontroller via UART. Configure the baud rate to 38400 for compatibility with most diagnostic software. Use a 1kΩ resistor on the module’s RX line to prevent signal reflection. Hardwire the module’s power to the regulated 5V line, avoiding the vehicle’s raw 12V supply.

Include a 120Ω terminating resistor between CAN_H and CAN_L if the device sits at the end of the bus. Omit this for mid-bus installations. Test connectivity by probing the OBD-II pins: CAN_H (pin 6) should idle at 2.5V, ISO 9141 K-line (pin 7) at 0V when inactive. Deviations indicate wiring errors or protocol mismatches.

Debugging tools like a logic analyzer or oscilloscope help trace signal paths. Monitor the microcontroller’s UART output while issuing PID requests (e.g., “01 0C” for RPM). Valid responses appear as hex sequences starting with “41” followed by data bytes. Fluctuating signals suggest noise or inadequate grounding; relocate traces away from high-current lines.

Finalize the layout by isolating digital and analog grounds. Use a solid copper pour for the ground plane to minimize interference. Flash updated firmware via ICSP, ensuring compatibility with recent OBD-II standards like SAE J1939 for heavy-duty vehicles. Document pin assignments and protocol settings for troubleshooting.

Pinout Layout for OBD-II Diagnostic Connector

Connect pin 16 (battery voltage) directly to a 12V power source with a fuse rated at 1A to prevent damage during voltage spikes. Avoid sharing this line with other high-current devices, as fluctuations can disrupt communication protocols like CAN.

Pins 6 (CAN-H) and 14 (CAN-L) require twisted pair wiring with a controlled impedance of 120Ω. Use shielded cable for lengths exceeding 1.5 meters to minimize electromagnetic interference. Terminate both ends with a 120Ω resistor for signal integrity in high-speed networks (500 kbps or 1 Mbps).

For J1850 PWM (pins 2 and 10), maintain a maximum cable length of 3 meters. Use a 1 kΩ pull-up resistor on the bus line to stabilize the signal. J1850 VPW (pin 2) tolerates shorter distances–limit to 2 meters–with a 510Ω pull-up resistor to VCC.

ISO 9141-2 and KWP2000 Wiring

Pins 7 (K-line) and 15 (L-line) must connect to a dedicated UART interface with baud rate support up to 10.4 kbps. Implement a 1 kΩ series resistor between the interface and the vehicle’s ECU to protect against transient voltages. For bidirectional communication, ensure the interface supports both 5V logic and ISO 9141-2 voltage levels (up to 12V).

OBD-II pin 4 (chassis ground) and pin 5 (signal ground) should never share the same conductive path. Separate them at the connector and bond signal ground to chassis ground at a single point near the interface to prevent ground loops. Test continuity with a multimeter–resistance between grounds must not exceed 0.1Ω.

For aftermarket installations, verify the vehicle’s OBD-II standard before wiring. Pinouts vary: GM vehicles often use pins 2 (J1850 Bus+), 10 (J1850 Bus-), and 14 (CAN-L) exclusively, while European models prioritize pins 6 and 14 (CAN) or 7 and 15 (ISO). Cross-referencing the vehicle’s manual prevents incorrect connections that can trigger ECU faults or permanent damage.

Power Supply Requirements in OBD-II Interface Designs

Use a dedicated 5V linear regulator with a dropout voltage under 0.5V for stable operation at input voltages down to 5.5V. LDO models like MIC29302WU or TLV1117LV33 ensure consistent output even with battery fluctuations between 9V and 16V during cranking or load dumps.

Voltage Range Handling

• Input: 7V to 36V (transient protection up to 40V for 100ms)
• Output: 5V ±2% (critical for CAN transceiver and microcontroller stability)
• Reverse polarity: Use a Schottky diode (e.g., 1N5819) rated for 1A continuous current

Add a 100µF electrolytic capacitor at the input and a 10µF ceramic capacitor at the output to filter noise. Position the output capacitor within 5mm of the regulator’s GND pin for optimal high-frequency performance.

Select a regulator with a current limit above 500mA to accommodate peak loads from the Bluetooth/Wi-Fi module (250mA) and microcontroller (150mA). Overcurrent protection must trigger within 10µs to prevent damage during short circuits, with automatic recovery preferred over latching designs.

Thermal dissipation requires a copper pad of at least 5cm² on a 2oz PCB for TO-220 packages. For SOT-223 regulators, use vias to a ground plane on the bottom layer. Ambient temperatures above 50°C demand derating the load current by 30%.

Noise Filtering and Grounding

1. Connect analog and digital grounds at a single point near the regulator’s GND pin
2. Use ferrite beads (e.g., BLM18PG121SN1) on the power line to USB/serial converters to block EMI
3. Decouple near the microcontroller with 0.1µF and 10µF ceramics in parallel
4. Separate high-current traces (e.g., CAN transceiver) from low-level signals (e.g., UART)

Layouts mixing high-speed signals with power traces increase crosstalk; maintain a 0.5mm clearance minimum for 3.3V/5V lines running parallel to CAN or UART traces.

For automotive environments, add a TVS diode (e.g., SMAJ36A) at the power input to clamp transients per ISO 7637-2. Test with pulses P1 (100V), P5a (87V), and P5b (10V) to verify the regulator’s resilience. Failure to meet these conditions risks erratic behavior during ignition events.

USB-powered variants require additional scrutiny: ensure the regulator can handle drops to 4.5V during enumeration while maintaining 5V output. A 3.3V LDO (e.g., AP2112K-3.3TRG1) should follow for sensitive components, with 1% tolerance for ADC reference voltages.

Signal Voltage Levels for RS-232 and CAN Bus Connections

For RS-232 interfaces, ensure signal voltages comply with ±3V to ±15V as per EIA/TIA-232-F standards. Logic “1” (mark) must fall between -3V and -15V, while logic “0” (space) requires +3V to +15V. Voltages below ±3V risk signal degradation, particularly in noisy automotive environments. Use a MAX232 or similar charge-pump IC to convert UART TTL levels (0–5V) to RS-232-compatible voltages, as direct MCU outputs insufficiently drive long cables.

CAN bus operates on differential signaling with dominant and recessive states. A dominant bit (logic 0) requires 1.5V–3.0V differential between CAN_H and CAN_L, where CAN_H sits near 3.5V and CAN_L near 1.5V. A recessive bit (logic 1) maintains both lines at 2.5V nominal. Common-mode voltage must stay within -2V to +7V to avoid transceiver damage. Termination resistors (120Ω ±5%) are mandatory at both ends of the bus to prevent reflections.

Voltage Compliance Checklist

Measure CAN_H and CAN_L against ground–differential voltage must exceed 0.9V for dominant detection. For RS-232, verify idle state voltage is -5V to -12V (mark), as some devices falsely assume TTL levels. Isolate grounds between RS-232 and CAN to prevent ground loops, which corrupt signals. Replace worn cables if RS-232 voltages drop below ±6V, as this often indicates failed charge-pump capacitors.
