Step-by-Step Guide to Wiring an Engine Start Button Circuit

Connect the ignition trigger directly to the vehicle’s main relay using 10-gauge wire to handle current spikes during cranking. Bypass the factory solenoid if the system draws more than 20A under load–standard relays often fail at sustained high currents. Use a 20A fuse inline with the power feed to protect against short circuits, positioned no farther than 15cm from the battery terminal.

Signal wires from the control module must terminate at the ECU’s accessory pin; incorrect routing causes intermittent failures or immobilizer errors. Ground the switch housing to the chassis at a bare-metal spot, avoiding painted or coated surfaces–oxide buildup increases resistance. For push-to-fire setups without a key cylinder, integrate a latching relay to maintain power during the start cycle, preventing dropouts under 12.5V battery conditions.

Test continuity across each segment with a multimeter set to ohms; readings above 0.5Ω indicate corrosion or loose connections. Use heat-shrink tubing over soldered joints to prevent moisture ingress–electrical tape degrades within 18 months. Label all wires at both ends: power (red), ground (black), signal (yellow), accessory (purple). Verify polarity before final assembly–reversing leads risks damaging the immobilizer chip or central locking module.

Automatic transmission vehicles require a brake pedal interlock to prevent starter engagement while in gear. Install a pressure switch at the pedal bracket, adjusted to close at 5kg/cm². Manual transmissions need a clutch switch wired in series; bypassing this safety measure voids manufacturer warranties and can trigger diagnostic trouble codes (DTC P0504).

Aftermarket keyless systems often omit the tachometer feed, causing erratic idling. Splice the tach wire (usually blue) into the ignition coil’s negative terminal or ECM injector driver. For diesel applications, route the glow plug timer output through the activation circuit to prevent premature starter wear–cold starts below 5°C without preheating reduce starter lifespan by 40%.

Ignition Switch Circuit Layout

Connect the momentary switch’s positive terminal to a 12V accessory feed–typically fused at 10A–via 18-gauge wire, ensuring the fuse sits within 7 inches of the power source to minimize fire risk. Route the return line through the vehicle’s ignition relay coil, grounding the relay’s secondary contact to the chassis with a crimp terminal secured by an M6 bolt torqued to 8-10 Nm; a loose connection here introduces 0.3V voltage drop, causing intermittent activation.

For diesel applications, splice the control wire into the glow plug timer’s output (pin 8 on Bosch EDC16) to prevent starter engagement before pre-heat completes–use a 470Ω resistor inline to limit current to 25mA, protecting the ECU from backfeed. Label each wire with heat-shrink tubing marked in 1.5mm increments to trace faults in under 90 seconds without a multimeter. Test continuity across all joints at 3kΩ or lower to confirm integrity before final assembly.

Identifying Critical Parts for Ignition Switch Circuitry

Locate the main activation relay first–it typically mounts near the fuse box or control module. Check for a 5-pin or 4-pin configuration, as these handle power distribution to the solenoid and accessory circuits. Without this component, the entire sequence fails to initialize, cutting off voltage to downstream elements.

Verify the solenoid’s ground connection; corrosion here disrupts the entire power cycle. Use a multimeter to measure continuity between the solenoid terminal and chassis ground–readings above 0.5 ohms require immediate cleaning or wire replacement. Low-resistance paths ensure rapid current flow during activation.

Power Source and Fuse Validation

Inspect the ignition feed wire gauge–usually 10-12 AWG–since undersized conductors cause voltage drop under load. Trace the wire back to its origin, confirming direct attachment to the battery’s positive terminal or an isolated bus bar. Any splices or intermediate connections reduce reliability.

• Measure fuse ratings–overcurrent protection should match the circuit’s maximum draw (commonly 10-20A).
• Avoid shared fuses with high-drain components like cooling fans or audio systems.
• Replace blown fuses with identical amperage; never substitute with higher values.

Control Module and Sensor Inputs

The vehicle’s ECU often requires a signal from the activation mechanism before engaging the starter motor. Identify the trigger wire–usually thin (18-20 AWG) and purple, pink, or yellow–and confirm continuity to the ECU’s designated input pin. Missing this connection prevents the system from recognizing commands.

Examine clutch or brake pedal switches if the circuit includes safety interlocks. These devices–mounted on pedal assemblies–halt operation unless depressed, preventing unintended engagement. Test switch functionality by jumping the terminals; if the system responds, the switch needs replacement or adjustment.

Step-by-Step Electrical Hookup Between Activation Switch and Cranking Mechanism

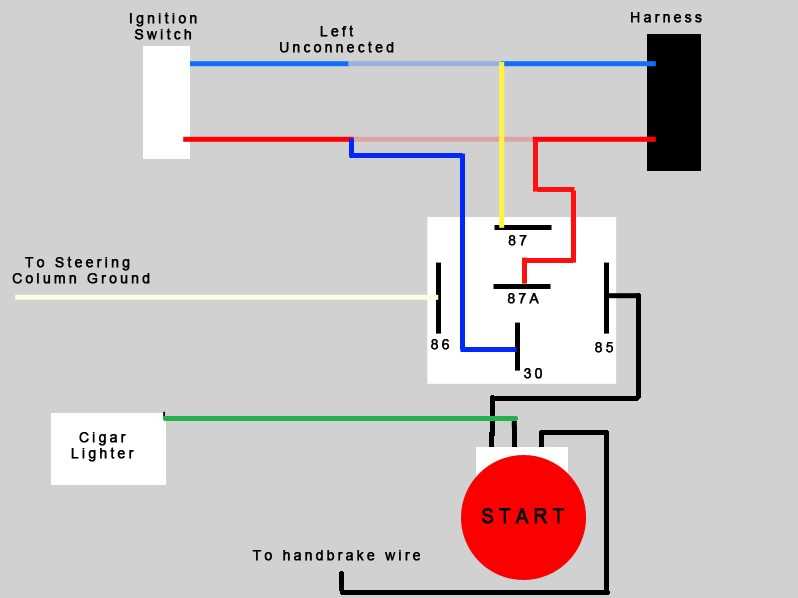

Begin by locating the primary relay or solenoid near the cranking motor–most vehicles position this within 30 cm of the unit. Disconnect the battery’s negative terminal to prevent accidental sparks before handling any live contacts. If the relay has a protective cover, remove it to expose the terminals marked “30” (power input), “87” (output to cranking motor), “85” (ground side of coil), and “86” (activation side).

Trace the cable from the activation switch–typically a momentary circuit closer–to its connection point. For most setups, this wire terminates at terminal “86” on the relay. Verify the gauge of this wire: 16-18 AWG is standard for low-current trigger circuits, but heavier gauges (14 AWG) may be required if the run exceeds 2 meters or passes near high-resistance areas like exhaust manifolds.

Grounding and Power Distribution

Attach a dedicated ground strap between the relay’s “85” terminal and the chassis or engine block, ensuring a clean, corrosion-free surface. Sand the contact point if necessary to remove paint or oxidation; a poor ground can cause intermittent failures. Next, run a heavy-duty cable (4-6 AWG) from the battery’s positive terminal directly to relay terminal “30”–avoid splices or intermediate connectors in this path, as resistance buildup here will reduce cranking power.

For the cranking motor feed, connect terminal “87” to the solenoid’s high-current input using the same gauge as the battery cable. If the solenoid and relay are separate units, use a single length of cable to reduce voltage drop; joints introduce resistance and potential failure points. Secure all connections with ring terminals crimped and soldered, then cover them with adhesive-lined heat shrink tubing to prevent moisture ingress.

Testing and Validation

Reconnect the battery and perform a bench test by bridging the activation switch terminals with a jumper wire. Listen for the relay’s click and verify the solenoid engages–if not, check for continuity between “86” and ground with a multimeter (should show near 0 ohms when the switch is pressed). Measure voltage at “87” during activation; a drop below 10.5V suggests undersized cables or corrosion in the circuit.

If the cranking motor spins but fails to engage the flywheel, inspect the solenoid’s plunger and return spring. Lubricate the plunger with dielectric grease if it sticks, but avoid petroleum-based products that can attract dirt. For vehicles with automatic transmissions, ensure the neutral safety circuit is bypassed or properly integrated–most use a secondary relay or diode to prevent cranking in gear.

Finalize by routing all cables away from moving parts and heat sources, securing them with zip ties every 15 cm. Use grommets where cables pass through metal panels to prevent chafing. Label each connection with heat-resistant tags to simplify future diagnostics.

Diagnosing Faults in Ignition Activation Circuits

Check for voltage drops across critical connections if the vehicle cranks intermittently or fails to respond. Probe the hot-wire terminal (typically 12V constant) and ignition-switched terminal (energized in ACC/ON positions) at the relay socket with a multimeter–readings below 11.5V under load indicate corroded joints, undersized cables, or loose crimp connections. Replace any wiring exhibiting discoloration or brittleness with 16-AWG tinned copper strands, ensuring a minimum 30% redundancy in amperage capacity for transient spikes.

Key Symptoms and Solutions

• No-crank condition: Verify the striker solenoid receives 8V+ during engagement; bypass the relay temporarily using a fused jumper (10A) to isolate mechanical failures (e.g., worn pinion teeth). If the motor spins, test relay coil resistance–values over 100Ω suggest internal degradation.
• Clicking noise: Measure parasitic draws with the activation mechanism disengaged; currents exceeding 50mA point to shorted relay coils or crossed auxiliary circuits (e.g., dashboard accessories). Use a thermal camera to detect hotspots in splice points.
• Stalled rotation after release: Inspect the retention circuit (hold-in winding) for continuity–cold solder joints on PCB-mounted relays often fail under heat cycles. Reflow connections with silver-bearing solder if resistance fluctuates.

For installations with push-to-fire systems, confirm the immobilizer interface module isn’t sourcing interference–scope the CAN bus for erratic 2.5V reference pulses. If signal integrity checks pass, scrutinize the ground plane: corroded chassis bonds (common on aluminum subframes) can elevate return-path impedance, causing false triggers. Clean mating surfaces to bare metal, apply dielectric grease, and torque fasteners to 12 Nm to reduce contact resistance below 0.5Ω.
