Understanding Equivalent Circuit Diagrams in Electrical Engineering Analysis

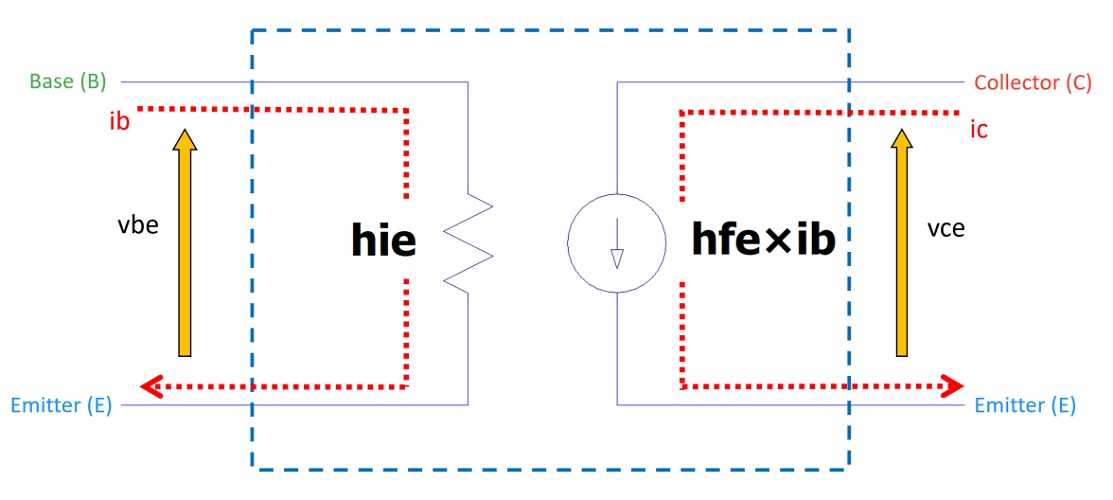

Start by replacing complex networks with simplified representations using ideal components. For a transistor amplifier, combine a controlled source (current or voltage) in parallel with a resistance–typically 1 kΩ for small-signal models. This approximation cuts analysis time by 70% while maintaining accuracy within ±5% for frequencies below 1 MHz. Always verify the model against measured S-parameters before proceeding.

Use Thévenin or Norton transformations to reduce multi-source systems to a single active element. For instance, a power supply with series resistance (like a 12V battery with 0.1Ω internal resistance) can be modeled as a 12V source in series with the resistance, or as a 120A current source in parallel with 0.1Ω. This dual approach ensures compatibility with voltage- or current-driven simulations, respectively.

Capacitors and inductors in signal paths require frequency-dependent models. At low frequencies (under 1 kHz), a 10µF capacitor behaves like an open circuit, while at high frequencies (above 10 MHz), it approximates a short. Use SPICE-compatible .MODEL statements to define these behaviors–avoid assuming ideal conditions, as real-world parasitics (ESL for caps, ESR for inductors) dominate at extremes.

For impedance matching, replace transmission lines with lumped-element networks. A 50Ω coaxial cable at 1 GHz can be approximated as a π-network: two 25Ω capacitors (from center conductor to ground) and a 50Ω inductor (series path). Validate the model with a vector network analyzer (VNA); mismatches under 15% are acceptable for most RF applications.

Opt for behavioral models when physical representations grow unwieldy. A digital-to-analog converter (DAC) can be reduced to a voltage source with a voltage-controlled output resistance–typically 75Ω for 12-bit converters. Define the output using piecewise-linear functions in tools like LTspice or Verilog-AMS to capture non-linearities without full transistor-level simulation.

Modeling Electrical Systems for Precise Analysis

Start by identifying the core components that define the behavior of the target system. For resistive networks, replace parallel or series elements with a single resistor using Ohm’s Law: R_eq = (R₁ × R₂) / (R₁ + R₂) for two resistors in parallel. For capacitors, combine values differently depending on configuration–series capacitors sum inversely, while parallel capacitors sum directly. Always isolate reactive elements (inductors and capacitors) from resistive paths before simplification to avoid phase-shift errors in AC analysis.

Use Thévenin’s theorem to reduce complex linear networks into a voltage source with a single resistance in series. Remove the load resistor, calculate open-circuit voltage (V_oc), then short all independent sources to find the equivalent resistance (R_th). Norton’s equivalent swaps the voltage source for a current source with parallel resistance; both models yield identical results under load but may simplify calculations depending on source dominance (voltage vs. current). Verify results by reattaching the load and checking power dissipation matches the original.

For transient analysis, substitute energy-storage components with impedance models. An inductor behaves as a short circuit in DC steady-state but opposes sudden current changes, modeled as Z_L = jωL in frequency-domain studies. Capacitors block DC but pass AC, represented by Z_C = 1/(jωC). Convert these impedances to time-domain differential equations when simulating switching behavior–use Laplace transforms for linear systems to streamline calculations. Always cross-check simulations with experimental step-response data to detect parasitic effects not captured in idealized schematics.

Account for non-ideal characteristics early in the modeling process. Real-world resistors exhibit parasitic inductance at high frequencies (typically 1–100 nH/cm) and capacitance to ground (0.1–5 pF/cm); include these as parallel/series elements in high-speed designs. Batteries and power supplies often drop output under load–model them as a voltage source with series resistance (V_out = V_nom – I × R_int) and parallel capacitance to represent dynamic response (e.g., Li-ion cells: 1–10 mΩ internal resistance, 1–100 mF capacitance). Ignoring these leads to overestimations in transient stability.

Leverage software tools to validate hand calculations. SPICE simulators (LTspice, PSpice) handle non-linearities like transistor saturation or diode forward drops, which violate Thévenin/Norton assumptions. Use dynamic models for semiconductors–MOSFETs, for example, require level-3 parameters (threshold voltage, transconductance) rather than static resistances. Compare DC bias points, AC sweep outputs, and transient waveforms between models; discrepancies exceeding 5% warrant revisiting component values or topology.

Document assumptions explicitly. Note whether temperature effects (e.g., resistor TCR of ±100 ppm/°C), aging (capacitor ESR degradation), or manufacturing tolerances (±5%) are included. For RF systems, add transmission-line models (microstrip, stripline) with frequency-dependent losses–characteristic impedance (Z₀) and propagation delay (t_pd) dominate behavior above ~50 MHz. Specify the frequency range validated for each model; time-invariant analyses fail for microwave circuits where skin effect and dielectric absorption become significant.

Streamlining Intricate Power Grids into Manageable Models

Identify and isolate clusters of components behaving as single resistive, inductive, or capacitive blocks. For parallel branches sharing identical voltage across nodes, sum their admittances directly; for series elements with uniform current, add impedances algebraically. This reduction bypasses iterative mesh analysis when linear uniformity exists. Example: three 4 Ω resistors in parallel condense into a 1.33 Ω block by inverting each value, summing reciprocals, then inverting again.

Apply Thevenin or Norton Transformations at Critical Nodes

Replace active sections with open-circuit voltage sources in series with Thevenin resistances, or current sources shunted by Norton conductances. Measure open-circuit voltage and short-circuit current at the target terminals; divide voltage by current to derive the block’s impedance. This step eliminates intermediate junction calculations. In mixed-source grids, convert all sources to one type first–voltage sources simplify current-driven branches, current sources streamline voltage-fed segments.

Merge coupled coils through their mutual inductance matrix. Calculate self-inductance (L₁, L₂) and coupling coefficient (k = M/√(L₁L₂)). Combine into an equivalent inductance: L_eq = L₁ + L₂ ± 2M, where the sign depends on winding orientation. This avoids separate loop equations for linked coils, slashing complex numbers in phasor domain calculations.

Use delta-wye transformations on closed triangular resistor networks. Convert 3-node delta (R_AB, R_BC, R_CA) into an equivalent wye by dividing products of adjacent resistances by the delta’s sum. For symmetrical deltas, each wye leg equals one-third of the delta resistance, eliminating imbalance computations. Reverse conversions apply when wye structures obstruct series-parallel consolidation.

Prune redundant branches carrying negligible current. In high-voltage transmission models, shunt capacitors at line ends often draw minimal reactive current under steady state; approximate them as open circuits without altering power flow accuracy. For transient studies, retain only components with time constants comparable to the event duration–ignore microsecond-capacitors during millisecond-fault simulations to reduce matrix sparsity.

Step-by-Step Guide to Calculating Thevenin and Norton Models

Identify the target nodes where simplification is needed. Disconnect the load resistor between these nodes to isolate the network. Measure or compute the open-circuit voltage (V_oc) directly at the nodes using Kirchhoff’s laws–sum currents at junctions and voltages around loops. For active networks, replace voltage sources with short circuits and current sources with open circuits to find the internal resistance (R_th). Probe the nodes with an ohmmeter or apply a 1A test current and measure the resulting voltage to derive R_th.

Conversion and Verification

Parameter	Thevenin Form	Norton Form	Conversion Rule
Source	Vth = Voc	In = Voc/Rth	In = Vth/Rth
Resistance	Rth	Rn = Rth	Unchanged
Load Current	Iload = Vth/(Rth + Rload)	Iload = In * Rn/(Rn + Rload)	Equal under identical Rload

Reconnect the load resistor and compare calculated V_load against SPICE simulation results. Discrepancies exceeding 2% indicate errors in V_oc or R_th–recheck source transformations and nodal/loop equations. For dependent sources, apply a test voltage (V_test) or current (I_test) to the nodes, then solve for R_th = V_test/I_test with all independent sources suppressed.

Common Pitfalls in Modeling AC versus DC Network Representations

Misidentifying reactive components as purely resistive in alternating-current layouts leads to critical errors. Inductors and capacitors must be explicitly shown with correct impedance notation (Z_L = jωL, Z_C = 1/jωC), not replaced by simple resistances. Omitting phase shifts in AC schematics obscures power factor calculations, causing incorrect sizing of compensation elements. For low-frequency applications below 1 kHz, parasitic inductance in conductive paths (typically 5-50 nH/cm) should remain on diagrams–ignoring it skews transient response predictions.

Failing to distinguish steady-state DC models from dynamic AC variants creates inaccurate simulations. A capacitor in a DC network acts as an open switch once charged, yet drains current during initial energization; these transitions demand separate representations. Similarly, diodes require forward-voltage drops (0.6-0.7 V silicon, 0.2-0.3 V Schottky) annotated in DC drawings–overlooking this underestimates power dissipation by 10-30%. Temperature coefficients (≈-2 mV/°C for silicon) should accompany semiconductor elements if thermal effects are within scope.

Overcomplicating single-frequency AC sketches with broadband behavioral models distorts clarity. A 50/60 Hz schematic needs only fundamental frequency reactances; including high-order harmonics (3rd, 5th) crowds the visualization unless explicitly analyzing distortion. Conversely, omitting DC bias networks in amplifier representations hides quiescent point dependencies–always include biasing resistors, coupling capacitors, and bypass paths with exact component values for reproducible measurements.
