Esp32 Wroom 32 Pinout Circuit Diagram and Connection Guide

Begin by routing power directly from a stable 3.3V regulator to pins 2, 34, 35 (VDD) with minimal trace impedance–aim for ≤0.1Ω total resistance. Bypass capacitors (10µF + 0.1µF ceramic) must sit within 2mm of each VDD pin to suppress transients during RF bursts. Omit them, and spurious emissions will violate FCC Part 15 limits.

Flash memory requires precise SPI wiring: connect GPIOs 5–8 to the Winbond W25QXX series with 47Ω series resistors on SCK/MOSI lines to dampen reflections. MISO should run straight to GPIO 7 without stubs–stubs >3mm introduce 20ns settling delays, corrupting firmware updates. Add a 1kΩ pull-up to the flash chip’s CS pin to prevent glitches during deep-sleep wakeups.

For antenna matching, etch a π-network (C-L-C) on the PCB using 0402 components: 2.2pF shunt caps and a 1.5nH inductor. Tune the network empirically with a VNA–misalignment >5% drops RSSI by 12dB at 2.4GHz. Ground plane stitching vias (0.3mm diameter, ≤1mm pitch) must surround the RF trace to limit coupling into adjacent signals.

Reset circuitry needs a 2.2kΩ pull-up to 3.3V and a 0.1µF cap to ground–this forms a 50µs RC delay that filters noise while ensuring clean boots. Omit the cap, and brownouts trigger unpredictable crashes. Connect PROG (GPIO 0) via a momentary SPST switch to ground; a 10kΩ pull-up prevents accidental entry into flash mode during normal operation.

Debugging ports demand isolated traces: route JTAG (GPIOs 12–15) on a separate layer with a ground pour shield to reduce crosstalk. UART (GPIOs 1, 3) should include 33Ω series resistors to limit ESD damage from hot-plugging cables. Label all test points with silkscreened identifiers–incorrect wiring here causes hours of troubleshooting.

Building a Robust Microcontroller Board Layout: Key Wiring Strategies

Always use a 100nF ceramic capacitor between the power input pins and ground, placed as close to the module as physically possible. This suppresses high-frequency noise and prevents voltage spikes from disrupting internal logic or radio transmission. For the 3.3V rail, add a bulk capacitor–typically 10μF to 22μF–in parallel to handle current surges during Wi-Fi or Bluetooth activity.

Route the antenna trace on the top or bottom layer of the PCB without vias or adjacent copper pours within 1 mm. Keep it straight; bends introduce impedance mismatches and degrade signal strength. If the built-in inverted-F antenna is insufficient, allocate space for an external SMA connector and a ground plane beneath the trace to maintain 50Ω impedance.

Connect all ground pins of the module directly to a solid ground plane using short, wide traces or multiple vias. Avoid daisy-chaining grounds–this creates ground loops and elevates noise levels, particularly during RF operations. Use at least four vias per ground connection to reduce inductance.

Include series resistors (typically 22Ω to 100Ω) on GPIO lines driving inductive loads, LEDs, or long traces. This dampens ringing and protects internal ESD diodes. For I2C or SPI buses, add pull-up resistors (4.7kΩ for 3.3V) on SDA/SCL and MOSI/MISO lines to ensure clean signal transitions.

• EN (enable) pin: Requires a 10kΩ pull-up resistor to VCC; connect to a momentary switch to GND for manual reset.
• GPIO0: Must be held high (10kΩ to 3.3V) during normal operation; pulling low during boot enters flash download mode.
• GPIO12: Connects to flash voltage selection; leave unconnected or tie to GND if using 3.3V flash.

Isolate analog reference (pin 35) from digital noise by routing it on a separate trace and filtering with a 1μF capacitor to ground. Avoid placing switching regulators or digital circuits near this trace–even minor interference distorts ADC readings. Calibrate the ADC using the internal bandgap voltage reference (1.1V) for consistent measurements.

Power the module from a dedicated 3.3V regulator with at least 500mA capacity. Linear regulators (e.g., AMS1117) work for low-power designs, but buck converters (e.g., MP2307) improve efficiency for battery-operated devices. Add a diode (e.g., BAT54) on the input to safeguard against reverse polarity.

Flash memory requires decoupling capacitors on VDD_SDIO (pins 8, 16): 0.1μF close to the module, plus 10μF on the regulator output. If using external flash, add a 10kΩ pull-up on the QIO/HS1 pin (GPIO17) to enable quad-SPI mode. Label all test points clearly–misrouted connections can brick the board during firmware updates.

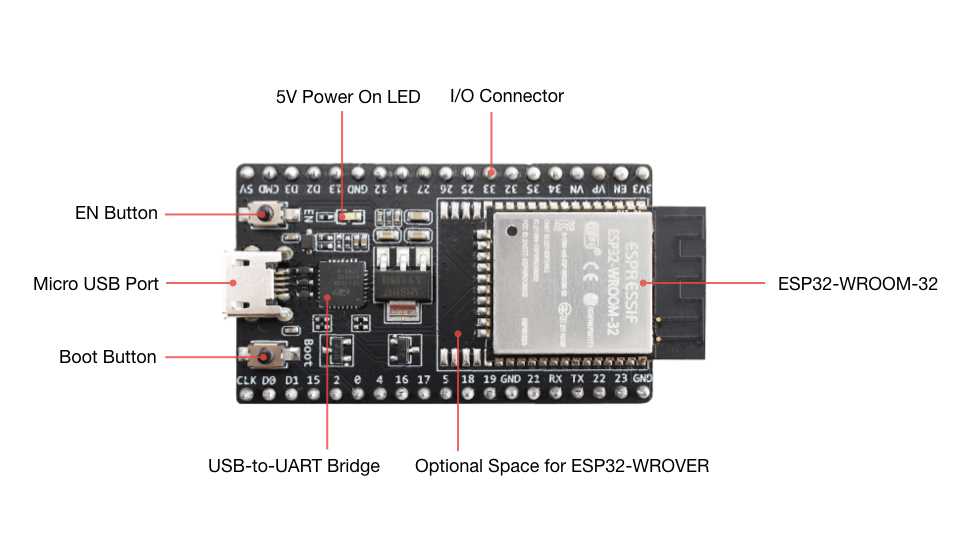

Key Components and Pinout for Microcontroller Module Hardware Layout

A typical development board built around this Wi-Fi/Bluetooth SoC requires precise power delivery. Apply a 3.3V low-dropout regulator with at least 500mA output capacity–AP2112K or MCP1700 series work reliably. Decoupling capacitors of 0.1μF and 10μF must be placed within 2mm of the module’s VDD and EN pins to suppress supply noise. Avoid routing high-speed traces beneath the antenna pad; keep a ground plane clearance of 10mm to prevent signal degradation and maintain 802.11b/g/n performance.

Essential I/O pins demand proper signal conditioning. GPIO0, GPIO2, and GPIO5 serve boot-mode selection and onboard LED control–protect these with 10kΩ pull-up resistors unless overridden by external circuitry. Strapping pins GPIO12 and GPIO15 must default to HIGH via 4.7kΩ resistors during reset to ensure normal boot. Analog inputs tolerate a maximum of 1.1V while exceeding this risks permanent damage; use a voltage divider with 1% tolerance resistors for accurate scaling. Pins marked as input-only cannot sink current beyond 12mA–drive inductive loads (relays, motors) through an N-channel MOSFET or ULN2003.

USB-to-serial conversion requires a dedicated bridge IC; CP2102 or CH340G provide stable 115200 baud communication. Route DTR and RTS signals through 470Ω resistors to avoid latch-up during firmware uploads. For battery-powered deployments, connect a 100μF tantalum capacitor across the 3.3V rail to handle instantaneous current spikes. Always verify pin assignments against the manufacturer’s datasheet revision–minor hardware revisions may reassign GPIOs otherwise assumed safe.

Step-by-Step Wiring for Power Supply and Ground Connections

Use a regulated 3.3V DC source with a current rating of at least 500mA to prevent voltage drops during peak loads. Connect the positive terminal directly to the 3V3 pin (pin 3) of the microcontroller module–avoid routing through breadboards or long wires to minimize resistance. For stable operation, add a 10µF ceramic capacitor between the power pin and ground as close to the board as possible, reducing noise and transient spikes.

Ground connections must form a star topology: link all ground points–including sensors, peripherals, and the GND pin (pin 5)–to a single common node. This prevents ground loops and ensures consistent reference voltage. For high-current devices like motors, use a separate ground wire back to the power source rather than daisy-chaining through the microcontroller’s ground pin.

Verify continuity with a multimeter before powering on. A resistance above 0.5Ω between the power source’s ground and the board’s ground indicates faulty wiring. For dual-voltage systems (e.g., 5V and 3.3V), isolate grounds using Schottky diodes or a dedicated buck converter to prevent backflow. Always disconnect power before modifying connections to avoid short circuits.

For battery-powered setups, solder a 100nF decoupling capacitor across the battery terminals to filter ripple. If using a LiPo battery, add a current-limiting resistor (1Ω, 1W) in series to protect against inrush currents. Label all wires with heat-shrink tubing or colored tape to simplify debugging–miswired grounds are a common cause of erratic behavior.

Test power stability under load by monitoring voltage at the microcontroller’s power pins with an oscilloscope. A drop below 3.0V under load signals insufficient current delivery; upgrade the power supply or reduce peripheral load. For long-term reliability, anchor wires with strain relief (e.g., zip ties) and avoid sharp bends near solder joints.

Adding Pull-Up Resistors and Decoupling Capacitors for Stability

Fit 4.7 kΩ pull-up resistors on all I²C lines (SCL/SDA) and active-low control pins like boot select or reset. This ensures signals idle at VCC (3.3 V) rather than floating, preventing erratic triggering from noise or leakage. For GPIO pads repurposed as inputs without internal weak pull-ups (e.g., pins 34–39), external resistors become mandatory–omit them, and readings may oscillate unpredictably.

Place decoupling capacitors as close to the power pins as feasible: 0.1 µF X7R ceramic caps per VCC/GND pair, plus a 10 µF electrolytic or tantalum bulk cap across the main power rails. The table below lists exact values and placement rules for a dual-core module operating at 240 MHz with peak current spikes up to 250 mA:

Capacitor Type	Value	Placement	ESR Target
Ceramic (X7R)	0.1 µF	≤ 2 mm from each VCC pin
Ceramic (X5R)	1.0 µF	Mid-board near LDO output
Tantalum	10 µF	Board edge, star point

Bypass any ferrite beads or inductors on the power path with a 1 µF ceramic capacitor directly across them; failing this, high-frequency noise from switching regulators or Wi-Fi radio bursts couples into the processor core, manifesting as sporadic brownouts or ADC errors. Route the ground return of decoupling caps back to the central ground plane in a star topology–avoid daisy-chaining–to prevent ground loops that inject 50–100 mV spikes into sensitive analog traces.
