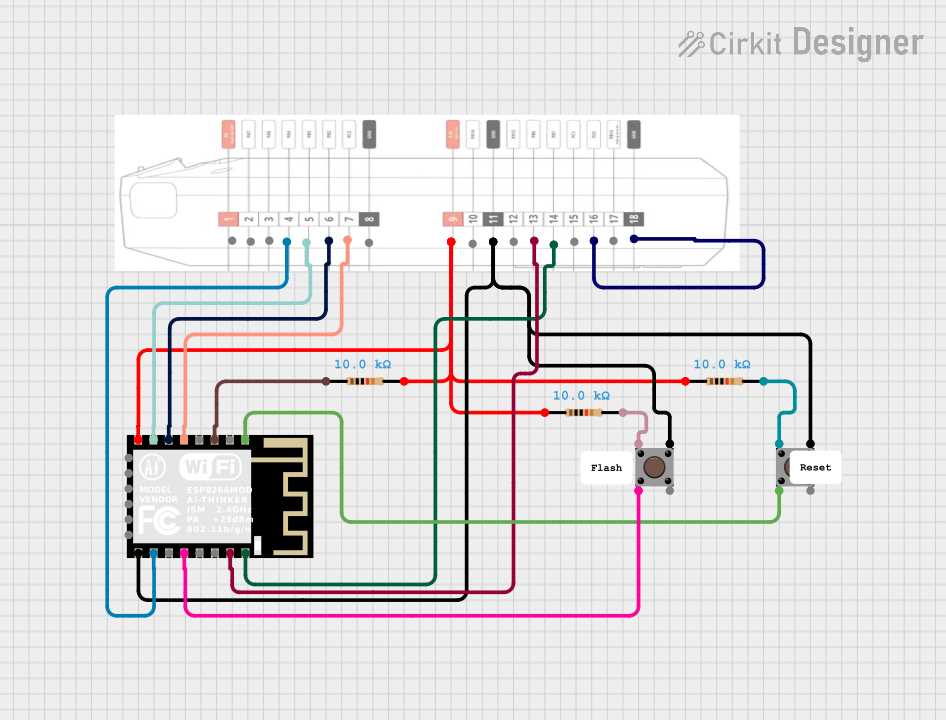

Complete ESP8266 WiFi Module Circuit Diagram Guide for Beginners
Start with a 3.3V regulated power supply–hook the microcontroller’s VCC pin directly to a low-dropout regulator like the AMS1117. Avoid USB adapters rated for 5V; voltage spikes will fry the chip. Add a 10 µF electrolytic capacitor between power and ground as close to the pins as possible to suppress noise.
Connect the GPIO15 (MTDO) to ground with a 10 kΩ pull-down resistor. GPIO0 and GPIO2 should both use 10 kΩ pull-up resistors if external buttons are absent. Boot mode issues arise when GPIO0 floats–keep it high during startup unless flashing firmware.
For serial debugging, wire TX (GPIO1) to the RX pin of a USB-to-UART converter like CH340G at 3.3V logic. Invert the connection for RX (GPIO3) to avoid collisions. Use a 220 Ω resistor in series between the microcontroller’s TX and the converter’s RX to prevent signal degradation. Avoid FTDI adapters set to 5V; they’ll damage the controller.
Place a 100 nF ceramic capacitor across the controller’s power pins to filter high-frequency noise. For RF stability, add a quarter-wave monopole antenna–solder a 30 mm wire to the onboard PCB trace marked “ANT.” If using an external antenna, ensure the matching network values match the datasheet’s reference design.
Flash firmware via UART with baud rate 115200; higher speeds risk errors. Ground GPIO0 during flash to enter bootloader mode. After upload, disconnect GPIO0 immediately to avoid accidental reflashing. Test connectivity by scanning nearby networks with a packet sniffer like Wireshark to confirm signal strength.
Building Your Wireless Microcontroller Connection Blueprint
Start by wiring the power supply directly: connect the 3.3V pin to a voltage regulator outputting at least 300mA to avoid brownouts during transmission. Pair it with a 100μF decoupling capacitor between the power input and ground to stabilize fluctuations–this prevents erratic resets during data bursts. For serial communication, route the TX/RX lines through a 1kΩ resistor to the USB-to-serial converter; this protects against voltage mismatches if using 5V logic. Avoid breadboard jumpers longer than 10cm–they introduce noise that corrupts OTA firmware updates.
For antenna optimization, if using the PCB trace design, ensure the ground plane surrounds it with at least 2mm clearance; stray copper reduces signal strength by up to 6dB. External antennas require a U.FL connector soldered with a 0.3mm tip iron–excessive heat destroys the RF switch. Add a 0Ω resistor on the antenna selector pads if switching between onboard and external; omitting this leads to no RF output. Test impedance with a VNA at 2.4GHz–target 50Ω ±1.5Ω for maximum range.
Critical Failure Points to Audit
Check GPIO0 and GPIO15 pull-up/pull-down resistors: GPIO0 must be high at boot for flash mode, while GPIO15 must be low to avoid bootloader conflicts. Replace default 10kΩ resistors with 4.7kΩ for faster edge detection during deep sleep wakeups. Log power consumption with a multimeter–spikes above 80mA during Wi-Fi handshake indicate insufficient decoupling. Finally, validate the reset circuit: a 0.1μF capacitor between RST and ground with a 10kΩ pull-up ensures clean resets; without it, the device hangs in low-power states.
Microcontroller Pin Configuration and Power Needs
Use 3.3V as the primary supply for reliable operation–avoid 5V sources unless properly regulated, as exceeding this voltage risks permanent damage. The chip’s GPIO pins tolerate 3.3V logic levels only; connecting 5V signals (e.g., from Arduino) without level shifting will degrade performance. For stable power delivery, add a 10μF capacitor near the VCC and GND pins to suppress noise, especially during RF transmissions. Battery-powered projects should include a low-dropout regulator (e.g., AMS1117) if input voltage fluctuates.
Key pins serve dual roles: GPIO2 (D4) doubles as a boot mode selector–pull it low during reset to enter flash update mode. GPIO0 (D3) controls boot configuration; keep it high for normal operation. GPIO15 (D8) *must* be tied to ground via a 10kΩ resistor to enable booting; omitting this pulls the pin low and triggers boot failure. Avoid sourcing or sinking more than 12mA per pin; exceeding this strains internal circuitry. Power-hungry peripherals (e.g., LEDs, relays) require an external driver circuit or transistor to prevent overloading.
Measure current draw under load–idle consumption sits around 80mA, while Wi-Fi activity spikes to 170mA+. Design power budgets accordingly; coin cells or weak USB ports may fail under sustained RF use. Ground loops introduce interference; route a dedicated ground plane or thick traces to the GND pin to minimize noise. For mobile setups, incorporate a 1N4007 diode in series with the power input to protect against reverse polarity, but account for the ~0.7V forward drop in voltage calculations.
Step-by-Step Assembly for 3.3V Logic Signal Integration
Begin by sourcing a regulated 3.3V power supply with minimal ripple–target under 30mV peak-to-peak noise. Connect the positive output directly to the VCC pin of your microcontroller, bypassing with a 10µF electrolytic and 0.1µF ceramic capacitor in parallel to ground, positioned within 5mm of the pin. For signal lines, use series resistors on all GPIO traces: 220Ω for inputs, 150Ω for outputs. This prevents voltage spikes during state transitions, critical when interfacing with 5V peripherals–resistor values can be recalculated using Ohm’s Law if current exceeds 3mA per line.
- Strip 20-22 AWG wire, tin the ends, and solder to PCB pads or through-hole vias with 63/37 leaded solder; avoid flux residue to prevent leakage current.
- For I2C communication, pull-up resistors to 3.3V must be 2.2kΩ–any higher increases rise time, risking noise susceptibility; any lower draws excessive current.
- Ground loops? Star topology grounding with a single common point near the power source eliminates ground potential differences.
- Before power-up, verify continuity on all signal paths with a multimeter; resistance should read under 0.5Ω. Test each line at 3.3V with a logic analyzer–pulse widths must match 50% duty cycle within 2%.
Integrating UART-Based Communication Between Controllers and Wireless Chips
Start by configuring the serial port at 115200 baud with 8N1 settings–no parity, one stop bit–on both the host microcontroller and the wireless transceiver. Use hardware UART (TX/RX) rather than software-emulated serial ports whenever possible to avoid timing errors and improve reliability during high-speed data transfers. If the host lacks a second UART, consider using interrupts or DMA to prevent buffer overflows when sending large payloads, such as HTTP requests or JSON-formatted sensor data.
Level shifting is non-negotiable if the controller operates at 3.3V while the transceiver runs at 5V TTL logic–omit this step, and permanent damage to the IO pins is guaranteed. A simple MOSFET-based bidirectional converter (e.g., BSS138) or a dedicated level-shifting IC like the TXB0104 works efficiently; resistor dividers introduce signal degradation and should be avoided. Connect the TX pin of the transceiver to the RX pin of the controller and vice versa, then tie the ground pins together to establish a common reference.
Implement flow control via RTS/CTS or software handshaking (XON/XOFF) if the data stream exceeds 256 bytes per transmission. For stable operation, add a 100nF decoupling capacitor near the transceiver’s power input and a 10kΩ pull-up resistor on the EN pin to ensure clean startup. Test the connection with a minimal payload (e.g., “AT
“) before sending complex commands–garbled responses usually indicate misconfigured baud rates or missing ground connections, not firmware errors.
Voltage Regulation and Decoupling Capacitors for Stable Operation
Use a low-dropout (LDO) regulator like the AMS1117-3.3 or AP2112K-3.3 to maintain a clean 3.3V supply. These regulators tolerate input voltages up to 12V while delivering 3.3V with a dropout of less than 1V under full load. For applications requiring higher current (e.g., 800mA+), consider the MIC29302WT, which supports up to 3A with thermal shutdown and overcurrent protection. Always calculate power dissipation: P = (Vin – Vout) × Iload. Ensure the regulator’s package (TO-220, SOT-223) can dissipate the heat–use a heatsink if exceeding 1W.
Bypass capacitors must be placed within 2mm of the power pins to suppress high-frequency noise. A typical setup includes:
| Capacitor | Value | Type | Purpose |
|---|---|---|---|
| Input (Vin) | 10µF | X5R/X7R (MLCC) | Stabilizes input during load transients |
| Output (Vout) | 22µF | X5R/X7R (MLCC) | Filters regulator noise, improves transient response |
| High-frequency decoupling | 0.1µF | C0G/NP0 (MLCC) | Suppresses spikes >100MHz |
Ceramic capacitors (MLCC) are preferred over electrolytic due to lower ESR and higher ripple current ratings. Avoid Y5V dielectrics–their capacitance drops significantly with voltage and temperature.
PCB Layout Guidelines
Route power traces as wide as possible (minimum 1mm for 100mA, 3mm for 500mA) to reduce resistance. Place the LDO’s input/output capacitors on the same side of the board as the regulator, using vias only if unavoidable. Keep analog and digital grounds separated, connecting them at a single point near the power source to prevent ground loops. If using a switching regulator (e.g., TPS62203), add a 10Ω resistor in series with a 1µH inductor on the output to dampen ringing.
For systems with dynamic loads (e.g., RF transmission bursts), add a bulk capacitor (100µF–470µF) at the regulator’s output. Tantalum capacitors are suitable but require a derating of 50% (e.g., 16V-rated for a 5V rail) to prevent failure. Verify stability with an oscilloscope: ripple should not exceed 50mVpp under maximum load. If ringing occurs, increase the bypass capacitor’s value or add a small ferrite bead (e.g., BLM18PG121SN1) in series with the power line.
Thermal and Load Considerations
The AMS1117-3.3 has a thermal shutdown at 165°C, but performance degrades above 125°C. For ambient temperatures above 60°C, reduce the load or switch to a regulator with higher thermal tolerance (e.g., LP2985). Measure actual current draw during operation–RF devices may surge to 300mA during transmission. Recommended test conditions:
- Input voltage: 5V ±5%
- Load: 200mA constant + 500mA pulsed (1ms on, 9ms off)
- Ambient temperature: 25°C–85°C
If the device resets under load, add a 220µF tantalum capacitor at the input to handle inrush current.
For battery-powered applications, use a buck-boost converter like the TPS63000 to maintain 3.3V even when the battery drops below 3V. Typical efficiency is 90% at 100mA, dropping to 80% at 1A. Quiescent current (30µA) is critical–avoid LDOs with >1mA quiescent current in low-power designs. Example configuration:
- Input: 2.5V–5.5V
- Output: 3.3V/800mA
- Switching frequency: 2.4MHz (adjustable)
Use a 4.7µH inductor (e.g., SLF7032T-4R7M) with saturation current >1A. Feedback resistors should be 1% tolerance to ensure accuracy.
Avoid placing decoupling capacitors near switching nodes (e.g., inductor output)–they can couple noise into the supply. If layout constraints require crossing planes, add a ground pour beneath the capacitors to minimize loop area. For designs with >10MHz clocks, use multiple vias (minimum 3) for ground connections to reduce impedance. Test with a spectrum analyzer: noise at the 3.3V rail should be above 10MHz to prevent RF interference.
