Step-by-Step Cat 6 Ethernet Cable Wiring Guide with Color Codes

ethernet cable wiring diagram cat 6

Begin with T568B configuration for all modern structured cabling systems. This arrangement delivers consistent signal integrity at frequencies up to 250 MHz, meeting strict channel performance requirements for bandwidth-intensive applications. Pins 1 and 2 (orange stripe, orange) handle outgoing data; pins 3 and 6 (green stripe, green) carry incoming signals. Remaining pairs–blue/blue-white and brown/brown-white–support auxiliary services or PoE where required.

Cross-section diameter must not exceed 0.58 mm (23 AWG) for reliable termination into RJ45 jacks. Copper purity above 99.95 % minimizes insertion loss across the 1–100 MHz spectrum. Maintain pair twist rates within ±2.5 turns per meter to preserve NEXT thresholds under -45 dB at 100 MHz. Shielded variants (F/UTP or S/FTP) demand full 360° drain wire bonding at both endpoints to prevent shield current imbalance.

Verify solid conductor continuity before sheath stripping–stranded cores increase contact resistance. Crimp tools should exert 8–12 kg/cm² pressure for gas-tight joint formation. Post-termination, measure DC loop resistance: 30 Ω±2 Ω per 100 m segment ensures compliance with IEEE 802.3-2022 power delivery specifications. Avoid exceeding 50 °C ambient–thermal drift degrades PS-ACR performance.

Patch cords require re-testing after 50 mating cycles; modular plugs exhibit measurable wear beyond 750 insertions. Field-terminated links must adhere to 32 mm maximum untwist per pair–longer exposures introduce crosstalk above -36 dB (TIA-568-D tolerance). Horizontal runs spanning 90 m necessitate intermediate distribution points to avoid propagation delay skew exceeding 550 ns round-trip.

Use a calibrated Level IIIe tester for certification; channel margins below 3 dB signal safety factor risk intermittent faults during line-rate transfers. Avoid sharp bends–minimum radius of 4×OD prevents impedance discontinuities. For PoE loads exceeding 30 W, separate power pairs (4/5, 7/8) per IEEE 802.3bt–mixing power and signal pairs increases insertion loss margins unpredictably.

Standard Pinout Configuration for High-Speed Network Lines

Use T568B termination for all patch leads to maintain consistency and minimize crosstalk. Straight-through connections require identical pin assignments on both ends: pair one (white-orange/orange) to pins 1 and 2, pair two (white-green/blue) to 3 and 6, pair three (white-blue/green) to 4 and 5, and pair four (white-brown/brown) to 7 and 8. This layout optimizes signal separation while adhering to ANSI/TIA-568-C.2 standards.

Test every conductor pair with a precision certifier after termination. Dual-shielded variants demand intact continuity between the foil screen and drain wire; verify

Pin Signal Termination Color (T568B)
1 TX_D1+ White-Orange
2 TX_D1- Orange
3 RX_D2+ White-Green
6 RX_D2- Green

For PoE (IEEE 802.3bt) applications, ensure conductors 1, 2, 3, and 6 handle up to 960 mA without exceeding 75°C thermal rise. AWG 23 solid copper cores are mandatory; stranded variants introduce signal loss beyond 50 meters. Use gel-filled boots on RJ45 plugs for outdoor runs to eliminate moisture ingress that corrodes contacts.

Cross-connect lines between switches follow T568A on one end to swap transmit and receive pairs. Hardwire pins 1 ↔ 3 and 2 ↔ 6; adjacent pairs must remain untwisted 15 mating cycles without degradation.

Premium S/FTP constructions include individual pair foils plus an outer braided screen. Maintain a 1:1 screen-to-jacket ground connection; improper shield bonding creates induction loops. For 10GBASE-T, verify alien crosstalk values below -65 dB using a Fluke DTX-1800 analyzer with permanent link adapters.

Step-by-Step Guide to Termination of High-Speed Network Lines

Secure a quality crimping tool with an 8P8C die, designed for solid-core conductors. Verify compatibility with AWG 23–24 gauge wires, as variations outside this range may compromise signal integrity.

Strip the jacket precisely 1.5 inches from the end using a dedicated cutter, exposing the twisted pairs without nicking the insulation. Unravel no more than 0.5 inches of each pair–excessive untwisting introduces crosstalk, degrading performance at frequencies above 250 MHz.

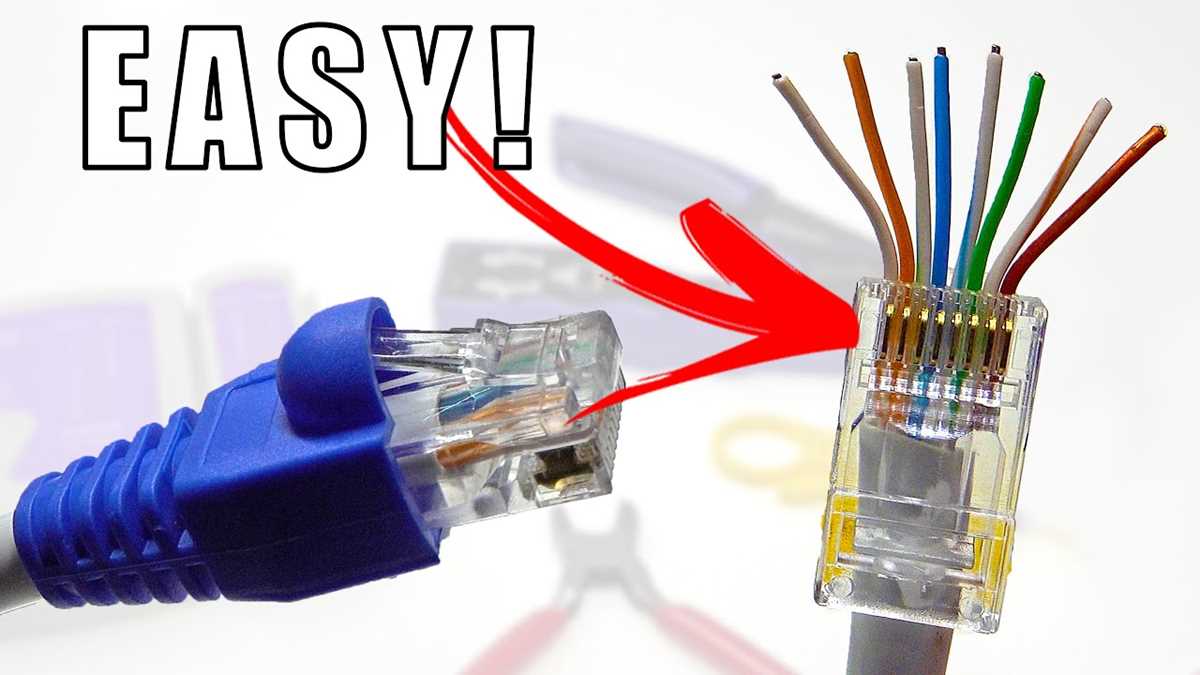

Arrange the conductors in the T568B standard sequence: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Hold each wire between thumb and forefinger, aligning them flush against the connector’s plastic ridge. Slide all eight into the RJ45 plug until each conductor seats fully at the tip; insufficient insertion leaves gaps, causing intermittent faults.

Insert the loaded plug into the crimping tool, ensuring the tab side faces downward. Apply firm, even pressure until the tool’s ratchet releases–partial crimping results in loose contacts that oxidize over time. Tug each conductor individually; any movement indicates improper termination and requires rework.

Test all four pairs with a certification tester set to 500 MHz bandwidth. Verify insertion loss, return loss, and NEXT margins against TIA-568-C.2 specifications. Exceeding -10 dB at 250 MHz or -20 dB at 100 MHz signals substandard termination–reterminate immediately to avoid latent failures.

Seal the connector with a boot rated for outdoor use if the line spans exposed pathways. Label both ends with unique identifiers alphanumeric codes, omitting spaces, to streamline future troubleshooting.

Essential Gear and Supplies for Structured Connector Termination

Start with a crimping tool designed for 8P8C modular plugs. Models like the Klein Tools VDV226-110 or Paladin 11067 ensure clean, precise cuts without damaging internal pair geometry. Avoid generic wire strippers–most lack the 24–22 AWG gauge calibration needed for consistent performance.

Acquire a high-quality punch-down tool with a 110-type blade. The TRENDnet TC-N60 or Fluke Networks DSP-PDT-01 adapt to keystone jacks and patch panels without deforming conductors. Replace blades after 200–250 terminations to prevent insulation piercing.

  • Twisted-pair tester: Fluke Networks MS2-KIT validates continuity, pair mapping, and near-end crosstalk (NEXT) up to 250 MHz. Budget alternatives like the Klein Tools ET310 lack channel emulation but suffice for basic checks.
  • Shielded modular plugs: For STP installations, use shielded RJ45 connectors (e.g., Amphenol MRJ-568) to maintain foil integrity. Standard unshielded plugs risk grounding loops in noisy environments.
  • Keystone jacks: Prioritize tool-less designs like the Signamax 065-7276 for CAT 6a compliance. Screw-down variants often misalign pairs under 45° termination.

Use solid copper patch cords rated for 500 MHz bandwidth when connecting active equipment. Stranded conductors in horizontal runs degrade signal integrity–opt for AWG 23 solid core for lengths under 90 meters. Polyethylene insulation resists kinking better than PVC in tight conduits.

For outdoor or industrial runs, select armored shielding (e.g., Belden 7913A) to resist crushing up to 4000 N. Gel-filled variants prevent moisture ingress but require specialized gland seals for entry points. Avoid direct burial without a conduit in acidic or alkaline soils–copper corrodes at 0.5 mm/year in such conditions.

  1. Fiberglass push rods (1/4″ diameter) for snaking pulls through crowded ducts. Steel tapes risk cutting sheathing under tension.
  2. Labeling: Brady BMP21 ports withstand solvents and UV exposure. Handwritten tags smudge after 3–6 months.
  3. Fish tape lubricant: Polywater J fluid reduces friction by 60% compared to silicone sprays, which attract dust.

Side-cutters must have bypass action for flush cuts. Klein 11057 handles 22–10 AWG; cheaper models deform ends, increasing impedance mismatches. Calibrate torque for keystone jacks–over 0.5 Nm splits the termination block.

Store bulk spools at 15–25°C with humidity below 60%. Temperature swings cause eccentricity drift, affecting alien crosstalk. Unroll spools vertically to prevent helical memory in the pairs–horizontal storage induces twists exceeding TIA-568’s 13 mm/meter limit.

T568A vs T568B Wiring Standards: Which to Use

Use T568B unless existing infrastructure or regional regulations dictate otherwise. T568B dominates newer installations worldwide, offering immediate compatibility with 90% of active networks. Follow this rule: match the standard already in place at the termination points; mixing standards within a single link causes crosstalk and performance drops.

Key differences reside in the pair assignments for pins 1–8:

  • T568A: white/green (1), green (2), white/orange (3), blue (4), white/blue (5), orange (6), white/brown (7), brown (8).
  • T568B: white/orange (1), orange (2), white/green (3), blue (4), white/blue (5), green (6), white/brown (7), brown (8).

Swap only pairs 1/2 with 3/6; all other pins remain identical. Both standards meet ISO/IEC 11801 and ANSI/TIA-568-C.2, ensuring identical electrical performance for Gigabit and 10GBASE-T on properly shielded twisted-pair runs up to 100 meters.

Adopt T568B for the following scenarios:

  • Greenfield builds in North America, Australia, and most of Europe.
  • PoE deployments–pins 4/5 and 7/8 carry return current, reducing voltage drop.
  • Backward compatibility with 100BASE-TX, which relies on pairs 1/2 and 3/6.
  • Structured cabling systems terminating to patch panels, keystone jacks, or wall outlets.

Choose T568A only when mandated:

  • Legacy residential telephone wiring (US FCC Part 68 requires T568A for POTS splitters).
  • Existing T568A patch cords or horizontal runs exceeding 50% replacement cost.
  • Government or educational facilities in Germany, the Netherlands, or Nordic countries.

Never combine standards at opposite ends of a link; doing so creates a crossover connection, suitable solely for direct port-to-port device pairing, not switches or routers.

Verify every termination with a cable analyzer; even a single miswire degrades channel performance by 3–5 dB. Label jacks, panels, and documentation consistently–stick to one standard per site to eliminate troubleshooting guesswork.
