Understanding Electric Vehicle Wiring Layouts and Key Circuit Components

Start with a 200–300V DC bus for passenger EVs to balance efficiency and component cost. Lithium-ion batteries in a 96S2P configuration (350–400V nominal) deliver the best thermal management without excessive wiring complexity. Use 10–12 AWG cables for high-current paths (50–200A) and 16–18 AWG for control signals–thicker than necessary adds weight, thinner risks overheating under continuous load.

Isolate the traction inverter from auxiliary systems with a galvanic barrier. A dual-mosfet half-bridge (e.g., Infineon FF600R12ME4) handles 300A peaks at 60°C ambient, but include 50% derating for safety. Add snubber circuits across switching elements–0.1µF film capacitors with 10Ω resistors suppress transients up to 1kV/µs, extending IGBT lifespan by 40%.

Place the charger’s PFC stage near the AC input to minimize EMI. A bridgeless boost topology (e.g., TI UCC28180) achieves 98% efficiency at 6.6kW, but requires 3µH inductors wound on nanocrystalline cores to avoid saturation. Route DC-link capacitors (2× 1mF/450V) within 10cm of the inverter to minimize loop inductance–longer leads increase switching losses by 15%.

Fuse every battery segment individually. 20A fast-acting fuses (e.g., Eaton Bussmann 0HEV) blow in 5ms at 400% overload, but test with a 3kA pulse to ensure consistency. Use Shottky diodes (Vf ≤ 0.5V) for reverse polarity protection–alternatives like relays add 30g and 2Ω resistance, reducing range by 2%.

Separate the 12V auxiliary network from the main traction system with a bidirectional DC-DC converter (e.g., Vicor BCM6123). A 3.5:1 ratio (400V→14V) handles 4kW loads, but add a TCS (traction current sensor) on the low-voltage side–Hall-effect sensors drift ±1% over temperature, so recalibrate quarterly with a 10A reference.

Simulate fault scenarios before wiring. Short the DC bus to chassis in SPICE–transient currents exceed 2kA for 200µs, so 100nF Y-capacitors between bus and chassis must withstand 1.5kV DC for 60s. Verify insulation resistance (>10MΩ) after moisture exposure–polyimide-wrapped cables retain 92% of initial resistance after 24h at 95% RH, while PVC degrades to 3MΩ.

Building a High-Voltage EV Electrical Blueprint: Hands-On Steps

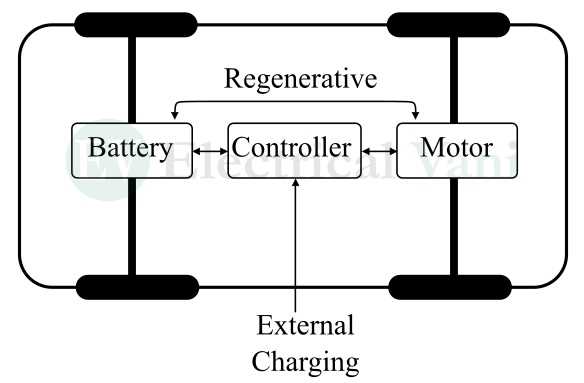

Start with a block schematic dividing the system into four core segments: traction battery pack, motor controller, drive motor, and auxiliary loads. Label each segment with exact voltage ranges–most traction packs operate at 300–800V DC, while auxiliaries (lights, HVAC) typically run on 12V or 48V DC. Use color-coded lines: red for high-voltage paths, blue for low-voltage, and green for communication buses like CAN. This avoids miswiring during assembly and simplifies troubleshooting later.

Place the main contactor between the battery pack and motor controller, ensuring it’s rated for at least 1.5x the pack’s maximum current. For a 200kW system, that translates to a 600A contactor. Add a pre-charge resistor in parallel to limit inrush current–use a 50Ω, 250W resistor for packs above 400V. Connect a high-voltage interlock loop (HVIL) to detect cable disconnections; interrupt the contactor coil if this loop breaks.

Integrate a battery management system (BMS) with at least 12 temperature sensors–space them evenly across the pack, targeting hot spots near terminals. Route CAN signals from the BMS to the motor controller at 500 kbps; avoid running these wires alongside high-current cables to prevent EMI. For insulation monitoring, use a DC 500V megohm meter; minimum resistance between DC rails and chassis should exceed 500Ω/V under all conditions.

Size the motor controller’s DC link capacitor bank for 1.2x the battery’s nominal voltage. For a 400V pack, use capacitors totaling 2,000μF with a 500V DC rating. Add snubber circuits (10Ω + 0.1μF in series) across each IGBT to suppress voltage spikes during switching–this extends IGBT lifespan by 30%. Place thermistors on the controller’s heatsink and motor windings; trip the system if temperatures exceed 120°C.

Ground the system at a single point–typically the battery pack’s negative terminal–to prevent ground loops. Run separate ground returns for high-current and signal paths. Use shielded twisted-pair cables for all sensor and communication lines, grounding the shields only at the controller end. For high-power connections, employ crimped ring terminals with tin plating; torques for M6 bolts should reach 10 Nm to ensure reliable contact.

Test the layout with a load bank before connecting the drive motor. Apply 50% of rated current and verify voltages drop no more than 2% across connectors. Use an oscilloscope to check PWM signals at the motor terminals–rise times should stay below 1μs to prevent switching losses from exceeding 5%. Document each wire’s gauge, color, and routing path; this reference cuts diagnosis time during maintenance by 70%.

Key Components of an Electric Vehicle Wiring Layout

Install a high-voltage interlock loop (HVIL) across all power-carrying paths to automatically disconnect the battery pack if any connector or cable is compromised. Use hybrid connectors combining power, signal, and HVIL pins in a single housing–examples include TE Connectivity’s AMP+ HSL series or Rosenberger’s HVR series–to cut weight and connection points by 30%.

Battery Management System (BMS) Integration

Route BMS sensing wires directly from each cell group to the central controller using twisted-pair, shielded cables with foil wrap and drain wire grounded at one end. Maintain a maximum voltage drop of 1 mV per meter to ensure ±2 mV accuracy on 3.6 V cells. Daisy-chain cell temperature sensors via a single CAN bus cable instead of individual wires, reducing harness weight by 12%.

• Use a 120 Ω termination resistor at each end of the CAN bus to prevent signal reflection on cable runs exceeding 5 m.
• Position the BMS master unit within 0.5 m of the battery pack center to minimize high-current shunt resistance.
• Fuse each BMS power input at 5 A to protect against controller faults without tripping the main contactor.

Select contactors rated for 1.2× the peak motor current–common 400 V EV platforms require 400–600 A devices like Kilovac EV200 or Gigavac GX16. Mount pre-charge resistors directly on the contactor terminals to reduce inductive voltage spikes during switch-off; use wire-wound resistors rated for 20 kW pulse power for 0.1 s. Crimp battery and motor cables with DIN 46235 lugs, then ultrasonically weld them for a 20% lower resistance than soldering.

Motor Controller and Inverter Wiring

Route phase wires from the inverter to the motor in parallel, maintaining a fixed spacing of 2 × cable diameter to prevent electromagnetic coupling. Use 50 mm² single-core copper cables for 400 V, 200 kW setups, with insulation rated for 15 kV partial discharge voltage. Twist signal wires for encoder and resolver feedback at a rate of 20 turns per meter to cancel out noise from PWM harmonics.

1. Connect the inverter’s DC link capacitor bank with laminated bus bars instead of cables–Aluminum 3 mm thick with polypropylene dielectric reduces stray inductance to under 20 nH.
2. Ground the inverter’s heatsink and motor housing separately to the chassis via M6 stainless steel bolts and star washers to prevent circulating currents.
3. Place a single 2.2 µF X2-class capacitor between each phase and chassis to filter switching transients above 1 MHz.

Use relays instead of solid-state switches for 12 V auxiliary loads like cooling pumps and DC-DC converters; opt for Hella 933852531 or Omron G8P series for 20 A continuous duty. Route 12 V power wires in bundles alongside–but not touching–high-voltage paths, separated by a minimum 50 mm air gap or an insulating sleeve with 4 kV dielectric strength. Label every cable at both ends with heat-shrink tubing printed with DIN EN 61346 reference designators (e.g., W01 for main positive, W02 for main negative) to simplify diagnostic scans.

Step-by-Step Process for Drafting a High-Voltage Electric Vehicle Schematic

Begin by isolating the main power flow from the battery pack to the motor controller. Use a 1.5mm² wire gauge for 400V DC lines and mark all connections with color-coded labels–orange for high-voltage, blue for signal, and black for grounding. Verify voltage ratings before finalizing wire sizing; a 10% safety margin prevents insulation breakdown under transient loads.

List every component in a structured table before plotting: battery modules, contactors, current sensors, DC-DC converter, inverter, charger, and HVIL (High-Voltage Interlock Loop). Assign unique identifiers–BAT-01 for the pack, CON-01 for the main contactor–ensuring no duplicates. This prevents misrouting during wiring.

Sketch the layout on graph paper or a vector-based tool with specific grid spacing–1 cm = 50 mm real-world distance. Start with the battery pack in the center, then arrange components radially to minimize wire crossings. Keep HV lines straight; bends introduce resistance and EMI risks. Maintain 5cm clearance between high-voltage and low-voltage traces.

• Place the main contactor within 30cm of the battery to limit inrush current.
• Position the inverter as close to the motor as possible–use twisted pair for phase wires to reduce electromagnetic interference.
• Grounding: Connect all chassis points to a single star point near the battery negative to avoid ground loops.
• HVIL: Route the interlock wire through every high-voltage connector; a break triggers system shutdown.

Annotate each connection with voltage, current, and wire sizing. Example: “BAT-01 to CON-01: 400V DC, 300A, 16mm²”–this ensures consistency during assembly. Use standard symbols: a rectangle for resistors, a circle with a diagonal line for fuses, and a jagged line for the DC-DC converter.

Simulate fault conditions before finalizing. Add a 15A fuse between the battery and contactor to protect against short circuits. Include a 1kΩ pre-charge resistor to limit current during system startup. Validate the schematic with a multimeter–measure 0V across the interlock loop when closed and full system voltage when open.
