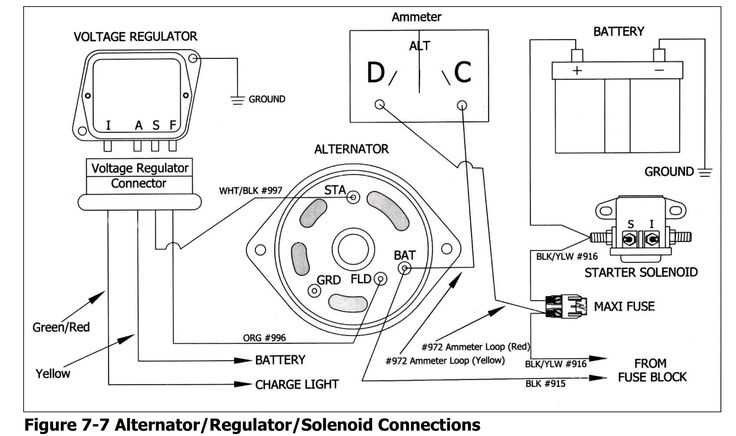

Complete Ford Alternator Wiring Guide with External Regulator Schematic
Begin by isolating the charging component’s stator connections–typically three wires on older models–that feed into the external voltage stabilizer. Label each wire with heat-shrink tubing or colored tape: yellow for stator output, red for field excitation, and black for ground return. Failure to distinguish these at the outset leads to mismatched terminals and overvoltage risks when reconnecting.
Trace the field wire from the stabilizer’s I (ignition) terminal back to the vehicle’s ignition switch. Use a multimeter to verify 12V+ activation when the key is turned–absence of voltage here indicates a blown fuse or faulty relay, often overlooked in basic testing. The F (field) terminal must connect directly to the generator’s brush assembly; any intermediary splices degrade current flow and stability.
Ground the stabilizer’s E (earth) terminal to the engine block or chassis using 8-gauge wire–bolting it to painted surfaces causes resistance buildup and inconsistent regulation. For A/C systems with high electrical loads, add a secondary ground strap between the battery’s negative post and the engine block to prevent voltage drop under heavy demand.
Verify circuit integrity with a load test: Start the engine, set RPM to 2000, and measure voltage across the battery terminals. Expected range is 13.8–14.5V; values outside this window signal a faulty stabilizer or improper wiring. If readings fluctuate, bypass the stabilizer temporarily by connecting the F terminal to the battery’s positive terminal–stable voltage confirms the issue lies in the voltage control unit, not the generator itself.
For aftermarket stabilizers, refer to the manufacturer’s fault codes–common triggers like Code 15 (overvoltage) or Code 31 (field circuit failure) require recalibration or replacement. Stock stabilizers lack diagnostic features, so manual testing with a test light at each terminal pinpoint failures before disassembly.
Connecting a Charging System with a Standalone Voltage Controller
Begin by identifying the three critical connections: battery positive, stator output, and field excitation. Use a heavy-gauge cable (minimum 10 AWG) for the battery positive lead, routing it directly to the BAT terminal without intermediaries–fuses or relays introduce unnecessary resistance. The stator output (usually labeled AC or ARMATURE) connects to the rectifier’s input; verify this link with a multimeter–the reading should show AC voltage (typically 20-50V unloaded) when the engine runs at moderate RPM. For the field excitation, attach the exciter wire to the standalone controller’s F terminal, then run a separate ignition-switched 12V feed (16-18 AWG) to the controller’s ignition input–this ensures the system engages only when the key is on.
Ground the controller to the engine block or chassis using a dedicated 8-10 AWG wire, avoiding shared grounds with high-current devices like starters. If the voltage fluctuates at idle, add a 1Ω 10W ceramic resistor in series with the field wire–this dampens oscillations without overheating. For systems with two field outputs (common in dual-voltage setups), tie both F terminals together with a single wire to the controller, but never exceed 5A field current–use a slow-blow fuse (5A) inline if the controller lacks built-in protection. Test the setup with the engine off: measure battery voltage at the controller’s sense terminal (should match battery voltage) and confirm the field output drops to near zero when the ignition is off.
Common pitfalls: Reversing stator and battery connections will blow the rectifier–double-check polarity before starting. Using undersized wire causes voltage sag; 14 AWG is the absolute minimum for field and ignition feeds. Omitting a sense wire leads to overcharging–run a dedicated 20 AWG wire from the controller’s sense terminal to the battery’s positive post for accurate regulation. For internally regulated OEM units converted to external control, remove or bypass the internal regulator by grounding the field terminal–consult the service manual for pin assignments, as some models use a floating field requiring a different approach.
Core Elements of a Vehicle Charging System with Separate Voltage Control
Begin by locating the voltage control unit near the generator–stamped models often mount it on the firewall or inner fender. Verify the mounting surface is free of rust; corrosion disrupts ground paths, causing erratic output. Use dielectric grease on bolts to prevent oxidation. Secure connections with star washers to maintain consistent contact under vibration.
Identify the three key terminals on the voltage control box: battery sense, field, and ground. The battery sense lead–typically a thin red wire–must attach directly to the battery positive post, not the starter solenoid. Skipping this step invites voltage drop, triggering overcharging. Route it away from exhaust manifolds using heat-resistant loom.
Examine the brushless exciter assembly inside the generator housing. Brushless designs eliminate slip rings, reducing wear, but require precise air gap alignment. Measure the gap with a feeler gauge–adjust to 0.015 inches (0.38 mm) if outside tolerance. Misalignment leads to premature bearing failure and inconsistent current output.
Test the diode trio using a multimeter in diode-check mode. Place probes on each stator lead and ground; readings should show approximately 0.5V in one direction, OL in reverse. Replace any diode showing inconsistent readings to prevent battery drain during engine-off periods.
The fusible link protecting the main output line must match the generator’s rated amperage–typically 10 gauge for 60A units, 8 gauge for 95A+. Undersized links melt under load, stranding the vehicle. Route the link away from sharp edges and moving parts using plastic grommets in the firewall.
Field wire resistance should measure 40-60 ohms when disconnected. Values above 80 ohms indicate shorted rotor coils; below 30 ohms suggests an open circuit. Both conditions cause charging failure. Use a dedicated field circuit tester rather than relying on visual inspection of the wire’s insulation.
Monitor system voltage at the battery post during operation–normal range is 13.8-14.4V with headlights on. Readings above 15V indicate a faulty voltage control unit or grounded field wire. Substitute a known-good unit for diagnosis before condemning the generator. Keep a spare regulator on hand for 1970s-1990s models, as internal components degrade unpredictably.
Inspect the drive pulley for glazing or wallowing. Deep grooves reduce belt tension, causing slippage and overheating of the generator bearings. Replace pulleys with a taper-lock design if originals exhibit wobble. Match belt width to the pulley–most V-engine applications require ½-inch, inline engines ⅜-inch. Adjust tension to ½-inch deflection between pulley centers.
Step-by-Step Installation for Generator Systems with Separate Voltage Controls
Disconnect the battery’s negative terminal before starting any electrical work to prevent short circuits. Always verify the harness connectors for corrosion; clean terminals with a wire brush if oxidation is present.
Identify the three critical connection points on the charging unit: the battery output terminal (typically marked “B+”), the field excitation terminal (“F” or “FLD”), and the ground stud. The battery output delivers power to the electrical system, while the field terminal receives control voltage from the separate voltage control module.
Check the vehicle’s service manual for the correct wire gauge. Most applications use 10-gauge for the battery output and 14- or 16-gauge for the field excitation line. Undersized wires will cause voltage drop and overheating. Secure all connections with crimp connectors or solder, then insulate with heat-shrink tubing.
| Wire Color (Common Standards) | Function | Termination Point |
|---|---|---|
| Red with stripe | Battery output | Battery positive terminal / Fusible link |
| Green | Field excitation | Voltage control module output |
| Black | Ground | Chassis or engine block |
| Yellow | Sense lead (if equipped) | Battery positive or ignition switch |
Locate the voltage control module’s output wire–the line that determines charging voltage. Connect this directly to the field terminal on the charging unit using a dedicated 14-gauge wire. Avoid splicing into existing harnesses; run a new wire to eliminate interference from other circuits.
Route all cables away from moving parts, sharp edges, and heat sources like exhaust manifolds. Secure wires every 8–10 inches with nylon zip ties or loom to prevent vibration-induced wear. Test the charging system with a multimeter: 13.8–14.5 volts at idle indicates proper operation. Voltages outside this range signal a faulty control module or poor ground connection.
For vehicles with ammeter gauges, wire the charging unit’s output through the gauge before reaching the battery. Ensure the gauge’s capacity matches the unit’s maximum output–most factory gauges handle 60–100 amps. Replace the gauge if it’s undersized to avoid meter damage.
Reconnect the battery’s negative terminal after double-checking all connections. Start the engine and monitor system voltage at both the battery and control module. If voltage spikes occur, immediately shut off the engine and inspect for loose grounds or incorrect wire routing. Use dielectric grease on all electrical connections to prevent future corrosion.
