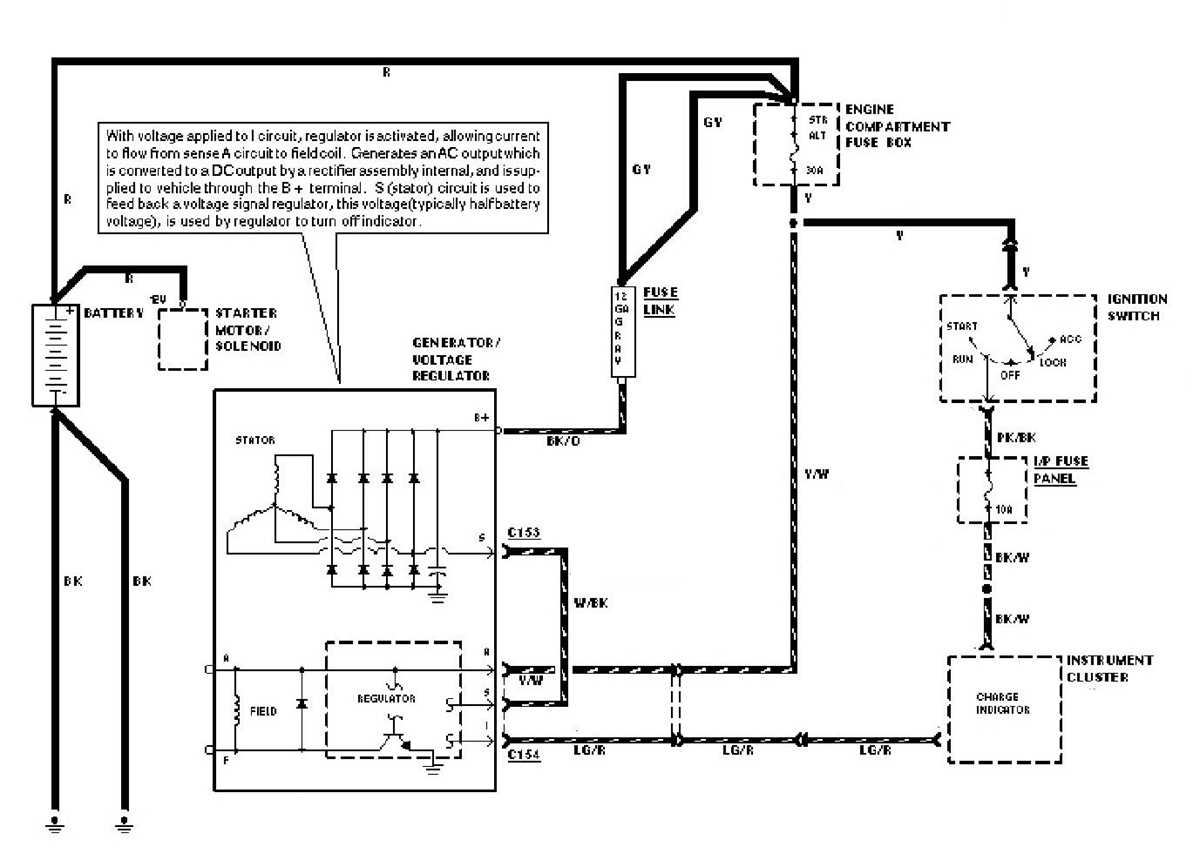

Ford 3-Wire Alternator Wiring Guide for Internal Regulator Systems

Connect the battery sense terminal directly to the positive battery post or an ignition-switched 12V source via a 10-gauge cable. This pin–typically labeled “S” or “2”–must carry clean voltage to ensure precise output regulation. Avoid splicing this line into accessory circuits, as voltage drops exceeding 0.5V will cause overcharging or premature battery failure.

The field excitation pin (“F” or “1”) requires a stable path to ground through the vehicle’s ignition switch. Use a relay if the OEM harness lacks sufficient current capacity; a 30A fuse in series prevents burnout during momentary spikes. Verify continuity with a multimeter–resistance above 1Ω indicates corrosion or weak crimping that will destabilize charging.

Route the stator output terminal (“B+” or “3”) to the starter solenoid or main power distribution block using at least 8-gauge wire. Secure connections with tinned copper lugs and dielectric grease; untreated aluminum terminals corrode within 18 months, cutting current flow by 40%. For dual-battery setups, add a 120A isolator on this line to prevent cross-drain.

Test scenarios reveal critical thresholds: at 1,500 RPM, output should reach 14.2–14.7V. Readings below 13.8V suggest faulty grounding or insufficient excitation current. Above 15V indicates regulator failure–replace the component if voltage spikes persist after cleaning all connections.

Mount the unit away from exhaust manifolds; sustained temperatures above 105°C degrade internal electronics. Use a heat shield if relocation isn’t possible. Always disconnect the battery negative terminal before servicing to prevent short circuits.

Connecting a Three-Terminal Charging System in Classic Vehicles

Begin by identifying the three critical connections on your vehicle’s generator unit: the battery positive (B+), exciter/ignition input (I), and sensing terminal (S). The B+ terminal is typically the largest stud, while the I and S terminals are smaller posts or spade connectors. Use a multimeter to verify the B+ terminal reads 12.6V with the engine off–this confirms proper battery connection.

Locate the ignition feed wire (usually red or purple) from the vehicle’s fuse block and route it to the I terminal. This wire supplies initial voltage to energize the field coil when the key is turned. For sensing, run a dedicated 14-gauge wire from the S terminal to the battery’s positive terminal or the starter solenoid’s battery-side lug. This loop ensures accurate voltage regulation under load.

Essential Components Checklist

• 12-gauge wire (B+ connection, minimum 8AWG for high-output units)
• 14-gauge wire (exciter and sensing circuits)
• Heat-shrink tubing or electrical tape (insulation)
• Inline fuse holder (10A fuse for S terminal, 5A for I terminal)
• Ring terminals (sized to fit B+ stud)
• Spade connectors (for I/S terminals if applicable)

Strip 6mm of insulation from each wire end, crimp terminals securely, and solder for durability. Avoid twisting wires or using loose connections–vibration from the engine bay can cause intermittent failures. After securing all terminals, wrap each connection in heat-shrink tubing or high-quality electrical tape to prevent corrosion.

Test the system with the engine running at 2,000 RPM. Voltage at the battery should stabilize between 13.8V and 14.5V. If readings exceed 15V, check the sensing wire for opens or shorts–this often indicates a broken circuit. Voltages below 13V suggest a weak exciter signal; verify the ignition feed wire is energized when the key is in the “run” position.

Troubleshooting Common Issues

1. No output: Confirm the ignition feed wire carries 12V when the key is on. Probe the I terminal; absence of voltage means a broken circuit.
2. Overcharging: Disconnect the S terminal wire. If voltage drops, the sensing circuit is shorted to ground–inspect for damaged insulation.
3. Undercharging: Swap the I and S terminal wires temporarily. If output improves, the original exciter wire is faulty.
4. Intermittent operation: Wiggle wires near connections while monitoring voltage. A dip indicates a loose terminal–re-crimp and solder.

For vehicles with electric cooling fans or high-power audio systems, consider upgrading the B+ wire to 6AWG and adding a 100A fuse near the battery. This prevents voltage drop under heavy load, ensuring consistent charging. Keep wire runs as short as possible–each extra foot introduces resistance that can degrade performance.

Locating Terminals on a 3-Terminal Vehicle Charging Component

Trace the cable bundle from the charging unit to isolate the three distinct conductors. The battery-positive lead is invariably the thickest, insulated in red or orange with a brown stripe, terminated by a ring connector designed for direct battery attachment. This conductor handles primary charging output and must be secured with a 10mm nut on the main stud. Verify continuity with a multimeter–expect 12.6V+ at key-on without engine running.

Field or excitation point will be a thinner gauge, frequently blue or yellow with a white stripe, linking to the ignition circuit. This path energizes the electromagnetic rotor–confirm 12V during ignition activation, dropping slightly during high-load operation. Attach using a spade terminal or bullet connector; loose contact risks erratic voltage output. Avoid splicing into lighting circuits–dedicated ignition-sourced voltage prevents parasitic drain.

Critical Ground Connection

The third strand–black, green, or bare with a grounding ring–ties the housing directly to chassis or engine block. Never rely on painted surfaces; scrape contact points to bare metal for resistance under 0.5 ohms. Poor grounding induces overcharging, voltage spikes, and erratic gauge readings. For engines with isolated mounts, run a supplementary ground strap to the nearest clean chassis bolt.

Step-by-Step Connection Guide for Integrated Charging System Voltage Control

Locate the three terminals on the rear of the power generator: battery-positive (B+), excitation input (I), and sensing lead (S). The B+ post connects directly to the vehicle’s main power line, typically a 10-12 AWG cable, with a ring terminal crimped and soldered for secure attachment. Use a multimeter to verify no short exists between B+ and the housing before proceeding–readings above 0.5 ohms indicate corrosion or insulation failure requiring cleaning or wire replacement.

• Excitation input (I) attaches to the ignition switch’s accessory terminal via a 18-20 AWG conductor. A 5-amp inline fuse must be installed within 7 inches of the connection point to prevent overload.
• Sensing lead (S) taps into the battery’s positive post using the same gauge as the B+ line, ensuring accurate voltage feedback. Avoid splices–corrosion-resistant clamps or a dedicated terminal post are mandatory.
• Ground the case by scraping away paint where the generator mounts to the engine block. Apply dielectric grease to the cleaned area before securing the ground strap.

Test excitation operation before final assembly. With the engine off, turn the ignition to the “on” position–observe a 5-8 amp draw on the excitation circuit. If current exceeds 10 amps, inspect for shorted diodes or improper wiring. Start the engine and confirm system output rises smoothly to 13.8-14.4 volts within 3 seconds of idle. Voltage inconsistencies above 0.3 volts between sensing and B+ posts necessitate rechecking connections.

Route all conductors away from moving parts, exhaust manifolds, and sharp edges. Secure cables every 8-10 inches with nylon ties, using split loom for sections exposed to heat or abrasion. Label both ends of each conductor with heat-shrink tubing and a permanent marker to simplify future diagnostics. After securing the final fastener, apply protective spray to terminals to prevent oxidation.

1. Disconnect the battery negative terminal before performing any work.
2. Remove the existing generator if replacing components.
3. Strip 0.25 inches of insulation from each conductor end, then twist strands tightly.
4. Crimp terminals using a ratcheting tool, then solder for durability.
5. Reinstall the generator, tightening mounting bolts to 18-22 ft-lbs.
6. Reattach the battery negative lead, then verify all connections visually.

Use a digital oscilloscope to check for AC ripple exceeding 100mV–values above indicate failing stator windings or capacitor. Replace the unit if readings persist after re-tightening all connections. For vehicles equipped with electronic fuel injection, disconnect the sensing lead briefly while monitoring idle RPM–any fluctuation confirms proper voltage feedback.

Complete a 30-minute road test, monitoring voltage stability under varying loads (headlights, HVAC, rear defroster). Log readings every 2 minutes; deviations should remain within 0.2 volts. If voltage drops below 13.5 volts at 2000 RPM, inspect the serpentine belt tension (deflection between 0.5-0.75 inches at midpoint) or replace the unit if out of adjustment.

Connecting the Battery Terminal to the Power Generator Accurately

Locate the positive output stud on the charging system–typically marked with a “+” symbol–and securely fasten the main power cable from the battery using a ring terminal and the appropriate hardware. Use a 10mm socket for most setups to achieve at least 15 ft-lbs of torque, ensuring the connection remains vibration-resistant under operating conditions.

Route the cable away from moving components, sharp edges, or heat sources exceeding 120°C. Maintain a minimum clearance of 25mm from exhaust manifolds or turbocharger housings to prevent insulation degradation. If rerouting is necessary, use high-temperature-rated loom or spiral wrap to shield the conductor.

Selecting Proper Cable Gauge

For a 65-amp system, use 6 AWG copper cable; 100-amp units require 4 AWG. Oversized cables (2 AWG for 150+ amp units) reduce voltage drop and heat buildup. Verify cable length–every additional 30cm beyond 1.5m necessitates upgrading one gauge size. Pre-tinned marine-grade cable resists corrosion in humid or saline environments.

Avoid soldering ring terminals; instead, use a hydraulic crimper or calibrated ratcheting tool for cold-swaged connections. Tin-plated terminals prevent oxidation, while adhesive-lined heat shrink tubing seals the joint against moisture ingress. Test continuity after installation–resistance should not exceed 0.1 ohms over a 3m run.

Grounding Considerations

Attach the generator’s grounding lug to a bare metal chassis point with a dedicated 4 AWG cable, ensuring the path avoids painted or undercoated surfaces. Sand the mounting area to bare steel, apply dielectric grease, and secure with a stainless-steel bolt torqued to 25 ft-lbs. For vehicles with isolated battery systems, run a separate ground directly to the battery’s negative terminal.

Verify chassis grounds with a multimeter–voltage drop between the generator case and battery negative should not exceed 0.05V under full load. If readings surpass this threshold, inspect for concealed corrosion, loose fasteners, or insufficient contact surface area. Dissimilar metals (aluminum to steel) require a bimetallic washer to prevent galvanic corrosion.

Temporarily disconnect the cable during initial startup to test for parasitic loads. With the ignition off, current draw should not exceed 50mA. Persistent drain indicates faulty voltage stabilization or a short circuit in the excitation circuit–use an ammeter in series with the positive cable to isolate the fault.

After finalizing connections, start the engine and monitor system voltage at the battery with a digital voltmeter. At 2,000 RPM, readings should stabilize between 13.8V and 14.4V. Fluctuations beyond this range suggest improper excitation control or a faulty sensing circuit–adjust the regulator’s voltage reference or replace the unit if readings persist outside tolerance.
