Complete Guide to Wiring a Four Way Switch Step by Step
Begin by identifying the power source–typically a circuit breaker or fuse box–and confirm it delivers 120V for residential setups. Use a voltmeter to verify live wires before handling any connections. Locate the primary control point where power enters the system; this is critical for proper load distribution.
Required components: Three control units, 14- or 12-gauge copper conductors (depending on amperage), wire nuts, electrical tape, and a ground wire. Ensure the main unit connects directly to the power source with two travelers positioned between intermediate and remote control points. Label each traveler wire to avoid cross-connections during installation.
For installations with more than two control locations, add intermediate units by daisy-chaining travelers in a continuous loop. The remote unit must terminate the sequence, grounding unused wires to prevent signal interference. Avoid looping conductors back on themselves–this creates redundant paths and risks short circuits.
Test each connection with a multimeter set to continuity mode. Activate the system at one location, then verify functionality at all others. If a unit fails, check for reversed traveler connections or improper grounding. Secure all wire nuts with electrical tape to prevent loosening over time, especially in high-vibration areas.
Non-metallic sheathed cable (NM) is standard for indoor use, but outdoor or damp locations require armored cable (AC) or conduit protection. Always comply with local electrical codes–some jurisdictions mandate GFCI protection for circuits controlling multiple access points. For dimmable loads, ensure all units support dimming compatibility to prevent damage to fixtures.
Warning: Cap neutral wires at the power source; never connect them to intermediate or remote units. This disrupts circuit balance and may cause unpredictable behavior. If replacing an existing setup, photograph original connections before disassembly to reference wire positions.
Multi-Point Circuit Configuration Guide
Install traveler terminals on each intermediate control device between the primary power sources–pair wires from the first terminal to matching screws on the next unit, ensuring polarity consistency with brass (hot) and silver (neutral) markers. For 12-gauge copper conductors, maintain a 20-amp breaker capacity at the panel; downgrade to 15-amp for 14-gauge only if existing infrastructure mandates it. Label each terminal during disassembly to avoid miswiring when reassembling: common screws are typically darker, travelers lighter, though verification with a multimeter prevents errors.
Test continuity after securing all connections–energize the circuit and cycle through every device combination, observing correct illumination or outlet activation at each position. If inconsistencies occur, isolate the fault by splitting the setup: disconnect intermediary units and verify the initial and final controls function independently before reintroducing the center segments. Document the completed layout with a photograph and color-coded schematic for future maintenance–red for incoming hot, black for common return, blue and yellow for travelers–to expedite troubleshooting.
Essential Gear for Multi-Location Control Setup
Begin with a voltage tester rated for the circuit’s amperage–non-contact models like the Klein NCVT-3 detect live wires up to 1000V AC without direct contact. Standard analog multimeters are insufficient for this task; ensure the selected device quantifies both AC and DC with a minimum 600V range. Verify probe tips meet CAT III safety standards to prevent arc flash during measurement.
For cable management, procure cable strippers aligned to the conductor gauge–typically 14 or 12 AWG for residential circuits. Klein Tools’ Katapult or Ideal T-Stripper negates redundant twisting while preventing insulation damage. Avoid utility knives; they introduce inconsistent cuts, risking short circuits when terminals are tightened.
Terminal Connections and Support Hardware
| Component | Specification | Purpose |
|---|---|---|
| Wire nuts | Screw-on connectors (e.g., Ideal 73B, 18-12 AWG) | Secure splices in junction boxes; use yellow for 12 AWG, red for 14 AWG. |
| Push-in connectors | Wago 221 series (2/3/5 conductors) | Tool-free splicing; rated for 300V, 20A continuous load. |
| Device terminals | Screw-type brass (back-wired not recommended) | Ensures low-resistance contact; torque to 12-15 in-lbs. |
| Grounding pigtail | Green 14 AWG THHN | Bonds all control points to circuit ground. |
Select junction boxes based on fill capacity–4 × 4″ square boxes accommodate up to nine conductors (derated by NEC 314.16). Use steel for metal-clad circuits; PVC for non-metallic sheathed wiring. Include blank covers for intermediate points, and ensure depth allows 6″ conductor length per NEC 314.16(B)(1).
Labeling tools are non-negotiable: brother P-Touch (laminate tape) or Dymo Rhino (heat-shrink labels) organize traveler, common, and ground conductors. Avoid masking tape–it degrades in hot enclosures. For precision marking, employ a laser measure (e.g., Leica DISTO) to verify conduit runs meet minimum bend radius per NEC 358.24.
Safety and Verification
Arc-rated gloves (Class 2, 70E HRC 1) and face shield (ANSI Z87.1+) are mandatory when terminating live circuits. Use a torque screwdriver (Wera 7400 series) to tighten terminals–under-torqued screws overheat, while overtightening strips threads. For final verification, employ a loop tester (Fluke 1587) to confirm continuity across all control combinations before energizing.
Keep a fiberglass ladder (Type IA, 300 lb rating) on-site–aluminum ladders conduct stray currents near service panels. Store all tools in an ESD-rated case to prevent static discharge in low-humidity environments, which can corrupt digital test equipment calibration.

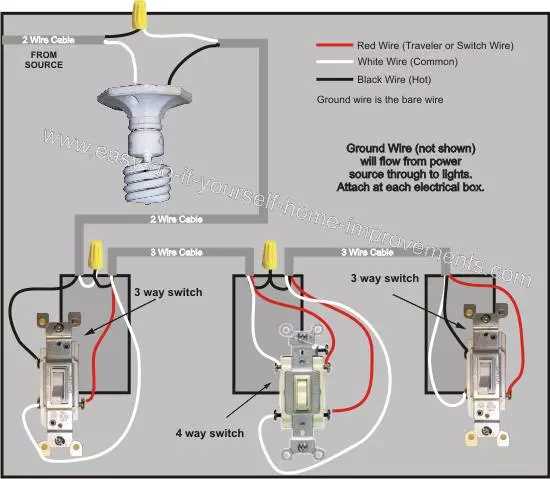

Detailed Schematic Guide for Multi-Location Circuit Integration
Begin by identifying the primary control points: two three-terminal devices at each end and one intermediate connector positioned centrally. Label every conductor–black (hot), red (traveler), white (neutral), and bare copper (ground)–to prevent misalignment. Source the incoming live feed into the first terminal block’s common port, ensuring the travelers exit through brass screws while the neutral bypasses all toggles, continuing directly to the light fixture.
Connect the second pair of travelers–from the middle unit–to the corresponding brass terminals of the final toggle. Verify polarity by confirming the red and black lines cross between the central and end devices without touching. Secure all ground wires under green screws at each junction box, bonding them with a pigtail if multiple cables converge. Test continuity before energizing: toggle each actuator individually to confirm the load cycles on/off independently, ruling out shorts or reversed links.
For configurations exceeding three locations, splice an additional intermediate switch into the traveler path, maintaining consistent color coding. Avoid daisy-chaining grounds; instead, route a separate bare copper wire from each box directly to the service panel’s bus bar. When bonding metallic boxes, attach a grounding screw to the enclosure and loop the pigtail through it. Use a multimeter to measure voltage between travelers (should read 0V when off, source voltage when on) and neutral (always 0V) to validate proper sequencing before finalizing connections.
Locating Traveler and Primary Contact Points on Multi-Path Toggle Devices
Examine the terminal screws on the device first. On most models, travelers appear as matching pairs–either brass or silver screws positioned on the same side. The primary contact is typically darker (often black) and sits alone, opposite or between the travelers. Check for embossed markings: “COM” for common, and “T” or numbers for travelers.
Use a continuity tester to confirm roles when power is disconnected. Probe each screw against the grounding point. The primary terminal will show continuity with only one traveler wire at a time, while travelers will alternate connectivity depending on lever position. Three-way systems connected upstream/downstream reveal this pattern clearly.
- Leviton toggle devices: Primary screw sits at the top or bottom; travelers flank the sides.
- Lutron versions: Common is often labeled “LINE” or “LOAD” on dimmable units.
- GE industrial toggles: Use Roman numerals (I, II) for travelers; common remains marked separately.
For unlabeled devices, strip a small section of wire from each conductor. Match wire colors to terminal pairs–travelers usually share identical coloring (red-red or black-black), while the primary uses a distinct hue (black or blue). Avoid relying solely on color-coding; verify with testing tools.
Handling Older or Non-Standard Installations
Pre-1980s toggles may lack markings entirely. In these cases, locate the primary by process of elimination–it’s the single terminal connecting to a wire that doesn’t pair with another. Travelers will trace back to three-way junctions elsewhere in the circuit. On split-circuit devices (e.g., combination fan controllers), identify input/output terminals before proceeding.
If corrosion obscures terminals, clean with emery cloth before testing. Replace the mechanism if pitting is severe–traveler terminals must maintain low-resistance contact. Document connections before disassembly: sketch positions or photograph screws and wires for reattachment accuracy.
