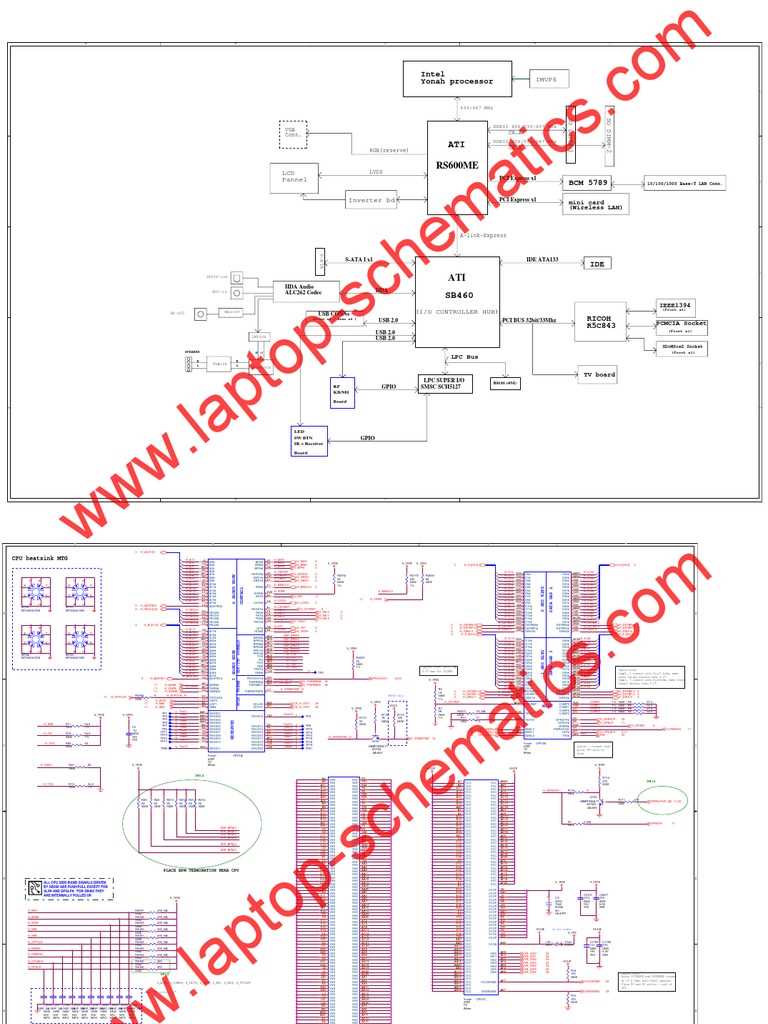

Where to Find Free Laptop Schematics and Circuit Diagrams Online

Start with manufacturer service guides–HP, Dell, and Lenovo release official repair documentation containing board-level layouts. HP’s Service Media Library archives schematics under “disassembly” sections, often labeled as “system board diagrams” or “component location charts.” Dell’s Enterprise Technical Support portal hosts downloadable PDFs with annotated circuit paths, including power rails and signal traces. Lenovo’s Hardware Reference Manuals are verified through their Product Repair site; search using the machine’s model number followed by “-HRM.”

Third-party repositories aggregate unverified but high-utility blueprints. The Electronics Repair Wiki curates user-submitted files for older models, with layer-by-layer PCB scans for brands like Acer and Asus. Badcaps Forums hosts thread attachments–filter by “motherboard layout,” “pinout,” or “BIOS chip connections.” For newer devices, check GitHub repositories tagged with “pcb reverse-engineering”; projects like OpenBoardView bundle annotated Gerber files and netlists.

Extract schematics from firmware when documentation is unavailable. Use UEFITool to parse BIOS updates; embedded board layouts often appear in DXE drivers or ACPI tables. For ARM-based devices, disassemble the embedded controller firmware with Ghidra–look for memory-mapped I/O registers that reveal voltage regulators and peripheral connections. Cross-reference findings with datasheets for onboard chips (e.g., ITE EC controllers or Chicony keyboard ICs); manufacturers like Texas Instruments and NXP publish full pinouts.

Direct PCB inspection yields accurate schematics for trace routing. Apply isopropyl alcohol to remove solder mask on priority areas–focus on power delivery circuits near the CPU and RAM slots. Use a USB microscope (400x magnification) to document vias and component clusters. Software tools like KiCad or EasyEDA allow recreating layouts from photos; import screenshots as background layers and trace connections manually. Label every component (e.g., Q3 = AO3401 MOSFET, C14 = 22µF ceramic) to avoid signal confusion later.

Leverage community-driven validation for schematic accuracy. Upload draft diagrams to Reddit’s r/electronicsrepair for peer review–specify the model variant and PCB revision. Telegram groups dedicated to hardware reverse-engineering (e.g., @PCBRepair) provide real-time feedback on missing or misidentified connections. Document all changes in a changelog file–include date, reviewer username, and corrections (e.g., “Corrected MOSFET type on +3V3 rail–was listed as 5N70Z, actual is SI7450”).

For signal analysis, probe critical traces with a logic analyzer (Saleae or DSLogic). Attach to SPI bus lines, I2C clock/data pins, and LPC debug headers to capture real-time communication between the EC, BIOS, and peripherals. Save captured data as VCD or CSV files; cross-reference with the schematics to verify pin assignments. If traces disconnect under load, use a thermal camera to identify weak solder joints or overheating components–common failure points include power MOSFETs near the charging circuit.

Store schematics in version-controlled formats. Use Git for KiCad/EasyEDA projects–commit incremental changes with descriptive messages (e.g., “Added DDR4 termination resistor matrix”). Export final diagrams as PDFs with embedded fonts and layer visibility toggles. Archive all files on multiple platforms: IPFS for decentralized access, Internet Archive for long-term preservation, and Google Drive (encrypted) for collaborators. Include metadata such as PCB revision, board color (e.g., “green solder mask A3G”), and measurement calibrations (e.g., “trace width = 0.2mm”).

How to Obtain Reverse-Engineered Portable Computer Blueprints

Start by locating service manuals from repair-focused databases like Bad Caps Forum or iFixit. These repositories often include detailed circuit references for models such as Dell Latitude E6400, Lenovo ThinkPad T430, or HP EliteBook 8470p. Verify the revision number–schematics for board versions A01 and A03 may differ significantly in power delivery or memory routing. Use a PDF analyzer like PDF-XChange Editor to extract netlists from silkscreen layers, which reveal component designators (e.g., U18 for EC controller) and trace paths.

• Filter schematics by fault history–prioritize models with common failures like:
  1. Asus X55A: corrupted BIOS flash (U32)
  2. Acer Aspire 5742: no power due to shorted C724 (input capacitor)
  3. Apple MacBook Air A1466: standby voltage issue on Q19
• Cross-reference board views with thermal images using FLIR Tools. Hotspots around inductors (L2, L5) or MOSFETs (Q7, Q12) often indicate prior repairs or design flaws.
• For missing components, probe adjacent pads with a multimeter in continuity mode. Trace vias to ground planes–common pull-up resistors on I2C buses (R801, R802) are typically 4.7KΩ.

Convert extracted data into a reusable format like KiCad or Altium by importing netlists into a new project. For power rails, group components by voltage domain: 5V_SUS (super I/O), 3V3_AUX (audio codec), 1V5_DDR (memory termination). Add test points near critical ICs–label them TP_EC, TP_VDD, TP_VREF–to streamline diagnostics. If creating a custom board spin, isolate the embedded controller (EC) traces first, as these handle keyboard input, battery charging, and fan control. EC firmware (e.g., IT8586E) often resides at Uxx near SPI flash (W25Q64). Document every modification in a version-controlled repository, noting deprecated components (e.g., replaced EC Nuvoton NPCE795LA0BX with ITE IT5570E).

Trusted Sources for Electronic Repair Blueprints Online

Manufacturers’ official support portals often provide service manuals with circuit layouts for authorized technicians. For instance, Dell’s Premier Support site hosts detailed hardware guides, including board-level schematics under service tags. HP’s Business Support Center offers similar documentation–search using model prefixes like “HP Pavilion” followed by “disassembly” or “service guide.”

Independent repair communities archive rare documentation that slips through corporate cracks. Electro-Tech-Online maintains a thread where users upload compressed schematic packs sorted by brand. Badcaps Forum threads frequently link to direct downloads of OEM-originated PDFs, especially for older models or devices from lesser-known manufacturers like Fujitsu or Panasonic.

Specialized electronics repositories compile schematics from multiple brands. Vinafix.vn, a Vietnamese tech repair hub, hosts downloadable ZIP collections categorized by device category–navigate to “Mainboard” sections for precise motherboard layouts. Bios Mods offers BIOS-related diagrams useful for tracing power delivery paths on Logic Boards.

Academic and engineering platforms occasionally redistribute proprietary material. Archive.org scans abandoned manufacturer websites, sometimes preserving technical reference manuals no longer hosted elsewhere. Filter by date, targeting uploads between 2010-2015 when OEM public documentation policies were less restrictive.

Repair-focused Discord servers aggregate verified links to schematics crowdsourced from technician networks. Channels like r/TechSupport’s repair hub pin Google Drive folders containing curated schematic sets; these are updated periodically based on member contributions. Look for moderated “resources” sections with tags like “verified” or “tested.”

Component distributors sometimes attach reference documents to product listings. Digi-Key and Mouser include pinned circuit layouts for evaluation boards and development kits–cross-referencing these with target model numbers can yield partial traces. Combine with EasyEDA community projects where hobbyists reverse-engineered specific notebook series.

Europol-flagged piracy sites occasionally host private stashes of service documentation, though access carries risks. Stick to mirrored links from reputable torrent trackers with recurrent uploader accounts and torrent comments confirming document authenticity–avoid generic archives lacking specific model references.

Mastering Board-Level Blueprints: A Practical Guide

Begin by identifying power rails on the PCB layout–trace lines labeled VCC, 3V3, 5V, or similar. Use a multimeter in continuity mode to verify connections between components and their corresponding voltage domains. Isolate ground points first (GND) as they serve as the baseline for all measurements. Record findings in a table:

Component	Voltage Rail	Expected Reading (V)	Actual Reading (V)	Notes
U42 (EC Controller)	3V3	3.3		Check C120 capacitance
Q7 (MOSFET)	5V	5.0		Gate pulled high?

Decode IC pinouts by cross-referencing datasheets with silkscreen labels. Focus on power pins (VDD/VCC), ground (VSS/GND), and control signals (EN, PWR_OK). For chips without visible markings, use thermal imaging to locate hotspots–active regulators and MCUs typically dissipate more heat. Compare power-on sequences: a typical sequence starts with standby rails (3V3_ALW), followed by main rails (5V_SYS), and lastly, CPU/GPU cores (1V05).

Trace signal paths using a schematic viewer’s net-highlighting feature. Prioritize high-speed lines (PCIe, DDR, SATA) and critical clocks (XTAL_IN, CLK_GEN). Measure signal integrity with an oscilloscope–look for clean square waves without overshoot (

• Missing pull-up/down resistors on GPIO pins
• Corroded vias under BGA packages
• Cracked solder joints near connectors
• Shorted capacitors (

Map fault indicators like blinking LEDs or beep codes to specific sub-circuits. A 3-beep error often correlates with RAM initialization failure–check the memory controller’s RESET# and SMBus lines. For no-power conditions, probe the EC’s ACIN and BATTERY pins to confirm input voltage. Use a bench supply to force rails on: start with DC_IN (19V typical), then manually enable downstream rails via the EC’s S5_ON signal if needed.

Reverse-engineer unknown sections by identifying repeating patterns. Linear regulators often cluster near capacitors with similar values (e.g., 10μF + 0.1μF). Switching regulators exhibit larger inductors and diode pairs. For firmware chips, locate the SPI_CS, SCLK, and SI/SO lines–these are critical for BIOS recovery. Document your annotations directly on the PCB layout using a highlighter tool; focus on:

• Power trees: input → regulators → loads
• Bus architectures: SPI/I2C/UART routing
• Protection circuits: PGOOD, OCP, thermal sensors
• Reset cascades: PLTRST#, SYS_RST
