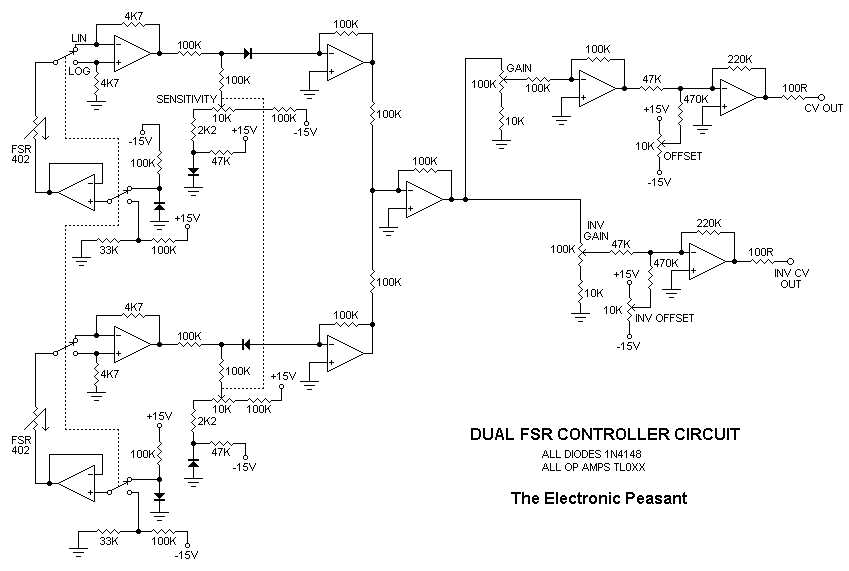

Complete FSR Force Sensor Circuit Schematic with Wiring Guide
Begin with a voltage divider configuration to convert resistance changes into readable signals. Use a 5V supply with a 10kΩ fixed resistor in series–this ensures optimal sensitivity for most applications. Position the sensor between the resistor and ground to stabilize output voltage fluctuations. Avoid exceeding 1mA through the sensing element; burnout occurs rapidly beyond this threshold.
For dynamic response improvements, add a 0.1µF capacitor across the sensor. This filters high-frequency noise without distorting gradual force variations. If linearity issues arise, calibrate by adjusting the fixed resistor value–lower resistance sharpens sensitivity but reduces range. Test with known weights (e.g., 10g–500g) to map output voltage against applied force.
Use an operational amplifier like the LM358 for signal conditioning if raw output lacks precision. Configure it as a non-inverting amplifier with a gain of 2–5 to amplify subtle changes without clipping. Connect the divider’s output directly to the op-amp’s non-inverting input; keep the inverting input tied to the voltage divider’s midpoint for offset nulling.
For microcontroller integration, scale the output to the ADC’s reference voltage. A 10-bit ADC (e.g., Arduino) requires dividing the 5V signal to 1.1V using a two-resistor network–calculate values with the formula Vout = Vin × (R2 / (R1 + R2)). Verify calibration by checking if 0V corresponds to no force and 1.1V to maximum load.
Shield the wiring with twisted pairs or coaxial cables to minimize interference, especially in environments with motors or RF sources. Avoid soldering directly to the sensor; use conductive epoxy or low-temperature solder (150°C max) to prevent delamination. For long-term deployments, include a 1kΩ series resistor to protect against ESD spikes.
Practical Guide to Building Force-Sensitive Resistor Setups
Begin by selecting a resistor value between 10kΩ and 100kΩ for your voltage divider–lower values increase sensitivity but drain battery faster. Connect the sensor’s active zone to the input of an operational amplifier (op-amp) like the LM358, configured as a non-inverting buffer to prevent loading errors. Power the op-amp with a dual supply (±5V) or single-ended supply (5V) with a virtual ground at mid-rail (2.5V) created using two equal resistors. This setup stabilizes readings at rest and sharpens response edges under applied pressure.
Component Placement and Trace Routing
Keep analog traces short–ideally under 3cm–between the sensor and amplifier to minimize noise pickup. Use a ground plane beneath the signal path and separate it from digital circuitry to avoid interference. For PCB designs, place decoupling capacitors (0.1µF) as close as possible to the op-amp’s power pins. If hand-wiring, twist sensor leads with ground wires to reduce electromagnetic interference. Avoid overlaps between sensor cables and high-current paths (e.g., motor drivers) to prevent false triggers.
Calibrate the output by applying known weights (e.g., 50g, 200g, 1kg) to the sensor’s center. Record the analog voltage readings across the range, then map them to a lookup table or apply linear interpolation for precise force measurement. For real-time applications, use a microcontroller’s ADC with at least 10-bit resolution–the ATmega328P’s 1024 steps provide sufficient granularity. Test dynamic response by tapping the sensor; if hysteresis exceeds 10%, add a Schmitt trigger (e.g., 74HC14) to clean up transitional noise before digitization.
Selecting the Right Pressure-Responsive Element for Your Application
Prioritize force range compatibility by matching the sensor’s specifications to your project’s expected load limits. Devices rated for 0–1 N suit delicate touch interfaces, while 0–100 N models handle industrial presses or robotic grippers. Verify linearity across the intended range–non-linear behavior increases post-processing overhead. Consult datasheets for hysteresis values; deviations above ±5% may require compensation algorithms.
Key Physical Attributes to Assess
- Active area: Larger surfaces (12–25 mm) average pressure readings over uneven contacts, reducing noise. Smaller diameters (3–8 mm) detect precise point loads but demand finer alignment.
- Thickness: Standard 0.2–0.5 mm films integrate into PCB stacks; ultra-thin (
- Substrate: Polyester-backed units resist moisture; fiberglass-reinforced versions endure repeated flexing in dynamic environments.
- Leads: Solder tabs simplify prototyping; pre-attached flex cables eliminate manual termination errors in production.
Evaluate environmental resilience before deployment. Look for sensors with operating temperatures spanning –40°C to +85°C if outdoor exposure is likely. Humidity resistance rating (typically IP40–IP67) determines whether conformal coating or encapsulation is necessary. Chemical exposure warrants models with inert coatings–fluoropolymers repel oils and solvents, while silicone options degrade under prolonged UV light.
- Calculate required resolution: A 10-bit ADC interface demands ±0.1% accuracy; 8-bit suffices for binary on/off thresholds.
- Determine response time: Film-based elements settle within 10–50 ms; conductive ink variants react in
- Budget for drift: Expect
- Test sensitivity uniformity: Manufacturers like Interlink and Tekscan publish coefficient of variation data; aim for
Factor in integration complexity during selection. Pre-assembled modules with amplification circuitry reduce soldering steps but limit customization. Raw sensor pads require pull-down resistors and noise filtering–utilize 10 kΩ–100 kΩ resistors and a 0.1 µF decoupling capacitor for stable readings. For low-power designs, verify standby current consumption; values below 1 µA extend battery life in portable applications.
Constructing a Pressure-Sensing Schematic: Core Connections

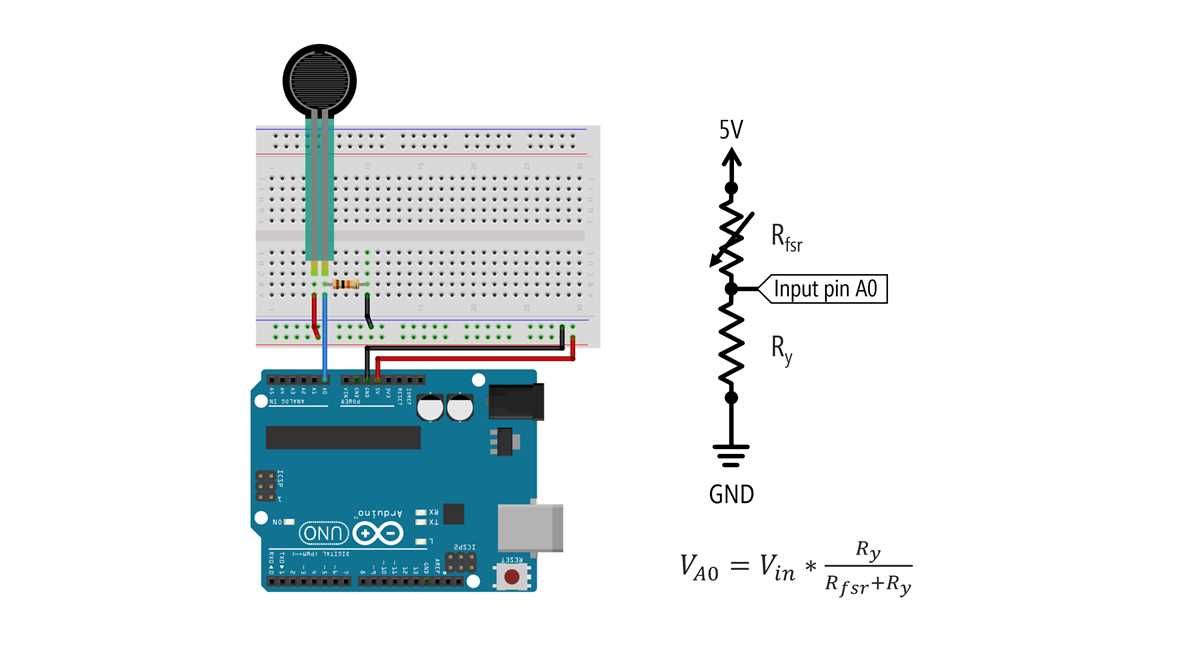

Begin by connecting the force-sensitive resistor’s output directly to an analog input pin on your microcontroller–Arduino Uno uses A0, ESP32 prefers GPIO 34. Secure a 10kΩ pull-down resistor between the sensor’s signal line and ground to stabilize readings; failure to include this introduces signal noise in low-pressure scenarios. Verify voltage compatibility: most sensors operate at 3.3V or 5V; exceeding this risks permanent damage. For stable power, bypass capacitors (0.1µF) should be placed as close as possible to the sensor’s power and ground terminals.
Layout routing demands attention: keep traces under 5cm to prevent parasitic capacitance, especially in high-sensitivity applications. If wiring extends beyond this, shielded cable (grounded foil) reduces EMI interference from motors or switching regulators. Avoid parallel runs with high-current lines (e.g., servo rails), as induced voltages skew measurements. Twisted-pair wiring (sensor signal + ground) further improves noise immunity for distances over 10cm.
Voltage Divider Configuration: Key Ratios
| Load Resistance | Recommended Series Resistor | Output Range (0–5V) | Use Case |
|---|---|---|---|
| 5kΩ variable | 4.7kΩ | 0.9V–4.2V | Low-power touch detection |
| 100kΩ variable | 10kΩ | 0.4V–4.8V | High-sensitivity weighing |
| 200kΩ variable | 22kΩ | 0.6V–3.3V | Compact wearable sensors |
Select series resistors based on the sensor’s pressure range: steeper curves require smaller resistors (4.7kΩ for 0–10N), while broader ranges (0–100N) pair better with 22kΩ. Calibrate thresholds empirically–5% tolerance resistors introduce minimal error, but precision applications benefit from 1% components. For dynamic loads, add a 1kΩ series resistor to the microcontroller pin to limit current during edge transitions, preventing false triggers from capacitive coupling.
Testing reveals critical behaviors: apply uniform pressure across the sensing area; uneven loads (e.g., a fingertip on the edge) produce inconsistent readings. A rigid backing (e.g., acrylic sheet cut to the sensor’s diameter) distributes force evenly. For repeatability, sample the analog input at 1kHz and average eight readings; this smooths transient spikes without latency. Debugging: disconnect the sensor and ground the input pin–persistent nonzero values indicate floating inputs or ground loops, necessitating reflow of solder joints or power isolation.
Common Pitfalls and Remediation
Creep (output drift over time under constant load) affects polymer-based sensors; mitigate by pulsing power (20ms on/80ms off) instead of continuous operation. Hysteresis (output variance between ascending/descending loads) reaches 5–10% in low-cost variants–software compensation via lookup tables corrects this. If readings fluctuate by ±20% under consistent pressure, replace the sensor or check for adhesive failure beneath the active layer, which alters mechanical properties.
Calculating Resistor Values for Precise Force Detection
Begin by selecting a pull-down resistor in the range of 3.3 kΩ to 10 kΩ for standard load cell interfaces operating at 5V. This balances sensitivity and noise rejection while avoiding signal saturation at maximum force. For 3.3V systems, reduce the upper limit to 6.8 kΩ to maintain linear output.
Use the voltage divider equation Vout = Vcc × (Rfixed / (Rfixed + Rsensor)) to determine the expected output swing. For example, with a 5V supply and 5 kΩ pull-down, a sensor resistance drop from 1 MΩ (no force) to 1 kΩ (full load) yields a Vout shift from ~4.995V to ~0.455V–ample margin for ADC readings.
Match the resistor value to the sensor’s logarithmic response curve by testing at three critical points: unloaded (typically 1 MΩ–10 MΩ), half-scale (50 kΩ–200 kΩ), and full-scale (1 kΩ–10 kΩ). Logarithmic scaling compresses low-force data; linearize with a lookup table if force resolution below 10% of full scale is required.
Add a 100 nF capacitor in parallel with the pull-down resistor to filter 50–60 Hz powerline noise. For dynamic measurements, pair with a 1 kΩ series resistor to form a low-pass filter cutting off at ~1.6 kHz, preventing aliasing in 10-bit ADC systems sampling at 10 kHz.
For differential configurations, use matched resistor pairs (e.g., 1% tolerance) on both sensor legs to reject common-mode noise. A 100 kΩ reference resistor on the non-sensing side maintains symmetry; deviation above 2% introduces offset errors greater than 5 mV at full load.
Verify resistor power ratings–most small-signal applications require only 1/8 W, but sustained loads above 0.1 A demand 1/4 W or higher. Calculate dissipation with P = I² × R; a 2.2 kΩ resistor at 5V draws ~2.3 mA, dissipating ~12 mW, well within safe limits.
Temperature drift impacts accuracy–use metal film resistors with ±50 ppm/°C stability for environments exceeding 25°C variance. For sub-Ω precision, incorporate a Kelvin bridge configuration, employing four-terminal sensing to eliminate lead resistance errors.
Calibrate by applying known weights at 10%, 50%, and 90% of the sensor’s rated range. Plot Vout vs. force and fit a 2nd-order polynomial to compensate for non-linearity. Document the polynomial coefficients in firmware for runtime correction, ensuring ±1% repeatability across the measurement spectrum.
