Understanding Fuel Injection System Schematics for Engine Performance
The electronic control unit (ECU) manages spray timing with precision based on sensor feedback–typically ±0.2 milliseconds for optimal air-fuel ratios in multi-port layouts. Begin by identifying the primary pump (often a roller-cell or turbine type rated at 3-5 bar) and trace its pressure line to the common rail or distributor block in sequential designs. Critical failure points include clogged filters (replace every 30,000 km) and corroded electrical connectors (clean with deoxidizing spray and torque to 2.5 Nm).
For direct systems, the injector nozzles require specific opening pressures–35-200 bar for gasoline, 180-250 MPa for diesel variants. Map the wiring harness: twisted-pair cables (16-18 AWG) reduce interference, while shielded ground lines prevent voltage drops. Troubleshoot erratic spray patterns by checking ECU calibration tables–offset values should not exceed ±3% from factory specs. Use an oscilloscope to verify pulsewidth signals: healthy waveforms show sharp rise times (<0.1 ms) and consistent peak voltages (4.5-5.5V).
Replace O-rings on high-pressure lines with fluorocarbon-based seals (resistant to ethanol blends up to E85) and coat threads with anaerobic sealant (cure time: 2 hours). For returnless systems, pressure regulators must maintain 250-350 kPa–test with a digital manometer (accuracy ±0.5%) bypassing the tank sender unit. Critical tolerances: injector pintle lift (0.1-0.3 mm) and nozzle hole diameters (0.12-0.25 mm for high-flow applications).

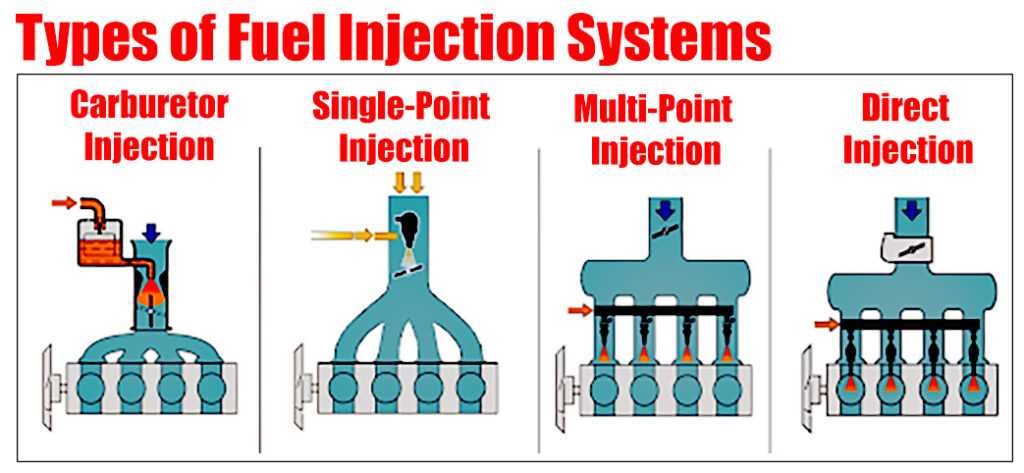

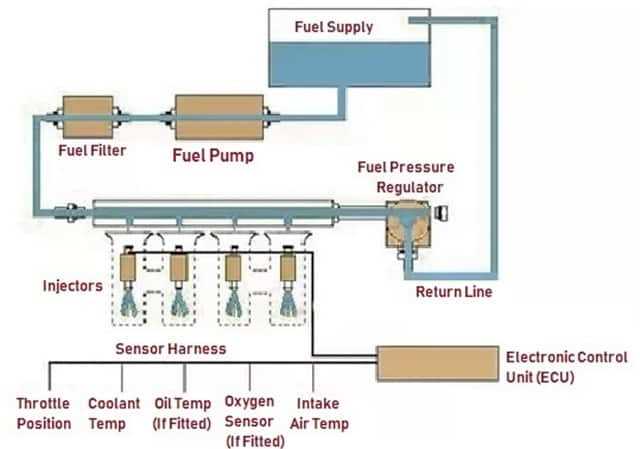

Automotive Fuel Delivery System Visual Guide
Start by identifying the primary circuit components: an electric pump, pressure regulator, intake manifold sensors, and electronically controlled nozzles. The pump maintains 3-5 bar (43-72 psi) at the rail, while the regulator adjusts excess flow via a return line to the tank. Sensors–intake air temperature (IAT), mass airflow (MAF), and throttle position (TPS)–feed data to the ECU, which adjusts nozzle pulse width in 0.2-5 millisecond bursts per cycle. Verify wiring colors: red for power (12V), black for ground, and yellow/blue stripes for signal leads. Use a multimeter to check resistance across injector coils–12-17 ohms for low-impedance, 12-16 ohms for high-impedance–any deviation indicates a faulty unit.
Critical Troubleshooting Points
Inspect the rail for debris or corrosion–clean with 90% isopropyl alcohol and a lint-free cloth. Replace O-rings on injectors with Viton seals resistant to ethanol blends. Probe the MAF sensor voltage: 0.5-1.5V idle, 3-4.5V at full load–values outside this range require recalibration or replacement. Test nozzle spray patterns by removing them and placing in a test container with 20-30 psi pressure; uniform cones confirm proper operation, while weak or uneven streams signal blockage. When reconnecting, torque the rail bolts to 15-18 Nm to prevent leaks without warping the housing.

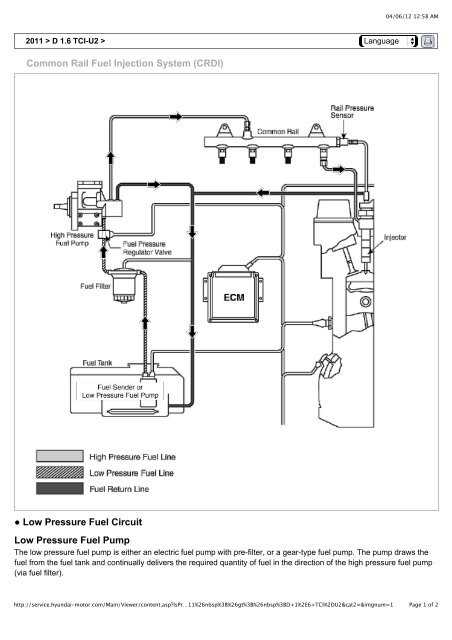

Core Elements of an Engine Supply Network Layout
Begin by mapping the delivery rail as the central spine of the system–position it within 30 cm of the cylinder head to minimize pressure fluctuations. Ensure its internal diameter matches the OEM specifications: typically 6–8 mm for naturally aspirated engines, 8–10 mm for forced-induction applications. Use seamless stainless steel tubing (SAE 304) to prevent corrosion-induced leaks; coated aluminum alternatives degrade under prolonged exposure to ethanol blends.
Select a metering valve with a response time under 2 ms to maintain precise air-fuel ratios during transient conditions. Common failure points include contaminated pintle surfaces and worn return springs–opt for units with self-cleaning mechanisms or replace them every 80,000 km for direct-port layouts. For sequential systems, synchronize valve activation with the camshaft position sensor to avoid cylinder misfires at startup.
| Component | Optimal Pressure Range (Bar) | Failure Symptoms |
|---|---|---|
| Low-Pressure Pump | 2.5–4.0 | Hard starting, lean hesitation |
| High-Pressure Pump | 100–200 (GDI) | Knocking, rough idle below 1500 RPM |
| Regulator | 3.0–5.0 | Over-rich mixtures, fouled spark plugs |
Integrate a pressure regulator downstream of the rail with a vacuum reference line to compensate for load variations. Set the baseline pressure at 3.5 bar for port-injected engines; adjust to 4.5 bar if using a turbocharger with a compressor outlet temperature exceeding 120°C. Install a Schrader valve for diagnostics–attach a gauge during cold starts to verify pressure holds within ±0.2 bar of the target.
Route all feeder lines with a minimum bend radius of 3× the tubing diameter to prevent flow restriction. Use PTFE-lined braided stainless steel for high-temperature zones (e.g., near the exhaust manifold); nylon-coated lines suffice for cooler areas but degrade above 130°C. Secure lines with insulated clamps every 20 cm to prevent vibration-induced cracks–failure often manifests as a 0.3–0.5 bar pressure drop at idle.
Locate the air mass sensor upstream of the throttle body, at least 15 cm from any bends, to ensure laminar flow readings. Choose hot-film over hot-wire types for E100 compatibility; recalibrate the sensor offset every 20,000 km using a scan tool with live data logging. A drift of ±2% in reported airflow triggers ECU error code P0102, typically caused by contamination or a failing voltage regulator.
For forced-induction setups, add a liquid-to-air intercooler with a flow rate matching the compressor’s CFM. Size the intercooler core to maintain intake temperatures below 50°C at full load–values above 60°C reduce density by 3–5%, increasing knock risk. Use a 3-bar map sensor to account for the elevated pressure; map the ECU using a dyno to avoid timing retard at wide-open throttle.
Ground all electrical connections to the chassis via a dedicated 4 AWG cable, not the battery negative terminal, to prevent voltage spikes. Apply dielectric grease to connectors and inspect for oxidation every 12 months–resistance above 0.1 Ω triggers misfire codes. For high-performance applications, replace the stock relay with a solid-state unit rated for 50A continuous current to avoid thermal cutoff under sustained loads.
Interpreting Port Spray Delivery Electrical Blueprints
Locate the ECU connector first–it’s marked by a rectangular symbol with numbered pins. Match these numbers to the corresponding labels in the layout, as pin assignments dictate signal flow. Common ECU outputs include spray valve triggers, sensor feeds, and power distribution lines, each routed through colored wires. Verify pinouts against the manufacturer’s documentation; a single misalignment disrupts entire cycles.
Trace injector harness paths methodically:
- Thicker red or brown lines denote +12V supply rails–these feed directly from the relay or fuse box.
- Black wires are almost always ground returns, terminating at chassis or engine block points.
- Smaller gauge orange, purple, or green wires handle pulse-width signals, linking ECU to each valve bank.
Cross-reference harness colors with the legend; many layouts use abbreviated labels (e.g., “INJ1,” “VPWR”) stamped next to connectors.
Identify sensor circuits by their distinct symbols: a thermistor icon for temperature inputs, a wavy line for air meters, or a piezoresistive curve for pressure pickups. These components send low-voltage analog signals (typically 0.5–4.5V) to the ECU via thin twisted pairs–shielding may be marked by a dashed outline. Expect pulldown resistors on certain inputs to prevent floating voltages.
Isolate power control elements next. The relay box is usually drawn as a rectangle with coil and switch contacts. Look for a switching transistor symbol if the blueprint includes solid-state control–gate, drain, and source labels confirm MOSFET or IGBT drivers. Check fuse ratings; 10–20A fuses protect spray valve circuits, while 30A+ handles main pump feeds. If a layout shows a diode across valves, it’s suppressing voltage spikes during solenoid collapse.
Follow signal flow from ECU to actuators:
- Start at the ECU pin labeled for a specific cylinder (e.g., “Cyl 1 Spray”).
- Track the wire to the valve connector–note any splices or junctions.
- Confirm the ground return path merges with other valve grounds or has a dedicated ECU pin.
- Verify relay or ignition-switched power feeds tie into the valve’s positive terminal.
- Cross-check against sensor inputs (MAP, TPS) that modulate spray duration.
Use a multimeter to validate continuity; resistance should read <1Ω for supply lines and 10–15Ω across valve coils. Any deviation suggests corroded terminals or internal faults.
Step-by-Step Assembly of a Direct Flow Metering Blueprint
Begin by securing the high-pressure pump mounting bracket to the engine block using M10 bolts with a torque spec of 45 Nm. Position the bracket at a 15-degree angle relative to the crankshaft centerline to ensure optimal fluid feed alignment. Verify the bracket’s alignment with a dial gauge before final tightening–misalignment exceeding 0.2 mm will disrupt flow distribution.
Integrating the Delivery Circuit
Attach the rail to the intake manifold flange with ISO 6149 fittings, applying thread locker to all connections. Route the feed line from the pump to the rail using 8 mm stainless steel tubing, maintaining a minimum bend radius of 30 mm to prevent kinking. Install inline dampeners at mid-point and rail inlet to suppress pressure spikes–target a baseline of 150 bar with ±5% tolerance under load.
Calibrate the solenoid valves by connecting the control module via a 12-pin harness. Set the PWM duty cycle to 72% for start-up and adjust in 3% increments during bench testing. Ensure the nozzle sac volume does not exceed 0.35 cc–excess volume causes after-drip, reducing combustion efficiency by up to 12%. Use a 4.5 MPa relief valve on the return line to protect against over-pressurization.
Finalize the layout by grounding the rail to the engine block with a 6 AWG braided cable. Verify all welds on the manifold adapter plate with dye penetrant–any micro-fractures will cause pressure loss beyond 200 bar. Test the system with compressed nitrogen at 220 bar before connecting to the tank to confirm leak-free operation.
