Complete Fuel Pump Relay Bypass Wiring Guide and Circuit Setup

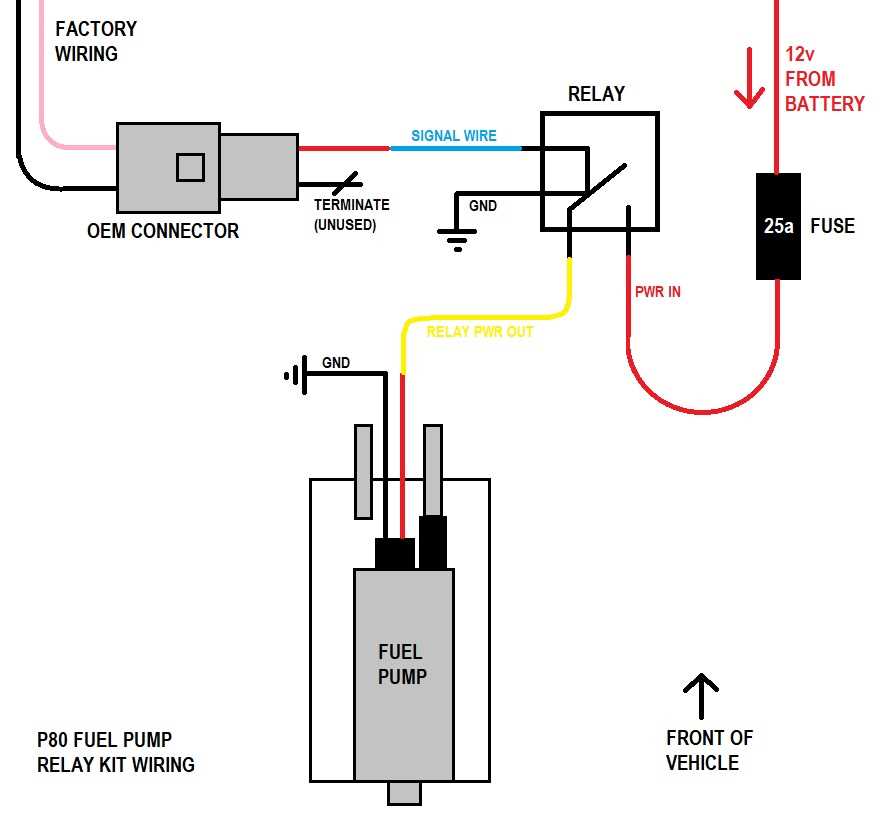

For vehicles experiencing intermittent power failure to the primary fuel delivery system, a temporary manual override can restore operation in under 10 minutes. Locate the control module (typically a 4-6 pin rectangular connector near the engine bay fuse box) and disconnect the existing signal wire–usually a thin wire (AWG 18-22) with colored insulation like purple/white, pink/black, or yellow/red stripe. Use a 10-amp inline fuse holder with matching gauge wire to bridge the disconnected circuit directly to the switched ignition terminal (12V+ on key activation). Verify polarity with a multimeter–incorrect connection risks damaging the vehicle’s ECM or triggering a fault code (P0230-P0232).
This modification bypasses the factory switching mechanism, forcing constant power to the delivery solenoid the moment the ignition is engaged. Do not drive with this setup indefinitely–it eliminates safety features like automatic shutdown during accidents. Replacement of the original switching unit should occur within 72 hours to prevent strain on the electrical system. For turbocharged or high-performance engines, this direct connection may cause excessive pressure buildup if the solenoid remains engaged after engine shutdown–install a momentary toggle switch rated for 20A to manually interrupt power as a failsafe.
Ensure all connections are weatherproofed with heat-shrink tubing and dielectric grease. Corrosion on terminals doubles resistance, leading to voltage drops (target ground-side fault; the negative return path must maintain a resistance below 0.5 ohms to chassis ground. For vehicles with factory anti-theft systems, this override may trigger a “no-start” condition after 24 hours–consult the OEM service manual for security module reset procedures.
Alternate solutions include tapping into the accessory relay circuit (if available) or splicing into the windshield wiper delay module output, which often shares the same intermittent power profile. For diesel engines, confirm the override does not interfere with glow plug timers–premature activation can cause hydraulic lock. Always use a circuit breaker (not a fuse) for the primary feed wire to prevent fire risk during short circuits. Document all wire colors and pin assignments before disconnecting anything–the factory wiring schematics vary even between trim levels of the same model year.
Direct Power Connection Guide for Auxiliary Component Activation
Locate the control module’s 12V output pin–typically marked as 85 or 30 on OEM schematics–then strip a 14AWG wire and crimp a female spade terminal. Connect this directly to the power source terminal on the solenoid or actuator, ensuring the circuit is protected by a 15A inline fuse positioned within 15cm of the battery positive. Avoid splicing into existing harnesses; instead, route the new wire through grommets and alongside factory loom to prevent chafing against metal edges. Test continuity with a multimeter before finalizing connections; resistance above 0.5 ohms indicates a poor joint.
Critical Connection Points:
- Battery Positive: Use a M6 ring terminal with heat-shrink tubing to prevent corrosion.
- Solenoid/Actuator Terminal: Verify polarity–some units reverse ground and power terminals.
- Ground Path: Attach to chassis using a clean, unpainted surface; sand away rust if necessary.
- Fusible Link: Position within 10cm of the battery to protect against shorts.
For intermittent high-load testing, substitute the fuse with a 30A relay controlled by a momentary switch, but revert to the 15A fuse for continuous operation. Document wire colors and routing paths for future troubleshooting.
When to Directly Connect Your Fuel Delivery System Component
Connect the power feed straight to the electric motor controller if the factory control module fails during critical moments–like pre-start checks or engine stalls at high RPM. This temporary measure keeps the engine running when the OEM circuit malfunctions, preventing sudden stops in unsafe locations (e.g., highways, steep grades) or during extreme weather where restart reliability drops below 60%. Use 14-12 AWG wire rated for 30+ amps, matching the system’s current draw; thinner gauges risk voltage drop and overheating. Always secure connections with soldered joints or gold-plated crimp terminals to avoid corrosion-induced resistance increases.
Skip the stock switching mechanism if you’re modifying an older vehicle with a weak electrical grid (common in pre-2000 models). Factory-installed relays often struggle with aftermarket performance parts–turbochargers, high-flow injectors, or larger displacement engines–due to increased current demands. A direct feed eliminates this bottleneck, but install a 20-amp inline fuse within 7 cm of the battery to prevent fire hazards from short circuits. Test the circuit with a multimeter under load before finalizing; aim for less than 0.2V drop across the entire path.
Diagnostic Signs You Need This Fix
Watch for these failure patterns: erratic priming noises lasting over 3 seconds, delayed engine cranking after 5+ ignition cycles, or cutting out under load (e.g., uphill acceleration or towing). These symptoms indicate either a failing control unit or corroded/loose connector pins–a common issue in vehicles exposed to moisture or road salt. Bench-test the stock circuit with a 12V test light; if it flickers at less than 10Hz during simulation, the circuit’s reliability is compromised. Direct wiring ensures stable voltage, but remove the module entirely to avoid feedback loops that could damage sensitive electronics.
For competition or off-road vehicles, override the default circuit to ensure uninterrupted power delivery during high-G maneuvers or sustained high-RPM operation (common in drift cars or rock crawlers). Stock circuits may trigger false “low pressure” codes when vibration loosens connectors, but a solid-state connection eliminates this risk. Use a heavy-duty solenoid or a manual switch rated for 100+ amp spikes if the vehicle sees repeated hard launches. Position the override switch near the driver’s seat but avoid locations prone to accidental engagement (e.g., near pedals or gear shifts).
Permanent vs. Emergency Use
Reserve permanent direct connections for race-only builds or vehicles past their service lifespan (200K+ miles). Daily drivers benefit from the stock circuit’s fail-safes–like inertia switches and pressure cutoffs–which a manual setup cannot replicate. If implementing this fix on a street-legal vehicle, add a visible warning light to remind you to remove the temporary circuit, as leaving it engaged risks draining the battery or overheating the motor coil. For diesels, ensure the feed can handle the starter’s 400+ amp initial surge; undersized wire will melt under such load.
Essential Components and Gear for Direct Circuit Modification
Begin with a multimeter capable of measuring at least 20A DC to verify current flow and circuit integrity. Ensure the device includes continuity testing and diode check functions. Brands like Fluke or Klein offer reliable models with auto-ranging for minimal setup time.
Select primary connectors rated for 30A minimum, preferably with gold-plated contacts to prevent corrosion. Crimp terminals should pair with 10-12 AWG strands–thicker gauges risk improper sealing. Avoid pre-insulated variants; heat-shrink tubing provides superior long-term protection.
Insulation tools matter. Use a wire stripper with adjustable stops to prevent nicking conductors. For stranded cores, a crimping tool with dual-cavity dies ensures uniform pressure distribution. Store spare 18-22 AWG jumper leads; these simplify temporary links during testing phases.
| Item | Specification | Example Model |
|---|---|---|
| Multimeter | 20A DC, Auto-ranging | Fluke 87V |
| Crimping Tool | Dual-cavity, AWG 10-22 | Klein Tools J2010 |
| Heat Gun | 110V, 500°F max | Wagner HT1000 |
Thermal protection demands attention. Polyolefin tubing shrinks at 250°F; match the heat gun’s nozzle to the diameter to avoid uneven sealing. Position tubing before crimping–post-crimp application risks gaps at terminal entry points.
Secure mounting points for new connections. Dielectric grease reduces oxidation but avoid excessive amounts; it can seep into relay sockets causing intermittent faults. Stainless steel zip ties resist UV degradation and hold under engine bay temperatures.
Contingency planning: include a 20A inline fuse holder with spare 15A and 25A fuses. Locate it within 7 inches of the power source to protect the circuit. Store all tools in a partitioned case to prevent short-circuits–loose metal objects in a workbag create avoidable hazards.
Step-by-Step Electrical Connection Guide for Standard Switching Modules
Locate the control unit terminal labeled “85” or equivalent–this connects directly to the vehicle’s ignition switch output. Use a 16-gauge wire with heat-resistant insulation to prevent melting under load. Strip 6mm of insulation, crimp a ring terminal, and secure it with a 6mm bolt to the designated contact point.
Attach a 14-gauge wire to terminal “86,” routing it to the nearest chassis ground point. Remove any paint or corrosion from the grounding surface before securing the connection with a star washer to maintain conductivity. Verify resistance below 0.5 ohms using a multimeter to confirm proper grounding.
Power Delivery Setup
Identify the 12V constant power source–typically fused at 15A within the main fuse box. Splice a 12-gauge wire into this circuit, ensuring the connection is downstream of the fuse to prevent electrical hazards. Connect the opposite end to terminal “30” on the switching device.
For terminal “87,” use an 18-gauge wire if linking to low-current accessories or a 10-gauge wire for high-amperage components. Route the wire to the target device, avoiding sharp edges or moving parts that could damage insulation. Secure the connection with solder or a high-quality butt connector, then insulate with heat-shrink tubing.
Testing and Validation
Activate the ignition and verify voltage at terminal “87” using a voltmeter–expect 12V ±0.5V. If voltage is absent, recheck ignition switch continuity and ground integrity. For high-power loads, monitor terminal “30” for voltage drop under load (maximum 0.2V tolerance).
Install an inline blade fuse (rating 10% above the expected load current) within 150mm of the power source to protect the circuit. Use a fuse holder with weatherproofing if routing wires under the vehicle’s frame.
Label all wires with heat-resistant sleeves or color-coded tape to simplify future troubleshooting. Bundle wires in corrugated loom tubing, securing with nylon zip ties every 200mm to prevent chafing. Route near existing harnesses for added protection against environmental damage.
