Designing a Full Bridge Inverter Schematics with Switching Analysis

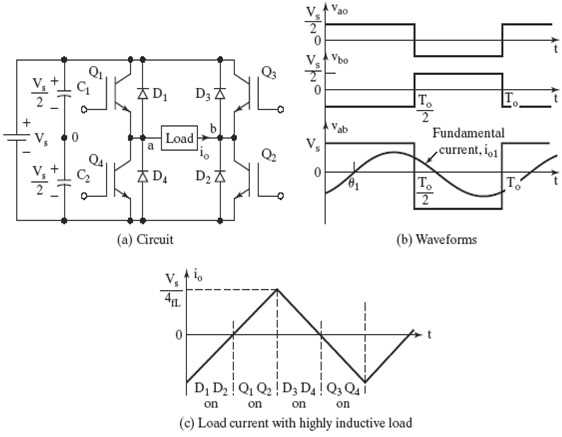

Begin with a symmetrical H-configuration using N-channel MOSFETs for both upper and lower switches. This arrangement ensures balanced switching dynamics while minimizing dead-time distortion. For a 230V AC output, use IRF840 (500V, 8A) MOSFETs with fast-recovery diodes (UF4007) snubbed across each device to suppress voltage spikes >1kV during commutation.

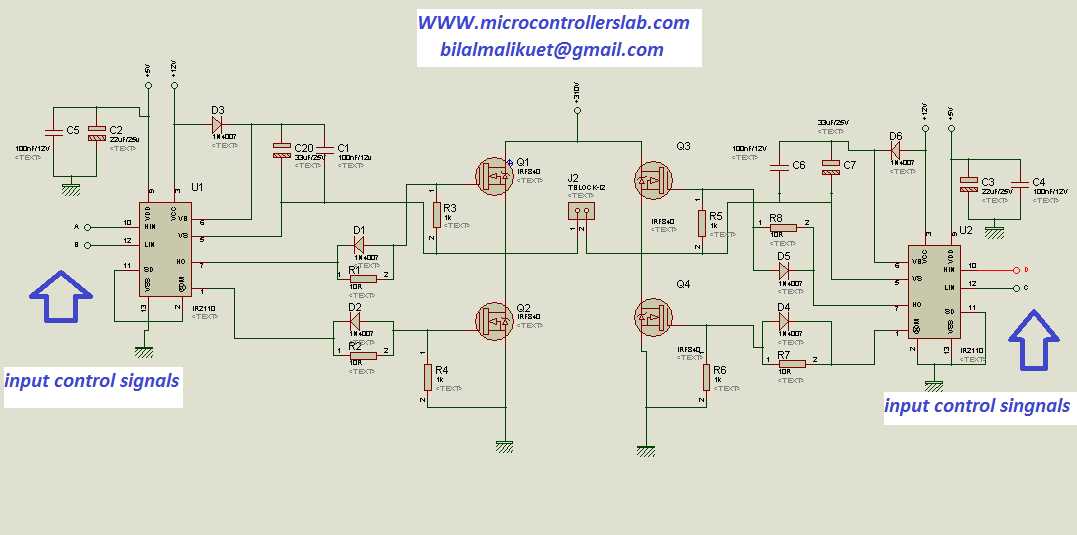

Gate drive isolation is non-negotiable–opt for optocouplers (HCPL-3120) or isolated gate drivers (IR2110) with separate floating supplies. Each driver’s V_CC should float at +15V relative to its switch’s source, with a bootstrap capacitor (0.1µF ceramic) for upper-leg energization. Keep trace inductance under 5nH by routing high-current paths (

PWM generation requires complementary 180° signals with dead-time insertion (1–2µs). Microcontroller timers (STM32F4’s TIM1) deliver precise edge placement; alternatively, a dedicated SG3525 PWM controller offers simpler tuning. For resistive loads (47Ω, 10nF) across each half-stage dampen parasitic oscillations at switching edges.

Thermal management dictates reliability–mount MOSFETs to a heatsink with thermal compound (Arctic MX-6) and ensure R_θJA Hall-effect sensor (ACS712) triggers shutdown at 120% of rated current (5A nominal). Layout considerations: star-point grounding separates power and logic returns to prevent ground bounce, while a copper pour (10mm wide) beneath switching nodes mitigates EMI.

For 50Hz operation, synchronize the PWM carrier frequency (20–50kHz) with the AC line; interleaving reduces input capacitor ripple (V_DS(on) GS rise/fall times (

H-Bridge Power Conversion Layout: Key Design Insights

Use a pair of complementary N-channel and P-channel MOSFETs for the high-side switches in each leg to simplify gate drive requirements, but ensure proper dead-time insertion between transitions to prevent shoot-through currents–typical values range from 500 ns to 2 µs depending on switching speed and gate capacitance. Opt for IRF540N or IRLZ44N transistors for applications under 1 kW, as their R_DS(on) of 44 mΩ and 22 mΩ respectively minimizes conduction losses during high-current operation.

Place a 100 nF ceramic capacitor in parallel with each switching device’s drain-source terminals, mounted no farther than 10 mm from the MOSFET body, to absorb high-frequency transients generated during commutation. For output filtering, combine a 10 µF polypropylene capacitor with a 10 µH inductor to reduce voltage ripple below 1% at 20 kHz switching frequency–this configuration effectively suppresses harmonics up to the 11th order while maintaining a slew rate below 5 V/µs.

Drive the low-side transistors with a dedicated gate driver IC like the IR2110, which provides 200 mA peak current and built-in under-voltage lockout, ensuring reliable turn-on even during transient supply dips down to 8 V. Isolate control signals using optocouplers such as the HCPL-3120 or digital isolators like the ISO7720, which offer 50 Mbps data rates and 5 kV RMS isolation to protect microcontrollers from high-voltage spikes.

Implement a current-sense resistor of 0.01 Ω on the return path to ground, paired with a differential amplifier (e.g., INA146) for precise overcurrent detection–adjust the trip threshold to 1.2× the rated load current to balance protection and operational margin. For thermal management, use a heatsink with a thermal resistance of 2 °C/W or lower, coupled with a temperature sensor like the LM35, placed within 2 cm of the hottest transistor to trigger shutdown at 85 °C.

Select a DC bus voltage 1.5× the intended AC peak output to account for voltage drops across switching devices and inductors; for example, a 48 V DC supply yields a 32 V RMS sinusoidal output when modulated with unipolar PWM. Use a 16-bit microcontroller such as the STM32F446 or dsPIC33EP64GS502 to generate complementary PWM signals with dead-time insertion, leveraging its dedicated high-speed comparators for real-time fault detection without software overhead.

Critical Parts for Assembling a Dual-Switch Power Converter

Begin with four power transistors rated for at least 30% above your target output voltage and current. MOSFETs like IRF540N handle 100V/33A efficiently, while IGBTs such as FGH40N60SFDTU suit higher voltages up to 600V. Match transistor specs to your load requirements–overestimating prevents thermal damage.

Select a gate driver IC–isolated types like IR2110 tolerate 600V, non-isolated ones like TC4427 work for low-voltage setups. Ensure the driver’s propagation delay stays under 50ns to minimize cross-conduction. Pair drivers with bootstrap capacitors (typically 0.1µF–1µF) if using high-side switches.

Use ultrafast recovery diodes (e.g., MUR1560) for clamping inductive loads. These diodes must match or exceed transistor blocking voltage and handle peak repetitive currents. Snubber networks (RC pairs: 10Ω–100Ω, 0.1µF–1µF) across switches suppress voltage spikes during transitions.

Choose a DC bus capacitor bank with low ESR, such as Nichicon KG series, sized for ripple current (ΔI) = 20% of load current. For 10A loads, target 2200µF–4700µF with a voltage rating 1.5× your supply. Split capacitors into parallel banks to distribute current stress.

Implement a microcontroller with complementary PWM outputs (e.g., STM32F334 with dead-time insertion) to prevent shoot-through. Program dead-time between 1–5µs based on transistor switching speed. For precision, use an external dead-time generator like LTC6992 if your MCU lacks dedicated PWM channels.

Thermal management requires heatsinks sized for dissipation. For 100W losses, a 10°C/W heatsink suffices in 25°C ambient; scale linearly for higher loads. Apply thermal adhesive (e.g., Arctic MX-6) between components and heatsinks, and add forced air if ambient exceeds 40°C.

Source control resistors (gate: 10Ω–50Ω, gate-source: 10kΩ) to shape drive waveforms. Higher gate resistors slow switching, reducing EMI but increasing losses–balance values via oscilloscope measurements. Ferrite beads on driver outputs further attenuate high-frequency noise.

Fuse the input with fast-acting types (e.g., Littlefuse 326) rated for 1.5× your steady-state current. Place a varistor (e.g., Littelfuse V130LA20A) across the DC bus to absorb surge events. For high-power designs, add a pre-charge resistor (10Ω–100Ω) in series with a bypass relay to soft-start capacitors.

Step-by-Step Assembly of Dual-Half Switching Arrangement

Select N-channel MOSFETs with matching specifications–gate threshold voltage between 2V and 4V, drain-source breakdown above 100V, and continuous current rating exceeding 1.5× the load’s peak demand.

Mount the four transistors onto a heatsink using thermal compound; torque screws to 0.6 Nm to prevent air gaps while avoiding substrate cracking.

1. Connect the source of the upper-left device to the drain of the lower-left device with 2 mm² tinned copper wire.
2. Repeat for the right pair, ensuring polarity matches the left.
3. Join the midpoints of both halves with a single bus bar; this node becomes the output terminal.

Solder gate resistors directly to each MOSFET lead–values between 10 Ω and 47 Ω, sized by switching speed: 10 ns rise time → 22 Ω; 25 ns → 33 Ω.

• Upper switches: tie gate resistor back to the opposing upper transistor’s drain–a bootstrap path.
• Lower switches: return gate resistor to ground plane via separate trace, no longer than 5 cm.

Install antiparallel diodes across each MOSFET; fast recovery types with reverse recovery ≤50 ns eliminate shoot-through during dead-time intervals of 0.5–1.5 μs.

Route the high-side drivers’ floating supply rails using isolated DC-DC modules; input/output capacitance ≥22 μF to suppress ringing under 120 kHz PWM.

Verify interconnections with a 1 kHz, 5V test pulse; oscilloscope capture should show

Gate Driver Selection and Isolation Techniques

Select gate drivers with 50 V/ns). For GaN HEMTs, choose drivers with separate source/emitter outputs (e.g., TI LMG1210) to handle the 3x lower threshold voltage compared to silicon devices.

Isolation methods by application:

• CMOS digital isolators (e.g., ADuM4135):
  • 5 kV RMS isolation, 50 Mbps data rate
  • Suitable for
  • Add RC filter (1 kΩ + 100 pF) to each output to suppress EMI-induced false triggers
• Pulse transformers:
  • Use toroidal cores (e.g., TDK B66361G) with bifilar winding (1:1 ratio) for
  • Limit primary side current to
  • Coupling capacitance
• Optocouplers (e.g., Avago HCPL-316J):
  • CTR >1000%, propagation delay
  • Requires external PNP transistor for >2 A gate drive currents
  • Replace every 2–3 years in high-temperature environments (>85°C) due to LED degradation

For high-side switches in half-bridge configurations, use bootstrap drivers (e.g., ON Semi NCP51511) with these specifications:

1. Bootstrap capacitor: 0.1–1 μF (X7R dielectric) per 1 A gate current
2. Diode: Schottky (e.g., STMicroelectronics STTH2L06, 600 V/2 A) with
3. Undervoltage lockout: set to 9.5 V for 12 V systems to prevent shoot-through
4. Deadtime: program to 200–400 ns based on switching device (SiC: 200 ns; IGBT: 350 ns)

Add a 10 Ω series gate resistor to each switch to dampen oscillations–calculate value as √(L_parasitic/C_iss) where L_parasitic is PCB trace inductance (

Calculating Switching Frequency and Duty Cycle for AC Output

Set the switching frequency at 20–50 kHz for most low-power applications (≤5 kW) to balance efficiency and thermal losses. For high-power systems (>10 kW), reduce it to 5–15 kHz to minimize switching losses in IGBTs or MOSFETs. Use the formula f_sw = 1/(2 × t_on + 2 × t_off + t_dead), where t_on and t_off are rise/fall times (typically 50–200 ns for MOSFETs), and t_dead is the dead time (2–5 μs). Avoid exceeding 80% of the device’s rated switching frequency to prevent overheating.

The duty cycle (D) for a sinusoidal AC output should follow D(t) = 0.5 × (1 + m × sin(2πf_outt)), where m is the modulation index (0.7–0.95) and f_out is the desired output frequency (e.g., 50/60 Hz). For unipolar modulation, adjust D to D₁(t) = 0.5 × (1 + m × sin(2πf_outt)) and D₂(t) = 0.5 × (1 – m × sin(2πf_outt)) to alternate between legs. Reference the table below for key parameters:

Parameter	Low Power (≤5 kW)	High Power (>10 kW)
Switching Frequency (kHz)	20–50	5–15
Modulation Index (m)	0.85–0.95	0.7–0.85
Dead Time (μs)	1–3	3–5
Gate Drive Voltage (V)	10–15	15–20

For space vector modulation (SVM), ensure the dwell times t₁, t₂, and t₀ comply with t₁ + t₂ + t₀ = T_sw, where T_sw is the switching period. Calculate t₁ = m × T_sw × sin(π/3 – θ) and t₂ = m × T_sw × sin(θ) for the active vectors, and t₀ = T_sw – t₁ – t₂ for the zero vector. Overmodulation (m > 1) increases THD but improves fundamental output voltage by ~15%, though it demands shorter dead times (≤1 μs).

Validate calculations with probe measurements at the midpoint of each leg: confirm that V_mid = V_DC × (2D – 1) and that the RMS output voltage matches V_out,RMS = m × V_DC / √2. Use thermal simulations to verify that junction temperatures remain below 125°C (silicon) or 150°C (SiC/GaN). For variable-frequency drives, dynamically adjust f_sw to maintain a constant carrier-to-fundamental ratio (f_sw / f_out ≥ 15) to ensure linear modulation and avoid subharmonic distortion.
