LM3886 Amplifier Circuit Layout DIY Guide for Audio Enthusiasts
Start with a non-inverting configuration if you need stability and low distortion. The LM3886’s internal architecture favors this setup, delivering 0.03% THD+N at 60W into 4Ω with ±28V rails. Use a 22kΩ resistor for input impedance matching and a 1kΩ resistor in series with a 1µF polypropylene film capacitor for DC blocking–this combination preserves transient response while eliminating offset voltages.
For rail voltages, apply ±35V for 8Ω loads and ±28V for 4Ω loads to stay within the chip’s 150°C thermal shutdown and 100W dissipation limits. Mount the device on a 3.1°C/W heatsink calculated using Pdiss = (Vrail – Vout) × Iload. Skip bootstrap circuits–the LM3886’s internal feedback loop already optimizes output swing.
Implement a 100nF X7R ceramic and a 470µF low-ESR electrolytic across each supply pin, placed ≤10mm from the IC. Use a 10Ω resistor in series with the Zobel network (0.1µF + 10Ω) to prevent high-frequency oscillations. Ground the negative input pin directly to the star ground to avoid common-path interference.

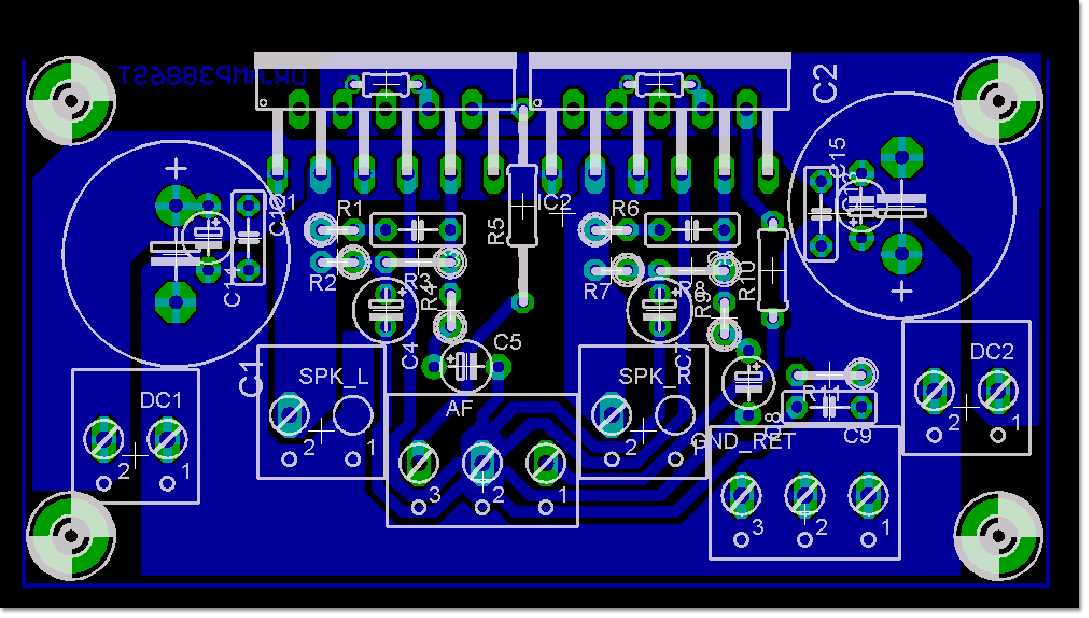

For PCB layout, route signal traces ≥1.5mm wide for 1A currents and maintain ≥2mm clearance between high-voltage and signal lines. The mute pin (pin 8) requires a 10kΩ pull-down resistor and a 10µF electrolytic to V- for 400ms soft-start delay. Avoid vias under the chip’s thermal pad–use a continuous copper pour instead.
Building a High-Performance Audio Power Stage: Key Circuit Layout
Begin with a symmetric power supply delivering ±28V–±35V DC–opt for a toroidal transformer with dual 22V secondaries (300VA minimum) to ensure clean, stable rails. Use 10,000µF snap-in capacitors per rail, bypassed with 0.1µF film types directly at the IC pins to suppress high-frequency noise. Ground returns must converge at a single star point near the main filter caps to prevent ground loops.
Place the feedback network (10kΩ input resistor, 20kΩ feedback resistor) within 10mm of the power chip to minimize stray inductance. Add a 5pF–22pF compensation capacitor across the feedback resistor for phase margin stability–start with 22pF and adjust downward if treble sounds dull. Include a 1Ω–2.2Ω Zobel resistor in series with a 0.1µF capacitor from output to ground, positioned no more than 30mm from the output terminal.
Input coupling uses a 1µF–2.2µF polyester film capacitor; avoid electrolytics here to prevent DC offset and microphonics. The mute circuit requires a 10kΩ resistor to V– rail, switched via a 2N3904 transistor–delay turn-on by 100ms–200ms with a 47µF electrolytic on the base to eliminate pops. Output inductors (2–3 turns of 18AWG enameled wire, 8mm diameter) should be wound bifilar to cancel common-mode noise.
Thermal management demands an extruded heatsink with 0.5°C/W rating; attach the power device using thermal compound (e.g., Arctic MX-6) and a spring-loaded clip for consistent pressure. Install a 100kΩ bias resistor from noninverting input to ground to prevent thermal runaway if the input is left floating. For 4Ω loads, parallel two power chips on a shared heatsink–scale output capacitors to 4,700µF each and reduce Zobel resistors to 1Ω.
Layout traces with 2oz copper, 2mm–3mm width for high-current paths; keep signal traces under 50mm total length between input and feedback components. Use a ground plane only for low-level signals–return high-current grounds directly to the star point. Test for DC offset before connecting speakers (target
Final calibration includes a sine-wave sweep at 1W/8Ω: verify flat response from 20Hz–20kHz (±0.5dB) and THD 100kHz), reduce feedback resistor by 10% or add a 100Ω–330Ω series resistor at the inverting input. For bridged mode, flip one chip’s input polarity, halve feedback resistors, and double output capacitors to 4,700µF–rails must handle 3A continuous per channel.

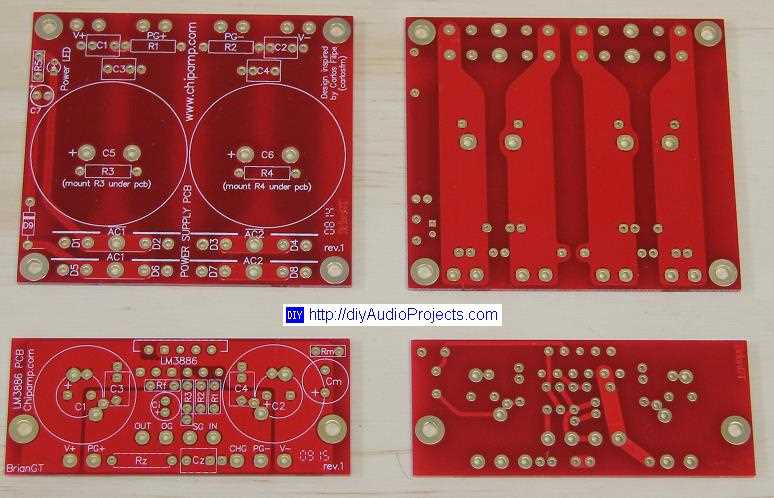

Key Components Required for a High-Performance Audio Power Stage PCB

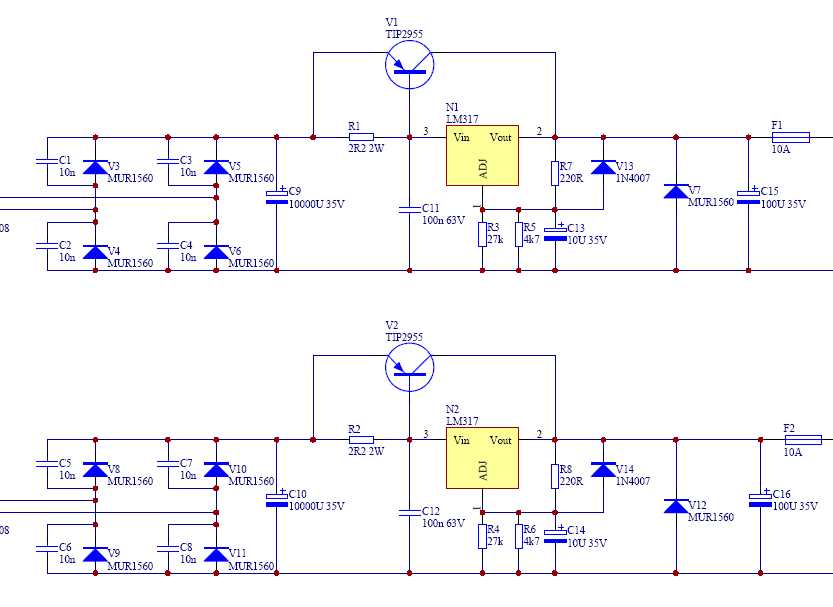

Begin with a linear regulator IC like the LM317 or LT1085 to stabilize input voltage, ensuring ripple suppression below 5mV under full load. Pair it with low-ESR electrolytic capacitors (e.g., Nichicon UHE or Rubycon ZLH series) rated at 1000µF–4700µF and 50V–63V to handle transient current demands without distortion. Include a 0.1µF polypropylene bypass capacitor directly at the regulator’s output pin to prevent high-frequency instability, a common failure point in similar designs.
Critical Active Devices and Thermal Management
- Use the LM3886TF (isolated package) or OPA549T for the core stage, prioritizing devices with a junction-to-case thermal resistance below 1.5°C/W. Avoid TO-220 variants unless absolute thermal performance is secondary.
- Mount the IC on a 40×40×15mm aluminum heatsink with a thermal interface material like Arctic MX-6 (thermal conductivity: 12.5 W/m·K). Forced-air cooling is unnecessary if ambient temperatures stay below 40°C.
- Add a 6.2V Zener diode (1N4735A) across the feedback loop to clamp voltage spikes during clipping events, protecting the output stage from latch-up.
Feedback network resistors dictate closed-loop gain accuracy–select precision metal-film types (e.g., Caddock TF020 or Vishay RN55) with ±1% tolerance and a temperature coefficient under 50ppm/°C. For a gain of 20–30dB, use a 20kΩ input resistor and a 1kΩ feedback resistor; adjust ratios for lower distortion but ensure the input impedance remains above 10kΩ to avoid loading the preamplifier.
Discrete Support Components
- Input coupling capacitance: A 2.2µF film capacitor (WIMA MKS2 or Kemet R82) rolls off subsonic frequencies without introducing dielectric absorption artifacts. Polyester or polypropylene performs equally if voltage ratings exceed 100V.
- Output Zobel network: A 10Ω resistor in series with a 0.1µF ceramic (X7R dielectric) capacitor suppresses parasitic oscillations above 100kHz. Place these components within 10mm of the IC’s output pin.
- Optional mute control: A 2N3904 transistor with a 10kΩ pull-down resistor mutes the stage during power-up; omit if using the IC’s built-in mute function via a 100kΩ resistor to pin 8.
Step-by-Step Wiring Guide for the LM3886 Audio Power Stage
Begin by soldering the main audio IC to a high-quality PCB with a dedicated ground plane. Use a thermal pad directly beneath the chip to ensure proper heat dissipation–minimum 10 square centimeters of copper area for every 10W of expected output. Connect the heatsink immediately after soldering; even brief operation without it risks thermal shutdown or permanent damage. Verify the IC orientation using the notch on the silkscreen; incorrect placement will destroy the circuit on power-up.
Wire the power supply with separate traces for positive and negative rails, maintaining at least 2.5mm width per ampere of current draw. For a ±35V DC input, use 470μF electrolytic capacitors rated at 50V or higher, placed within 5mm of the IC’s power pins. Include 100nF bypass capacitors directly across the IC’s supply terminals to filter high-frequency noise. The table below lists critical component values for stable operation:
| Component | Value | Purpose |
|---|---|---|
| Input resistor | 22kΩ | Sets input impedance |
| Feedback resistor | 680Ω | Defines gain (26dB) |
| Zobel network resistor | 10Ω | Prevents HF oscillations |
| Zobel network capacitor | 100nF | Stabilizes output load |
| Output inductor | 1μH | Isolates capacitive loads |
Grounding requires a star topology to minimize noise coupling. Connect all ground points–signal, power, and chassis–to a single central node, typically the negative rail filter capacitor. Avoid daisy-chaining grounds, as this introduces voltage shifts and hum. Use shielded cable for input signals, grounding the shield at the source only to prevent ground loops. Keep signal traces short; exceeding 10cm increases susceptibility to electromagnetic interference.
Install a 1A slow-blow fuse in series with the positive power rail to protect against short circuits. Test the setup with a 8Ω resistive load before connecting speakers. Apply signal only after confirming DC offset is below 50mV at the output; higher values indicate incorrect component placement or faulty solder joints. Attach a 1N4007 diode across the power supply terminals to clamp reverse voltage during turn-off, preserving the IC.
For stereo builds, mirror the wiring on a second board but keep the power supply wiring separate until the final ground node. This prevents crosstalk between channels. Verify thermal paste application between the IC and heatsink; air gaps reduce cooling efficiency by up to 40%. After final assembly, power up with a variac or dim-bulb tester to limit current during initial inrush, ensuring capacitors charge gradually and no shorts exist.

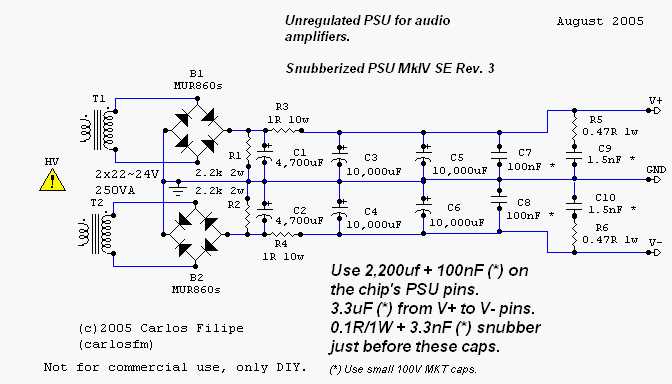

Optimal Power Supply Configuration for Low-Noise Audio Circuitry
Use a dual-mono power supply with separate secondaries for each channel to minimize crosstalk and ground loop interference. Transformers rated for 30-35V AC per rail deliver optimal headroom without excessive heat dissipation, requiring at least 200VA per channel for sustained performance under 4Ω loads. Rectification should employ ultra-fast recovery diodes (e.g., MUR860) or Schottky types (e.g., SB560) to reduce high-frequency noise injection from commutation spikes.
Capacitor Selection and Placement
Electrolytic reservoirs should pair 22,000µF per rail (Nichicon KZ or Elna Silmic II) with 1µF polypropylene bypass capacitors mounted within 10mm of the IC’s supply pins. This combination suppresses ripple below 1mV RMS at full output while maintaining stability across the audio bandwidth. Avoid paralleling dissimilar dielectric types, as phase shifts between capacitors can introduce microphonic distortion.
Regulation via discrete circuits using MOSFETs (e.g., IRF640) or dedicated LDOs (LT1085) improves dynamic response for transient-heavy material. Implement a soft-start mechanism (thermistor or timed relay) to prevent inrush currents exceeding 5A, which can degrade capacitor lifespan. Ground returns must follow a star topology, with a single point connected to the chassis at the input jack’s sleeve terminal.
Grounding and Shielding Best Practices
PCB traces for power rails should exceed 2.5mm width for 1oz copper, with ground pours underneath signal paths to reduce inductance. Keep analog and digital grounds segregated until a single bond point near the DC input; violating this rule introduces 50/60Hz hum at –60dB or worse. Shielding for the transformer requires mu-metal or thick steel enclosures; orientation matters–align laminations perpendicular to sensitive circuitry to block stray flux.
PSU cables should pair twisted pairs (2x16AWG per rail) with overall shielding connected to the star ground. For installations with switching supplies upstream, add a common-mode choke (e.g., Würth 744821210) rated for 10A to attenuate HF noise by 40dB. Test final performance with a dummy load; ripple should remain below –90dB (20kHz BW) and THD+N under 0.005% at 1W into 8Ω.
