Understanding GE Electric Stove Wiring Connections and Circuit Layout Guide

Start by locating the model number on the back panel or inside the oven door frame. Verify this against GE’s official schematics–available through their parts portal or service manuals–before disconnecting any cables. Misidentified circuits can lead to hazardous shorts or component damage.

Common GE ranges use either a 3-wire or 4-wire configuration. For a 3-wire hookup, the neutral and ground share a conductor; double-check that the terminal block is properly bonded. In a 4-wire setup, separate neutral and ground wires must be correctly landed–swap these and the device may fail safety checks or overheat.

Inspect the power cord rating. Older units often require 40-amp circuits with #8 AWG copper conductors; newer induction models may need 50-amp breakers and #6 AWG. Confirm local code requirements–some jurisdictions mandate conduit for exposed runs while others allow NM cable.

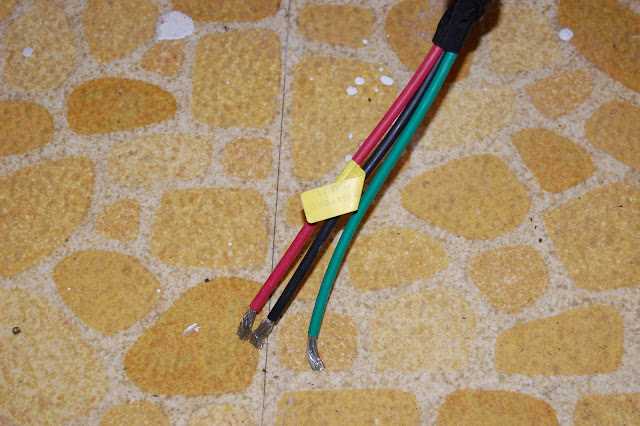

Trace the main harness from the control board to the heating elements. Note the color-coding: red and black typically carry the hot leads, white is neutral, and green or bare copper is ground. If the diagram indicates a double-pole breaker, both hot wires must be disconnected simultaneously to avoid residual voltage.

For models with convection fans or self-cleaning features, the auxiliary circuits often branch from a separate relay. Consult the schematic for pin assignments–mistakes here can trip thermal fuses or disable key functions. Use a multimeter to test continuity before reassembly.

Always cap unused terminals with wire nuts after disconnecting. Exposed conductors can arc, melting insulation or triggering breaker trips. Secure all connections with torque-rated screws–over-tightening strips threads, while loose contacts create resistance that accelerates wear.

If replacing a damaged terminal block, ensure the new part matches the original gauge rating. Mixing 220V and 240V components can cause overheating or invalidate the warranty. Photo-document each step before cutting wires for future reference.

Understanding GE Cooktop Circuit Layouts

Before modifying any connections, locate the manufacturer’s manual specific to your model. GE appliances built after 2015 use a color-coded system: red for L1, black for L2, white for neutral, and green/bare for ground. Older units may reverse black and red, so verify with a multimeter set to AC voltage–probe L1 to neutral; expect 120V. L2 should read an identical value.

Terminal blocks differ between four-prong (NEMA 14-50) and three-prong (NEMA 10-50) configurations. The former separates neutral from ground, while the latter combines them. Check the junction box–if equipped with a green screw, connect ground there; otherwise, bond ground to the chassis. Never bridge neutral and ground on a four-prong setup; this violates NEC 250.140 and risks shock.

Key Power Ratings and Wire Gauges

GE induction surfaces rated at 40A require 8 AWG copper conductors. Standard radiant models draw 30A–use 10 AWG copper. Aluminum wires, if present, demand one gauge size larger. Verify the breaker matches the appliance label: 50A for 8/3 cables, 40A for 8/2. Substitute 60°C wire if the terminal block lacks a 75°C rating; downgrade amperage to 40A for safety.

Test cord integrity before installation. Frayed strands near plugs create resistance, causing overheating. Strip wires with lineman’s pliers–avoid utility knives–to preserve strand count. Twist exposed ends clockwise, then crimp ring terminals rated for 75°C. Torque terminal screws to 15 in-lbs using a calibrated screwdriver; loose connections arc, melting insulation.

Troubleshooting Common Faults

If elements cycle on/off, inspect the infinite switch. Remove the back panel, locate the switch, and measure voltage across P1 and P2 with the element energized. A reading below 220V indicates a faulty switch or corroded contacts. Clean contacts with 320-grit sandpaper, then apply dielectric grease. Replace switches showing cracks or burn marks–GE part numbers 102719 and 102717 cover most models.

Flickering displays or erratic temperature control often stem from moisture intrusion. Disconnect power, remove the control knob assembly, and dry the PCB with compressed air. Check for water stains beneath the keypad; if present, replace the entire control board (GE part WB27T10991). Seal gaps around the control panel with GE silicone adhesive (part 287003).

Uneven heating or unresponsive burners typically trace to failed surface elements or bad receptacles. Swap suspect elements between burners–if the issue migrates, replace the element (GE part WB30X26176 for 8-inch, WB30X26175 for 6-inch). Replace receptacles showing pitting or discoloration–part WB16X10299 fits most coil units. Always power down at the breaker before handling components.

For smart cooktops with Wi-Fi, reset the module if connectivity drops. Press and hold the power button for 10 seconds until the display flashes “RESET.” Re-pair the device via the GE Appliances app, ensuring the router broadcasts 2.4GHz SSID–5GHz bands are incompatible. Firmware updates pushed quarterly address latency issues; enable automatic updates in app settings.

Essential Gear for Installing Your GE Cooktop

Begin with a non-contact voltage tester–an indispensable tool to confirm circuits are dead before handling. Fluke 1AC-II or Klein NCVT-3 offer reliable detection down to 50V, ensuring safety. Verify the device is rated for residential use and includes a low-voltage indicator.

Gather these connection materials:

• Copper conductors: 8 AWG for 40-amp circuits, 6 AWG for 50-amp; THHN/THWN-2 wire rated for 90°C minimizes voltage drop over standard distances.
• Junction box: 4″ square steel box with a 2-gang mud ring for secure anchoring; ensure it’s UL-listed for 60°C minimum.
• Clamp connectors: ½” or ¾” Romex clamps for NM cable entry, sized to fit the knockout holes without crushing insulation.
• Terminal lugs: Tin-plated copper ring terminals (e.g., Panduit LCRT-8-6) sized for 8/6 AWG, crimped with a ratcheting tool (Ideal 30-995) for gas-tight connections.

Screwdrivers must include insulated variants–Vaughan BS2 flathead (4mm) and Klein 101-7 Robertson (No. 2 square drive) prevent slippage on terminal screws. Magnetic tips speed up work in tight spaces. For wire stripping, Klein-Kurve 11057 handles multiple gauges without nicking conductors; calibrate the cutting depth to 0.04″ for 8 AWG.

A multimeter with both continuity and resistance modes (e.g., Fluke 17B) verifies proper grounding and circuit integrity. Set the range to 200Ω for ground-to-neutral tests; readings above 0.5Ω indicate a faulty connection. For secure fasteners, use Torx T25 bits–many GE models rely on them for rear panel screws, resisting cam-out better than Phillips.

Include these consumables:

• Heat-shrink tubing: 3:1 polyolefin (½” diameter) for insulating splices; activate with a heat gun (DeWalt D26950) set to 300°F.
• Anti-oxidant compound: Ideal 30-025 (zinc-based) prevents corrosion on aluminum-to-copper connections; apply a 0.02″ layer before terminating.
• Steel fish tape: 25 ft Greenlee 419-25 with a hook end pulls wires through conduit runs up to ¾” EMT without kinking.

Personal protection requires Arc-rated gloves (Class 0, 1,000V) and ANSI Z89.1 hard hats for overhead work. Safety glasses with side shields (e.g., Pyramex ZTE-70) guard against wire fragments. For overhead or confined installations, a fiberglass ladder (Werner D6200-2) with a 300 lb capacity ensures stability.

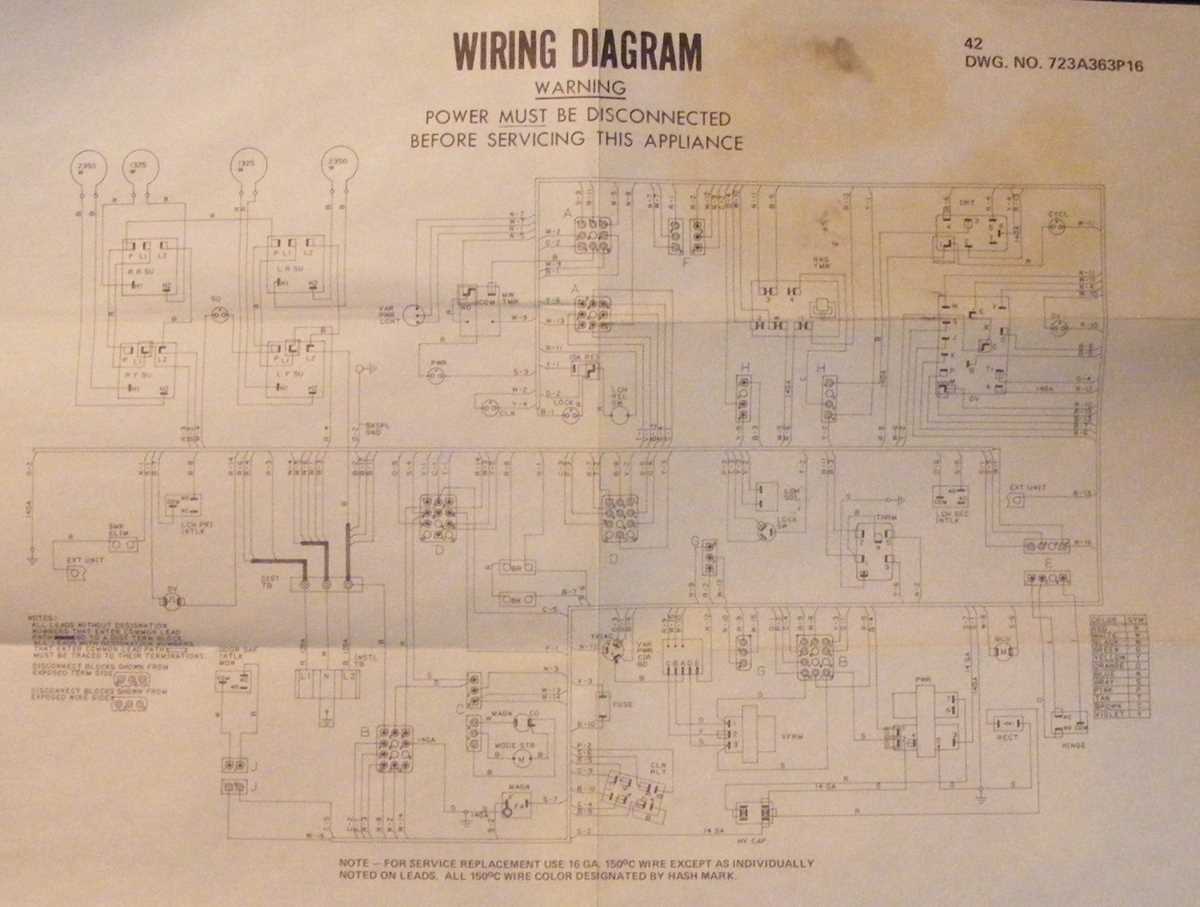

Step-by-Step Guide to Interpreting GE Cooktop Schematic Layouts

Locate the terminal block on the rear panel of your GE appliance–it’s typically marked with a standardized label like “L1,” “L2,” “N,” and “Ground.” Each terminal corresponds to a specific conductor in the internal circuitry, so cross-reference these with the colored cables in your installation manual.

Identify the power source configuration–whether single-phase 120V (common for smaller units) or dual-phase 240V (standard for high-wattage models). The schematic will depict two hot legs (180° out of phase) for dual-phase, while single-phase installations skip the second leg, relying instead on a neutral.

Deciphering Symbols and Color Codes

Symbol	Meaning	Typical Wire Color
L1	Main hot conductor (120V reference)	Black or red
L2	Secondary hot conductor (240V phase)	Red
N	Neutral return path	White
GND	Safety earth connection	Green or bare copper

Trace each component’s connections–heating elements usually attach to L1/L2 via thick, high-gauge cables, while control circuits (timers, lights) connect to lower-amperage branches fed from the same hot legs but through fuses or relays.

Check for isolation transformers or surge suppressors if your model includes electronic controls. These are often depicted as zigzag lines or small rectangular boxes near the control board and require separate fusing to prevent damage from power fluctuations.

Verifying Circuit Integrity

Measure voltage between L1 and L2 with a multimeter–240V confirms dual-phase supply. Test L1 or L2 to neutral for 120V, ensuring the neutral-ground bond isn’t compromised (voltage should read near 0V). Discrepancies here indicate improper grounding or a malfunctioning neutral link.

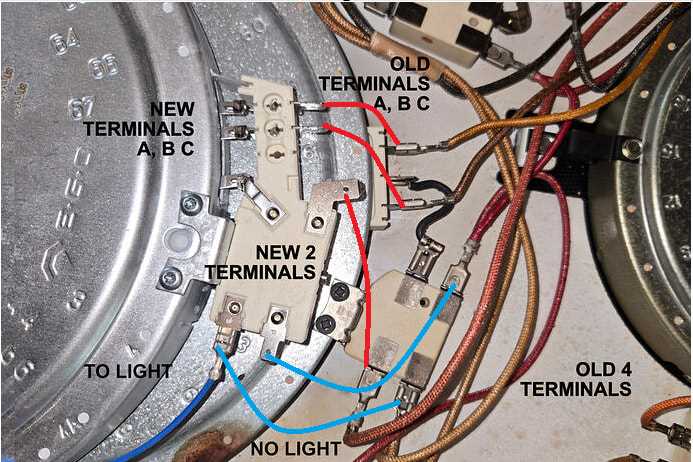

Examine the infinite switch wiring–these round disc-style regulators on GE schematics connect the heating zones to their power source, often via series loops. If a burner fails, verify the switch’s continuity first, then inspect the element’s resistance (typically 20–60 ohms for intact coils).

Cross-check with the specific model’s technical sheet–GE occasionally revises wiring logic for newer induction or dual-fuel variants, so rely only on documentation matching your serial number prefix (e.g., “JBP,” “JP,” or “PCB”).
