Step-by-Step GFCI Circuit Wiring Guide with Diagrams for Safe Installation
Install a dedicated 20-amp circuit for protection devices in kitchens, bathrooms, or outdoor areas. Use 12-gauge copper cable for all connections, ensuring the breaker matches the wire capacity. Connect the line wires (hot and neutral) to the top terminals of the device, then run load wires to downstream outlets if needed. Always verify the schematic matches the manufacturer’s model–miswiring trips can prevent the device from resetting.
Test the setup with a multimeter before finalizing. Measure 120 volts between the hot and neutral terminals at the top; the bottom terminals should mirror this when functioning correctly. If voltage drops or fluctuates, recheck connections for loose strands or crossed neutrals. Grounding must be solid–attach the ground wire directly to the metal box if present, or run a separate ground to the breaker panel if replacing a two-prong outlet.
Label all wires with their purpose during installation. Mark the load side to distinguish it from line-side connections. Mislabeling can lead to downstream outlets being unprotected. Keep a reference sketch of the configuration for future troubleshooting. Replace any corroded or discolored terminals immediately–compromised contacts increase failure risk.
For outdoor or damp locations, use weather-resistant enclosures. Seal cable entry points with silicone or approved conduit fittings to prevent moisture ingress. Avoid combining protection devices with standard outlets on the same circuit; overloads may bypass safety features. If adding to an existing circuit, confirm the total wattage doesn’t exceed 80% of the breaker rating.
Reset the device after installation by pressing the test button, then the reset button. If it won’t hold, check for ground faults in attached appliances or wiring errors. For persistent issues, isolate the circuit segment and inspect each connection with a circuit tracer. Never bypass or jumper safety mechanisms–this violates electrical codes and creates fire hazards.
Electrical Safety Outlet Configuration Guide
Begin by connecting the line side of the protection device to the power source using 12-gauge copper conductors for 20-amp circuits or 14-gauge for 15-amp setups. Verify the voltage rating matches the system–standard residential systems operate at 120V, while combined circuits may require 240V. Mistakes in conductor sizing or voltage mismatch risk nuisance tripping or equipment failure. Always use a multimeter to confirm live wires before handling terminals.
Critical Connection Points
| Terminal | Wire Color | Function | Torque (in-lbs) |
|---|---|---|---|
| Line Hot | Black | Power input from source | 12-15 |
| Line Neutral | White | Return path | 12-15 |
| Load Hot | Red (or black) | Downstream devices | 12-15 |
| Load Neutral | White (marked) | Downstream return | 12-15 |
| Ground | Green/bare | Fault protection | 20-25 |
Test the installation by pressing the device’s reset button, then the test button–a proper setup will trip immediately. If it fails to reset, inspect for reversed line/load connections, loose terminals, or ground faults. For dual-voltage receptacles, ensure the bridge tab between terminals remains intact unless isolating circuits. Document each step with photos before enclosing the box to simplify future troubleshooting.
For outdoor or wet-location applications, use weather-resistant covers and silicone-filled wire nuts. NEC 2023 mandates protection devices in kitchens, bathrooms, garages, and outdoor outlets–non-compliance voids insurance coverage for water-related incidents. Replace outdated units every 10 years or immediately after sustained tripping; degradation in the sensing circuitry compromises safety. Keep a spare 20-amp unit on hand for emergencies, as exact model matches prevent installation errors.
How to Install a Safety Receptacle for Self-Contained Circuit Protection

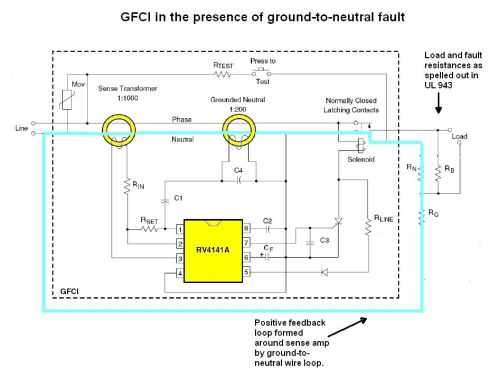

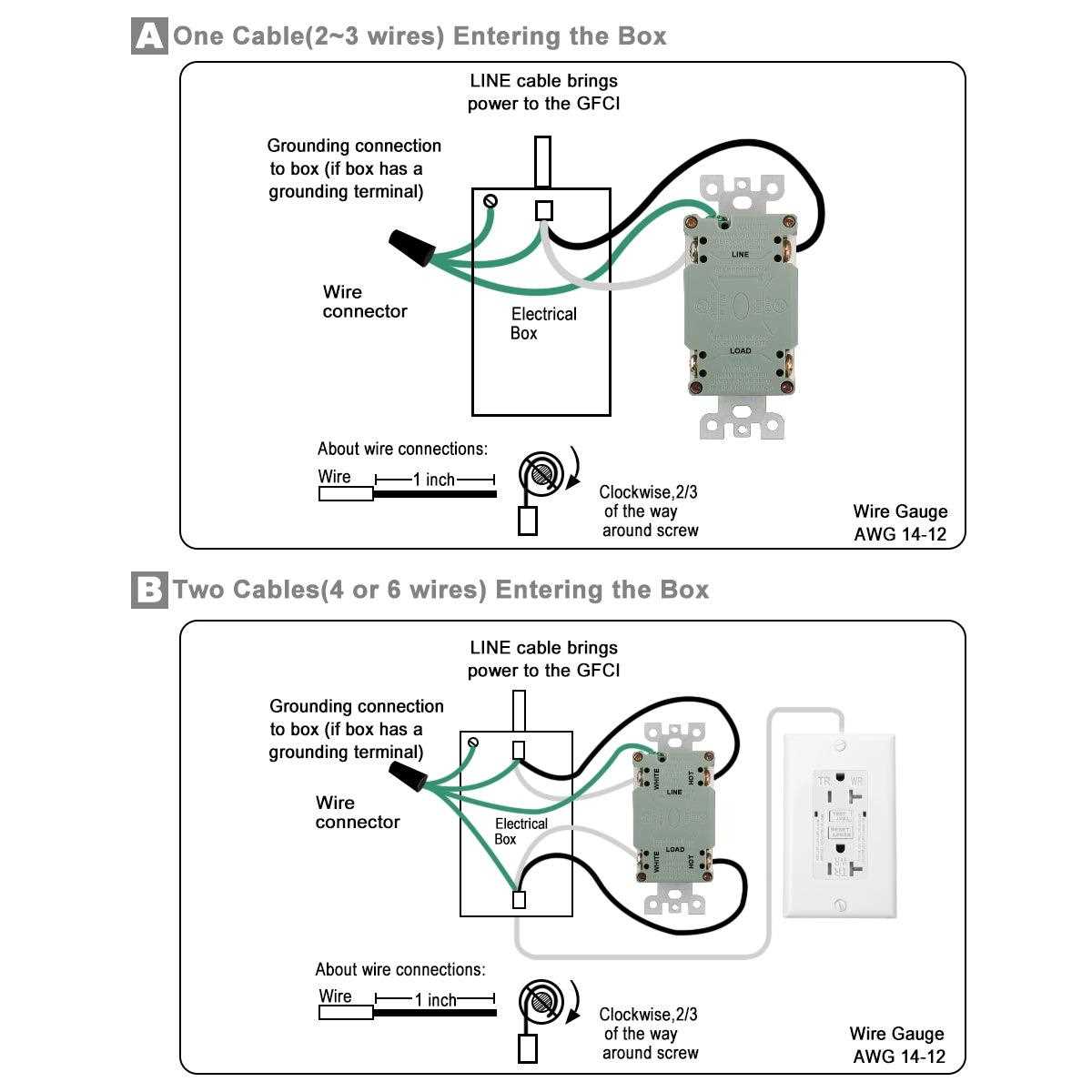

Turn off the main power at the breaker panel before handling any electrical connections. Verify the circuit is dead using a non-contact voltage tester on both slot screws of the existing outlet. If voltage is detected, recheck the breaker or shut off the main switch. Remove the outlet cover plate, then unscrew and pull the outlet from the electrical box, keeping wires attached for reference. Identify the supply cables: the hot (black or red), neutral (white), and ground (bare copper or green).
Connect the incoming hot wire to the brass screw marked “LINE” on the ground-fault interrupter (labeled “HOT” or “L”). Attach the neutral wire to the silver screw also marked “LINE” (labeled “NEUTRAL”). Secure the bare ground wire to the green grounding screw. If the box is metal, loop an additional ground wire from the receptacle’s green screw to the box’s grounding screw or clamp. Tighten all connections with a screwdriver, ensuring no insulation is under the screw heads–bare wire strands can cause arcing.
For single-location protection, leave the “LOAD” terminals unused unless extending protection downline. If downstream outlets are required, connect the additional hot and neutral wires to the corresponding “LOAD” screws, but never mix line and load wires. Fold wires neatly into the box, avoiding sharp edges, and push the receptacle back in, aligning mounting screws with the box tabs. Secure it firmly but avoid overtightening, which can crack the device or misalign the cover. Restore power and test the receptacle by pressing the “TEST” button–the outlet should trip and reset button pop out. Press “RESET” to restore power. If it doesn’t trip, immediately cut power and recheck connections.
Install the cover plate only after confirming proper operation. Label the receptacle with the provided sticker “GFCI PROTECTED OUTLET” on the faceplate to warn users of its function. Store the manufacturer’s instructions in a nearby envelope for future reference, including the reset procedure and troubleshooting steps for nuisance tripping caused by moisture or faulty appliances. Replace the device every 10 years or if it fails to reset, as internal components degrade over time.
Installing a Ground Fault Interrupter Across Multiple Receptacles Using Load Protection
Begin by connecting the line-side hot and neutral conductors directly to the primary set of terminals on the first ground fault interrupter in the sequence. Strip 5/8 inch of insulation from both the black and white wires, ensuring clean, straight cuts without nicks. Secure each under the designated screws–typically brass for the hot conductor and silver for the neutral–tightening to 14-18 inch-pounds of torque to prevent loosening over time.

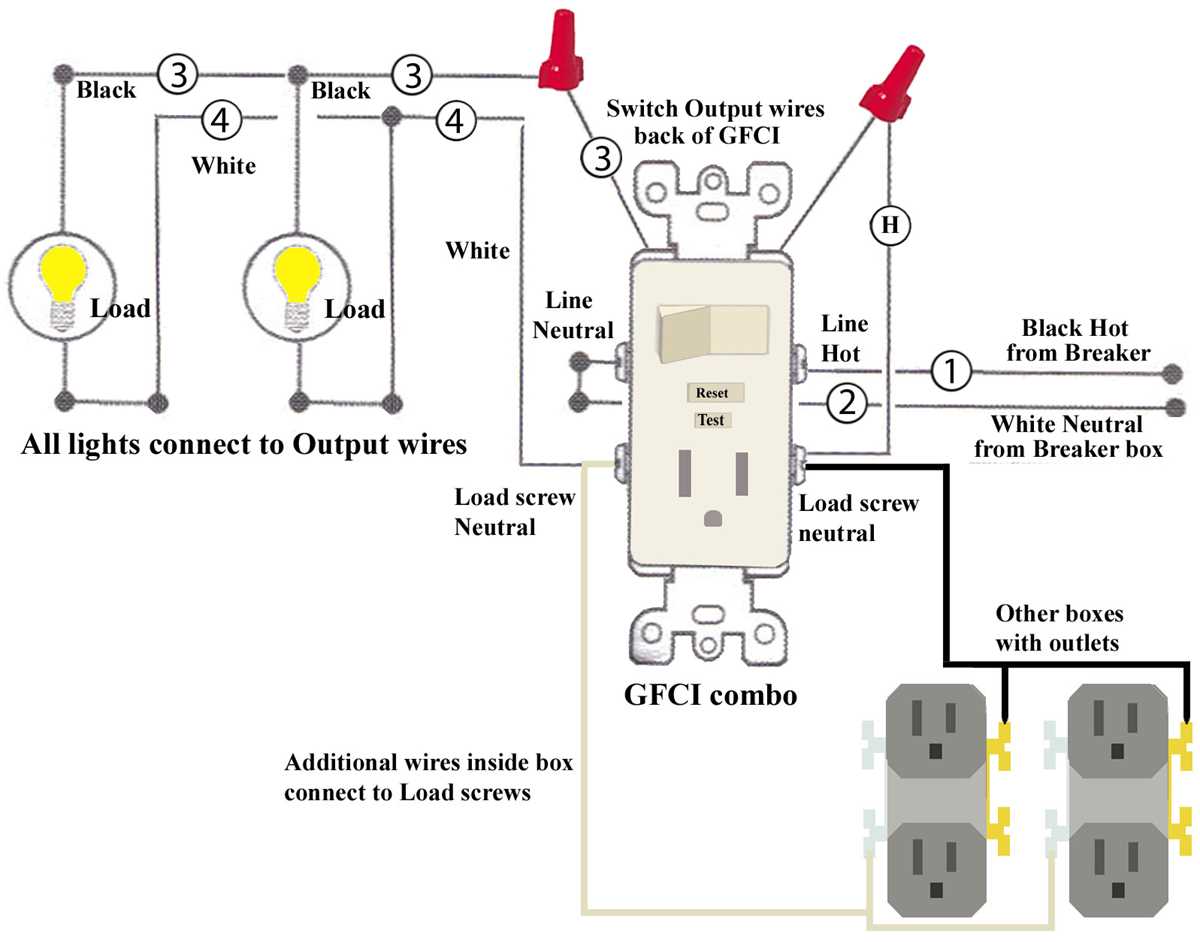

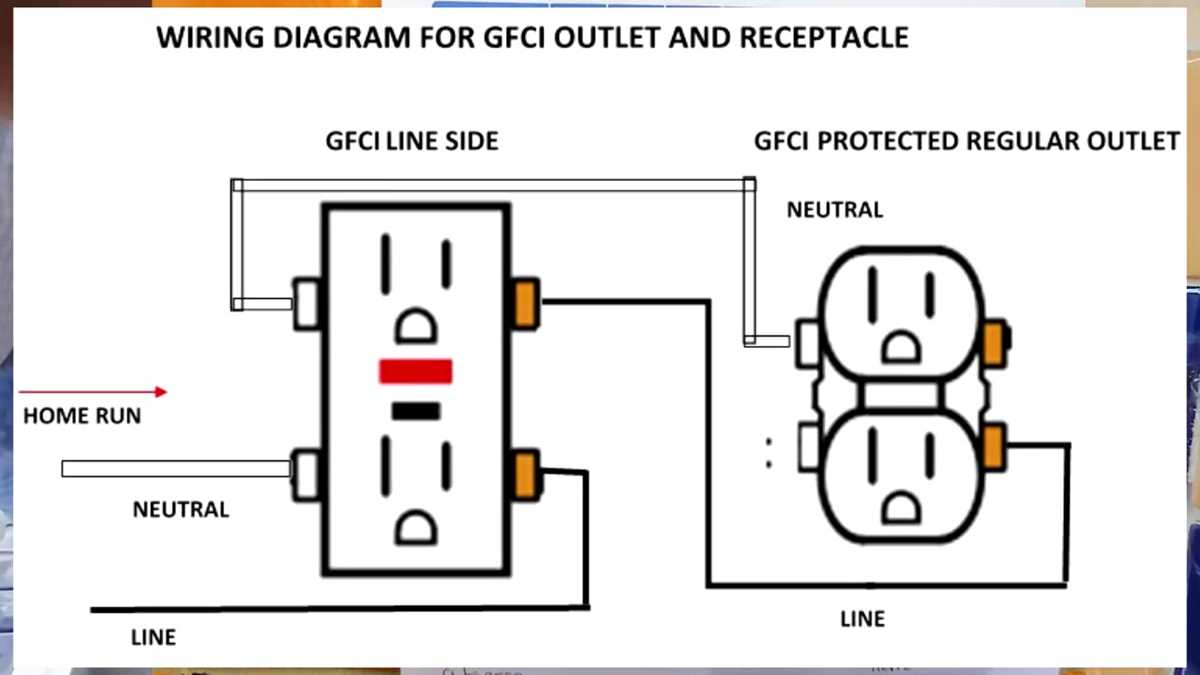

Attach the downstream outlets to the load-side terminals, feeding power onward while retaining protection. Run a continuous length of 12 AWG Romex (or equivalent, per local code) from the first interrupter’s load side to each subsequent receptacle in the chain. At the first downstream unit, strip 1/2 inch of sheathing, exposing the black and white wires. Insert them into the matching load screws, ensuring polarity matches–never cross-connect neutrals or hots across separate branch circuits.
Test the integrity of the assembly before closing the junction box. With the circuit energized, press the “Test” button on the first interrupter; downstream outlets should immediately lose power. Reset it, then confirm continuity at each receptacle using a non-contact voltage tester. If any unit fails to trip or reset, recheck torque on all connections–loose terminations introduce resistance, compromising protection.
Seal exposed splices with listed wire nuts, securing them with electrical tape twisted clockwise to prevent pull-out. Enclose the box with a tight-fitting cover, leaving no gaps where dust or moisture could penetrate. Label each protected outlet with the standardized “GFCI Protected” sticker as required by NEC 406.4(D); omission risks non-compliance during inspection.
Limit the number of receptacles per protected branch to four or fewer in damp locations (bathrooms, kitchens, outdoors) to avoid nuisance tripping. If extending beyond this threshold, introduce a second ground fault device mid-chain, fed from the load side of the first, splitting the current path to maintain sensitivity across all outlets.
Critical Errors in Protective Circuit Hookups and Prevention
Connecting the load terminals backwards–to the line side instead of the load side–disables overcurrent protection for downstream outlets. Modern residual-current devices mark “LINE” and “LOAD” clearly; verify polarity before securing conductors. A non-contact voltage tester confirms live wires pre-installation. Miswiring this risks nuisance tripping or, worse, leaving circuits unprotected.
Overlooking Terminal Torque Specifications
Loose screws cause arcing, melting insulation, and intermittent faults. Manufacturer torque specs for clamp screws typically range 12–15 inch-pounds. Use a torque screwdriver; hand-tightening leaves gaps. Check torque after initial installation and again after 24 hours–settling conductors can loosen connections. A single loose terminal compromises the entire string of downstream protection.
Ignoring ground continuity invites fault currents that bypass the breaker’s sensing coil. Test continuity with a multimeter between the device’s ground screw and the supply ground bus. Readings above 1 ohm indicate corrosion, broken strands, or improper bonding. Clean contact surfaces with emery cloth, re-crimp terminals, and re-test before energizing. Proper bonding ensures the breaker trips within milliseconds during ground faults.
