Complete Guide to Interpreting a Goodman Furnace Wiring Diagram Step by Step
Start by verifying the voltage classification of your heating system. Most residential models use a 24V control circuit, while larger units may require 120V or 240V power. Check the identification plate on the interior panel–this will list operating parameters, including amperage and phase requirements. Failure to confirm these values before connecting wires risks damaging the control board or motor.

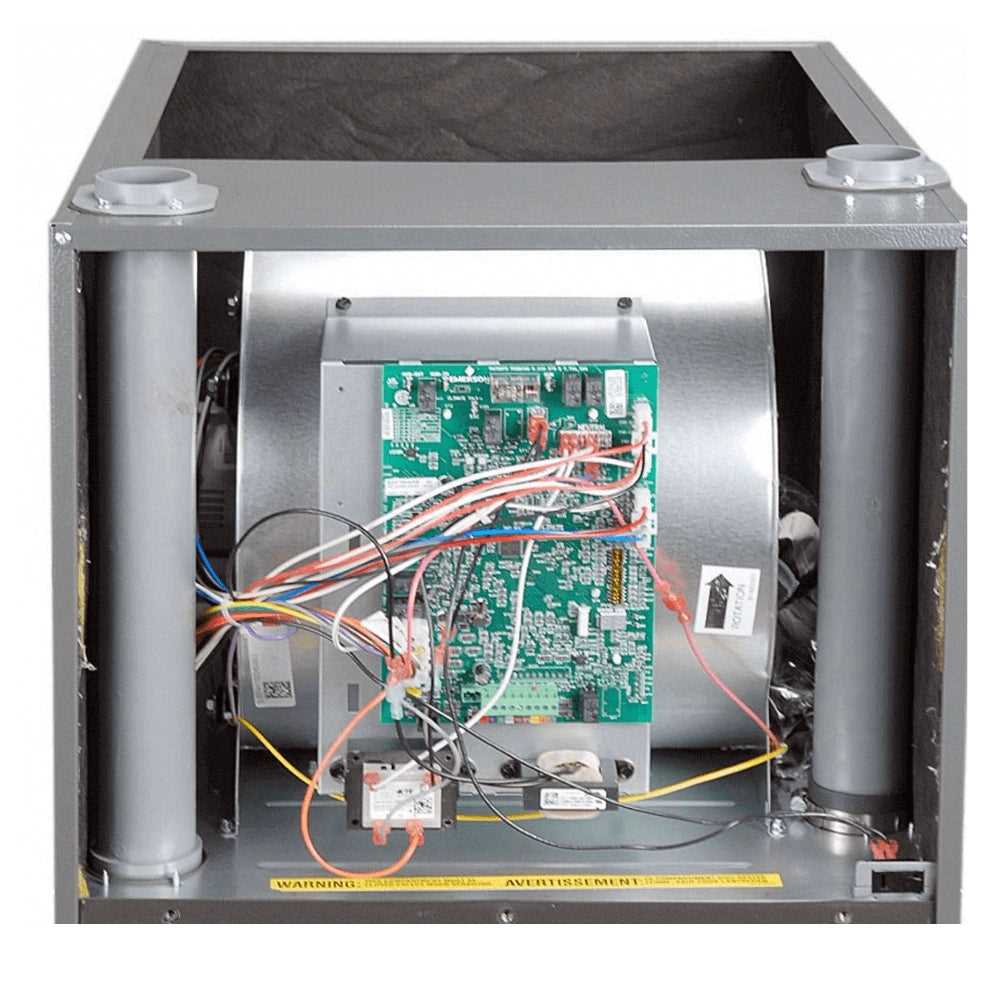

Locate the terminal block at the base of the blower assembly. The standard color coding is as follows: red (R) for the 24V power supply, white (W) for heat activation, green (G) for the fan relay, and yellow (Y) for cooling. High-efficiency systems may include an additional orange (O) terminal for reversing valve operation in heat pump configurations. Never assume color conventions–cross-reference with the unit’s technical manual.
Disconnect power at the main breaker before handling any connections. Use a multimeter to test for residual current at the terminals. Attach 18-gauge thermostat wire to the corresponding terminals, securing each with a terminal screw tightened to 8-12 inch-pounds torque. Loose connections generate heat, leading to premature failure of relays or switches.
Route low-voltage wires away from high-voltage lines, maintaining at least 1 inch of separation. Secure cables with plastic clamps every 12 inches to prevent vibration interference. Avoid sharp bends–minimum bend radius should exceed 5 times the wire diameter. Exposed wiring near moving parts must be encased in conduit or spiral wrap to prevent abrasion damage.
For dual-fuel systems, connect the auxiliary heat strip separately. Calculate required wire gauge using the formula: amperage ÷ (30 × voltage drop × length). Example: A 20-amp circuit running 50 feet should use 10-gauge copper wire to stay within the recommended 3% voltage drop. Undersized wiring causes voltage drops, reducing heating element efficiency and shortening lifespan.
After installation, power on the system and observe startup behavior. Listen for unusual noises–clicking or buzzing indicates a faulty relay or improper ground connection. Use a non-contact voltage tester to confirm proper operation of safeties, including pressure switches and limit controls. Document all connections with photos for future reference during maintenance.
Understanding Your Gas Heater Electrical Schematic

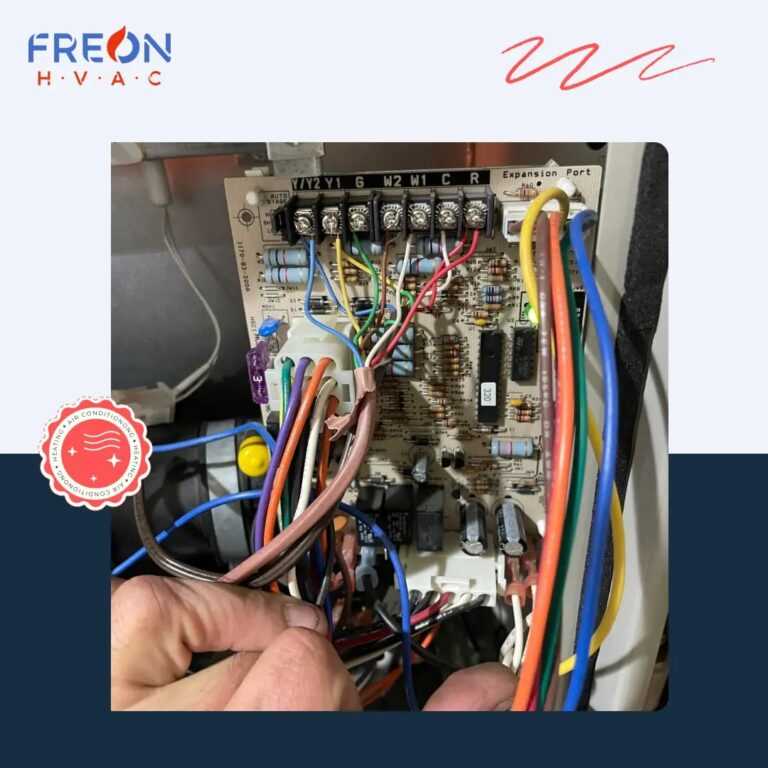

Locate the control board schematic on the inside of the unit’s access panel–this is the fastest way to identify wire functions without guessing. Most models use a standardized color-code system: red (24V hot), white (heat circuit), green (ground), yellow (cooling call), and blue (common). Verify these against the actual terminals, as mismatches can cause ignition failures or blow fuses. If the label is missing or faded, reference the model’s technical manual; cross-check the sequence against the printed legend.
Check for high-voltage (120V) connections first–these power blower motors and inducer fans. Loose or corroded spade connectors here can create intermittent faults. Use a multimeter to confirm continuity between the line-voltage input (black/white wires) and the corresponding terminals on the board, typically marked L1/L2. Replace any wire nuts showing oxidation; standard 14-gauge THHN wire works for replacements if the original gauge isn’t noted.
| Terminal | Function | Wire Color | Voltage (AC) |
|---|---|---|---|
| R | 24V Supply | Red | 24 |
| W | Heat Relay | White | 24 |
| C | Common | Blue | 0 |
| Y | Cooling Call | Yellow | 24 |
| G | Fan Relay | Green | 24 |
Low-voltage safety switches (pressure, flame rollout, limit) must show closed circuits when tested with a meter; open states indicate blocked vents, dirty filters, or failed components. Bypass tests are unsafe–identify the root cause instead. For flame sensor issues, clean the rod with steel wool and confirm the microamp draw falls between 1-6 μA; lower readings require sensor replacement. Thermostat wires should connect directly to the board terminals without splices, as splices increase resistance and can drop voltage below the 20V threshold needed for relay operation.
After repairs, energize the system and observe the startup sequence: inducer motor activates first (5-15 seconds), followed by ignition (if pilot is present) or hot surface igniter glow (30-45 seconds). Gas valve opening should be audible; failure here often points to a bad control module. Record error codes from the LED flashes–steady on (flame present), rapid blink (lockout), or slow blink (retry)–to isolate faults without trial-and-error. Always disconnect power before touching any internal components to avoid shorting live circuits.
Identifying the Proper Schematic for Your Climate Control Unit
Check the rating plate on the interior side panel–this metal tag lists the exact series and batch code needed for accurate electrical layouts. Models manufactured after 2015 display a 10-character alphanumeric identifier beginning with “G,” while earlier versions use a 6-digit number prefixed by “CKL” or “GKS.” Locate this marking before consulting any documentation.
Manufacturer-authorized manuals supply the most reliable schematics. Access official sources via the support portal using the full model designation–partial matches return incorrect variants. For units produced between 2008 and 2020, discrete revisions altered connection points for safety interlocks; verify the revision level printed beneath the batch code to avoid mismatches.
Alternative Sources for Verification
Technical service bulletins and parts listings often include supplementary diagrams for non-standard configurations. Cross-reference the HVAC component label with parts catalogs to confirm transformer tap assignments, blower motor lead colors, and board connector pinouts. Third-party manuals frequently omit critical updates–prioritize files titled with the exact model string.
Field-installed modifications require tracing each conductor back to its origin. Use a multimeter in continuity mode to map suspect connections against the schematic, noting deviations such as aftermarket control boards or relocated pressure switches. Mark identified variances directly on a printed copy for future reference.
Local permitting offices sometimes retain archived installation plans for residential equipment. Provide the serial number to retrieve compliance documentation including custom wiring adaptations, bypassing generic templates that may not reflect real-world setups.
Decoding Color Standards and Terminal Markings in Heating Unit Blueprints
Start by isolating the low-voltage control circuit first–typically enclosed in red, yellow, or blue sheathing. Red wires almost always denote the R terminal, supplying 24VAC from the transformer’s secondary coil. Match this to the corresponding labeled point on the circuit board or terminal block. Yellow conductors usually connect to the Y terminal, signaling the cooling call; verify continuity with a multimeter before reconnecting under load.
Common (C) wires use blue or black insulation and link to the neutral side of the transformer–rarely, some manufacturers swap blue for gray. Double-check printed labels on the control module, as discrepancies between color codes and terminal stamps occur in older models. White cables often represent W terminals for heat demand, though high-efficiency units may employ orange or brown for staged heating. Cross-reference each conductor with the legend printed on the blower door panel.
High-Voltage Power Feeds
Line voltage feeds–usually 120V or 240V–are sheathed in thick black, red, or occasionally brown insulation. Black wires deliver hot L1; red or brown denote L2 in split-phase systems. Green or bare copper always grounds the chassis–never substitute or omit this. Identify the main disconnect switch terminals before probing; misidentifying these leads risks catastrophic failure.
Internal fan motors often use striped conductors: white with a colored stripe (commonly red or blue) marks auxiliary winding taps, while solid colors indicate primary coils. Check the motor’s data plate for precise winding resistance values–expect 10-50 ohms across primary taps and 3-15 ohms for auxiliary circuits. Reversing auxiliary and main wires will spin the motor backward or trip thermal protection.
Safety and Pressure Switch Circuits
Gray or tan wires typically route through pressure switches, exhaust monitors, or flame rollout sensors. A single gray conductor usually connects the inducer motor to the pressure switch; an open circuit here halts ignition. Jumpering these temporarily for testing violates safety protocols–use a manometer to verify flue pressure instead. Orange wires may indicate rollout switches; if closed at room temperature, replace the switch immediately.
Dual-stage systems add complexity: purple or pink may denote W2 terminals for second-stage heat calls. Confirm stage sequencing by monitoring voltage at each terminal during a forced call–expect 24VAC on W1 during first-stage operation and W2 activation only under peak demand. Always disconnect power before metering; reverse polarity on any low-voltage circuit can fry integrated control boards costing $150-$400 to replace.
Step-by-Step Guide to Safely Testing Heating System Conductors with a Multimeter
Before touching any electrical components, cut power at the circuit breaker. Verify the system is off by setting the multimeter to AC voltage (200V or higher range) and probing the control board terminals–readings should be zero. If voltage is detected, retrace breaker connections.
Identify the two main power leads (typically black and white in residential units) using the equipment’s schematic. Clip the multimeter’s black probe to a known ground (metal chassis or green grounding screw) and the red probe to the black conductor. A live 110-125V AC reading confirms proper incoming current. Repeat for the white lead–it should read near zero volts when referenced to ground.
Low-voltage circuit testing:
- Set the multimeter to DC voltage (20V range).
- Locate the 24V transformer terminals–small wires (often red, yellow, or blue) attached to the control interface.
- Touch probes to the R (power) and C (common) terminals. Expect 24-28V DC; values outside this range indicate transformer failure or loose connections.
- Test various terminal pairs (R-W, R-Y, R-G) to verify voltage drops–each should show ~24V when calling for heat, cooling, or blower activation.
For continuity checks, switch the multimeter to ohms (Ω) mode. Disconnect all power first. Probe between limit switch contacts–zero ohms means the switch is closed; infinite resistance indicates an open circuit requiring replacement. Repeat for pressure switches, flame sensors, and relay coils, referencing their expected resistance values in the unit’s technical manual.
Temperature sensor verification requires ohm measurements at specific temperatures. Remove sensors carefully–thermistors change resistance predictably (e.g., 10kΩ at 70°F, 2kΩ at 140°F). Compare readings to manufacturer specs; deviations suggest sensor drift or outright failure.
Live component precautions:
- Wear insulated gloves rated for 600V.
- Use only one hand when probing energized components–keep the other hand behind your back or in a pocket to prevent current from bridging across the chest.
- Probe slowly to avoid shorting terminals–multimeter leads can bridge closely spaced contacts.
- If arcing occurs, immediately release probes and recheck power isolation.
Document every reading alongside the corresponding terminal or wire label. Cross-reference against the equipment’s service manual to spot anomalies. Replace any components whose readings deviate more than 10% from expected values, ensuring crimped connections are secure and corrosion-free using electrical contact cleaner.
