Visual Guide to GPCR Structure and Signaling Pathways Schematic

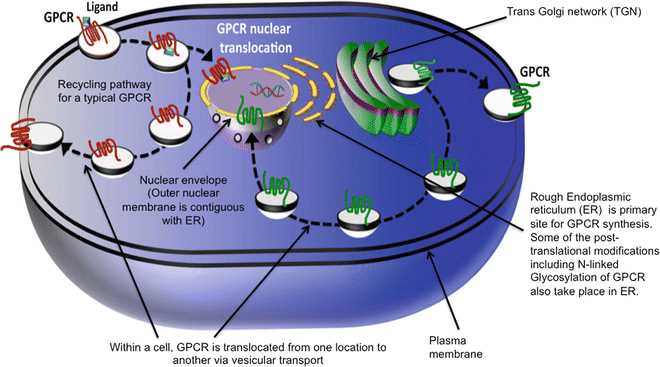

Begin with a seven-transmembrane helix model as the foundational structure. Highlight hydrophobic segments spanning the lipid bilayer in alpha-helical conformation, using three-letter residue abbreviations at key positions: aspartate (Asp) in helix 2, asparagine (Asn) in helix 7, and cysteine (Cys) in the extracellular loops. These sites anchor ligand-binding pockets and downstream effector coupling.

Map intracellular loop 3 (ICL3) and helix 8 separately–ICL3 connects to G-protein subunits (Gα, Gβγ), while helix 8 stabilizes receptor interaction with membrane phospholipids. Indicate nucleotide-binding regions on Gα (GDP/GTP exchange) using red-outlined circles at the switch I and II domains.

Use color-coded arrows for distinct signaling cascades: green for adenylate cyclase activation (via Gαs), blue for phospholipase C-β (via Gαq), and yellow for Gβγ-mediated ion channel modulation. Label arrestin-binding motifs on the C-terminal tail with phosphorylation sites (Ser/Thr clusters) in bold italics.

Incorporate lipid raft microdomains into the plasma membrane representation–highlight cholesterol molecules with hexagonal symbols adjacent to the transmembrane helices 3–5 to show raft-associated localization. Add a dashed outline around receptor dimers if homodimerization data exists for the subtype.

For computational validation, overlay experimental cross-linking constraints onto the model–indicate distance constraints between residue pairs (e.g., Cys-Cys, Lys-Lys) with dotted purple lines. Include a separate inset for cryo-EM density maps if available, using transparency gradients to show unstructured loops.

Visual Representation of Receptor Signaling Pathways

Begin by mapping the seven transmembrane helices as coiled ribbons or cylinders, positioned at a 20-degree angle relative to the membrane plane. Label each segment (TM1–TM7) with extracellular N-terminus and intracellular C-terminus to maintain orientation. Use color gradients–cool tones for extracellular loops, warm tones for intracellular–to enhance visual distinction of activation states.

Indicate ligand-binding pockets with hexagonal grids or surface contours, highlighting key amino acids (e.g., Asp113 in TM3, Asn312 in TM7). For class A receptors, show the toggle switch mechanism via a dashed arrow from TM6 to TM3, marking the W^6.48 residue. Include a zoomed-in inset of the DRY motif at the cytoplasmic end of TM3 to demonstrate its role in G-protein coupling.

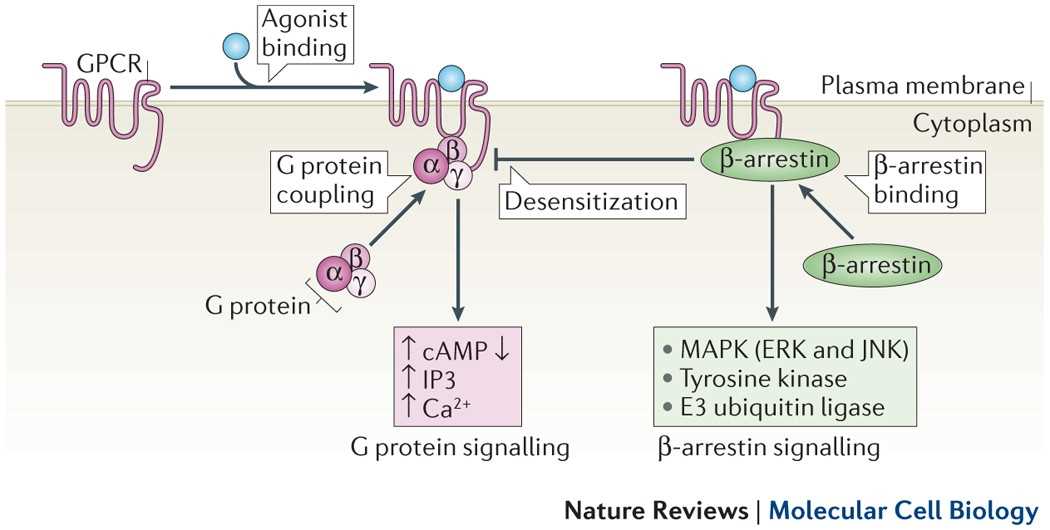

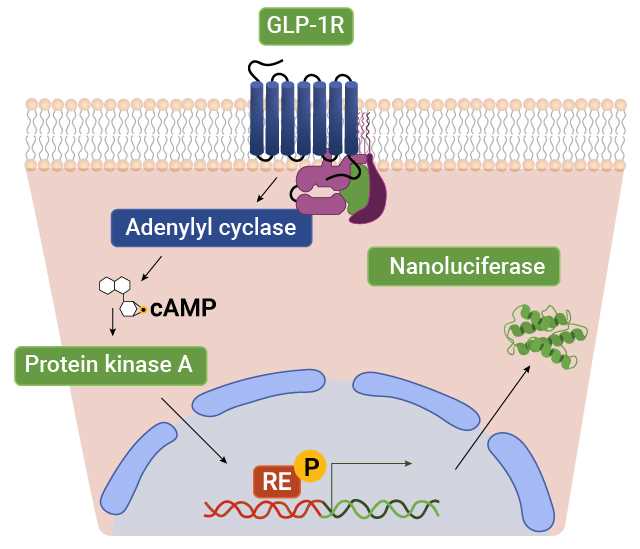

Depict downstream signaling branches with diverging arrows: a Gα subunit splitting into Gαs, Gαi, and Gαq/11 pathways, each annotated with second messengers (cAMP, IP₃/DAG) and effector enzymes (adenylyl cyclase, PLCβ). Add a separate branch for β-arrestin recruitment, showing clathrin-coated pits forming at the plasma membrane. Use dotted lines for non-canonical pathways, like GRK-mediated phosphorylation.

Overlay graphical indicators for post-translational modifications–red stars for palmitoylation sites (commonly Cys^341 in TM7), green circles for phosphorylation targets (e.g., serine/threonine clusters in C-tail). Include a small legend in the corner: “ICL3 = intracellular loop 3,” “EL2 = extracellular loop 2,” to standardize terminology across receptor classes (A–F).

For structural flexibility, animate transitions between inactive and active conformations in interactive formats. Show TM6 swinging outward by 14 Å in the active state, with a pivot at Pro^6.50. Cross-reference PDB entries (e.g., 3SN6 for β2AR, 6OY9 for rhodopsin) within annotations to validate accuracy.

How to Interpret the Seven-Transmembrane Structure in Receptor Illustrations

Focus first on identifying the extracellular N-terminus and intracellular C-terminus–these anchor points clarify the orientation of the helices. The N-terminus often appears as a disordered loop or structured domain extending outside the membrane, while the C-terminus may twist inward or link to downstream signaling partners. Labeling these regions early prevents misreading the helix arrangement, especially in simplified models where loops are minimized.

Trace each transmembrane segment from H1 to H7 sequentially, noting their relative angles and spacing. In high-resolution depictions, H3 typically runs centrally, flanked by H1/H2 on one side and H4-H7 on the other. Cross-references with known conformations (e.g., active vs. inactive states) reveal how shifts in H6’s kink or H7’s tilt correlate with ligand binding. Use color gradients or dashed lines in annotated versions to highlight these dynamic transitions.

Examine loop regions for functional motifs: ECL2 often houses disulfide bonds linking to conserved cysteines, while ICL3 frequently interfaces with G-proteins. In low-resolution schematics, these loops may merge into single lines–verify their identity by checking for canonical residues (e.g., DRY motif in ICL2) or post-translational modifications (glycosylation on ECLs). Contextualize these details against PDB entries for corroboration.

Compare the topology across subfamilies (Class A rhodopsin-like vs. Class B secretin-like) to spot structural divergences. Class B receptors, for instance, extend their N-terminal domain into a unique ligand-binding module, altering the expected seven-helix bundle. Use paired illustrations of both classes to train visual recognition of these variations, ensuring misinterpretation doesn’t occur when analyzing mixed-data sources.

Key Components to Label in a Basic Membrane Receptor Signaling Illustration

Begin by highlighting the seven-transmembrane α-helices forming the receptor’s core. Each segment should be numbered (TM1–TM7) to show their spatial arrangement, as their conformational shifts trigger downstream effects. Include extracellular loops (ECL1–ECL3) and intracellular loops (ICL1–ICL3), noting their role in ligand binding or coupling specificity. For clarity, mark the N-terminus on the extracellular side and the C-terminus intracellularly–critical for phosphorylation and arrestin interactions.

• Extracellular domain: Label ligand-binding pockets, specifying whether they accommodate small molecules (e.g., adrenaline), peptides (e.g., glucagon), or lipids (e.g., sphingosine-1-phosphate). Reference key residues (e.g., Asp113 in β₂-adrenergic receptors) to demonstrate binding mechanisms.
• Transmembrane segments: Annotate conserved motifs like DRY (Asp-Arg-Tyr) in TM3 and NPxxY in TM7, which stabilize inactive/active states. Use arrows to indicate movement during activation (e.g., TM6 outward swing by ~14 Å).
• Intracellular domain: Outline G-protein coupling regions, particularly the ICL3 and C-terminal tail. For heterotrimeric G-proteins, split into α, β, and γ subunits, labeling:
  1. α-subunit: GTPase domain (Gα_s, Gα_i, etc.), GDP/GTP exchange site, and effector interface.
  2. βγ-complex: Target proteins (e.g., adenylate cyclase, phospholipase C) and membrane localization tags (e.g., prenylation sites on γ).

Incorporate secondary messengers with distinct symbols: cyclic AMP (circle), inositol trisphosphate (triangle), and diacylglycerol (hexagon). Link these to their sources (e.g., adenylate cyclase, PLCβ) and targets (PKA, PKC). For enzymes, use abbreviations like AC (adenylate cyclase), PLCβ (phospholipase C-β), and GRK (G-protein-coupled receptor kinase), specifying isoforms where relevant (e.g., GRK2/3 vs. GRK5/6). Add phosphorylation sites on both receptor and effectors, using “P” labels to show modifications.

Delineate regulatory proteins:

• Arrestins: Label arrestin-2 (β-arrestin1) and arrestin-3 (β-arrestin2) binding sites, typically overlapping with G-protein interaction domains. Indicate their dual roles in desensitization (e.g., endocytosis via clathrin-coated pits) and signaling scaffolds (e.g., ERK activation).
• RGS proteins: Mark regulator of G-protein signaling (RGS) boxes near the α-subunit, abbreviating isoforms (e.g., RGS4) that accelerate GTP hydrolysis. Include GAP (GTPase-activating protein) activity arrows.
• Scaffolding complexes: Outline AKAPs (A-kinase anchoring proteins) tethering PKA to receptors, and note other adaptors like spinophilin or NHERF/EBP50 linking to cytoskeletal elements.

Use color-coding for pathways: red (stimulatory, e.g., Gα_s), blue (inhibitory, e.g., Gα_i), green (Gα_q/11), and purple (β-arrestin-mediated). Add a legend cross-referencing colors with key processes (e.g., “cAMP ↓” for Gα_i).

Key Differences in Receptor Illustrations from Various Publications

Begin by verifying the transmembrane segment count–some visual models depict seven helices as straight columns, while others introduce slight bends or kinks, particularly in helix VI. Class A receptor depictions often exaggerate this bend near proline residues to reflect conformational shifts during activation. Ignore simplified versions showing uniform helices; they omit activation-critical distortions and risk misinterpretation of ligand-binding dynamics.

• Orientation of extracellular loops: Some diagrams align loop 2 vertically, others angle it away from the helical bundle. This variance affects visualization of allosteric binding sites; cross-reference with PDB entries to identify the biologically relevant conformation.
• Intracellular loop 3 representation: Electron microscopy reconstructions frequently show disordered loops as dashed lines or omit them entirely, whereas computational models often impose alpha-helical structure based on homology. Distinguish between these: disordered loops suggest flexibility critical for G-protein coupling, while helical predictions may mislead signaling pathway analyses.
• Palmitoylation sites: Check for cysteine residues beyond helix VIII–some illustrations mark them near the C-terminus, others on intracellular loop 4 fragments. This inconsistency impacts lipid raft association studies; verify with UniProt annotations for precise localization.

Color schemes vary systematically–conserved motifs like DRY or NPxxY often appear in blue or red, but newer structural snapshots use color gradients to denote residue conservation across species. Older reviews frequently apply flat colors without conservation coding, which can obscure evolutionary adaptations. Adopt tools like Consurf for standardized color overlays before finalizing comparative analyses.

Disulfide bridges between extracellular domains are routinely depicted in three styles: solid lines, dashed lines, or entirely omitted. Solid lines imply static bonds, often misleading for receptors undergoing redox-dependent activation (e.g., μ-opioid or chemokine receptors). Replace with dashed lines or annotate potential bond cleavage sites if structural data supports transient connectivity.

Always cross-check residue numbering conventions–some illustrations label positions relative to the rhodopsin reference, others use receptor-specific indices. Bulk download a reference alignment (e.g., GPCRdb) and highlight divergent numbering systems in adjacent columns to prevent errors in mutation or binding pocket mapping.
