Complete Guide to Wiring Your Grill Ignitor Step-by-Step Schematic

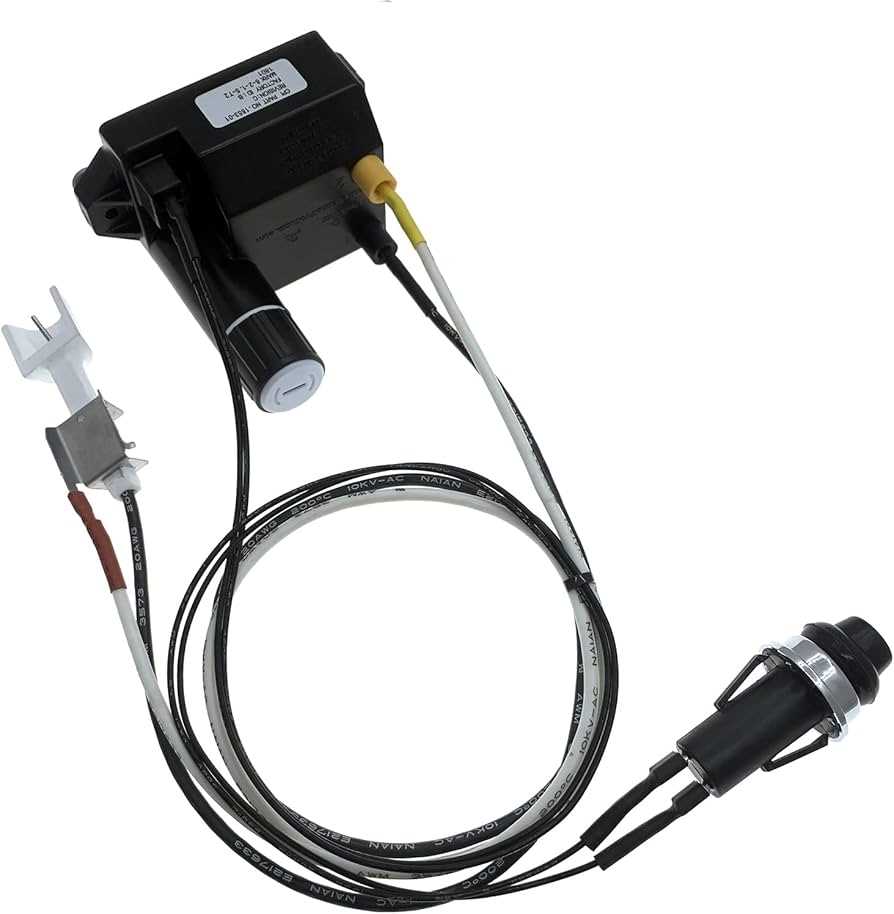

Start by locating the high-voltage module–typically a small ceramic or metal cylinder near the burner assembly. This component sends a pulse to the electrode when activated. Disconnect power sources before proceeding to avoid short circuits or accidental sparks. Use a multimeter to verify the module outputs between 5,000 to 20,000 volts; readings outside this range indicate a faulty unit needing replacement.

Identify the correct connection points on the module: one terminal attaches to the push-button switch (usually a red or black wire), while the other links to the ignition rod (often blue or white). Ensure the rod’s tip sits 3–5mm from the burner without touching metal, as improper spacing causes failed strikes or gas buildup hazards. Secure wires with heat-resistant sheathing to prevent melting from ambient heat.

For gas-fueled appliances, the switch wiring must follow a closed-loop path: power flows from the module through the switch and returns to ground via the electrode. Use 18-gauge silicone-coated wire for flexibility and heat endurance. Avoid daisy-chaining connections; each burner should have dedicated wiring to prevent voltage drop or uneven ignition. Test continuity after installation–intermittent sparks signal loose connections or corroded terminals.

Install a fuse (3-5 amp) in-line with the switch circuit to protect against surges. If the system uses a battery backup, mount it in a dry, ventilated location away from grease traps. For electronic controllers, route wires clear of sharp edges and rotating parts to prevent abrasion. Final checks should include verifying polarity before reactivating the gas supply.

How to Connect Your Barbecue Spark Generator

Begin by identifying the two primary components: the piezoelectric unit and the electrode assembly. The piezoelectric element generates voltage when compressed, while the electrode delivers the spark to the burner. Most setups use a simple two-wire connection, but check your model’s specifications–some require a three-wire system for grounding. Disconnect power sources before handling to avoid accidental ignition or electrical shock.

Tools and Safety Measures

Use insulated pliers and a multimeter to verify connections. The piezoelectric module typically outputs 10,000–20,000 volts–enough to create a strong spark but not hazardous if handled correctly. Avoid touching the electrode tip while testing, as residual charge can linger. If replacing components, match wire gauges: 18–22 AWG is standard for most outdoor cooking appliances.

Attach the red (positive) wire from the spark generator to the electrode’s central terminal. Secure tightly with a crimp connector or solder for durability against heat and moisture. The black (negative) wire connects to the burner’s metal frame or a dedicated ground screw. Ensure no bare wires touch the housing or other conductive surfaces to prevent short circuits. Test the spark by pressing the ignition button–it should produce a consistent blue arc.

Troubleshooting Common Issues

If the spark is weak or absent, check for corrosion on the electrode tip or loose connections. Clean the tip with fine-grit sandpaper and re-gap it to 3–4 mm from the burner port. For piezoelectric failures, replace the unit–repair attempts rarely succeed due to sealed internal mechanisms. If wires appear frayed, use heat-shrink tubing to insulate exposed sections. Avoid electrical tape, as it degrades under high temperatures.

For propane-powered units, verify gas flow before relying on the spark generator. A faulty valve or empty tank can mimic ignition problems. Always follow the manufacturer’s voltage specifications–using incorrect components voids warranties and risks equipment damage. Store spare parts in a dry, cool place to extend their lifespan, as humidity accelerates deterioration of conductive materials.

Key Elements of a Barbecue Sparking System Circuit

Start by examining the piezoelectric element–this core component generates the high-voltage pulse needed to create a spark. Most outdoor cooking spark modules use a quartz-based crystal that produces 10–20 kV when mechanically stressed. Verify the crystal’s condition by testing its output with a multimeter set to AC voltage; a reading below 8 kV indicates degradation. Replace the element if cracks or discoloration appear, as these defects reduce efficiency.

Battery and Connector Integrity

Check the power source: standard ignition assemblies rely on a 1.5V AA battery, though some high-end models use lithium cells for extended lifespan. Corrosion on battery terminals is a frequent failure point–clean contacts with fine-grit sandpaper and apply dielectric grease to prevent future oxidation. Loose wiring, especially at the push-button switch, can interrupt current flow; secure connections with solder or crimp connectors rated for outdoor use.

The push-button switch acts as the trigger mechanism, closing the circuit to deliver voltage to the piezoelectric unit. Inspect for wear by pressing it repeatedly–erratic sparking suggests internal friction or burnt contacts. Replace switches exhibiting resistance or sticking, as inconsistent operation leads to misfires. Ensure the switch’s mounting bracket is free of grease buildup, which can impede mechanical action.

Grounding plays a critical role in spark creation. The module’s ground wire must connect directly to the metal frame of the cooking apparatus; any insulation or paint on contact points disrupts the circuit. Use a wire brush to expose bare metal at the grounding point and check continuity with a multimeter. Poor grounding often manifests as weak or inconsistent sparks–relocate the ground wire to a cleaner surface if issues persist.

High-voltage wiring requires special attention: silicone-insulated wires rated for 25 kV minimum prevent arcing between components. Route wires away from moving parts and heat zones to avoid melting or chafing. If replacing wiring, match the gauge to the original–typically 18–20 AWG–and secure with heat-resistant loom tubing. Terminal connections should be crimped, not twisted, to ensure durability under repeated thermal cycling.

How to Connect a Spark Generator with a Press-Activation Switch

Disconnect the power source immediately–verify with a multimeter that no residual current remains in the circuit. A live connection during setup risks short circuits or damage to components.

Identify the ignition module’s two primary terminals: one for the power feed (typically from a battery or transformer) and the second for the ground return. Label these connections if wiring isn’t color-coded: red for input, black or bare for grounding.

Attach the press-activation switch between the battery and the ignition module’s input terminal. Use 18-gauge copper wire for low-current systems; heavier gauges (16 or 14) prevent voltage drop in longer runs. Strip 6mm of insulation from each wire end and twist strands tightly to avoid loose contacts.

• Connect the battery’s positive terminal to one side of the switch using a spade or ring terminal for secure attachment.
• Run a second wire from the switch’s opposite terminal to the ignition module’s input point.
• Ensure the ground wire from the module connects directly to the battery’s negative post or a dedicated chassis ground–no intermediary components should interrupt this path.

Test continuity with the multimeter before finalizing connections. Probe across the switch contacts while engaged; resistance should read near zero ohms. A faulty switch or broken wire shows infinite resistance–a sign to replace components before proceeding.

Secure all joints with solder or crimp connectors, then insulate with heat-shrink tubing or electrical tape. Avoid twist-and-tape methods; vibration from usage loosens these over time, leading to intermittent failures. Apply dielectric grease to outdoor connections to prevent corrosion in humid environments.

Safety Checks Before Activation

1. Visually inspect for stray wire strands touching adjacent terminals–even a single strand causes shorts.
2. Confirm no exposed conductors remain near moving parts or heat sources.
3. Reconnect the power source last, observing the spark generator’s operation from a safe distance. A single, sharp click indicates proper function; continuous ticking suggests a fault requiring immediate power cutoff.

For systems exceeding 12V, add a fuse within 15cm of the battery–10A for standard setups, 15A for high-output modules. Use a slow-blow fuse to accommodate momentary inrush current when the switch engages.

Common Assembly Errors and Fixes

Reverse polarity during installation causes immediate failure–verify the red lead connects to the positive terminal and the black to ground. Use a multimeter set to DC voltage (20V range) to test connections: probe the wire ends while pressing the activation button. No reading indicates a broken circuit; replace the damaged segment with 18-gauge silicone-coated cable, securing joints with heat-shrink tubing to prevent moisture intrusion.

Frequent Faults and Solutions

Symptom	Root Cause	Correction
Intermittent spark	Loose crimp connection	Recrimp terminals with ratcheting crimper, solder joints for high-vibration setups
No spark, audible click only	Corroded electrode	Sand electrode tips with 400-grit abrasive, maintain 3-4mm gap
Continuous sparking	Bare wires touching chassis	Inspect entire path, cover exposed conductors with fiberglass sleeving
Single activation, then failure	Weak battery	Upgrade to 9V lithium cell; alkaline types drop below 7V under load

Shortened component lifespan often stems from excessive heat exposure–route cables away from combustion chambers, using ceramic standoffs where temperatures exceed 200°C. Replace all Teflon-insulated wire with silicone-rated varieties if operating in environments above 150°C; standard PVC jackets melt at 105°C, fusing conductors.
