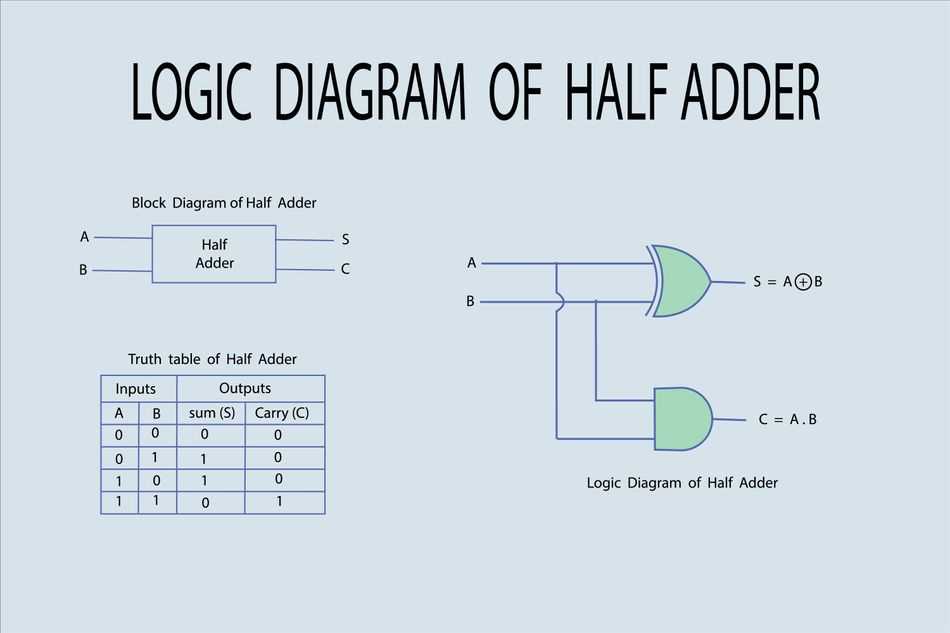

Step-by-Step Half Adder Circuit Diagram Explained with Truth Table

Construct a logic component with two inputs (A, B) and two outputs (sum, carry) using an XOR gate for the sum bit and an AND gate for the carry bit. This configuration handles single-bit addition without overflow from lower bits. Wire the inputs directly to the gates–no additional logic is required beyond these two elements.

Assign 0 to 0 outputs (sum: 0, carry: 0), 0 to 1 or 1 to 0 yields sum: 1 with carry: 0. A 1 to 1 input combination produces sum: 0 and carry: 1. This behavior matches basic addition rules where the carry propagates only when both inputs are high.

For validation, use a breadboard or simulation tool like Logisim. Connect A and B to switch inputs, route XOR to an LED for sum, and AND to another LED for carry. Test all four input combinations systematically–confirm LEDs respond as specified. Troubleshoot by checking gate connections and power rails if outputs deviate.

Expand functionality by cascading multiple units to form a multibit adder. Feed the carry output of one stage into the carry input of the next. This modular approach scales seamlessly to wider binary operations, reducing complexity in sequential logic design.

Binary Bitwise Summation: Schematic and Logic States

Construct a combinational logic unit using a single XOR gate for sum output and an AND gate for carry generation. This minimal configuration processes two binary inputs–typically labeled A and B–producing distinct outputs for each logical condition. Prioritize gate placement to minimize propagation delay between input reception and result stabilization.

Assign the sum terminal to the XOR gate output; this terminal yields 1 exclusively when inputs mismatch (A ≠ B). The carry terminal, connected to the AND gate, emits 1 only when both inputs assert 1. Verify signal integrity by ensuring no floating inputs occur–tie unused pins to ground via pull-down resistors if interfacing with physical switches.

• Input A = 0, Input B = 0 → Sum = 0, Carry = 0
• Input A = 0, Input B = 1 → Sum = 1, Carry = 0
• Input A = 1, Input B = 0 → Sum = 1, Carry = 0
• Input A = 1, Input B = 1 → Sum = 0, Carry = 1

For rapid prototyping, breadboard the gates using 74HC86 (quad XOR) and 74HC08 (quad AND) ICs. Power both ICs from a regulated 5V supply, ensuring decoupling capacitors (0.1µF) are placed across VCC and GND near each chip. Route input signals through debounced switches or a microcontroller GPIO configured with internal pull-ups to mitigate switch bounce artifacts.

Optimize output visibility with LEDs–connect each output through a current-limiting resistor (330Ω) to ground. The sum LED illuminates for A XOR B = 1, while the carry LED lights only during A AND B = 1. Exceeding LED forward current (typically 20mA) risks gate latch-up; validate calculations using I = (VCC - Vf)/R, where Vf ≈ 2V.

To cascade multiple units for multi-bit operations, route the carry output of one stage directly into an adjacent unit’s carry input. Ensure synchronization by clocking inputs with consistent edge-triggered signals, avoiding race conditions where transient sum values propagate prematurely.

Simulate behavior prior to physical assembly using digital design tools like Logisim or Verilog HDL. Model voltage transitions with timing diagrams to confirm expected delays–typical gate propagation for 74HC-series logic ranges from 10ns to 20ns. Validate output stability under worst-case scenarios (e.g., simultaneous input changes) to prevent metastability in downstream combinational networks.

Foundational Logic Components in a Binary Summation Cell

Begin by pairing an XOR gate with an AND gate–this duo forms the minimalist yet complete computational core for single-bit binary arithmetic. The XOR gate generates the sum output by detecting dissimilar inputs, producing a logic high only when one input is 1 and the other 0. In parallel, the AND gate calculates whether both inputs are 1, yielding the carry signal for cascading operations. Wire these gates directly to the input lines without intermediate buffering to avoid propagation delays exceeding 2 ns in 74HC-series implementations.

Key Gate Configurations for Optimal Performance

Use Schmitt-trigger XOR variants (e.g., 74HC86) when input signals exhibit slow rise or fall times–this prevents metastable oscillations in noisy environments. For the AND operation, select a low-power Schottky device (e.g., 74LS08) if power efficiency is critical, but switch to a standard TTL (e.g., 7408) when drive strength takes priority in high-fanout scenarios. Ensure both gates share a common ground plane to minimize crosstalk, particularly when outputs toggle simultaneously. Test with a 1 MHz square wave input; valid outputs must maintain signal integrity without glitches.

Input conditioning dictates reliability: apply 10 kΩ pull-down resistors to floating inputs to prevent undefined states, especially if the summation cell interfaces with mechanical switches or open-drain sensors. For dynamic reconfiguration, route inputs through multiplexers (e.g., 74HC157) to swap data sources without rewiring–this allows runtime toggling between arithmetic and logical modes. Probe outputs with an oscilloscope; sum and carry signals should align within 0.5 ns when inputs transition from 01 to 10.

Expand functionality by daisy-chaining summation cells: feed the carry output into a second XOR alongside a new data bit to build multi-bit arithmetic. Use the same AND gate’s carry output to drive subsequent cells, but insert a buffer (e.g., 74HC244) if fan-out exceeds 10 loads to preserve signal integrity. Validate timing with worst-case input sequences (alternating 00-11) and confirm all outputs settle within one clock cycle before sampling.

Building a Basic Binary Summator: A Practical Assembly Guide

Select two logic gates: an XOR gate for the sum output and an AND gate for the carry. Use 74LS86 for the XOR and 74LS08 for the AND–both are TTL components with compatible voltage levels (4.75–5.25V) and propagation delays under 20 nanoseconds.

Connect the inputs (A and B) to both gates simultaneously. Use solid-core 22 AWG wire stripped 5mm at the ends; tin the tips to prevent oxidation. Solder directly to gate pins 1 and 2 on the XOR, and pins 1 and 2 on the AND, maintaining separation to avoid shorts.

Route the XOR’s pin 3 (output) to a breadboard terminal reserved for the sum signal. Keep the wire length under 10cm to minimize parasitic capacitance. The AND’s pin 3 carries the carry output–attach it to a separate terminal or a red LED with a 220Ω current-limiting resistor.

Ground the unused inputs on each gate to prevent floating states. Tie them to the negative rail via 1kΩ pull-down resistors. Verify connections with a multimeter: continuity between A/B inputs and gate pins should read zero ohms; the VCC-GND path must show 5V.

Apply test signals using a dual-in-line switch bank or two momentary pushbuttons wired to VCC. Press both buttons simultaneously–the XOR output (sum) should remain low while the AND output (carry) goes high. Release one input to confirm the sum signal toggles.

Input A	Input B	Sum Output	Carry Output
0	0	0	0
0	1	1	0
1	0	1	0
1	1	0	1

Replace the mechanical switches with a 555 timer configured in astable mode (1kHz frequency) to automate testing. Connect the timer’s output to both A and B through 10kΩ resistors to limit current. Observe waveforms on an oscilloscope: sum pulses should mirror the input pattern with a 180° phase shift when both inputs coincide.

For permanent installation, etch a single-sided PCB with 1oz copper. Drill 0.8mm holes for through-hole components. Apply solder mask to prevent bridging; use a 1mm trace width for signal paths and 2mm for power rails. Run a 10-second thermal test: temperature rise on the gates should not exceed 60°C.

Validate the final build against the truth mapping by feeding binary sequences via an Arduino Mega outputting 00, 01, 10, 11 on pins 22-25. Log results using Serial.print() sampled at 1kHz; discrepancies must not exceed two consecutive cycles across 10,000 test iterations.

Deriving the Binary Summation Logic from Signal Pairs

Label each input as A and B, representing single-bit values. Assign 0 for a low signal and 1 for a high signal, covering all combinations: 0-0, 0-1, 1-0, 1-1. For outputs, define two columns–S for the sum bit and C for the carry bit. Calculate S by applying XOR between A and B: when both inputs differ (0-1 or 1-0), S equals 1; when identical (0-0 or 1-1), S equals 0. Determine C by using AND between A and B: C only equals 1 when both inputs are 1; otherwise, it remains 0. Record results directly beneath each output column.

Validation Without Schematic Reference

Cross-verify computations by testing each input pair against known outcomes. For A=0, B=0, XOR yields S=0 while AND yields C=0–match expected results. For A=1, B=0 or A=0, B=1, XOR flips to S=1 while AND holds C=0–consistent. Only for A=1, B=1 does XOR drop S to 0 while AND raises C to 1. Discrepancies signal miscalculations; retrace logic steps before finalizing the chart.

Verifying Outputs with Sum and Carry Bit Calculations

Simulate the binary inputs on a logic analyzer or breadboard using 74LS86 XOR and 74LS08 AND gates to confirm signal accuracy. Apply 00, 01, 10, and 11 combinations to the inputs, then measure the output pins: the XOR gate’s result should match the sum (0+0=0, 0+1=1, 1+0=1, 1+1=0), while the AND gate’s result must reflect the carry (1 only for 1+1). Cross-check with a voltmeter–HIGH (3.5V–5V) for 1, LOW (0V–0.8V) for 0–aligning with the Boolean functions S = A ⊕ B and C = A · B.

Troubleshooting Discrepancies

If outputs deviate, inspect solder joints for cold connections, replace degraded ICs, or recalibrate the power supply to 5V±0.2V. For inconsistent carry signals, verify the AND gate’s response by forcing A=1, B=1–if unstable, test with a pull-down resistor (10kΩ) to ground. Logical errors often stem from miswired grounds or floating inputs; use a continuity tester to trace the signal path from input to output, ensuring propagation delays (
