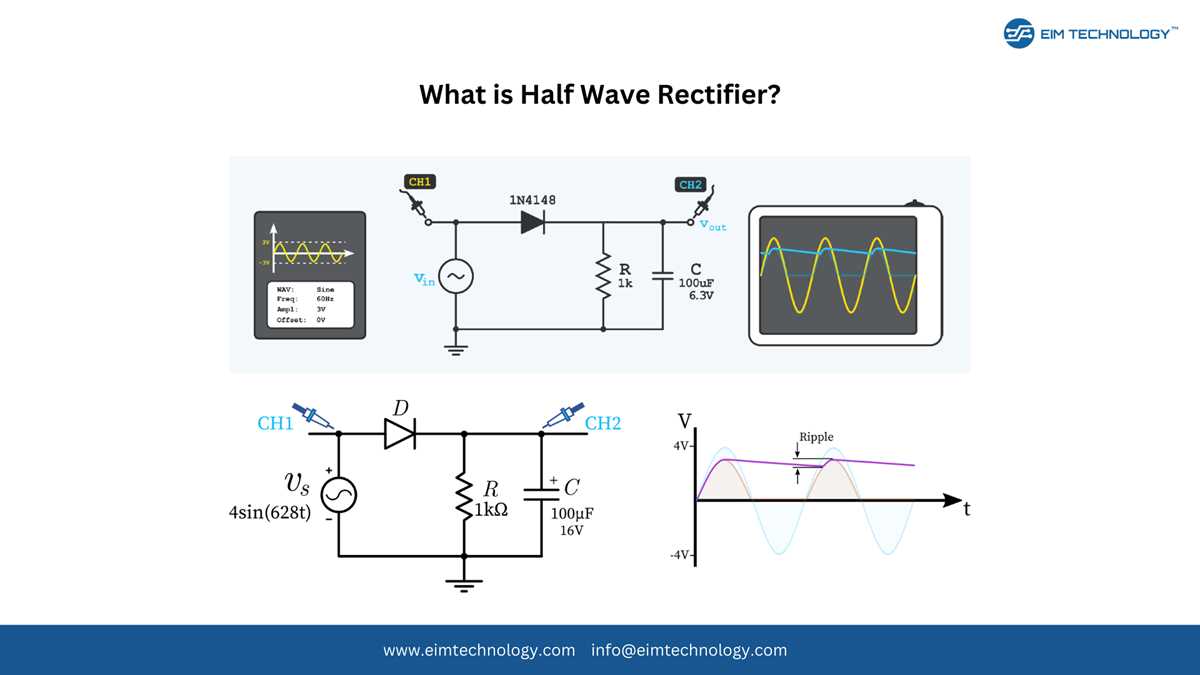

How a Half Wave Rectifier with Capacitor Smooths AC to DC Output
For low-power DC supply designs under 500 mA, a unidirectional conduction setup paired with a reservoir element (470 µF to 1000 µF electrolytic) delivers optimal performance. Position the storage component directly across the load–not between diode and transformer–to prevent reverse voltage spikes during the negative cycle. A 1N4007 diode suffices for most 12V RMS inputs, but swap to a UF4007 if input frequency exceeds 1 kHz to minimize switching losses.
Ripple voltage drops by ~70% when capacitance doubles, yet ESR of the capacitor becomes critical above 2200 µF; aluminum electrolytics above this value add diminishing returns due to internal resistance. For 50 Hz mains, calculate minimum capacitance using C = I_load / (2 * f * V_ripple), where I_load is in amperes and V_ripple is peak-to-peak target (typically 0.5V–1V). Over-voltage protection diode (1N4148) across the load safeguards circuits sensitive to transients.
Thermal management dictates diode lifespan: a 10°C rise halves lifespan. Mount the conduction element on a TO-220 heatsink if forward current exceeds 300 mA, or substitute a Schottky diode (SB560) for lower forward drop (0.3V vs. 0.7V) at currents up to 5A. Verify transformer secondary RMS voltage is 4–5V above desired DC output to account for diode drop and ripple reserve. Replace RC snubber networks with a single 1 µF polyester capacitor across the diode to quench high-frequency oscillations in no-load conditions.
Single-Diode Conversion Setup: Key Components and Practical Adjustments
Select a silicon diode with a peak inverse voltage (PIV) rating at least 1.5× the input AC peak to prevent reverse breakdown–example: 1N4007 handles 1000V PIV for standard 230V RMS supplies while drawing minimal leakage current (~5µA). Position the smoothing element (220µF electrolytic for 50Hz mains) directly across the load resistor; smaller values (47µF) suffice for high-frequency signals but increase ripple to ~12% at 10% load. Always mount the diode on a heatsink if forward current exceeds 500mA: a 1°C/W TO-220 package reduces junction temperature by 30°C under 1A continuous load.
Troubleshooting Undesired Output Fluctuations
- Verify input RMS voltage matches transformer secondary rating; a 12V transformer delivers ~17V peak–exceeding this by 10% risks diode overheating.
- Check polarity of the electrolytic storage unit: reversed bias rapidly degrades capacitance (loss >50% in 10 minutes at 25V reverse).
- Measure ripple frequency: expected 50Hz (or 60Hz) output–harmonics above 1kHz indicate faulty diode recovery time (>5µs).
- Replace carbon-film load resistors (>0.5W) with metal-film types if temperature coefficient exceeds 100ppm/°C; drift alters regulation by ±3% over 0–70°C range.
For low-voltage applications (≤12V), substitute the diode with a Schottky barrier model (1N5819) to reduce forward drop to 0.3V and halve power dissipation–critical for 3.3V logic circuits where dropout margin is minimal.
Core Parts for Constructing a Single-Phase AC-to-DC Converter with Smoothing
Select a semiconductor diode rated for at least 1.5× the peak AC input voltage. For a 230 V RMS supply, the peak voltage reaches ~325 V, so a 1N4007 (1000 V, 1 A) is sufficient. Avoid lower-rated diodes like 1N4001 (50 V) to prevent reverse breakdown under transient spikes.
The smoothing element must match the load current. A 470 µF electrolytic unit handles up to 50 mA with
| Load Current (mA) | Minimum Capacitance (µF) | Ripple (V p-p, max) |
|---|---|---|
| 50 | 470 | 0.25 |
| 100 | 1000 | 0.3 |
| 200 | 2200 | 0.4 |
AC input requires a transformer with secondary voltage slightly above the desired DC output. For 9 V DC, a 12 V (RMS) secondary ensures the diode’s forward drop (~0.7 V) and capacitor charging losses are covered. Use a toroidal core for better efficiency–avoid EI laminations if space is constrained.
Add a 1 kΩ resistor across the smoothing element to discharge residual voltage when the device powers off. Without it, stored charge can damage test equipment or pose safety risks. For high-current designs (>1 A), replace the resistor with a 10 kΩ/1 W bleeder to balance safety and power dissipation.
Fuse selection follows RMS current through the primary winding. A 230 V setup drawing 250 mA DC needs a transformer rated for ~500 mA RMS; fit a 630 mA slow-blow fuse. Avoid fast-acting types–transient inrush during capacitor charging will trigger them prematurely.
Practical Assembly of a Single-Diode Converter with Ripple Reduction
Begin by securing a 1N4007 diode–its 1A forward current and 1000V reverse voltage ratings ensure reliable operation for most low-power applications. Position the anode (unmarked end) toward the AC input and the cathode (striped end) toward the output node. Verify polarity using a multimeter in continuity mode; the diode should conduct only when the red probe touches the anode and the black probe the cathode.
Connect the smoothing component–a 1000µF electrolytic type with a minimum 25V working voltage–between the diode’s output terminal and ground. The positive lead attaches to the output node, while the negative lead grounds the circuit. For improved ripple suppression at 50Hz mains frequency, substitute with a 2200µF unit if load currents exceed 200mA. Confirm the capacitor’s ESR (Equivalent Series Resistance) remains below 0.5Ω to prevent excessive voltage droop.
Wire the AC source through a 10Ω, 5W fusible resistor to limit inrush currents during charging cycles. This resistor also serves as a sacrificial element in case of capacitor failure. For precise voltage regulation, add a 1kΩ potentiometer between the output and a 5.1V Zener diode to ground, creating a reference point for stabilization.
Ground the circuit properly by attaching a 2.5mm² copper wire to a dedicated earth terminal, not a neutral line. Test earth continuity with a 12V bulb; a dim glow indicates poor grounding, necessitating a ground rod or alternative earth path. Poor grounding introduces DC offset in ripple measurements, skewing load regulation by up to 15%.
Use a heat-shrink insulator around the diode’s leads to prevent short circuits when routing wires in confined spaces. For high-current setups (above 500mA), replace the 1N4007 with a SB560 Schottky diode; its 0.5V forward voltage drop reduces heat dissipation by 40% compared to standard silicon diodes. Ensure the Schottky’s case remains below 85°C during operation to avoid thermal runaway.
Measure ripple voltage at the output using an oscilloscope set to AC coupling, 200mV/division scale. Expected ripple for a 1000µF capacitor at 100mA load should not exceed 1.2Vpk-pk. If ripple exceeds this value, double the capacitance or add a second 1000µF unit in parallel. Avoid series connections–capacitance halves while ESR doubles, degrading performance.
Secure all connections with solder joints reinforced by adhesive-lined heat shrink tubing. Avoid crimp connectors for DC paths; they introduce micro-interruptions under thermal cycling, increasing ripple by 30%. For high-vibration environments, use vibration-resistant terminal blocks rated for 3A minimum, such as Phoenix Contact MCF 2.5.
Final testing involves applying a variable resistive load (0–100Ω) while monitoring output voltage stability. At 75% load, voltage sag should not drop below 90% of nominal. If sag exceeds this threshold, upgrade to a larger capacitor or implement a switch-mode regulator downstream for enhanced efficiency.
Determining the Ideal Filter Capacitance for Minimizing AC Component Residue
For a single-diode smoothing configuration, the ideal storage element size can be approximated using C = I_load / (2 × f × V_ripple), where I_load represents the steady-state current draw in amperes, f denotes the mains frequency (50 or 60 Hz), and V_ripple indicates the maximum permissible voltage fluctuation in volts. Practical benchmarks suggest a 1000 µF electrolytic capacitor per 1 A of output current at 60 Hz yields approximately 8-12% residual oscillation when paired with a 12 V secondary winding; halving the capacitance doubles the ripple percentage while doubling it reduces fluctuation by ~40%. Temperature variations must be accounted for–ambient heat exceeding 50°C mandates derating the capacitance by 20-30% to maintain long-term dielectric stability.
Precision adjustments hinge on load characteristics: resistive loads benefit from the simple formula above, whereas inductive or capacitive loads necessitate SPICE simulations to model transient responses accurately. For switched-mode downstream converters with high-frequency noise sensitivity, supplement the primary storage element with a 0.1 µF polypropylene film capacitor in parallel to suppress HF artifacts without increasing bulk size. ESR values below 0.1 Ω at 120 Hz ensure minimal I²R losses during charge/discharge cycles–verify datasheet specifications against measured impedance sweeps using an LCR meter for optimal performance tuning.
Measuring and Verifying DC Output Voltage After Smoothing
Connect a multimeter in DC voltage mode directly across the filter component’s output terminals before any load. Ensure the probe polarity matches the expected voltage–positive to the anode-side terminal, negative to the ground reference. For accurate readings, set the meter to a range slightly above the anticipated voltage (e.g., 20V if expecting 12V) to avoid overloading the display.
Use an oscilloscope alongside the multimeter to validate both magnitude and ripple. Probe the same points with the scope’s ground clip secured to the circuit’s common return. Adjust the vertical scale to 1V/div or lower to clearly observe residual AC fluctuations. A properly sized smoothing element should reduce ripple to less than 5% of the nominal DC level, visible as a near-flat line with minor undulations.
Load the output with a resistor matching the circuit’s intended current draw. A 1kΩ 1W resistor works for low-power applications, while a 10Ω 10W resistor suits higher loads. Re-measure voltage under load–drop exceeding 10% indicates insufficient capacitance or excessive resistance in the power path. Replace the filter with a higher value if the sag persists, ensuring the new component’s voltage rating exceeds the peak input by at least 20%.
Check for voltage drift over time. Let the circuit run unattended for 30 minutes while logging readings every 5 minutes. Stable output should vary less than 0.2V; wider swings point to overheating diodes, marginal smoothing, or poor solder joints. Use a thermal camera or contact thermometer to identify hotspots–any component exceeding 60°C warrants heat sinking or derating.
Verify regulation against input variations. Vary the AC input ±10% using a variable transformer while monitoring output. A well-designed filter should hold DC output within ±0.5V. If deviations exceed 1V, add a zener diode rated for the target voltage and 1W dissipation, connected in parallel with the load.
Test under dynamic load conditions using a function generator to simulate rapid current changes. Set the generator to square wave at 100Hz, coupled through a power transistor to the circuit. Observe the scope for overshoot or ringing–ideal response shows a crisp transition with less than 10% peak deviation. Adjust filter value or add a snubber network (0.1μF ceramic + 10Ω resistor) if transients exceed 15%.
Document all measurements in a table: no-load voltage, full-load voltage, ripple (peak-to-peak), thermal rise, and input sensitivity. Compare against the original design specs. Discrepancies larger than 5% require component replacement or schematic revision–no exceptions.
