Building and Understanding a Hall Effect Sensor Circuit Schematic

For accurate detection of transverse voltage variations in semiconductors under magnetic fields, integrate a linear sensor array with a differential amplifier stage. Begin with a GaAs or InSb element as the core component–these materials offer optimal sensitivity (5–50 mV/T) and temperature stability (±0.01%/°C). Bias the element with a constant current source (0.1–10 mA) to avoid thermal drift; even minor fluctuations above ±0.5°C degrade readings by 1–2%.

Use a low-offset op-amp (e.g., OP07) configured as a non-inverting amplifier with a gain of 50–200. Ensure the feedback resistor (Rf = 10–100 kΩ) matches the sensor’s internal resistance (±5%) to prevent signal distortion. Add a 100 nF decoupling capacitor across the power supply pins to suppress high-frequency noise, critical for maintaining a 12-bit ADC resolution in digital systems. Ground all unused inputs; floating nodes introduce parasitic oscillations up to 1 MHz.

For temperature compensation, pair the sensor with a thermistor in a Wheatstone bridge configuration. Use a 10 kΩ NTC thermistor with a β-value of 3950 K; this reduces thermal error from ±5% to ±0.2% over a –40°C to +85°C range. Include a 10 kΩ trimpot for zero-field calibration–adjust until output voltage settles at 2.5 V ±5 mV with no magnetic influence.

Isolate the analog section with a guard ring or shielded twisted-pair wiring to block capacitive coupling from nearby switching circuits. For breadboard prototypes, avoid high-impedance paths longer than 2 cm; stray capacitance above 1 pF introduces phase shifts detectable at fields below 1 mT. Validate the setup with a reference magnet (e.g., NdFeB, 100 mT) before deployment–verify linearity within ±0.5% across the expected measurement range.

Schematic for Magnetic Sensor Implementation

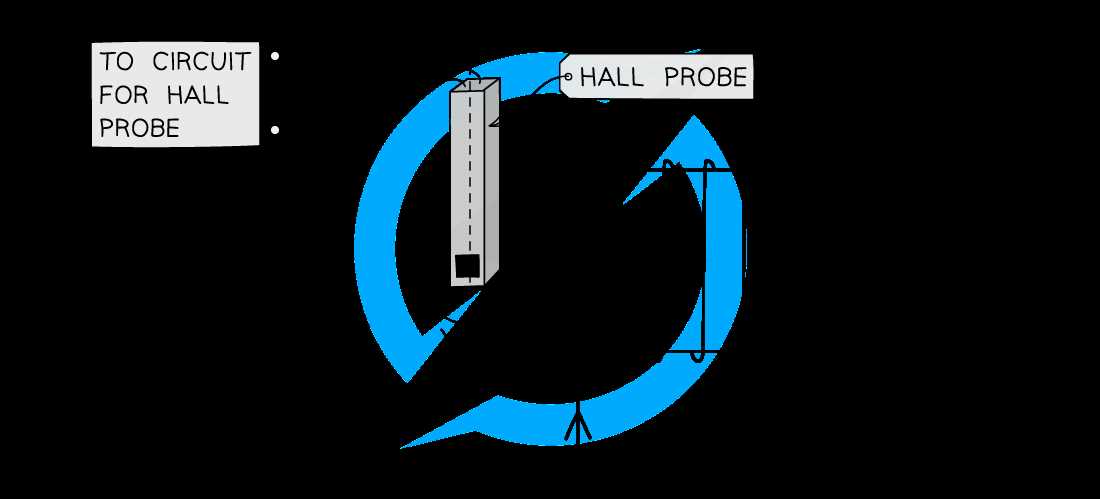

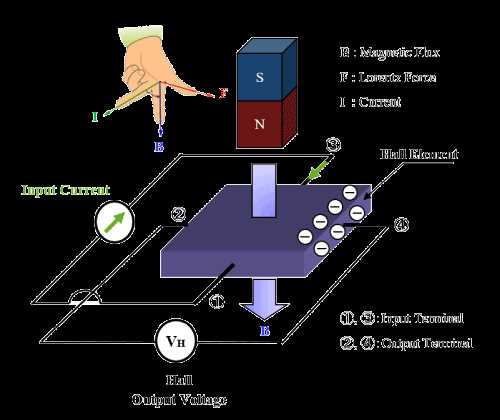

Select a four-terminal semiconducting element (e.g., InSb or GaAs strips) with sensitivity ≥ 5 mV/mT and supply it with a stable 5–10 mA constant current via precision resistors (1% tolerance). Place the sensing strip perpendicular to the target field axis; typical linearity errors remain below 0.2% up to 1.5 T. Direct the output leads to a low-noise instrumentation amplifier (e.g., INA333) configured for a gain of 100–200, ensuring a bandwidth limited to 1 kHz to suppress 50/60 Hz interference. Decouple both the excitation and amplifier rails with 10 µF tantalum capacitors adjacent to the sensor and 0.1 µF ceramics at each IC pin.

Layout Precautions

Route excitation and sense traces on opposite board layers, separated by a continuous ground plane; this reduces crosstalk to 2 µV. Keep the PCB dielectric thickness ≤ 0.8 mm to minimize stray capacitance that could couple switching noise from nearby SMPS circuits.

After assembling, null any residual offset by adjusting a trimming potentiometer (10 kΩ, 10-turn) wired between the amplifier’s reference pin and ground–this compensates thermoelectric potentials that arise at solder joints. Store raw measurements in a 16-bit ADC with at least 4× oversampling; oversampling reduces quantization noise by 6 dB, yielding effective resolutions of

Core Elements for a Fundamental Magnetic Field Measurement Setup

Select a linear sensor IC with high sensitivity to avoid signal degradation. The AD22151 from Analog Devices offers ±1% linearity at 5V supply, while the DRV5055 from Texas Instruments provides a ±25 mT range with 5 μV/Gauss resolution. Ensure the chosen component matches the expected field strength–industrial applications may require ±50 mT or more, whereas consumer devices often suffice with ±10 mT.

Critical Passive Components

• Bypass capacitors: Place a 0.1 μF ceramic capacitor within 2 mm of the sensor’s power pin to suppress high-frequency noise. For low-frequency stability, add a 10 μF tantalum capacitor further from the pin. Avoid electrolytic capacitors–ESR above 0.1 Ω introduces phase lag.
• Load resistor: A 1 kΩ to 10 kΩ resistor on the output pin balances signal amplitude and noise immunity. Lower values increase current draw; higher values risk output sag under 1 mA loads.
• Pull-up/down resistors: For open-drain outputs, use 4.7 kΩ for 3.3V systems and 10 kΩ for 5V. Verify minimum current compliance–AD22151 requires 100 μA for proper operation.

Power supply stability dictates measurement accuracy. Linear regulators like the LT3045 (0.8 μVrms noise) outperform switching supplies, which inject 10–100 kHz ripple. If switching is unavoidable, add a π-filter (10 μH inductor + two 22 μF capacitors) to attenuate ripple below 1 mVpp. Ground plane separation between analog and digital sections prevents 50–500 Hz hum from corrupting readings.

1. Voltage reference: Sensors relying on ratiometric output (e.g., DRV5055) need a 2.5V reference via a precision IC like the REF3425 (±0.1% initial accuracy). Avoid resistor dividers–temperature drift exceeds 50 ppm/°C.
2. Signal conditioning: For sensors with OPA333, 2 μV offset) in non-inverting configuration with gain of 2–5. AC-coupled measurements require a 0.1 Hz high-pass filter (10 μF capacitor + 150 kΩ resistor) to block DC drift.

Temperature compensation prevents drift in outdoor or industrial environments. Sensors like the MLX90215 include onboard thermistors–calibrate using a third-order polynomial derived from datasheet accuracy curves. For discrete solutions, pair the sensor with a 10 kΩ NTC thermistor and interpolate between lookup table values at 5°C intervals.

Physical assembly impacts performance. Position the sensing element 1–3 mm from the target to maximize field coupling while minimizing fringing effects. Shield cables with mu-metal foil or twisted pairs for distances >10 cm–untwisted wires pick up 50 Hz mains interference. For rotating targets, ensure 360° mechanical clearance to avoid asymmetric readings.

Calibration offsets eliminate zero-field errors. Use a three-point method: measure at -B_max, 0, and +B_max, then apply linear regression. Record offset voltage at 25°C–recheck if ambient varies by >10°C. For high-precision applications, implement automated calibration via a microcontroller (e.g., STM32) and a known reference magnet.

Interface design determines compatibility. Analog outputs demand 12-bit ADCs (e.g., ADS1115) with sampling rates ≥1 kHz for dynamic fields. Digital sensors (e.g., TLE4998) use I²C at 400 kHz–limit bus capacitance to ADuM1250 digital isolators with 2.5 kVrms rating.

Step-by-Step Wiring of a Magnetic Field Detector to a Microcontroller

Select a ratiometric sensor with a supply voltage matching your microcontroller’s logic level (3.3V or 5V). Verify pinout: typically, VCC, GND, and OUTPUT. For 5V systems, ensure the output voltage swing (e.g., 1.0V to 4.0V) stays within ADC limits. Use a 0.1μF decoupling capacitor between VCC and GND, placed within 2mm of the sensor.

Connect the sensor’s OUTPUT pin to an analog input (e.g., ADC0 on ATmega328P). If the signal exceeds 3.3V on a 3.3V MCU, add a voltage divider: 10kΩ resistor from sensor output to MCU pin, 20kΩ resistor from MCU pin to GND. For digital sensors (e.g., latch-type), feed OUTPUT to a GPIO with internal pull-up disabled.

Component	Recommended Value	Notes
Decoupling capacitor	0.1μF ceramic (X7R)	Critical for noise reduction
Voltage divider (5V → 3.3V)	10kΩ, 20kΩ	1% tolerance resistors
Pull-up/down resistor	4.7kΩ	Only for digital sensors without active output

For bidirectional field detection, power the sensor with an H-bridge for polarity reversal. Route the sensor’s OUTPUT through a 1kΩ series resistor to the ADC to limit current during voltage spikes. On an STM32, configure the ADC for 12-bit resolution and 10μs sampling time. Calibrate offset by reading the ADC value at zero field and subtracting it in firmware.

Test wiring with a known magnetic source (e.g., NdFeB magnet, 100mT). Move the magnet perpendicular to the sensor’s sensitive axis while monitoring the ADC. A linear response (e.g., 0.5V/mT) confirms correct installation. For high-speed applications, enable DMA on the ADC to avoid CPU load. If oscillations occur, add a 10nF capacitor from OUTPUT to GND, but increase sampling time to 50μs.

Isolate the sensor from high-current traces on the PCB; maintain minimum 5mm clearance. For SPI/I2C sensors, connect the interface as follows: SCL → GPIO (open-drain), SDA → GPIO (internal pull-up). Terminate I2C with 4.7kΩ resistors to VCC. Use a 16MHz MCU clock for stable communication. Verify checksums in firmware if the sensor supports them.

Signal Conditioning Techniques for Magnetic Sensor Output

Amplify weak sensor signals using a low-noise operational amplifier (op-amp) with a gain of 100–1000, depending on the expected field strength. Select an op-amp with an input noise density below 5 nV/√Hz to minimize interference from thermal and flicker noise. For precision applications, pair the amplifier with a low-pass filter cutting off at 1 kHz to eliminate high-frequency noise while preserving signal integrity.

Offset voltage drift can degrade accuracy; use an instrumentation amplifier (in-amp) with a drift specification under 0.5 µV/°C. Configure the in-amp with a fixed gain resistor to avoid thermal variations introduced by poteniometers. If temperature stability is critical, implement a chopper-stabilized op-amp, which reduces drift to under 0.1 µV/°C by modulating the input signal and demodulating it at the output.

For sensors producing millivolt-level outputs, employ a differential amplifier configuration to reject common-mode noise. Use a resistor ratio of 1% tolerance or better to maintain symmetry; mismatched resistors introduce errors up to 0.5% of the output. Ground the non-inverting input through a resistor equal in value to the feedback network to balance input impedance.

When measuring pulsating fields, implement a second-order Sallen-Key filter with a Q factor of 0.707 to avoid overshoot. Set the cutoff frequency 5–10 times the highest expected signal frequency to prevent phase distortion. Replace standard resistors with metal-film types (TC ≤ 50 ppm/°C) to maintain filter accuracy across temperature swings.

To linearize sensor outputs with inherent nonlinearity, use a microcontroller lookup table or polynomial correction. For cubic nonlinearity, apply the equation V_out = a + b·V_in + c·V_in² + d·V_in³; coefficients can be derived empirically or from datasheets. If hardware linearization is preferred, deploy an analog multiplier IC to pre-correct the signal before amplification.

In high-noise environments, twist sensor wires with a pitch of 25 mm or less and shield them with braided copper (90% coverage). Connect the shield to the system ground at a single point to prevent ground loops. For remote sensors, use a current-loop transmitter (4–20 mA) to immune the signal against voltage drops over long cables.

Digitize conditioned signals with a 16-bit ADC featuring a sampling rate at least 10× the highest frequency component. Use an ADC with an input range matching the amplified signal (±2.5 V, for example) to maximize resolution. Implement oversampling and averaging in software to reduce quantization noise by 6 dB per quadrupled sample count.

Validate conditioning performance by injecting a known reference field and measuring output stability over a 24-hour period. Monitor drift using a 5½-digit multimeter; acceptable drift should not exceed ±0.1% of full scale. Store calibration data in non-volatile memory to correct for long-term variations during operation.
