Kia Radio Wire Color Codes and Harness Wiring Diagram Guide
For precise speaker and power connections in Kia vehicles, locate the standardized pin assignment chart included in the vehicle’s repair manual. The wiring scheme typically follows a consistent pattern: solid orange for constant 12V power, gray/black stripe for ground, and yellow/white stripe for switched ignition power. Speaker outputs use twisted pairs–front left (white/green stripe), front right (gray/violet stripe), rear left (green/black stripe), and rear right (violet/blue stripe). Deviations from this layout are rare but verify with a multimeter if reprogramming an aftermarket unit.
When stripping and crimping, use 18-gauge tinned copper connectors and heat-shrink tubing to prevent oxidation. Misaligned connections–such as swapping a speaker wire with power–can fry the amplifier’s internal circuits. Kia’s factory harness integrates anti-theft resistors; bypass them by inserting a 620-ohm resistor between the data pin (usually purple/white stripe) and ground before installing third-party hardware.
Test every connection with a 5V continuity probe before reattaching panels. Loose crimps or exposed strands will cause intermittent audio dropouts or amplifier shutdown. If the display shows “code” errors post-installation, reset the system by disconnecting the battery for 10 minutes–this clears the ECU’s temporary memory without requiring dealer tools.
Understanding Kia Audio System Connection Guides
Begin by identifying the standard wire sequence in most Kia vehicles. The power lead typically uses a solid yellow cable, while the ground is consistently black. Locate these first to establish a stable connection before proceeding with other components.
The speaker wires follow a predictable pattern: front left positive is white, front left negative is white with a black stripe. Front right positive mirrors this with gray, and front right negative uses gray with a black stripe. Rear channels swap gray for green on the right and white for purple on the left.
Check for an illumination wire–usually orange with a white stripe–which syncs the display brightness with the vehicle’s dashboard. Failure to connect this may result in an overly bright or dim interface, depending on ambient light conditions.
For steering wheel controls, verify compatibility with the aftermarket unit. The data line often appears light blue with a white stripe. If this wire is absent or damaged, controls may not function, requiring an adapter or manual programming.
Kia models from 2010 onward often include an amplified setup. The remote turn-on wire (typically blue) must be connected to avoid draining the battery. Test this by turning the ignition on and ensuring the unit powers up immediately.
Use a multimeter to confirm wire functions if labels are unclear. Set the meter to DC voltage (20V range) and probe each wire with the ignition on. A reading near 12V indicates power; 0V suggests a ground or speaker lead.
Avoid twisting wires directly–solder all connections and insulate them with heat-shrink tubing or electrical tape. Loose connections can cause static, intermittent playback, or even damage the unit’s internal circuits over time.
Refer to the vehicle’s original audio manual for model-specific variations. Some Kia sedans use a brown wire for the parking brake signal, which must be grounded for video playback to function during driving restrictions.
Identifying Vehicle Audio System Connector Terminals

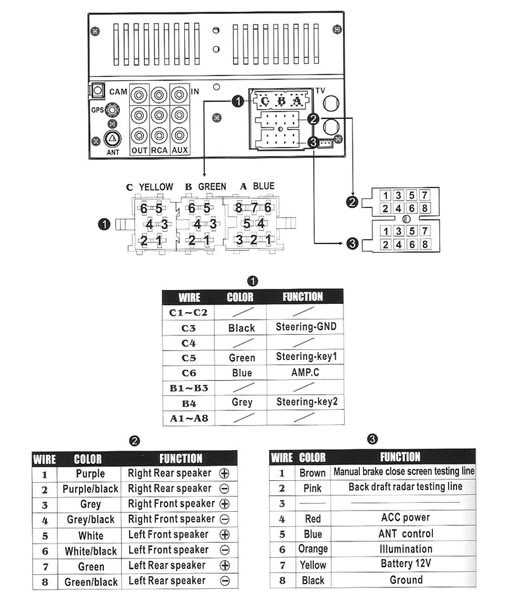

Begin by locating the rear of the sound unit where the plug interfaces attach; these typically feature 12 to 20 pins arranged in two parallel rows. Count the ports from left to right while facing the connection point, starting with pin 1 at the top-left for dual-row layouts. Use a multimeter set to DC voltage (20V scale) to probe each terminal against chassis ground–battery power inputs will register 12V, ground pins will show zero resistance, and speaker leads will vary with audio signal.
Key terminal functions follow manufacturer-standardized sequences across most models: constant power occupies pin 1 or 2, ignition-switched supply sits adjacent (often pin 3 or 4), while ground clusters at pin 6, 7, or 8. Speaker outputs for front-left, front-right, rear-left, and rear-right channels appear in pairs from pin 9 onward, distinguished by polarity markers (+ typically higher-numbered within each pair).
For precise pinout verification, consult the vehicle-specific repair manual–model years 2015-2023 maintain consistent layouts, while earlier variants (pre-2012) may swap power and accessory wire positions. Avoid relying solely on wire pigment, as Asian-market editions sometimes invert red and yellow leads despite identical connector shapes.
When adapting aftermarket units, bridge constant and accessory circuits with a 10A fuse inline–failure risks damaging the vehicle’s computer memory. Speaker circuits tolerate direct connection, but confirm impedance matches (usually 4Ω) to prevent amplifier overheating. Auxiliary inputs (USB/Bluetooth modules) often occupy the final four pins; these require steady 5V supply typically tapped from pin 10.
For troubleshooting silent channels, inject a 1kHz test tone through each speaker terminal while observing waveform symmetry on an oscilloscope–distorted or asymmetric signals indicate bad ground loops or corroded connector contacts. Replace OEM plugs if terminal corrosion is visible; use gold-plated replacement pins rated for 15A current to ensure conductivity.
Japanese and Korean variants sometimes include steering-wheel control wires terminating in pin 12–a data stream requiring specialized interface modules to retain functionality. Aftermarket adapters exist but verify compatibility with the specific model’s CAN bus protocol to avoid triggering fault codes.
Always disconnect the negative battery cable before probing or modifying connections–this prevents accidental short circuits and protects sensitive electronic modules from voltage spikes. Reconnect power only after verifying all circuits, then test audio performance at moderate volume before final installation.
Document each pin assignment with a hand-drawn schematic or photograph before disassembly–this saves hours during reassembly and eliminates guesswork when reconnecting. For vehicles equipped with factory amplifiers, additional wires (typically pin 11 and 16) carry low-level signals requiring proper shielding to avoid interference.
Match Aftermarket Head Unit Wires to OEM Kia Cable Schematics

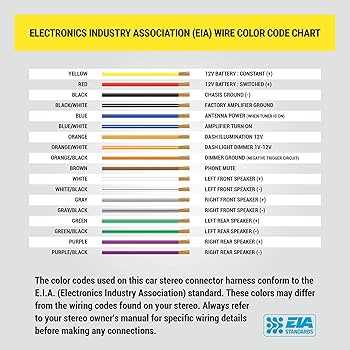

Begin by identifying the constant power lead on your new stereo–this is typically a solid yellow wire. In most Kia models, the factory equivalent is a light purple cable with a thin black stripe. Connect these two directly; failure to do so will result in the unit losing memory settings each time the ignition is turned off.
- Ground connection: Locate the black wire on your aftermarket unit. Kia’s ground is usually a solid brown cable. Ensure this connection is clean and tight; poor grounding causes interference, weak sound, or erratic display behavior.
- Illumination control: Aftermarket stereos use a light orange wire for dimming. Kia’s factory wiring often assigns this function to a gray wire with a red stripe. If your unit lacks automatic dimming, leave this disconnected.
- Remote turn-on: The blue or blue/white wire on the aftermarket side should connect to Kia’s pale green wire. This triggers amplifier activation and powers antenna motors.
Speaker outputs require precise pairing. Aftermarket stereos label front left positive as gray, while Kia’s factory scheme often marks it as light blue with a green stripe. Reversing polarity distorts audio and damages components over time. Use a multimeter set to 200Ω to confirm continuity before soldering or using crimp connectors.
Do not assume wire positions based on hue alone–always reference your model’s exact wiring schematic. A 2015 Kia Soul may use different assignments than a 2018 Kia Sportage, even if cable colors appear similar. Cross-check against an official service manual or a verified pinout chart specific to your vehicle’s year and trim.
- Parking brake detection: Aftermarket head units often include a pink or violet wire labeled “parking brake” or “brake sensor.” Kia’s factory setup uses a solid blue wire for this function. Connecting this incorrectly can disable video playback while driving.
- Steering wheel controls: If retaining factory buttons, locate the aftermarket unit’s purple wire–usually labeled “SWI” or “steering wheel interface.” Kia’s corresponding cable is commonly gray with a white stripe. Dedicated adapter modules simplify this integration but aren’t universal.
- USB or auxiliary inputs: Modern aftermarket stereos may include additional cables for media playback. Kia’s factory harness might not have dedicated leads for these; plan to splice into the vehicle’s existing USB or 3.5mm jack wiring if present.
Always disconnect the car battery’s negative terminal before making connections. Even brief short circuits can damage sensitive electronics in both the stereo and the vehicle’s computer. After installation, test each function systematically–power, speakers, controls, and safety features–before reassembling the dash.
Troubleshooting Common Electrical Connection Issues in Vehicle Audio Setups
Check voltage consistency across all connections before assuming component failure. Use a multimeter to verify 12V constant power on the yellow wire at the plug, ignoring temporary delays on startup sequences. If readings drop below 11.8V, inspect for corroded terminals or undersized wire gauges, which introduce resistance. Replace any damaged connectors with gold-plated alternatives to prevent oxidation.
Mismatched speaker outputs often create distorted audio or dead channels. Measure impedance between the positive and negative leads with the audio system powered off. Factory stereo units typically expect 4 ohm loads; anything below 2 ohms risks overheating. Cross-reference the vehicle’s service manual for pin assignments, as aftermarket amplifiers may invert polarity or combine inputs differently. Test each cable individually by swapping known working components between channels.
Identifying Ground Loop Interference
Ground loops generate a low-frequency hum through shared return paths. Isolate the issue by disconnecting all peripherals and reconnecting them one at a time. Move the ground point to a bare metal surface closer to the device if the noise persists. Use a star grounding technique, ensuring all negative connections converge at a single chassis point rather than daisy-chained. Ferrite beads on signal wires can suppress high-frequency interference but won’t resolve DC offset problems.
- Inspect fuse ratings: A 10A fuse on a 20A circuit will blow repeatedly, indicating overload.
- Look for melted insulation: This signals localized heat buildup from resistance or short circuits.
- Verify dimmer functionality: Many vehicles tie illumination circuits to dashboard dimming; incorrect taps cause brightness issues.
When bench-testing outside the vehicle, simulate the exact load conditions. A car battery provides 14.4V while charging, unlike a bench power supply at fixed 12V. Use a variable load resistor to mimic real-world scenarios, adjusting resistance to match the vehicle’s voltage regulator output. Document all test points with photographs before disconnecting anything to avoid accidental miswiring during reassembly. If factory connectors are damaged, splice in new terminals rather than soldering directly, as crimped connections handle vibration better.
