Complete Hayward Super Pump 230V Wiring Guide with Color Codes and Setup

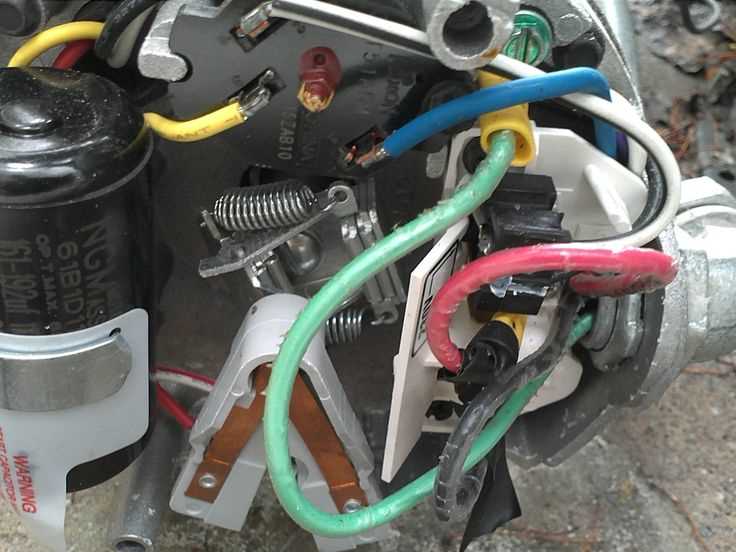

For a 240-volt single-phase installation, identify the L1 and L2 terminals on the motor’s junction box–these correspond to the hot wires (typically black and red). Connect the neutral wire (white) to the designated grounding post if required by local codes, though many residential systems omit it for dedicated circuits. Verify torque specs for terminal screws: 12–15 in-lbs for secure contact without over-tightening. Incorrect tension risks loose connections or stripped threads.
Before energizing, confirm capacitor placement–locate the start capacitor (usually marked 50–200 µF) and ensure it’s wired in series with the centrifugal switch. A multimeter should read ~5–10 ohms across the motor windings; deviations indicate faulted coils. Use AWG 10 or 12 copper wire for runs under 100 feet; longer distances may require thicker gauge to prevent voltage drop.
Attach the ground wire (green or bare) to the screw on the motor housing–this bond is non-negotiable for fault protection. If the circuit breaker trips on startup, suspect a shorted capacitor or misaligned centrifugal switch. Test the switch by spinning the shaft manually; a proper click confirms engagement. Ambient temperatures above 104°F (40°C) may necessitate derating the overload protector.
Label all wires at both the motor and breaker panel to avoid confusion during future maintenance. Use crimp connectors with heat-shrink tubing for splices, not wire nuts, due to vibration risks. If the motor hums but doesn’t start, check for single-phasing: one phase may be dead. Finally, cap unused terminals in the junction box with twist-on wire connectors to prevent accidental shorts.
Connecting Your Pool Motor to 230-Volt Power Safely
Verify the motor’s nameplate for voltage tolerance–most models rated for dual voltage must be configured for 230V before installation. Locate the jumper connections inside the terminal box; these typically include a single bridge terminal (L2) and a dual terminal (L1/T1, T2). For 230V operation, remove the jumper (if present) between L2 and T2, then secure a wire nut over the exposed L2 terminal to prevent shorts. Connect the incoming live conductors to L1 and L2, ensuring T1 and T2 are linked to the capacitor via 10-gauge copper wire. Ground the unit to the metal housing with an 8-gauge green-insulated wire, tightened to at least 12 in-lbs torque.
Critical Safety Checks Before Energizing
- Test insulation resistance with a megohmmeter: minimum 1 MΩ between windings and ground.
- Confirm centrifugal switch disengagement at startup–listen for a click within 1–2 seconds of power application.
- Check for 240V ±5% at the motor terminals using a true-RMS multimeter; fluctuations exceeding 3% indicate unstable supply.
- Inspect all conduit seals–liquid-tight flexible conduits must be clamped within 12″ of entry to prevent moisture ingress.
For units equipped with thermal overload protection, ensure the reset button (usually red) is fully extended–if depressed, allow 15 minutes cooling before retrying, as repeated tripping indicates undersized conductors or excessive load. When routing conduit, maintain a minimum 1.5″ clearance from all moving components to prevent abrasion. Use only listed NEMA 3R enclosures for outdoor installations; indoor setups require NEMA 1. If the motor hums but fails to start, disconnect immediately–this typically signals capacitor failure, requiring replacement with an identical microfarad/voltage rating (often 25–50 µF, 370V).
Proper Terminal Connections for High-Voltage Pool Motor Installation
Locate the motor’s labeled power contacts–L1 and L2 for phase inputs, with a dedicated ground post marked by a green screw or bare wire. Verify compatibility with a dual-voltage configuration by checking manufacturer specifications; this model operates exclusively at 240 volts, eliminating confusion with lower-voltage setups.
Secure phase conductors to terminals L1 and L2 using a torque screwdriver set to 12 inch-pounds to prevent loose connections. Incorrect torque risks overheating or intermittent failures. Avoid aluminum conductors; use only copper rated for 75°C minimum to match terminal ratings.
Connect the ground wire to the designated post without exception. Improper grounding creates hazardous bonding conditions, increasing electrical shock risks. Use a star washer under the ground lug to enhance conductivity if surfaces show corrosion.
Voltage-Specific Considerations
Before energizing, confirm the supply voltage at the circuit breaker matches the motor’s 240V requirement. Use a multimeter to measure between L1 and L2; deviations exceeding ±10 volts necessitate adjusting taps on the transformer or correcting local utility discrepancies.
Neutral wires play no role in this setup–leave them capped and isolated. Confusing neutral with ground voids safety certifications and risks overloading the motor windings. Label each conductor at both ends during installation to streamline future troubleshooting.
Inspect insulation resistance between windings and ground using a megohmmeter set to 500V. Values below 100 megohms indicate moisture ingress or compromised isolation, requiring drying or winding replacement before operation.
For motors equipped with auxiliary features, locate the discrete contact marked “aux” or “relay.” Energize only via a separately fused 20-amp branch circuit, never from primary terminals. Ensure caps remain on unused auxiliary contacts to prevent dust infiltration.
How to Connect Your Pool Equipment to a Dual-Voltage Electrical Source
Shut off the circuit breaker supplying power to the installation area before handling any electrical components. Verify the absence of voltage using a multimeter–test between the line terminals and ground to confirm zero reading.
Locate the motor nameplate and confirm it specifies a split-phase configuration compatible with 240-volt service. Models marked for single-voltage operation at 115 volts are incompatible; attempting conversion will damage the windings.
Strip ¾ inch of insulation from each conductor of a 10-gauge, three-wire cable (two hot leads and a ground). Use heat-shrink tubing over exposed copper if the installation environment exposes connections to moisture or chlorine vapors.
Connect one hot wire to terminal L1 and the second to terminal L2 on the motor’s junction box. Secure each with a torque screwdriver–manufacturer specifies 12 inch-pounds to prevent loosening from vibration. Attach the ground wire to the green grounding screw or designated ground lug.
Ensure no stray wire strands touch adjacent terminals; a single stray can create a direct short, tripping the breaker or burning insulation. Inspect connections with a flashlight before closing the junction-box cover–look for tight compression and no visible gaps.
If the motor includes a separate starter capacitor, match its microfarad rating to the nameplate; deviation by more than 5% will cause premature starting failure. Route the capacitor leads away from sharp metal edges to prevent abrasion during operation.
Re-energize the breaker only after all covers are closed and the installation area is clear of tools and debris. Stand clear of the equipment during the initial startup; a faulty connection may arc or emit smoke within the first second.
Observe the motor’s rotation for thirty seconds–it should reach full speed smoothly without humming or groaning. A single clockwise revolution confirms correct phase alignment; counterclockwise rotation means hot leads must be swapped at the breaker.
Critical Errors to Sidestep When Connecting High-Voltage Pool Equipment
Skipping voltage verification before installation leads to immediate motor burnout. Confirm the motor plate specifies 240V operation–208V models, common in commercial setups, will underperform and overheat if wired to a residential 230V supply. Use a multimeter to measure the actual circuit voltage at the terminal block; even slight deviations (+/- 5V) can reduce efficiency by 8-12%. Label the breaker clearly–misidentifying a 120V circuit as 230V often results in irreversible damage to the windings within minutes of startup.
Incorrectly matching wire gauge causes hazardous voltage drops. For a 1.5HP unit, 12 AWG copper wire suffices for runs under 50 feet; 10 AWG becomes mandatory beyond that distance. Aluminum wiring demands a gauge upgrade (8 AWG for equivalent runs) due to higher resistance. Secure connections with crimp lugs or terminal blocks rated for 75°C minimum–loose strands increase resistance, generating heat that melts insulation and trips breakers unpredictably. Never reuse stripped wire ends; oxidation reduces conductivity by up to 30%, forcing the motor to draw excessive current.
Reversing polarity during hookup mimics proper operation but destroys internal components. Test rotation direction with a non-contact voltage pen before finalizing connections–backward spin on a single-phase unit overheats the capacitor within 20 minutes. Omitting a dedicated ground wire invites electrical shock hazards; attach an 8 AWG bare copper conductor from the motor frame to the panel’s grounding busbar. Double-check torque specifications (12-15 in-lbs for terminal screws)–over-tightening cracks porcelain insulators, while under-tightening causes arcing that pits contact surfaces.
Essential Equipment for Installing a High-Efficiency Pool Motor on 240V Circuit
Begin by verifying your local electrical codes to confirm that a dual-voltage motor is permissible for direct connection. Use a licensed electrician if the installation requires compliance with NEC or regional amendments beyond basic appliance hookup. A non-contact voltage tester (minimum 500V rating) is mandatory before handling any terminals to prevent hazardous shorts.
Secure these core components before proceeding: a weatherproof junction box (NEMA 3R minimum), copper conductors sized per the nameplate (typically 10 AWG for 2 HP models under 50 feet), and a double-pole circuit breaker matching the motor’s amperage draw–commonly 15A for 1 HP units up to 20A for 3 HP variants. Include a locknut cable clamp (½” knock-out) to seal conduit entries against moisture ingress.
Specialized Tools Checklist
| Tool | Specification | Reasoning |
|---|---|---|
| Wire strippers | 10-18 AWG integrated cutter | Precise insulation removal without nicking conductors |
| Crimping tool | Ratchet-type for insulated terminals | Ensures vibration-proof connections under load |
| Torque screwdriver | 2-10 in-lbs range | Complies with UL torque specifications for terminal screws |
| Megohmmeter | 500V insulation tester | Confirms winding integrity before power application |
Grounding components demand meticulous attention: a solid copper grounding wire (minimum 12 AWG), green-insulated crimp lugs, and an approved grounding bushing compatible with your conduit type (PVC or EMT). Verify the motor’s bonding lug is present–manufacturers often integrate this beneath the terminal plate. If absent, drill a ¼” hole into the motor frame and affix a stud with anti-seize compound to prevent galvanic corrosion.
For outdoor installations, employ PVC Schedule 40 conduit with solvent weld joints–avoid flex conduit as it traps condensation. Seal all openings with silicone dielectric grease on splices to inhibit oxidation. Use conduit straps spaced no more than 3 feet apart along horizontal runs to prevent sag that could retain moisture.
Test the circuit path with a tone generator before finalizing conductor placement to detect unintended shorts in buried or concealed runs. Label all wires at both ends with heat-shrink tubing marked “L1”, “L2”, and “GND”–this eliminates confusion during future maintenance and ensures compliance with OSHA 1910.303 requirements.
Thermal protection devices should be checked: if the motor includes an automatic reset overload, verify its trip curve aligns with the startup amperage spike (typically 4-6× FLA). For external protection, install a supplementary bimetallic relay calibrated to the motor’s service factor–consult the data plate for exact figures, as generic 125% ratings may cause nuisance trips.
Conclude with a full-load test: attach a clamp meter to confirm steady-state current within ±5% of nameplate rating. Monitor for 15 minutes–any consistent rise above ambient temperature (use a surface probe) indicates improper bearing preload or misaligned impeller, signaling potential premature failure.
