Complete HID Headlight Wiring Guide with Color Code Explanation

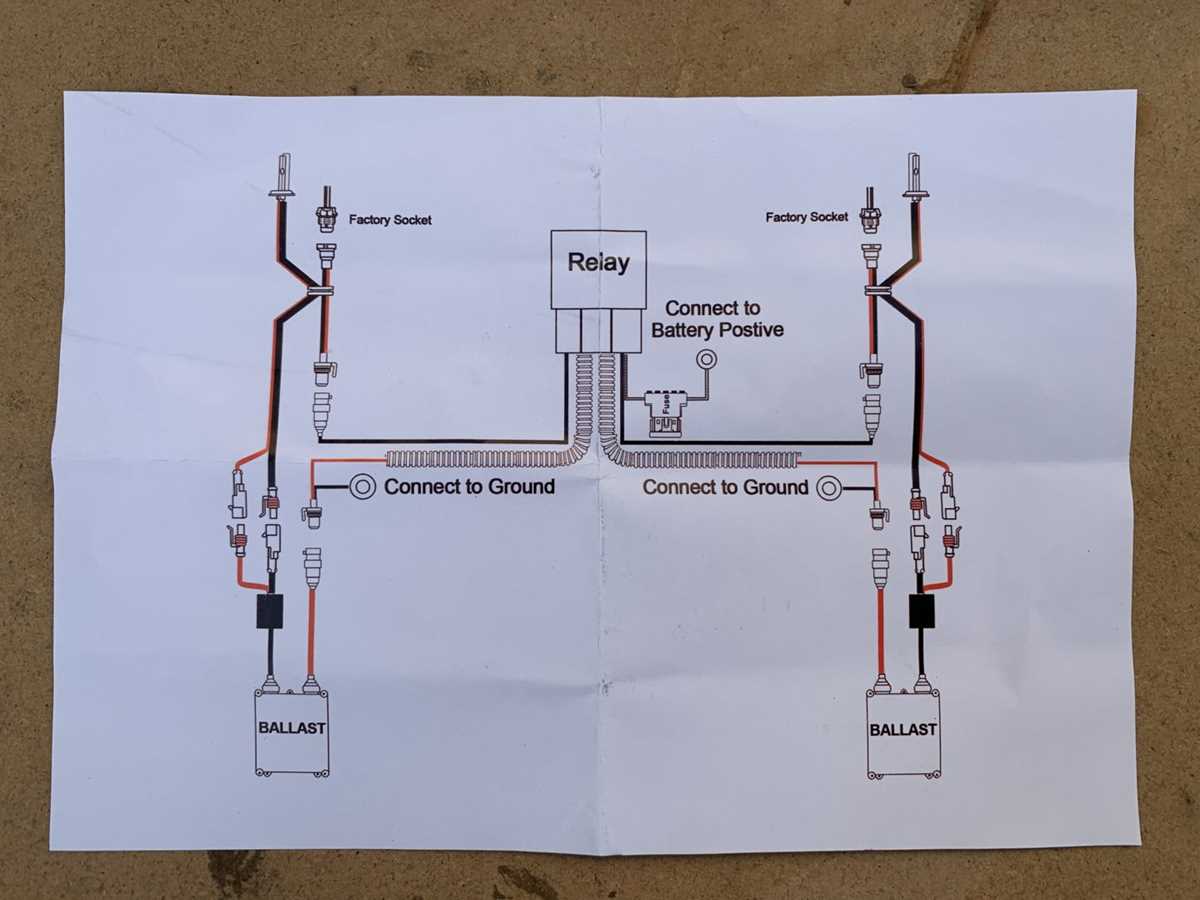

Install a relay harness for high-intensity discharge systems to prevent voltage drop and ensure stable power delivery. Direct battery connections via a dedicated relay reduce flickering and premature bulb failure. Use 14-gauge wire for power leads and 16-gauge for trigger circuits–thicker wire handles current spikes better. Avoid splicing into factory wiring; corrosion-resistant terminals like gold-plated or tin-coated copper last longer under heat cycles.
Ground connections demand attention: attach to unpainted metal surfaces near the headlight housing, not farther than 12 inches from the bulb. Poor grounding creates intermittent failures, especially in wet conditions. Test resistance with a multimeter–values above 0.5 ohms indicate corrosion or loose connections. Apply dielectric grease to prevent oxidation on contacts.
Ballast positioning affects performance. Mount it within 18 inches of the bulb to minimize signal interference. If space constraints exist, use shielded wiring for the trigger lead to prevent radio frequency interference. Never route power cables alongside data buses (CAN, LIN)–induced voltage spikes can damage onboard electronics.
Fuse selection matters: 20-amp fuses for 35-watt systems, 30-amp for 55-watt. Place the fuse holder within 7 inches of the battery terminal for maximum protection. Exceeding these ratings risks melting insulation under sustained loads. For aftermarket harnesses, verify compatibility with your vehicle’s voltage regulation–some European models require additional voltage stabilizers.
Check bulb base compatibility before installation. D1S, D2S, and D4S bulbs use different socket designs; forcing mismatched bases can damage the ballast. Measure socket dimensions with calipers if unsure–tolerances as small as 0.5mm affect fit. Always disconnect the battery before handling any electrical components to prevent short circuits.
Connecting High-Intensity Discharge Lights: A Technical Guide
Use a relay harness to prevent voltage drops that damage ballasts. Direct battery connections risk overheating–opt for 12-gauge wire or thicker rated for at least 30 amps. Include an inline fuse (20-30A) within 6 inches of the battery terminal to protect the circuit.
Follow these pinout standards for plug-and-play adapters:
- OEM low-beam connector: Pin 1 (white) = output (+), Pin 2 (black) = ground (-), Pin 3 (yellow/blue stripe) = input trigger.
- Aftermarket harness: Red = battery (+), Black = ground (-), Blue/yellow = relay control.
Verify polarity with a multimeter–reverse polarity will destroy the igniter module instantly. Test continuity before securing connections with solder and heat-shrink tubing.
Position the ballast within 12 inches of the bulb socket to minimize EMI interference. Route wires away from high-temperature components like the exhaust manifold. Secure excess wire with zip ties at 6-inch intervals to prevent chafing against sharp edges.
Ground the negative lead directly to the chassis near the headlight housing–do not daisy-chain to other components. Use a star washer under the ground terminal to ensure a clean, corrosion-resistant connection. For dual-beam setups, isolate high and low beam circuits with separate relays to prevent cross-talk.
Calibrate the headlight aim after installation using a level surface and measuring tape. Adjust vertical alignment to 3.5 feet at 25 feet (0.5% incline) and horizontal alignment to zero offset from the vehicle’s centerline. Recheck after 50 miles–vibrations often shift initial settings.
Essential Ballast Circuit Hookup Guidance

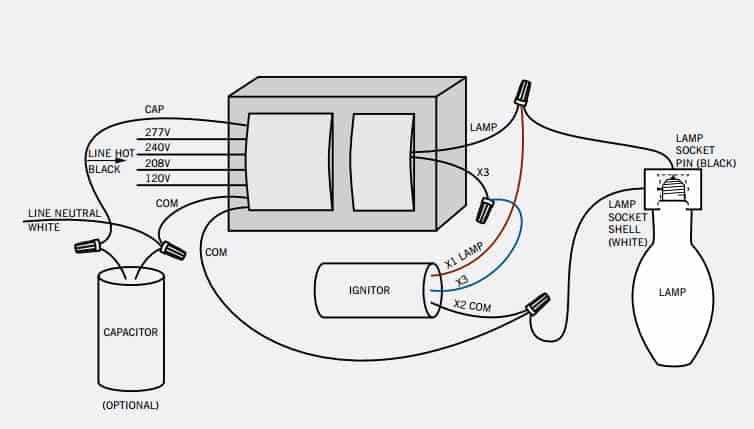

Start by identifying the mains input terminals on the control unit–typically labeled L (live), N (neutral), and G (ground). Verify the voltage rating matches your power source (common ranges: 120V, 230V, or 277V). Failure to confirm this detail risks immediate damage to the ballast or igniter.
Connect the live and neutral wires directly to the corresponding mains terminals. Use crimp connectors or soldered joints for secure attachment; twisting wires without proper termination leads to intermittent failures. Ground the chassis to the vehicle’s frame using a dedicated wire–never assume a shared return path suffices.
Lamp-Side Hookup Specifics
Locate the output terminals marked for bulb attachment. Most ballasts provide two wires for the arc tube: one for the base electrode and another for the return path. Polarity does not matter for alternating-current ballasts, but double-check the manual for DC-operated setups–incorrect pairing here may prevent ignition.
- For standard installations, attach one wire to the lamp’s center contact.
- Connect the second wire to the lamp socket’s outer shell or ground reference.
- Avoid leaving exposed strands; trim excess wire length to prevent short circuits.
Some ballasts incorporate an igniter module, requiring an additional pulse wire. This wire connects to a third terminal on the bulb–often a separate plug or a dedicated pin. Misrouting this line causes the lamp to flicker or fail to start. Refer to the specific model’s pinout; generic diagrams rarely account for variations.
After securing all connections, perform a resistance check between each terminal and ground using a multimeter. Expected readings typically fall below 1Ω for proper ground continuity and infinite resistance between live conductors. Deviations indicate loose connections or corrosion.
Safety Lockout Steps
- Wrap all exposed terminals with high-temperature silicone tape or shrink tubing.
- Secure loose wires with zip ties–ensure none contact hot surfaces or moving parts.
- Recheck torque on all terminal screws; vibration loosens connections over time.
- Power on without the bulb to verify ballast initiates; listen for a faint high-pitched whine indicating normal operation.
If the lamp fails to ignite after installation, isolate the issue by swapping the bulb first–defective lamps mimic ballast failures. Next, disconnect power and remeasure resistance across the output terminals; readings above 10Ω suggest internal component degradation requiring replacement.
Step-by-Step Guide to Installing Xenon Light Assemblies
Begin by verifying the vehicle’s existing connector compatibility with high-intensity discharge (HID) units. Most modern systems use a direct-plug harness, but older models may require an adapter. Locate the factory headlight connector–typically a two-pin or three-pin plug–and compare it to the socket on the HID ballast. If mismatched, select an appropriate adapter (e.g., H4 to HID for sealed beam retrofits, or 9006 for newer reflectors) before proceeding. Ensure the adapter’s polarity aligns with the ballast’s wiring: red (positive) and black (ground) are universal, but some assemblies may use yellow or blue for high/low beam signals.
Secure the ballast to a stable, non-conductive surface near the headlight housing using zip ties or adhesive mounts, keeping it away from heat sources and moving parts. Route the power cables neatly, avoiding sharp edges or areas prone to moisture (e.g., behind the grille or along the fender well). Connect the ballast’s output wires to the Xenon bulb’s base; most aftermarket bulbs use a proprietary plug (e.g., D2S, D2R, or D4S), so confirm the match before forcing connections. Test the setup before finalizing installation: switch on the ignition (do *not* start the engine) and verify the bulbs ignite with a steady, bright white or blue-tinted arc–flickering or dim output indicates poor grounding or insufficient voltage. If issues persist, use a multimeter to check the harness output (12V–14V DC at idle) and inspect the vehicle’s fuse box for blown 10–20A fuses linked to the lighting circuit.
| Component | Wire Color (Typical) | Function | Voltage/Current Check |
|---|---|---|---|
| Ballast Input (+) | Red | Power from harness | 12–14V DC |
| Ballast Input (–) | Black | Ground reference | 0V (verify continuity to chassis) |
| Ignitor Trigger | Blue/Yellow stripe | Initial high-voltage pulse | 23kV+ (transient, not measurable with standard tools) |
| Bulb High Beam | Yellow | Optional signal for dual-beam assemblies | 12V when high beam engaged |
Resolving Common Electrical Failures in High-Intensity Lighting Systems
Begin by inspecting the ballast output connections with a multimeter set to AC voltage. A reading below 20V or above 120V between the lamp terminals indicates a faulty control module–replace it immediately. Check for oxidized contacts on the socket; sandpaper (120-grit) or a wire brush will remove corrosion without damaging the base metal. If the issue persists, measure the resistance across the ignitor: values above 5 ohms suggest a degraded unit requiring replacement.
Flickering or delayed ignition typically stems from insufficient ground continuity. Verify the chassis connection by probing between the negative battery terminal and the lamp housing–voltages above 0.1V confirm a poor bond. Clean the mounting surfaces with isopropyl alcohol (90%+ concentration) and secure the fixture with star washers to ensure stable contact. For vehicles with aluminum frames, apply a dielectric grease layer to prevent galvanic corrosion at the connection point.
Intermittent power loss often traces to brittle or undersized conductors. Examine harness segments for cracks in the insulation, especially near bends or heat sources. If the wire gauge is smaller than 16 AWG for 35W systems, upgrade to 14 AWG copper-stranded cable. Crimp connectors with a dedicated tool (not pliers) and solder the joints for long-term reliability. Use heat-shrink tubing with adhesive lining to seal out moisture.
Overheating relays can cause premature shutdowns. Install a relay with a 40A rating, even for 35W setups, to handle inrush currents. Mount the relay away from engine components, using a silicone heat sink pad if temperatures exceed 80°C. Replace relays showing visible melting or pitting on the contacts–these signs indicate thermal degradation.
Diagnosing Communication Errors in Smart Control Circuits
CAN bus errors manifest as erratic behavior in adaptive lighting systems. Use an OBD-II scanner with CAN protocol support to check for DTCs; codes U1000-U1200 point to bus communication failures. Inspect the twisted-pair harness for proper impedance (120 ohms ±10%), ensuring no stray wires disrupt the signal integrity. Termination resistors at both ends of the bus are critical–measure across the bus with a multimeter; absence of resistance confirms a missing resistor.
For PWM-controlled systems, verify the signal frequency at the control module output. Frequencies below 100Hz or above 300Hz will cause dimming malfunctions. Adjust the potentiometer or replace the controller if the signal drifts outside specifications. Always load-test the circuit with a 12V halogen bulb before connecting the high-intensity unit to avoid damaging the ignitor.
Preventing Moisture-Related Failures
Water ingress in sealed beam assemblies demands immediate action. Drill a 2mm drainage hole at the lowest point of the reflector and apply a bead of UV-resistant silicone around the lens edges. For plug-in connectors, use gold-plated contacts (minimum 3 microns) and dielectric grease to repel moisture. Avoid silicone-based products on high-voltage connections, as they can carbonize under sustained arcs.
If condensation forms inside the assembly, desiccant packets (5g silica gel) can absorb residual humidity–secure them with adhesive away from the arc path. Never operate the system without dry air inside; trapped moisture will cause internal arcing and reflector deformation at temperatures above 150°C. For persistent issues, upgrade to a hermetically sealed unit rated for IP67 or higher.
