Complete Home Ethernet Wiring Guide with Practical Network Setup Diagrams

Begin by selecting Cat 6 or higher copper cables for bandwidth up to 10 Gbps over distances under 55 meters–Cat 5e suffices for 1 Gbps connections but lacks future-proofing. Terminate each cable with RJ45 connectors, adhering strictly to the T568B standard for consistency across your setup. Avoid twisting pairs more than 13 mm (½ inch) when stripping insulation to prevent signal degradation.

Route cables through walls using PVC conduit (minimum ¾-inch diameter) or rigid metal tubing for protection in high-traffic areas like basements or attics. Maintain a clearance of at least 30 cm from electrical wiring to minimize interference; cross power lines at right angles if unavoidable. Label both ends of each run immediately after installation to simplify troubleshooting–use a permanent marker or printed tags resistant to fading.

Install wall plates with keystone jacks no closer than 30 cm from the floor to accommodate future furniture rearrangements. For multi-room setups, centralize connections in a patch panel or small network cabinet mounted 1.5 meters off the ground for ergonomic access. Test each line with a cable certifier before drywall is applied; verify continuity, wire mapping, and attenuation levels to ensure compliance with ANSI/TIA-568 standards.

Anchor cables every 1.2 meters along joists or studs using non-metallic staples to prevent sagging–avoid tight bends (radius direct burial-rated cable or encase standard Cat 6 in underground-rated PVC conduit, sealing entry points with waterproof silicone to prevent moisture ingress.

Structured Network Cable Layout for Residential Spaces

Begin by selecting Cat 6 or Cat 6a cables for future-proofing–these handle 1 Gbps (Cat 6) and 10 Gbps (Cat 6a) speeds over 55 and 100 meters, respectively. Avoid solid-core installations in walls if frequent movement is expected; stranded cables bend better for patch leads.

Route cables through ¾-inch PVC conduits for protection, especially in attics or basements where rodents or moisture may pose risks. Maintain a 12-inch minimum bend radius to prevent signal degradation–tight curves compress pairs, increasing crosstalk. Label both ends immediately after pulling cables using thermal or laser-printed tags (inkjet tags smear).

Termination Standards and Tools

Use T568B wiring for consistency unless legacy equipment demands T568A. Required tools: a modular crimping tool (precision-molded dies reduce untwist), a punch-down tool (110-type blade for Cat 6), and a cable tester with TDR (time-domain reflectometer) to verify length and faults. Strip only 1.5 inches of sheath–excessive bare pairs invite interference. Terminate each pair in this sequence:

Pin	Pair	Color	Main Function
1	3	White/Orange	TX+
2	3	Orange	TX–
3	2	White/Green	RX+
4	1	Blue	Bidirectional
5	1	White/Blue	Bidirectional
6	2	Green	RX–

Secure keystone jacks to wall plates using the integrated snap-in tabs–no screws needed. For shielded cables (STP), ground the foil at both ends to a dedicated busbar; floating shields act as antennas, worsening noise.

Patch panels simplify management–mount a 24-port unit in a 1U rack if multiple wall ports converge in one location. Maintain 3-foot patch cables to avoid tangled nests; color-code by room (blue for living area, red for office). Test each run with a channel tester, checking for split pairs (where TX/RX wires swap places) and impedance mismatches (Cat 6 targets 100Ω ±15%).

Advanced Troubleshooting

If speeds drop over 30 meters, suspect poor termination–recrimp connectors with less than ½ inch of untwisted pair. Replace cable ties every 18 inches with Velcro straps; metallic ties crush cables under tension. For PoE (power over data lines), ensure compliance with IEEE 802.3bt–Cat 6a supports 90W per port, but passive injectors risk overheating undersized conductors.

Essential Equipment for Network Cable Setup

Begin with a cat6 or higher solid copper cable–avoid CCA (copper-clad aluminum) variants, which degrade signal quality over 50-meter runs. A 1000-foot spool of bulk cable is optimal for most layouts, reducing splice points that introduce interference. For connectors, use RJ45 plugs with gold-plated contacts (50-micron minimum) to prevent oxidation and ensure longevity under termination stress.

Termination and Testing Gear

A punch-down tool with 110-blade replacement heads is non-negotiable; spring-loaded models prevent conductor damage during keystone jack installation. Pair it with a precision wire stripper calibrated for 23–24 AWG conductors to avoid nicking insulation, which causes signal leakage. For verification, invest in a handheld network tester with PoE detection; budget models like the Klein Tools VDV526-050 often misread split pairs or shorts. A TDR (Time Domain Reflectometer) like the Fluke DSX-5000 resolves cable faults within 1 meter accuracy but adds cost–for DIY setups, a tone generator and probe locates wires in walls but lacks diagnostic depth.

For wall plates, choose ultraslim keystone jacks (e.g., Panduit CJ688TGRY) if outlet depth is limited; standard jacks may not fit behind thin drywall. Use low-smoke, zero-halogen (LSZH) cable in plenum spaces to comply with NEC 800.179–common PVC jackets release toxic fumes during fires. Velcro ties (1/4″ width) secure runs every 1.2 meters without deforming conductors; zip ties, even “snagless,” risk crushing twists that fail Cat6a certification.

Terminate both ends identically–T568A or T568B–but never mix pinouts in the same link; swapping pairs causes crosstalk exceeding -35 dB at 250 MHz. For patch panels, blank 24-port panels with rear cable management bars prevent port rotation during termination; modular designs save space but increase failure points. Label every port with laser-printed heat-shrink tubing (e.g., Brady B-499), not adhesive tags, which peel under heat or humidity.

Ground all metallic components to a dedicated network bonding conductor (minimum 14 AWG copper) per NEC 250.92(B); omitting this invites ESD damage to equipment. For conduit runs, use EMT (electrical metallic tubing) with anti-corrosion coating in damp areas–flexible liquidtight conduit kinks under fastener pressure. Pull boxes (4″×4″ minimum) every 30 meters ease cable tension; avoid gluing conduit joints if future upgrades are likely.

Terminating Network Cables: T568A vs T568B Standards

Choose a single standard (T568A or T568B) and apply it consistently across all connections in your setup. T568B is dominant in commercial and newer residential installations, while T568A remains common in legacy systems and some European networks. Both configurations support gigabit speeds, but mixed terminations may cause crosstalk or communication failures.

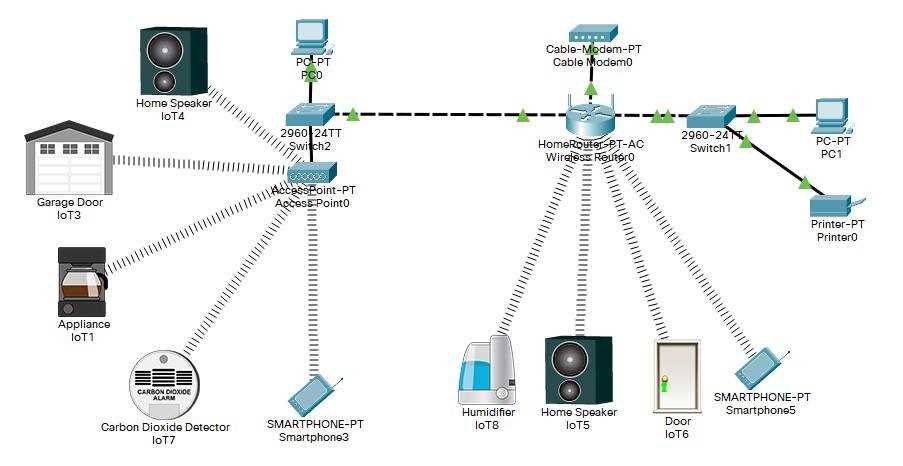

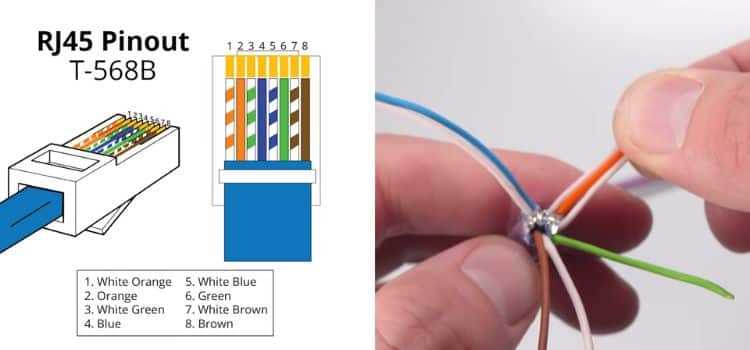

Start by stripping 1.5–2 inches of the cable jacket using a precision cutter, avoiding nicking the internal conductors. Untwist pairs no more than 0.5 inches to maintain signal integrity. Arrange wires according to the selected pinout:

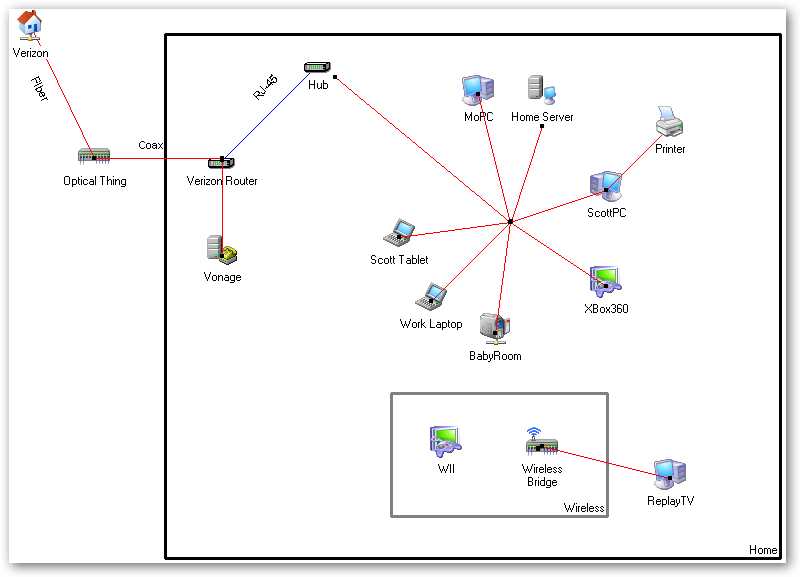

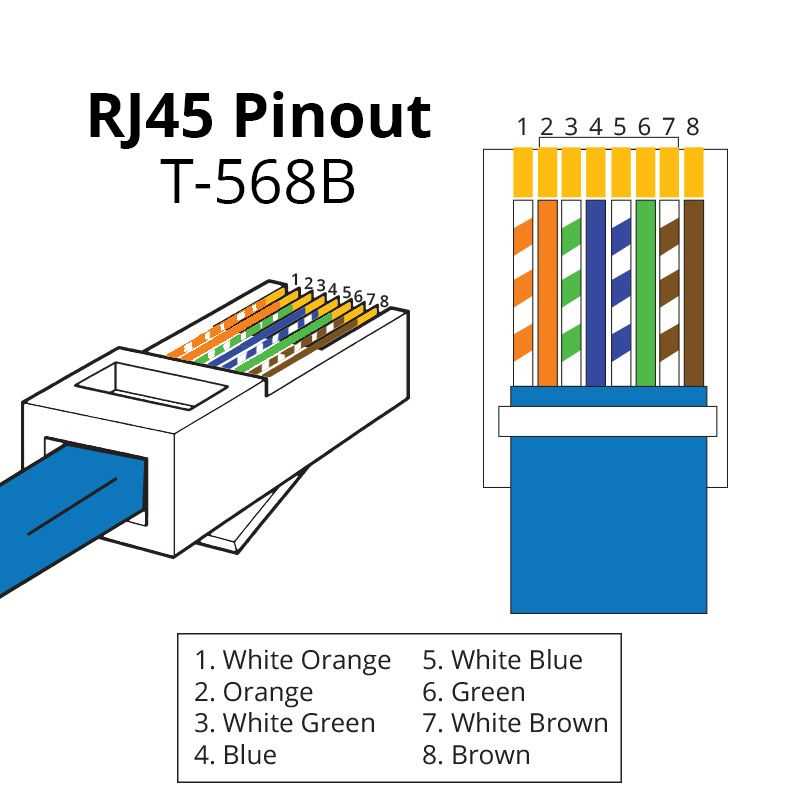

• T568B:
  1. White/Orange
  2. Orange
  3. White/Green
  4. Blue
  5. White/Blue
  6. Green
  7. White/Brown
  8. Brown
• T568A:
  1. White/Green
  2. Green
  3. White/Orange
  4. Blue
  5. White/Blue
  6. Orange
  7. White/Brown
  8. Brown

Insert wires fully into the RJ45 connector, ensuring they reach the front edge. Verify continuity with a cable tester–each LED should illuminate in sequence. For bulk terminations, use a crimping tool with 100–120 lbs of force; insufficient pressure risks loose contacts. Re-terminate if any pair fails the test.

Label cables at both ends with the standard used (e.g., “T568B”) and length. For PoE (Power over Data Lines), avoid cheap connectors–poor contacts generate heat and degrade performance. Replace any cable with visible damage to the jacket or internal twists, as this compromises noise resistance.

Selecting Between Single-Conductor and Multi-Strand Network Cables for Residential Installations

Opt for single-conductor (solid) cables when running permanent connections through walls, ceilings, or conduit. These cables maintain signal integrity over distances up to 100 meters with minimal signal degradation, outperforming multi-strand alternatives in long-term stability. Their rigid structure resists kinking during installation, reducing the risk of internal wire breakage that often plagues flexible variants. For standard Cat5e/6/6a deployments, solid conductors deliver consistent gigabit speeds (1000BASE-T) with less susceptibility to interference from adjacent electrical lines.

Multi-strand cables excel in patch cords and temporary setups where frequent bending occurs, such as connecting devices behind furniture or in server racks. Each of the 7 tiny filaments per conductor provides superior flexibility, allowing 180-degree bends without damage. However, this flexibility comes at a cost: higher attenuation over distance (approximately 20% more signal loss per 100m compared to solid) and reduced durability under tension. Use stranded variants only for runs under 10 meters where mobility outweighs performance trade-offs.

Key Specifications to Compare

Solid cables typically feature 24 AWG copper conductors, while stranded variants use thinner 26-28 AWG filaments twisted in groups of 6-7. This difference directly impacts electrical properties: solid conductors offer 6-8% lower DC resistance, translating to 0.3-0.5dB less insertion loss at 100MHz. Stranded cables require crimp connectors with pierce-through contacts to ensure reliable termination, whereas solid wires work best with insulation-displacement connectors (IDCs). Always verify cable markings–solid cables are labeled “CM” or “CMR,” while stranded variants often indicate “CMG” or “patch cable.”

Avoid mixing types in critical paths. A solid-to-stranded junction introduces an impedance mismatch, increasing return loss by 2-3dB and potentially violating IEEE 802.3 standards for PoE+ (up to 25.5W) power delivery. For PoE applications, solid conductors dissipate heat more efficiently, preventing overheating that can degrade stranded cable performance over time. Test each setup with a cable certifier–stranded cables may pass basic continuity checks but fail NEXT (Near-End Crosstalk) measurements after repeated flexing.

Cost considerations skew heavily toward stranded cables for short lengths (under $0.50 per meter) but reverse for installations exceeding 30 meters ($1.20 vs $0.80 per meter for solid). Solid cables also simplify troubleshooting: their predictable electrical characteristics make time-domain reflectometer (TDR) readings more reliable for locating breaks or impedance anomalies. For installations with future-proofing needs (10GBASE-T), solid Cat6a cables with foil shielding outperform stranded variants by 40-50% in alien crosstalk mitigation.

Environmental factors influence the choice: stranded cables tolerate temperature fluctuations better (-20°C to 60°C range) but absorb moisture faster due to air gaps between filaments. Solid conductors bonded to polyethylene jackets resist environmental stress cracking in conduit runs but risk becoming brittle at temperatures below -10°C. For outdoor use, always pair solid cables with UV-resistant jackets–stranded versions degrade rapidly when exposed to sunlight, with sheath cracks appearing within 12-18 months regardless of quality.

Termination techniques differ significantly. Solid cables require precision stripping to avoid nicking conductors; use automatic strippers calibrated for the exact gauge. Stranded cables demand connectors with gold-plated teeth (minimum 50-micron plating) to penetrate filament bundles reliably. Soldering stranded wires increases failure rates by 300%–use crimp-only connectors rated for repeated mate cycles. For wall plates, solid conductors push cleanly into keystone jacks with audible clicks, while stranded wires often require pre-twisting to prevent loose connections that cause intermittent packet loss.
