Step-by-Step Guide to Building Your Tattoo Machine Power Supply Circuit
For consistent needle operation, use a 12V–18V regulated DC adapter rated for at least 3A. Connect the positive lead directly to the foot pedal switch, then route it to the rotary motor via 18AWG or thicker silicone wire. Ground the negative terminal to a shared chassis point–a brass stud on the frame–using the same gauge cable to prevent voltage drop during high-demand strokes.
Insert an in-line fuse holder between the adapter and pedal. A 2A slow-blow fuse protects against motor stall currents without false trips during normal pulse operation. Mount the holder within 15 cm of the DC jack so shorts are isolated before reaching the handpiece. Avoid soldering the fuse holder; crimp ring terminals onto the wires and secure them with nuts for tool-free replacement.
Route all conductors through flexible nylon conduit or heat-shrink tubing to prevent abrasion where the cable exits the enclosure. Seal conduit ends with liquid electrical tape to block ink and saline infiltration. Ground the conduit itself to the chassis with a 10AWG braided strap if ambient RF from nearby devices causes erratic pedal response.
Label each terminal with engraved plastic tags–“V+”, “GND”, “PEDAL”–mounted under M3 screws adjacent to connections. Use UV-resistant polyester labels if stored near sterilization equipment; adhesive paper disintegrates under 70% isopropyl sprays.
Building a Custom Ink Machine Voltage Regulator
Start with a 12V DC adapter rated for at least 2A–anything less risks unstable current delivery. Select a switching regulator module like the LM2596 or XL6009E1; these handle voltage adjustment smoothly without overheating. Ensure the input capacitor (minimum 1000µF, 25V) is soldered within 10mm of the module’s input terminals to filter AC ripple. Mount a 1N4007 diode across the output to prevent backflow damage if polarity is accidentally reversed.
Wire the regulator’s output to a female 5.5×2.1mm barrel jack for compatibility with standard machine connectors. Add a 50K linear potentiometer between the output and ground, bypassed with a 10K resistor–this lets you fine-tune voltage from 1.5V to 11V. Use 18AWG silicone wire for all high-current paths; thinner gauge wires introduce resistance and voltage drops. Anchor all connections with heat-shrink tubing to prevent shorts during movement.
- Test output voltage with a multimeter *before* connecting the machine; active coils draw unpredictable surges during startup.
- Include a 1A fuse inline with the positive lead near the adapter; fast-acting ceramic fuses respond quicker than glass types.
- Housing: drill ventilation holes if enclosing in plastic; the XL6009E1 can dissipate 3W without heatsinks at 12V input.
- Avoid protoboard for high-current traces–etch a custom PCB or use thick bus wire soldered directly to module pads.
Critical Fail-Safe Measures
When assembling, mark the polarity on both adapter and jack; reversing 4A through a coil destroys armatures instantly. Add a 0.1µF decoupling capacitor across the regulator’s input/output pins to suppress spikes that cause needle chatter. If using a thinner rectifier (e.g., 1A adapter), parallel two LM2596 modules–current shares unpredictably, so link outputs with 0Ω resistors to balance loads.
For pedal integration, wire a stomp box jack as follows: center pin to positive, sleeve to ground via a foot switch rated for 10A minimum. Relay-based pedals introduce 50ms latency; solid-state switches (optocouplers like PC817) eliminate this. Never rely on alligator clips for temporary connections–solder joints oxidize quickly under high-current pulses, increasing resistance exponentially over sessions.
- Verify continuity with a meter after each solder joint; cold joints fail under vibration.
- Insulate all conductive surfaces with Kapton tape if housing in metal; accidental shorts trip regulators into overcurrent protection.
- Calibrate the potentiometer using a fixed-load dummy (e.g., 10Ω, 10W resistor); real coils vary impedance unpredictably.
- Upgrade to 10A wire gauge if running dual machines; 18AWG supports single-coil setups only.
Choosing Parts for a Custom Ink Device Regulator
Begin with a step-down converter module rated for at least 3A output at 5V–9V. LM2596 or MP1584EN boards offer adjustable voltage, compact size, and integrated protection against short-circuits–critical for steady needle operation. Verify the input range matches your 12V–24V wall adapter; mismatches can overheat traces or cause dimming under load.
Select capacitors with low ESR values–ceramic or solid polymer types–to stabilize voltage ripple near the motor coil. A 100μF input cap and 470μF output cap prevent sag when current spikes occur during rapid pulse cycles. Avoid electrolytics prone to drying out after prolonged high-frequency switching.
Fuse placement must interrupt both positive and negative lines before any user-accessible terminals. Slow-blow 2A–3A fuses accommodate startup inrush but cut quickly if internal faults draw excessive current. Mount fuse holders with 6mm spacing for crimp connectors to reduce resistive losses that affect torque consistency.
A DPST rocker switch rated 10A@250VAC isolates the entire circuit for maintenance without discharging capacitors held by the motor’s inductive coil. LED indicators–paired with 1kΩ current-limiting resistors–provide instant visual feedback of energized state, while a 3mm diameter hole in the enclosure panel ensures visibility without light leakage.
Step-by-Step Assembly Guide for a 12V DC Regulator Circuit
Begin by gathering all necessary components: a 12V DC adapter, a voltage regulator IC (LM7812 or equivalent), two 1000µF electrolytic capacitors, a 0.1µF ceramic capacitor, a 1N4007 diode, a toggle switch, and binding posts or banana plugs for output connections. Verify the adapter’s output matches 12V DC under load–measure with a multimeter to confirm stability at 12V ±0.5V. Any deviation risks inconsistent performance or component failure.
Construct the circuit on a perforated board or PCB, adhering to the schematic where the adapter’s positive lead connects through the switch to the input leg of the regulator. The ground lead routes directly to the common ground rail. Place the 1N4007 diode in reverse polarity across the input and output of the regulator to protect against voltage spikes when disconnecting the load. Position the 1000µF capacitors at both input and output stages; the input capacitor smooths rectified voltage, while the output capacitor filters residual ripple to ensure clean current delivery.
The table below outlines critical component specifications and their roles:
| Component | Value/Type | Purpose | Notes |
|---|---|---|---|
| Voltage Regulator | LM7812 | Maintains 12V output | Use a heatsink if current exceeds 500mA |
| Electrolytic Capacitor | 1000µF | Input/output filtering | Voltage rating ≥25V for safety margin |
| Ceramic Capacitor | 0.1µF | High-frequency noise suppression | Place as close to regulator as possible |
| Diode | 1N4007 | Flyback protection | Cathode to input, anode to ground |
Solder all connections with 60/40 rosin-core leaded solder; avoid cold joints by ensuring each joint reaches full thermal bonding. Trim excess leads flush with the board to prevent short circuits. Insulate exposed solder points with heat-shrink tubing or electrical tape, particularly around the regulator’s input/output terminals where voltage differentials exist.
Before finalizing the enclosure, test the circuit with a dummy load–connect a 12V motor or LED array drawing ~200-300mA. Monitor voltage stability under load; ripple should not exceed ±50mV. If oscillation occurs (common with improper grounding), relocate the ceramic capacitor closer to the regulator’s ground pin. Persistent instability indicates a faulty component or incorrect layout.
Enclose the assembled board in a non-conductive case, drilling precise openings for the switch, input/output ports, and optional voltage display if included. Secure the board with standoffs to prevent movement and short circuits. Label all connections clearly–miswiring risks damaging the load device or the circuit itself. For adjustable voltage variants, substitute the LM7812 with an LM317 and add a 5kΩ potentiometer between the adjust pin and ground, recalculating capacitor values per datasheet.
Final testing verifies functionality across a range of loads. Attach a 5Ω, 10W resistor as a worst-case load and measure voltage drop–output should remain within 1% of 12V. Store the completed unit in a dry environment; capacitors degrade with prolonged humidity exposure, reducing lifespan. Replace electrolytic capacitors every 3-5 years if used frequently to maintain optimal performance.

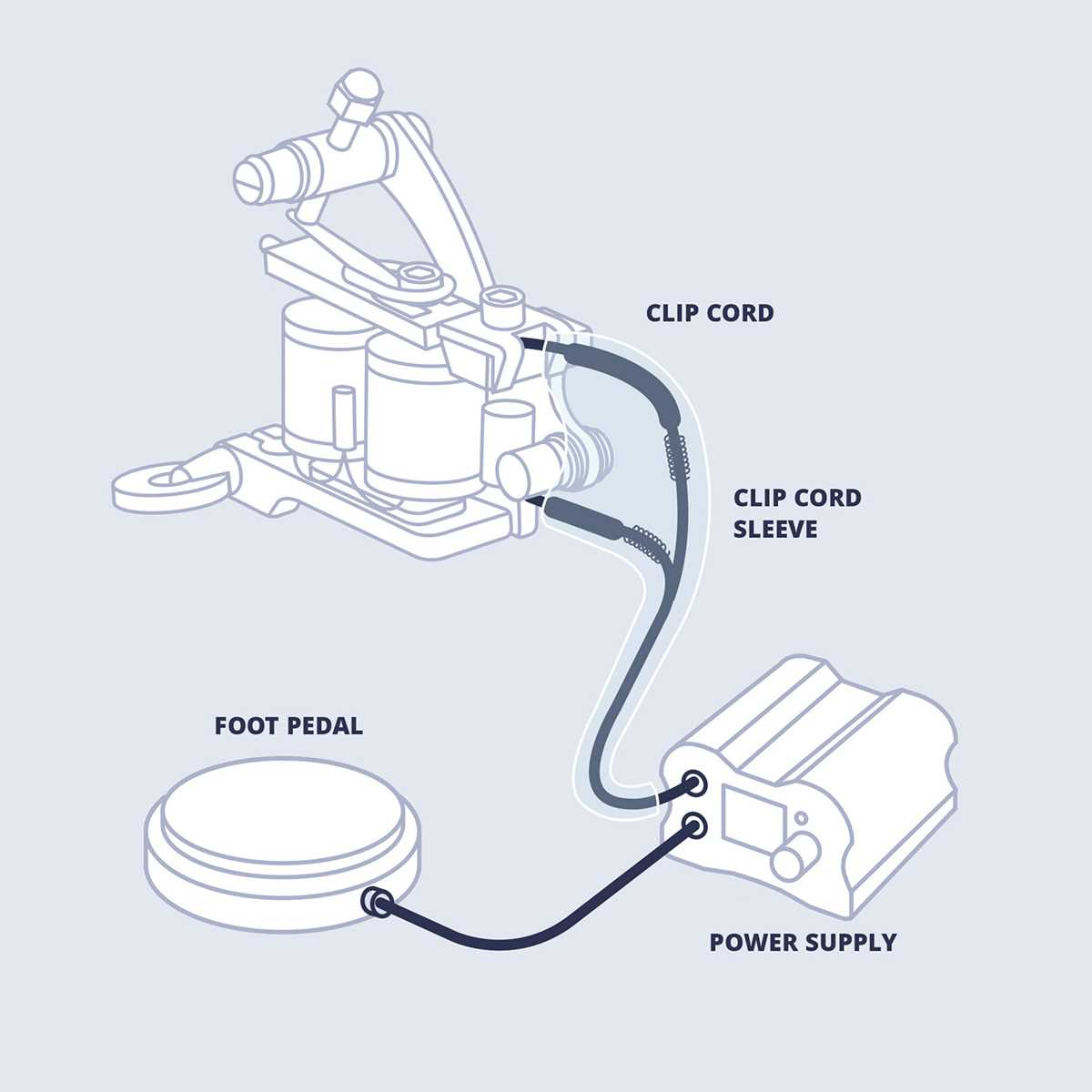

Integrating a Foot Switch and Cord Assembly with Your Custom Unit
Attach the footswitch to the designated terminal marked “pedal” on your control box–typically a 2.1mm DC jack or screw-type connector. Ensure polarity aligns with the internal wiring: the center pin (positive) connects to the activation circuit, while the outer sleeve (negative) grounds the signal. For screw terminals, strip 5mm of insulation from the wires, twist tightly, and secure under the clamp to prevent intermittent contact. Test continuity with a multimeter before fastening the enclosure.
Link the clip cord to the “output” terminals, matching the voltage rating of your device (6–12V DC). Red wiring denotes positive; black or green indicates negative–verify this against the device’s internal schematic to avoid reversed polarity damage. Use a 5.5mm barrel connector for modular designs, soldering connections with 60/40 rosin-core solder and heat-shrink tubing to insulate joints. For systems with adjustable current, set the dial to 1.5–2.5A before powering on to prevent overload during initial activation.
Route both cables away from moving parts or heat sources, securing them with zip ties or conduit at 30cm intervals. Plug the footswitch into the control box first, then connect the clip cord to the device–never hot-swap components. Engage the footswitch briefly (2–3 seconds) to confirm the unit responds; if voltage drops below 5V under load, check for loose connections or undersized wiring (minimum 18 AWG for reliable performance).
