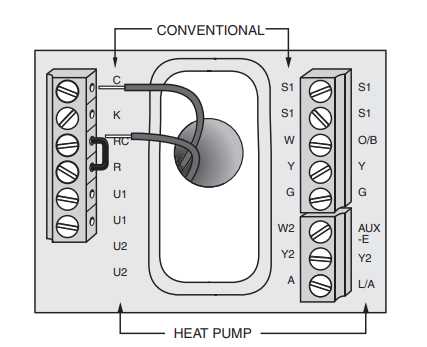

StepbyStep Wiring Guide for Honeywell Lyric T5 Thermostat Installation

For a seamless installation, begin by identifying the Rc (cooling power) and Rh (heating power) terminals on your system’s control board. If your HVAC setup uses a single transformer for both heating and cooling, bridge these terminals with a jumper wire. Models without separate power sources may omit this step, but verify with your equipment’s documentation first–incorrect bridging can damage the unit.

Next, connect the W (heat) wire to the corresponding terminal. For heat pumps, add the O/B (reversing valve) wire, ensuring polarity matches the manufacturer’s specifications–typically O for cooling mode and B for heating. Gas or oil furnaces skip this step unless auxiliary heat strips are present, requiring an E (emergency heat) connection.

For systems with a C (common) wire, attach it directly to the control board’s dedicated terminal. If unavailable, consider a power extender kit–devices may malfunction without a stable 24V AC supply. Color-coding follows no universal standard, so always label wires before disconnecting the old system. Check for continuity with a multimeter if uncertain.

Fan control (G wire) must link to the correct terminal for manual or automatic operation. Some setups integrate dehumidifiers or ventilators; these require additional HUM or VENT connections. Verify compatibility–forced-air systems differ from radiant or hydronic designs, and miswiring risks short circuits.

After securing connections, power on the system and navigate the device’s setup menu. Select equipment type (e.g., conventional, heat pump) and confirm voltage (120V/240V). Run diagnostics if available; unresolved errors often trace back to loose wires or mismatched configurations.

Smart Climate Control Setup Guide for T5 Model

Disconnect power at the circuit breaker before handling any electrical connections. Verify the absence of voltage using a multimeter on each wire to prevent accidental shorts.

Identify the existing control unit’s labeled terminals: R (power), C (common), W (heat), Y (cool), G (fan). Match these to the new device’s corresponding ports. If colors differ from standard red (R), blue (C), white (W), yellow (Y), green (G), label wires with masking tape to avoid miswiring.

For systems with dual-transformer setups (common in zoned HVAC), ensure the C wire connects to the correct transformer. Improper pairing causes erratic behavior or complete failure. Cross-reference with the original configuration, or consult system documentation if terminals appear ambiguous.

• Single-stage heating/cooling: Connect R to Rh (no jumper required). For heat pumps, connect O/B to the reversing valve wire.
• Multi-stage systems: Assign W2 and Y2 to secondary stage wires if present. Verify staging delays in the device’s advanced settings to prevent short cycling.
• Humidifiers/dehumidifiers: Attach auxiliary devices to dedicated terminals (e.g., HUM, DEHUM) and configure output voltage (typically 24V) in the setup menu.

If the system lacks a C wire, consider these alternatives:

1. Install a new 18-gauge wire from the HVAC system’s control board.
2. Use an external power adapter (not recommended for long-term stability).
3. Repurpose the G wire for power by disabling manual fan control (consult HVAC manuals before attempting).

Post-installation, restore power and test each mode (heat, cool, fan) sequentially. Observe the device’s display for error codes (e.g., No Power, Open Circuit) and troubleshoot using these steps:

• No power: Check breaker, transformer output (should read ~24V-28V AC), and wire continuity.
• Short cycling: Adjust differential settings (heat: 1–2°F, cool: 2–3°F) to match system capacity.
• Unresponsive controls: Verify network connectivity if using Wi-Fi features; reset router if necessary.

Calibrate temperature sensors by placing the device away from direct sunlight, vents, or heat sources. For optimal accuracy, use an external sensor and configure its readings in the advanced settings. Override factory default swing settings (0.5°F) to 1.0°F for energy efficiency in mixed climates.

For systems with emergency heat (auxiliary), test the backup mode monthly. Wire E to the dedicated aux terminal and schedule a manual override during extreme temperatures. Document all changes in a labeled diagram stored near the HVAC system for future reference.

Matching Your Climate Control Device to Suitable Electrical Setups

For single-stage heating and cooling systems with a conventional 24V power source, use terminals labeled Rc, W, Y, and C. Connect the Rc to the transformer’s hot wire, W to the heating relay, Y to the cooling relay, and C to the transformer’s common wire. This configuration supports most basic HVAC units without heat pumps.

Heat pump installations require additional terminals: O/B, G, and sometimes E/Aux. Link O/B to the reversing valve–energized (O) for cooling, de-energized (B) for heating. The G wire controls the fan, while E/Aux connects to emergency or auxiliary heat strips, critical for systems needing supplemental warmth during defrost cycles.

Ensure the C wire is present for stable power delivery, especially in smart setups. If absent, retrofit a common wire from the transformer or use a power extender kit–adapter solutions often fail under sustained loads. For multi-stage systems, assign W2 to secondary heating and Y2 to secondary cooling, verifying stage sequencing matches the HVAC’s operational logic.

Verify compatibility with low-voltage transformers rated between 20VA and 40VA. Undersized transformers cause intermittent faults; oversized units risk overheating. Check wire gauge–18AWG suffices for runs under 100 feet, but 16AWG is recommended for longer distances or high-amperage auxiliary heat applications. Always disconnect power at the breaker before touching terminals to avoid short circuits.

Test each connection with a multimeter: 24VAC ±10% between Rc and C confirms transformer output. Voltage presence on W during heat calls or Y during cool calls validates relay operation. For dual-fuel systems, prioritize the thermostat’s fossil fuel over electric setting to prevent simultaneous operation of gas furnaces and heat pumps.

Step-by-Step Guide to Connecting the Auxiliary Power Lead (C-Wire) on Your Climate Controller

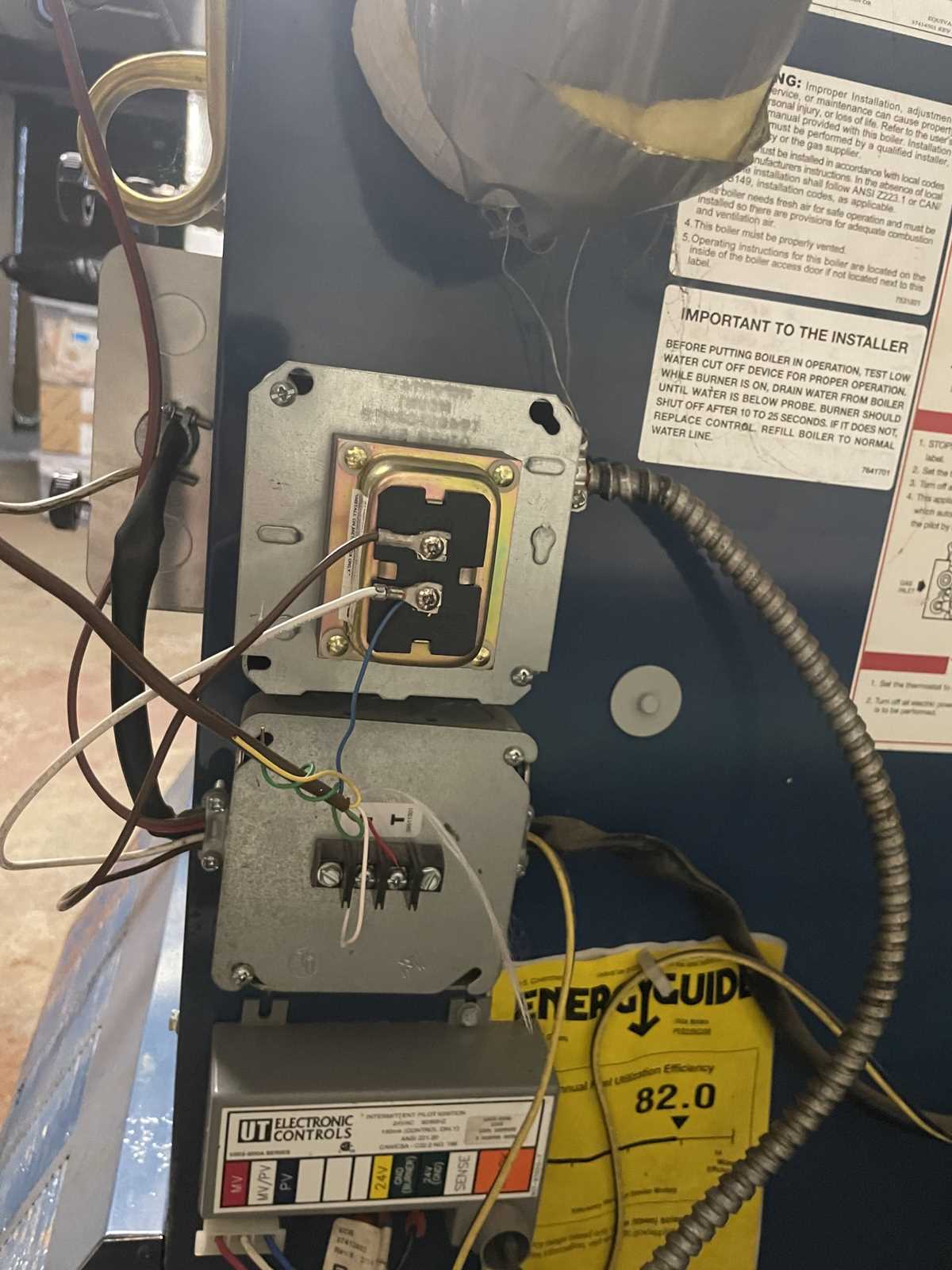

Locate the HVAC system’s control board first–typically inside the furnace, air handler, or a dedicated utility closet. Identify the terminal labeled “C” or marked with a blue or black wire; this is the common terminal providing a 24VAC return path. If no dedicated terminal exists, trace the existing wires back to the transformer’s secondary winding–one side connects to “R,” the other is your “C” point.

Verify compatibility by ensuring the power supply outputs 24VAC consistently under load; use a multimeter to measure voltage between “R” and “C” while the system runs. A reading below 20VAC indicates insufficient power–consider upgrading the transformer or consulting an HVAC technician to avoid damaging the device’s internal circuitry.

Preparing the Control Unit

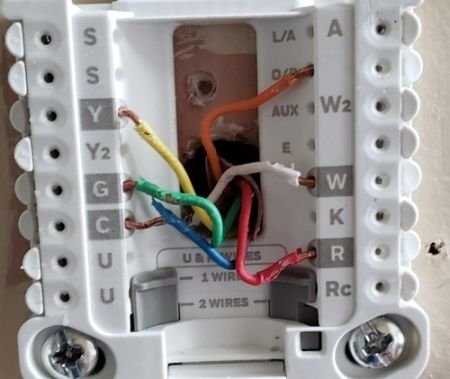

Remove the faceplate by gently pulling it away from the wall-mounted base. Inside, you’ll find a set of terminals labeled “R,” “W,” “G,” “Y,” and “C.” If the “C” terminal is unoccupied, strip 1/4 inch of insulation from the blue or black wire you identified earlier. Secure it firmly under the “C” terminal screw, ensuring no bare wire is exposed beyond the connection to prevent short circuits.

For systems without a pre-installed common lead, run an 18-gauge thermostat cable from the control board to the climate controller. Connect one end to the “C” terminal on the HVAC board and the other to the matching terminal on the device. Avoid splicing into existing wires unless absolutely necessary–this introduces failure points and can degrade signal integrity over time.

Finalizing and Testing

Reattach the faceplate and restore power at the breaker. Access the device’s settings menu and navigate to “Installer Options” or “Equipment Status.” Check for a stable power indicator–fluctuations or error codes (e.g., “No Power,” “Low Battery”) suggest a loose connection or insufficient voltage. If issues persist, re-examine the “C” wire’s path for damage, pinch points, or incorrect terminations. For heat pump systems, ensure the “O/B” terminal is properly configured to avoid reversing valve malfunctions during operation.

Resolving No Power Problems With Your Smart Climate Controller

Check the baseplate connections immediately. Loose screws or displaced wires prevent the device from receiving power. Remove the faceplate and verify each terminal is tightened to 0.5 Nm torque. If wires appear slack, reroute them to ensure proper contact without strain on the terminals.

Inspect the circuit breaker labeled for heating/cooling systems. A tripped switch often goes unnoticed during installation. Reset it once and monitor for 15 minutes–if it trips again, the issue likely involves a short in the low-voltage lines or a faulty fuse in the control panel.

Measure voltage at the transformer output using a multimeter. Set it to AC mode and probe the R and C terminals. Readings should fall between 22-28 VAC. Values below 20 VAC indicate a failing transformer, requiring replacement. Ensure the transformer’s input side matches the local mains supply (120V/240V).

Trace the common wire (C-wire) from the HVAC system to the control unit. Disconnections or breaks in this line are a frequent cause of power failures. Strip 0.25 inches of insulation from the wire ends, then secure them firmly under the appropriate terminal. If no C-wire exists, consider installing an adapter or using a power extender kit designed for 24V systems.

Examine the fuse inside the equipment’s control board. A blown fuse interrupts power delivery. Locate it–typically a 3-amp, 250V glass fuse–and replace it only with an identical rating. Avoid bypassing the fuse, as this may damage sensitive components. If the new fuse blows upon restart, check for wiring shorts between R and C terminals.

Test the battery compartment if the display remains inactive. Remove the batteries and test each one with a voltmeter. Alkaline batteries should read at least 1.5V; rechargeable batteries should show 1.2V. If corroded, clean the contacts with isopropyl alcohol and a soft brush. Replace batteries in pairs to ensure balanced voltage.

Verify compatibility with the HVAC system’s stage configuration. Single-stage, multi-stage, and heat pump systems require specific wiring setups. If misconfigured, the control unit may not power on. Refer to the system’s manual for correct terminal assignments–Rc for cool, Rh for heat, W for heating relay, and Y for cooling relay.

If all else fails, disconnect all wires and bench-test the climate control using a 24V power source. Connect R to the positive and C to the negative terminal. A short beep and illuminated display confirm the device functions. Reconnect wires one by one, checking for functionality after each step. Persistent failure suggests a defective unit, requiring manufacturer support or replacement.
