How to Read and Install Honeywell Thermostat Wiring Diagrams Step by Step

Begin by identifying the low-voltage terminals on your HVAC system–typically labeled R (power), C (common), W (heat), Y (cooling), and G (fan). For single-stage systems, connect the corresponding wires from the climate regulator directly to these terminals. Verify voltage with a multimeter: most residential units operate at 24V AC, while deviations may indicate transformer issues or wire damage.

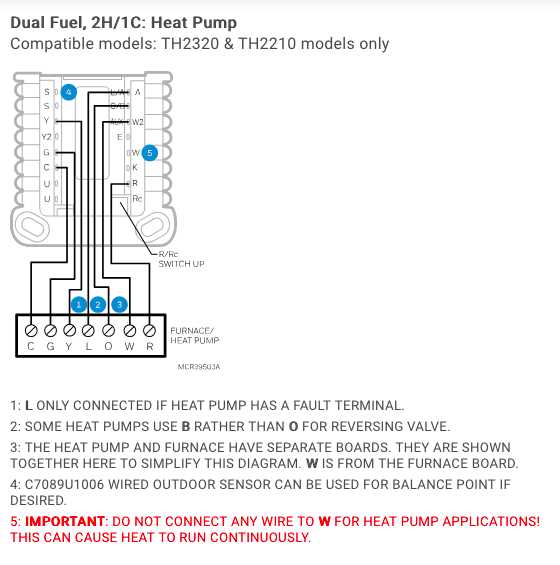

For multi-stage or heat pump configurations, locate the O/B terminal–this controls the reversing valve. Set the regulator’s switch to match the system’s mode: O for cooling (valve energized) or B for heating (valve de-energized). Incorrect settings will invert cooling and heating cycles, risking compressor overload. Cross-reference the system’s technical manual for exact valve behavior, as specifications vary by model.

Grounded connections are mandatory. If the system lacks a C-wire, use a power adapter or repurpose an unused wire–avoid bootlegging from the G-terminal, as this can disable the fan during heating cycles. For systems with auxiliary heat (E or W2), ensure staged thermostat settings match the equipment’s staging delay (typically 5-10 minutes) to prevent short cycling.

After wiring, perform a system test: override the regulator to forcing heating/cooling modes and confirm compressor, fan, and reversing valve engagement within 30-60 seconds. If delays exceed this window, check for loose terminals or undersized wiring (minimum 18 AWG for runs under 50 feet). For variable-speed systems, verify communication protocols (e.g., OpenTherm) match the regulator’s capabilities–mismatches cause erratic operation or failure to start.

Label all wires with heat-resistant tags and secure them with strain relief at both ends. Use twist-on wire connectors rated for HVAC applications; avoid electrical tape, which degrades under temperature fluctuations. For outdoor units, encase wires in liquid-tight conduit to prevent moisture ingress–even minor corrosion can disrupt low-voltage signals. Document the setup with photographs for future troubleshooting.

Understanding Control Panel Connections for Climate Devices

Before connecting any low-voltage control unit, verify the wire gauge matches the system’s voltage drop tolerance–typically 18 AWG for runs under 100 feet and 16 AWG for longer distances to prevent signal degradation. Label each conductor at both the furnace and control point using a standardized color scheme: red for power (Rc/Rh), white for heat (W), yellow for cooling (Y), green for fan (G), and blue or black for auxiliary functions (C or W2). Cross-reference these with the equipment’s terminal block; mismatched connections risk damaging the circuit board or triggering false safety lockouts.

For zoned systems, integrate a multi-stage relay to handle variable load demands–ensure the relay’s contact rating exceeds the combined amperage of all attached devices by at least 20%. If adding a smart interface, use a separate transformer for the communication module (Wi-Fi/Bluetooth) to avoid interference with the main heating/cooling cycles. Test continuity with a multimeter after installation, probing each terminal pair to confirm resistance below 1 ohm; higher readings indicate loose connections or corroded terminals requiring immediate correction.

Recognizing Critical Conductors in Climate Control Connections

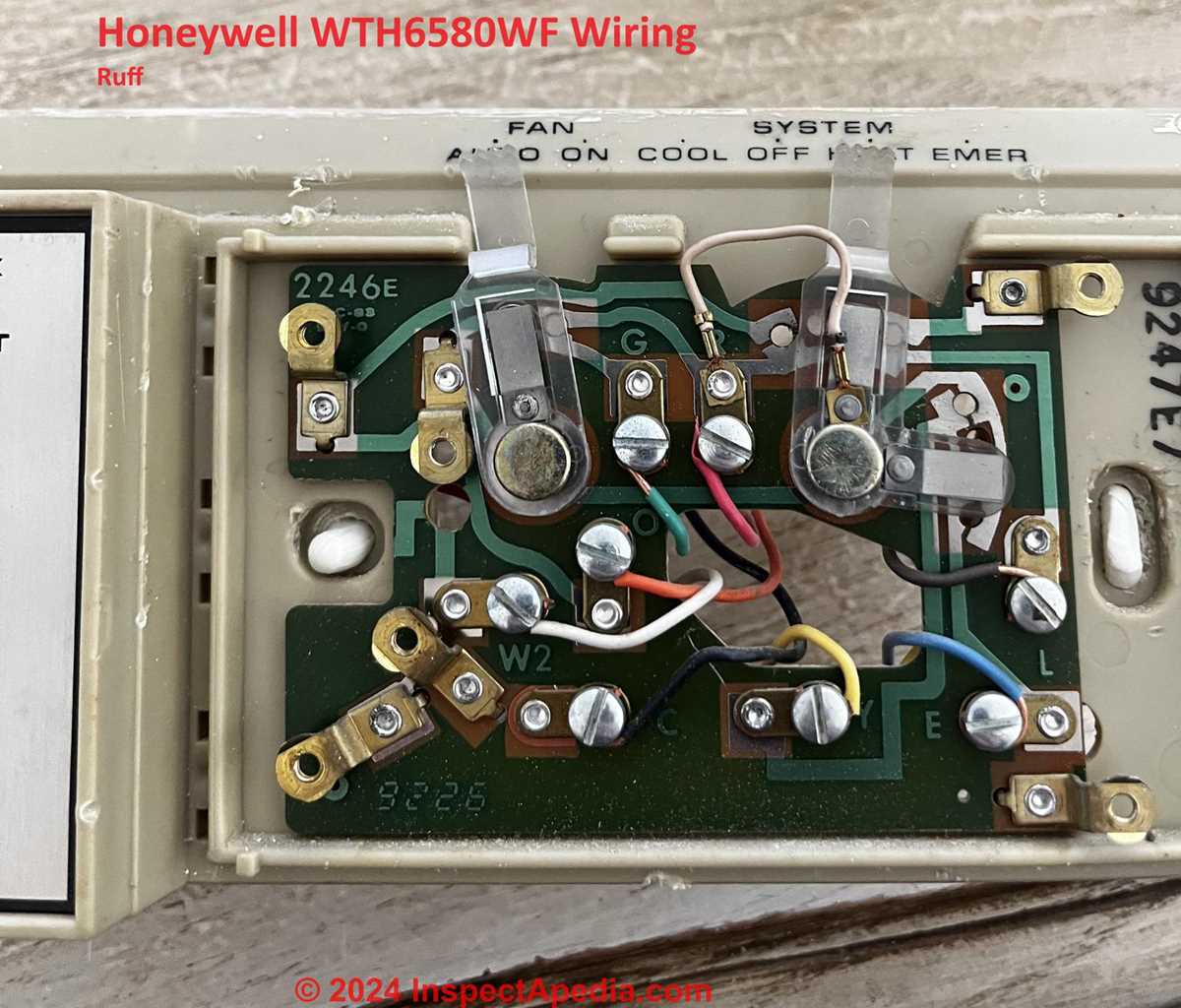

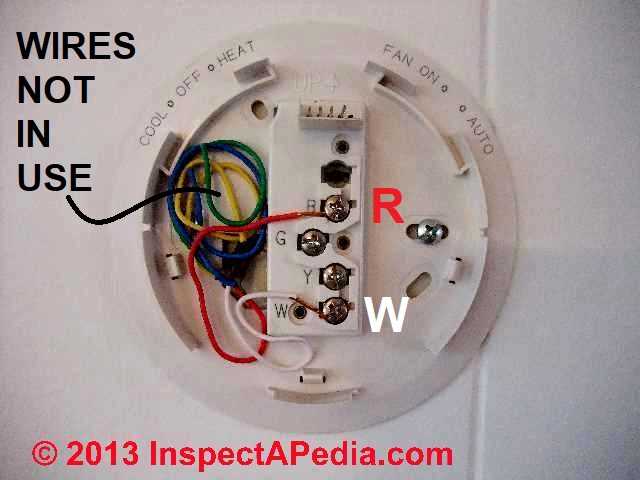

Begin by locating the R (power) wire, typically red, as it supplies 24V AC from the system’s transformer. This conductor is non-negotiable–without it, the control unit remains inert. Next, identify the W (heat) wire, often white, which activates the heating equipment. In multi-stage systems, W2 may signal a secondary heating stage or auxiliary heat, commonly linked to heat pumps. Verify these connections against the furnace or heat pump label to avoid mismatches; some older setups use O/B (orange/blue) for reversing valves instead of heating.

• G (fan)–usually green–controls the blower motor independently of heating or cooling demands. Test it by setting the device to “fan-only” mode; if airflow pauses, inspect the relay or motor capacitor.
• Y (cooling), typically yellow, engages the compressor. In dual-fuel setups, Y2 might trigger a second-stage compressor or emergency heat strips. Confirm voltage (24V AC) at the terminal when cooling is active; absence suggests a faulty contactor or low-voltage fuse.
• C (common)–blue or black in newer installations–completes the circuit for smart devices requiring continuous power. For non-powered units, this wire may be omitted, but modern features like Wi-Fi and room sensors necessitate it.

Troubleshooting Misidentified Leads

If labels are missing or faded, use a multimeter to trace functionality:

1. Set the meter to AC voltage (200V range).
2. Touch the probes to R and each remaining terminal while activating heating/cooling via the control panel.
3. Note which terminal shows 24V during operation–the wire is now functionally identified.

For heat pumps, the O/B (reversing valve) wire will energize during cooling but not standard heating. Systems with E (emergency heat) often link it to a secondary heat source like electric strips; ensure it’s isolated from W to prevent unintended activation. Always de-energize the system before probing to avoid short circuits.

Step-by-Step Connection Guide for Smart Climate Controls

Power down the HVAC system at the breaker before handling any low-voltage cables to prevent shorts or equipment damage. Confirm the absence of voltage using a multimeter on the control panel terminals.

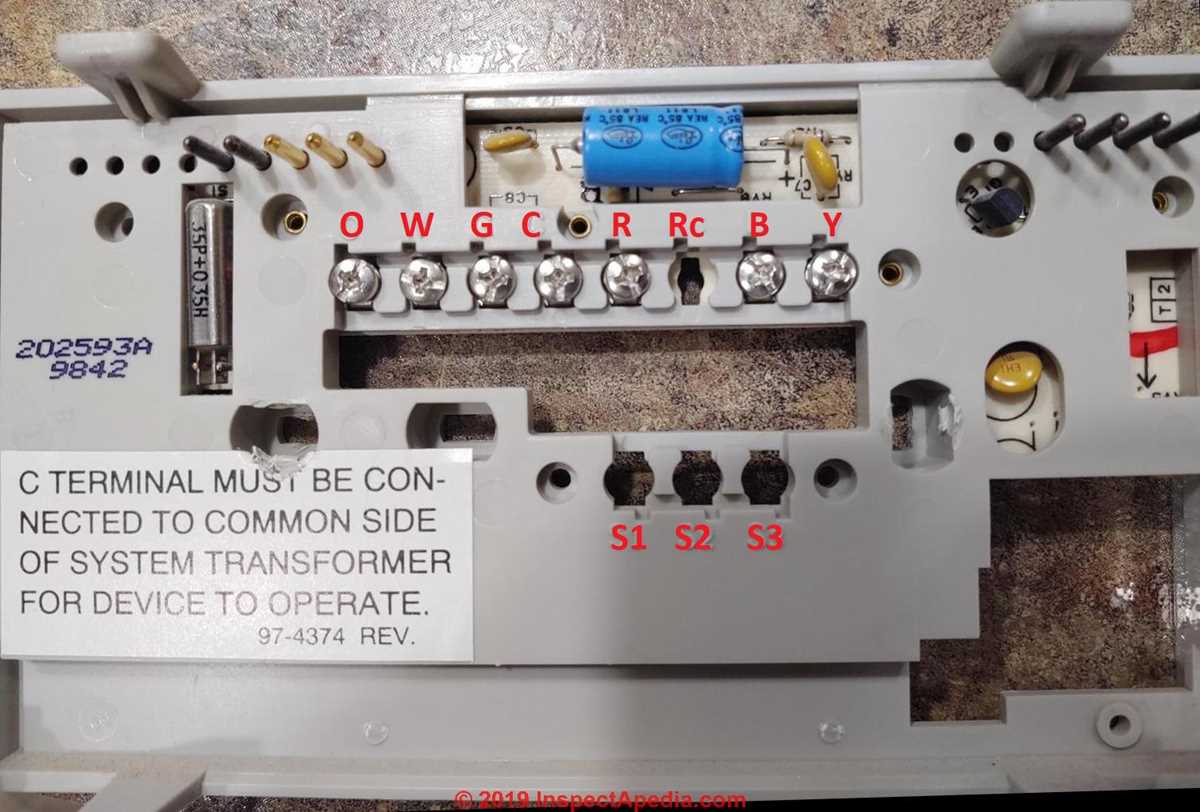

Remove the existing wall-mounted regulator by unscrewing the faceplate and detaching it from the subbase. Note the terminal labels–most units use standard designations:

• R (or Rh/Rc): 24V power feed (split for heating/cooling if separated)
• W: Heating relay activation
• Y: Cooling compressor signal
• G: Fan motor command
• C: Common/neutral return for continuous power (required for Wi-Fi models)
• O/B: Heat pump reversing valve (energized in cooling or heating mode, depending on system)

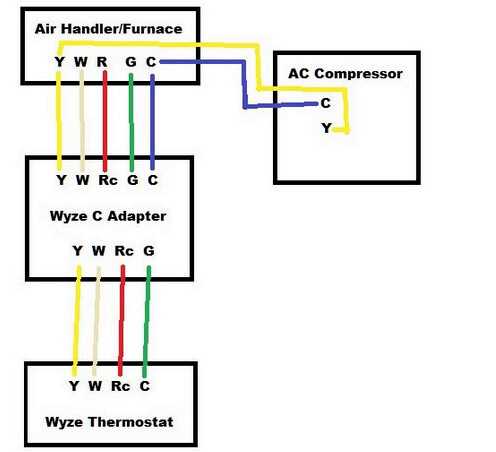

Inspect the new digital controller’s documentation for terminal mapping–some advanced models consolidate multiple signals (e.g., W2, Y2 for dual-stage systems). If your setup lacks a C-wire, use an adapter kit to repurpose an unused wire or install a power extender module by connecting it to the transformer secondary.

Strip 0.25 inches of insulation from each cable end using wire strippers, ensuring no bare strands extend beyond the terminal clamp. Insert wires into the corresponding slots on the new subbase, tightening screws securely. For systems with auxiliary sensors (e.g., humidity or occupancy detectors), follow the manufacturer’s pinout–these often require dedicated inputs labeled “S1/S2” or “AUX.”

Mount the subbase to the wall with screws, pulling excess cable through the central opening to keep connections tidy. Reattach the faceplate, ensuring the alignment tabs click into place. Restore power at the breaker and verify display boot-up. If the screen remains blank, recheck the R-C circuit; some installations require a jumper between Rh-Rc if not factory-bridged.

Configure basic settings via the touchscreen:

1. Select system type (gas/electric heat pump, single/double-stage)
2. Set fan operation mode (auto/on)
3. Calibrate temperature offset if readings deviate by more than 1°F from a standalone thermometer
4. Enable Wi-Fi pairing and input network credentials (5GHz bands often unsupported)

Test all functions sequentially:

• Raise setpoint to trigger heating–listen for the relay click at the air handler.
• Lower setpoint to activate cooling–verify compressor engagement within 2 minutes.
• Set fan to “On”–confirm blower rotation (noise should be consistent, not rattling).
• For heat pumps, switch between heating/cooling modes to hear the reversing valve actuate (a faint metallic click).

Address error codes immediately–”E1″ typically indicates a shorted sensor, while “E102” signals low voltage. Replace inadequate gauge cables (minimum 18 AWG for runs over 50 feet) to prevent voltage drop.

Resolving Frequent Climate Control Board Connection Issues

Check for reversed R and C terminals first–this misconfiguration causes immediate power failure. Use a multimeter to verify 24VAC between these contacts; if absent, inspect the HVAC transformer or fuse box for faults. Loose strands in low-voltage cables often lead to intermittent operation; twist wire ends tightly and secure them under terminal screws with pliers to prevent vibration-related disconnections. When replacing older mercury-based units, note that modern models require a C-wire for stable power; retrofit an unused conductor or install a power extender kit if needed.

Diagnosing Non-Responsive Adjustments

If the display lights up but temperature adjustments fail, confirm the correct staging–single-stage systems must have W, Y, and G jumpered directly if bundled heating/cooling is absent. For heat pumps, ensure O/B polarity matches the outdoor unit’s specifications; reversed settings can force auxiliary heat to run continuously, spiking energy use. Cross-reference the control board’s labeling with the manufacturer’s legacy manual (available via serial number lookup) to spot mismatched Rc-Rh bridges, which often disable switching modes. Replace corroded terminals with brass variants to prevent oxidation-induced signal loss.
