Practical Guide to Creating and Interpreting Horn Schematic Diagrams

Begin with a tapered impedance transformer if matching drivers exceed 8 ohms–this prevents destructive reflections at high frequencies. Use a stepped or exponential flare profile for consistent directivity; logarithmic curves introduce phase distortion above 3 kHz. Calculate throat area based on driver diameter: for a 1-inch compression driver, aim for 0.3–0.5 cm² throat opening to avoid power compression.

Critical path lengths must align to ±2 mm for coherent wavefront summation. Segment the waveguide into three zones: throat (high-pressure), mid-section (expansion), and mouth (final flare). Each zone requires distinct flare rates–throat: 5–10°, mid: 20–30°, mouth: open to 60°. Copper traces should follow a 2 oz/ft² weight for current handling above 5 amps; narrower traces near the driver diaphragm risk thermal sag.

Ground planes must split into star topology–avoid daisy-chaining–with ferrite beads at each driver tap to suppress EMI from switching amplifiers. Capacitors should be polypropylene for crossover networks above 5 kHz; film caps below 100V introduce parasitic inductance. Mount resistors off-board if dissipation exceeds 5W–vertical SMD placement improves convection cooling.

Phase plugs demand precise slot geometry: depth should equal half the wavelength of the highest desired frequency (e.g., 1 cm for 17 kHz). Slot count ranges from 4–8 depending on diaphragm mass; fewer slots increase harmonic distortion. Terminate the waveguide with a mouth circumference ≮1.2× the wavelength of the lowest usable frequency to prevent lobing.

Constructing an Acoustic Exponential Guide: Step-by-Step Blueprint

Begin by sizing the throat. For a 12-inch driver, aim for a 2–3 cm² cross-section to maintain optimal pressure while avoiding distortion. Smaller drivers (4–6 inches) require 0.5–1 cm² to prevent underloading. Use this formula: A_t = (π × d²)/4 × 0.2, where d is the driver diameter. Adjust for flare rate–2.7 delivers linear response; lower values (2.0) emphasize midrange but sacrifice extension. Material thickness should be 0.8–1.2 mm for steel or 1.5–2.5 mm for aluminum to reduce flex and improve transient accuracy.

Map the expansion path. Divide the length into 5–7 segments, calculating each segment’s cross-section with A_x = A_t × e^(m × x). m is the flare constant (0.08–0.12 for exponential flares); x is distance from the throat. Plot points in CAD software, ensuring no abrupt transitions–radius changes should not exceed 15% between segments. For hand fabrication, use a compass to trace arcs on sheet metal, verifying measurements with calipers every 2 inches. Avoid parabolic or conical profiles unless targeting uneven frequency response for specialized applications.

Terminate the exit correctly. A well-designed mouth eliminates standing waves. For a 1 kHz cutoff, the exit diameter should be D_m = (c × 1.841)/(π × f_c), where c is 343 m/s and f_c is cutoff frequency. Add a 5–7 cm flange around the perimeter to minimize diffraction, bending it outward at a 15° angle. Test with pink noise at 90 dB SPL, checking for nulls above 10 kHz–a flat response within ±2 dB confirms proper shape. If peaks persist, reduce the mouth diameter by 5% increments until balanced.

Critical Elements of an Acoustic Signaling Circuit Blueprint

Begin by identifying the power source on the blueprint–typically a 12V or 24V supply for automotive applications–marked with clear polarity indicators. Verify the voltage matches the relay and emitter specifications to prevent damage. For industrial setups, include a fuse rated 10-15% above the peak current draw of the emitter; this prevents overheating during prolonged use. Failures often trace back to mismatched voltage or missing overcurrent protection.

• Relay or Switching Mechanism: Locate the relay coil and contacts–ensure the coil current aligns with the control signal (e.g., 50-100mA for standard relays). Solid-state relays offer silent operation but require heat sinks for currents above 5A. Mechanical relays, while noisier, handle inductive loads more reliably. Always pair relays with a flyback diode (1N4007) to suppress voltage spikes.
• Emitter (Driver/Transducer): Check the emitter’s impedance–common values are 4Ω, 8Ω, or 16Ω. High-impedance emitters (>16Ω) demand step-up transformers for adequate output. For piezoelectric types, confirm frequency resonance (e.g., 2-5kHz for optimal sound pressure levels). Avoid driving them directly from microcontrollers; use a transistor or MOSFET (e.g., IRFZ44N) for currents above 500mA.
• Control Interface: Isolate control lines from high-current paths to prevent interference. Use optical couplers (e.g., PC817) for sensitive circuits or when connecting to vehicle ECUs. For momentary activation, add a debounce capacitor (0.1µF) to eliminate false triggers caused by switch noise.

Direct wiring from the emitter to the relay without proper load management risks overheating–the emitter’s rated power (e.g., 10W) dictates wire gauge (minimum 18AWG for distances under 3m). For longer runs, upsize wire proportionally (e.g., 14AWG for 10m) to minimize voltage drop. Connect a 10kΩ pull-down resistor to the relay coil if the control signal is prone to floating states, ensuring stable operation in noisy environments.

Ground paths must be star-connected to a chassis ground point to avoid ground loops; shared grounds between high-power emitters and low-power logic circuits introduce audible hum or erratic behavior. For dual-zone emitters (e.g., vehicles with front/rear systems), separate ground returns prevent cross-talk. In PCB-based implementations, dedicate a thick trace (minimum 2oz copper) for emitter grounding to handle peak currents without resistive losses.

1. Test emitter response with an oscilloscope–apply a square wave at the emitter’s resonant frequency and confirm a clean waveform without clipping. Distortion above 5% indicates improper drive voltage or load mismatch.
2. Validate relay engagement time; delays >50ms between control signal and emitter activation may violate safety standards (e.g., automotive FMVSS 108). Use a fast MOSFET (e.g., IRLZ44N) for sub-10ms response times.
3. Module placement impacts performance–mount emitters >20cm from heat-sensitive components to avert thermal drift. For outdoor use, apply conformal coating to circuitry to resist moisture and corrosion.

Step-by-Step Assembly of Acoustic Signal Electrical Links

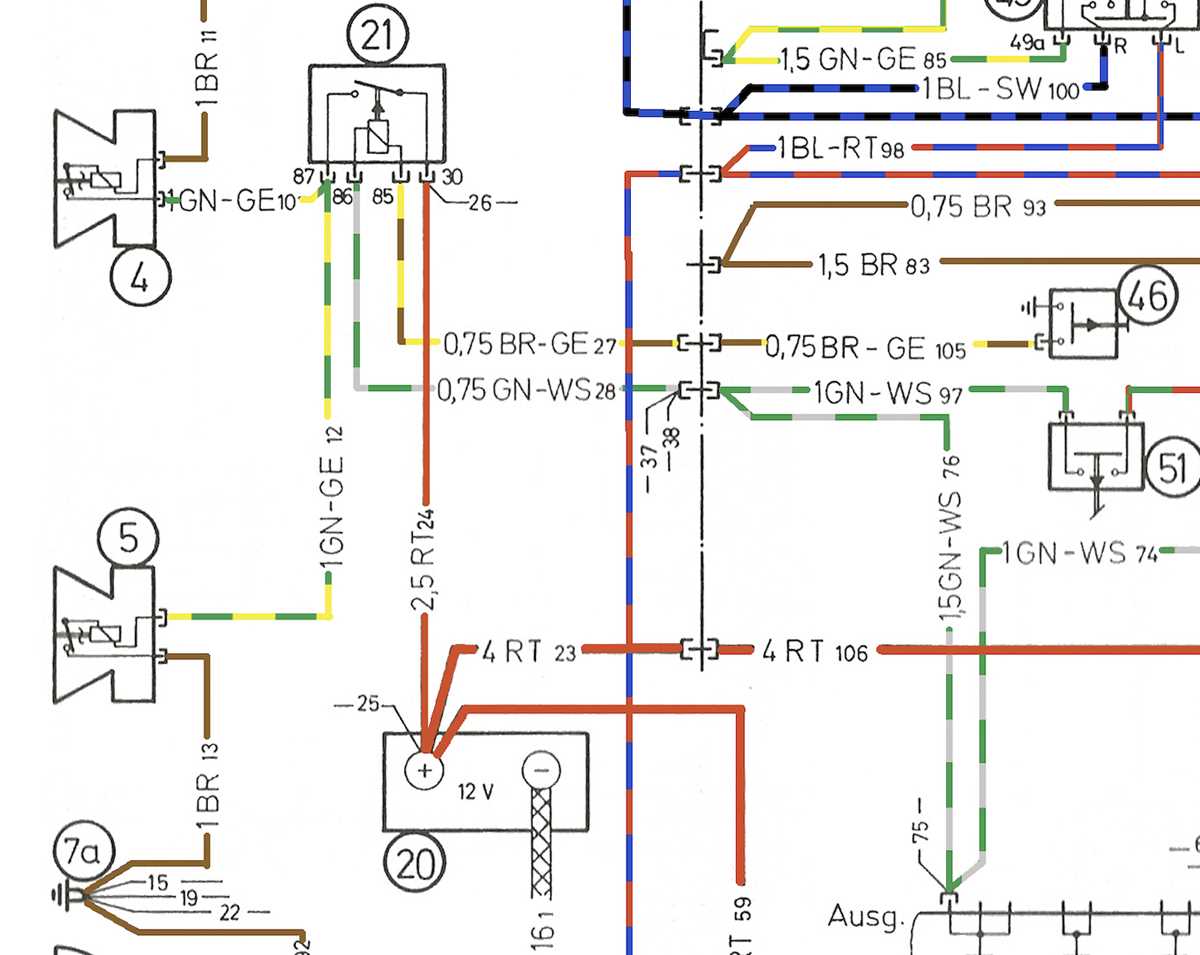

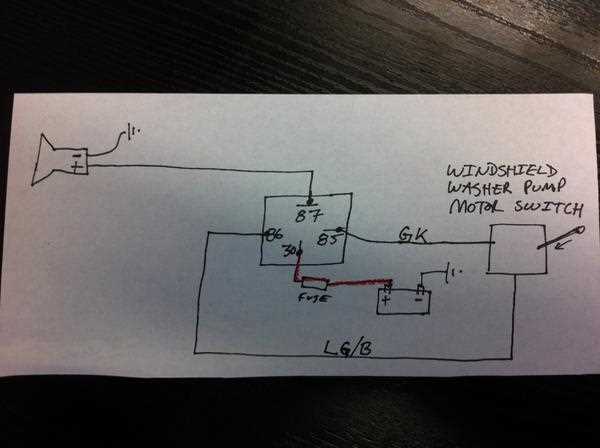

Locate the primary relay terminal marked 85–this connects directly to the vehicle’s ignition switch or a fused auxiliary circuit. Use a 16-gauge wire for current flow below 10A; 14-gauge for 10-15A loads. Secure the crimp connector with heat-shrink tubing to prevent corrosion. Avoid soldering near plastic components to prevent melting.

Attach the 86 terminal of the relay to a reliable ground point–bare metal chassis locations near the mounting bracket work best. Scrape away paint or undercoating to ensure a 0.2Ω or less resistance reading. Use a star washer if fastening to threaded areas to improve conductivity.

Wire the 30 terminal to the positive side of the signal device, routing through a 20A fuse within 15cm of the battery or power source. For dual-output setups, split the feed using a Y-connector but ensure total draw does not exceed the fuse rating.

Connect the 87 terminal to the signal’s positive lead. If the device includes a trigger wire (e.g., a pressure switch or momentary button), route this separately to the relay’s 85 terminal instead of the ignition line for modular control.

Testing and Validation

Before finalizing connections, probe each joint with a multimeter. A 12V reading at 85 and chassis ground at 86 confirms correct relay activation. Trigger the circuit; the relay should emit a sharp click and deliver full voltage to 87. No voltage drop greater than 0.3V is acceptable under load.

For pulse-width modulated systems, insert a 1N4007 diode across the 85/86 coil to suppress voltage spikes. Position it cathode-to-positive, anode-to-ground. Omit this step only if the relay datasheet explicitly states surge protection is built-in.

Seal exposed connections with dielectric grease if operating in humid or off-road conditions. Avoid silicone spray–it attracts dust and degrades over time. For marine applications, upgrade to tinned copper wire and waterproof heatshrink.

Route all wires away from sharp edges or moving parts. Secure them every 30cm with nylon clamps, never zip ties–UV degrades them. Label each wire with numbered sleeves for troubleshooting; replace any wire showing fraying, discoloration, or stiffness.

Common Mistakes When Designing Acoustic Signal Circuit Plans

Misaligning power sources with actuator coils leads to inefficient current distribution. Always verify voltage ratings–typically 12V or 24V–against the load requirements. A mismatch forces the winding to draw excessive current, risking overheating or premature burnout. Use a multimeter to confirm supply consistency before finalizing traces.

Failing to isolate switching circuits from analog paths introduces noise. Locate relays or transistors at least 5 cm away from signal routing. Place a 100 nF ceramic capacitor directly across the switch contacts to suppress voltage spikes. Ground loops emerge if return paths share common traces; dedicate separate ground planes for power and signal.

Overlooking wire gauge causes voltage drop under load. A 2A continuous draw demands at least 18 AWG copper wire. Measure resistance per meter; expect 0.02 Ω/m for 18 AWG. Anything thinner increases resistance exponentially–22 AWG rises to 0.05 Ω/m, cascading into noticeable performance loss over 3 meters.

Improper fuse placement leaves sections unprotected. Insert a 10A slow-blow fuse within 15 cm of the battery terminal. Positioning it downstream risks undetected short circuits frying unprotected wiring. Test continuity with a load bank to validate fuse rating before powering.

Ignoring environmental constraints leads to degraded connections. Exposed terminals accumulate moisture; apply dielectric grease to terminal blocks. Vibration loosens crimps; solder joints reinforce but risk brittleness–prefer flexible strand wire for moving mounts. UV degradation cracks PVC insulation–use XLPE-rated wire for outdoor installations.

Trace Optimization Pitfalls

Neglecting trace width calculations overheats PCB layouts. For 5A current, ensure 1.5 mm width on 1 oz copper boards. Thermal relief pads must exceed trace dimensions to prevent solder mask failures. Via starvation under high current creates resistive bottlenecks–double-stack vias for currents above 3A.

Underestimating transient response misleads component selection. Peak currents during activation reach 15-20A. Bypass electrolytic capacitors with 100 µF low-ESR types directly at load terminals. Diode recovery times must stay below 50 ns to protect solid-state switches.

Disregarding failsafe redundancy invites single-point failures. Include a secondary relay bypass circuit for mechanical switches. Design signal paths to default to deactivated states without power–avoid latching relays unless supervised by watchdog timers. Document emergency shutdown sequences alongside primary control logic.
