How to Create and Understand a Home Light Switch Wiring Diagram
Install a 14-gauge NM-B cable between the power source and the first control point. Ensure the hot conductor (black) connects to the common terminal, while the neutral (white) bypasses the device and continues to the fixture. Ground wires (bare/green) must bond all metallic boxes and device frames–omit this step only in non-metallic enclosures with double-insulated components.
Always use a voltage tester before handling live conductors. Probe both terminals on the control to confirm power is isolated–miswired circuits risk arcing at 10+ amps, degrading contacts within 500 cycles. For multi-way setups, traveler wires (red/yellow) must mirror polarity across all controls; reversing polarity introduces flicker at LED loads under 3W.
Select controls rated for 15A/120V minimum–lower ratings fail under inductive loads like ballasts or transformers. For outdoor placements, specify weatherproof models with silicon-sealed housings; standard toggle types corrode within 24 months in humid climates. Daisy-chain configurations require pigtail splices–twist-and-cap joins loosen under thermal expansion, causing intermittent failures.
Label all conductors at both ends–AWG codes fade on recently manufactured cables. For three-way circuits, identify common versus traveler terminals by resistance testing; ohmmeter readings drop below 1Ω on correctly paired wires. Avoid backstab connections on bulkier wires (12AWG+); side-terminal screws provide 30% more clamping force under load.
Setting Up a Basic Electrical Panel for Fixture Control
Before touching any connections, shut off the circuit breaker at the main service panel–label it to prevent accidental reactivation. Use a non-contact voltage tester to confirm the absence of current in all wires. Misidentifying live conductors is a leading cause of electrical injuries, accounting for 9% of residential shocks annually according to NFPA data.

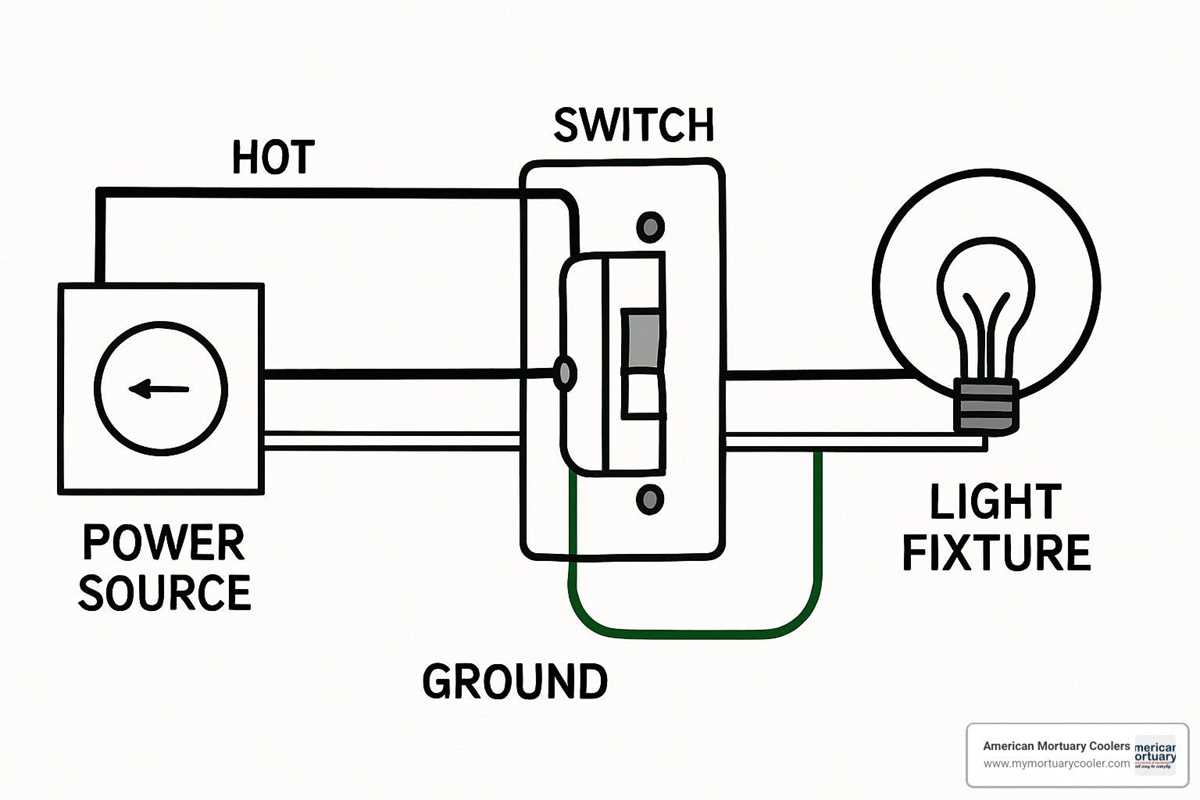

For a single-pole control device, connect the black (hot) conductor from the power source to the brass terminal. Attach the white (neutral) wire to the silver terminal if required by the fixture–some LED drivers necessitate this for proper functioning. Ground the switch by tying the bare or green wire to the ground screw, ensuring a continuous path to the grounding bus bar in the panel. Use 14 AWG copper wire for 15-amp circuits and 12 AWG for 20-amp circuits; undersized conductors risk overheating.
| Wire Type | Color Code | Terminal Assignment | Torque Spec (in-lb) |
|---|---|---|---|
| Hot (Line) | Black | Brass | 12–15 |
| Neutral | White | Silver | 12–15 |
| Ground | Green/Bare | Green Screw | 15–20 |
| Load (Fixture) | Red/Black | Brass (alternate) | 12–15 |
Three-way configurations require travelers (red and black wires) between control points. Connect the common terminal of the first device to the power source, then link the travelers to the corresponding terminals on the second device. Attach the load wire from the second device’s common terminal to the fixture. Ensure both devices share the same neutral and ground–mixing neutrals from different circuits violates NEC 300.3(B) and creates parallel paths that overload conductors.
Smart devices introduce low-voltage backhaul–typically a blue or yellow wire–for communication modules. Splice this wire to the manufacturer-provided control wire using a UL-listed wire nut; avoid twist-and-tape splices, which degrade signal integrity over time. Verify voltage drop across smart-device circuits doesn’t exceed 3% at the furthest point; excessive drop causes erratic operation in Zigbee/Z-Wave networks.
Mount the control device securely to the electrical box using screws–loose devices cause terminal screws to back out, shorting conductors. For metal boxes, pigtail the ground wire to the box with a separate 6 AWG green grounding conductor. Plastic boxes necessitate direct grounding to the device. Replace any cracked or brittle faceplates; exposed terminals increase shock risk, particularly in damp environments like basements where leakage current multiplies.
Test all connections with a multimeter set to ohms–infinite resistance indicates a broken circuit, while continuity confirms proper termination. Energize the circuit and cycle the device to check for flickering or humming, which signals loose connections or incompatible dimmers. If using LED fixtures, match the dimmer’s wattage rating to the aggregate load; 60W-rated dimmers operating 9W LEDs cause premature failure.

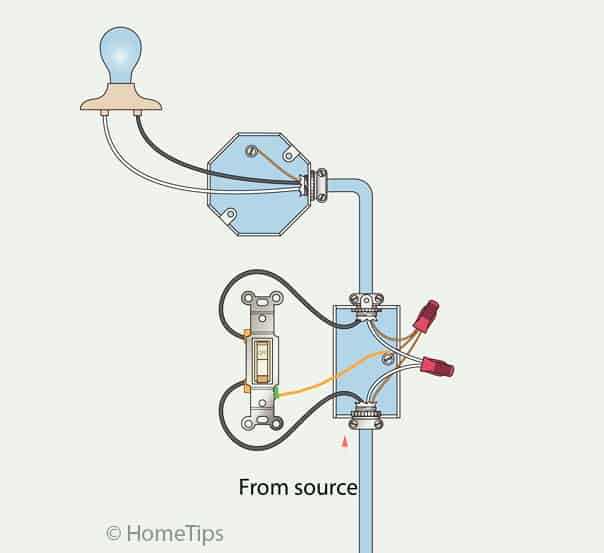

Essential Steps for Connecting a Single-Pole Control Mechanism

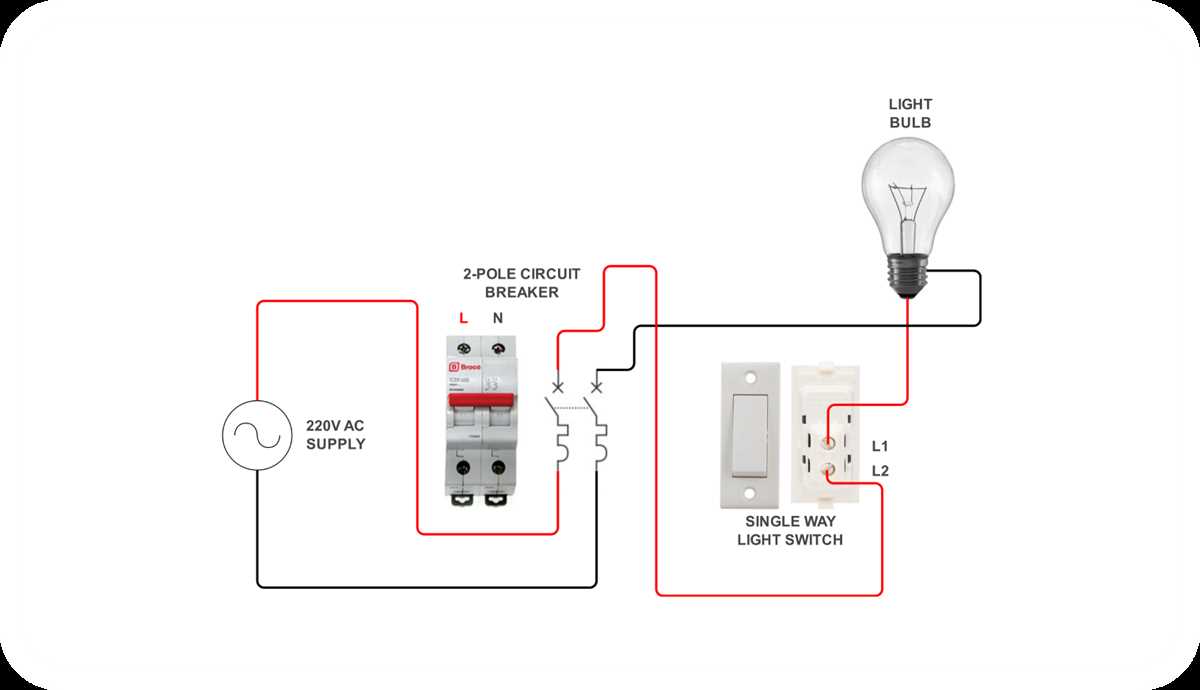

Turn off the circuit at the breaker panel–label the corresponding fuse with tape to prevent accidental reactivation. Use a non-contact voltage tester on both terminal screws and adjacent cables to confirm power is fully disconnected before proceeding.
Remove the cover plate and loosen the mounting screws to separate the device from the electrical box. Pull it forward gently to expose attached conductors, noting their positions: black (hot), white (neutral), and bare/green (ground). If neutrals are bundled together, leave them intact; only the hot conductor should be detached.
Preparing the Wires
Trim the black conductor back by 3/8 inch using wire strippers to reveal fresh copper. If the conductor is brittle or nicked, cut further until clean, undamaged metal appears. Twist the strands clockwise with pliers to prevent fraying, then bend the exposed end into a tight hook matching the screw’s rotation direction (typically clockwise).
Secure the hooked end under the brass terminal screw, tightening with a screwdriver until resistance increases sharply. Avoid overtightening–excess torque can fracture the conductor or strip threads. Repeat for the ground (bare/green) wire on the green terminal if present, ensuring both connections lie flat against the device with no exposed copper visible.
Reinstalling the Device
Tuck conductors neatly into the electrical box, folding them in smooth curves rather than sharp bends. Align the device’s mounting slots with the box’s screws, pressing until flush. Secure it by tightening the screws in alternating rotations to prevent misalignment; verify the switch sits square to the wall. Reattach the cover plate, ensuring no gaps exceed 1/16 inch between plate and wall.
Restore power at the breaker panel and test operation. Toggle the control multiple times–if the connected fixture responds inconsistently, disconnect power immediately and recheck connections, focusing on terminal tightness and conductor integrity. For dimming models, ensure compatible bulbs are installed to prevent flickering or buzzing.
If the circuit trips during testing, inspect for stray strands touching metal surfaces or improperly stripped lengths. Re-measure all connections: minimum 6 inches of conductor should extend from the box, with 3 inches exposed beyond the cable jacket for future adjustments.
Connecting a Dual-Control Toggle for Two Locations: Step-by-Step Guide
Start by labeling each conductor in the electrical box: black screw terminals receive the traveler wires, the brass or dark screw connects to the common terminal, and ground attaches to the green screw. Use a voltage tester to confirm all circuits are de-energized before touching any bare copper.
For a three-terminal toggle setup, two travelers run between the paired units–typically red and black 14-gauge THHN. Strip 5/8 inch of insulation from each end and loop clockwise around each screw. Secure with a screwdriver torque setting of 12 in-lbs to prevent loosening over time.
- Identify the power source conductor entering the first box–this will connect to the common terminal of the primary unit.
- Run two travelers from the primary unit to the secondary box–label them to avoid mix-ups during installation.
- Attach the remaining conductor at the secondary box to its common terminal, then connect load (fixture lead) to the primary’s common if power enters there.
A common pitfall is misidentifying the common terminal; on standard rocker units it sits opposite the ground terminal, often marked “COM” or labeled in a contrasting color. If uncertain, test continuity with a multimeter: the common will show zero ohms when toggled between ON positions.
Wiring Variations by Power Entry Point
- Power enters at first unit: Common connects to incoming hot, travelers bridge to second box, second unit’s common connects to lighting load.
- Power enters at fixture: Connect load to first unit’s common, travelers loop between boxes, second unit’s common receives incoming power.
- Power enters at second unit: Reverse connections from variation one–second unit’s common ties to incoming hot, travelers bridge back to first box.
After securing all conductors, cap unused conductors with wire nuts sized for two #14 wires (minimum 12 AWG cap). Fold neatly into the box and mount each rocker unit using provided screws–typically 6-32 thread, 1/2 inch long. Restore power and test both toggles; if the circuit fails, recheck traveler polarity–swapping red and black at one end will break operation while appearing functional on individual toggles.
Connecting a Dimmer Control: Conductor Hues and Contact Points
Always verify the manufacturer’s labeling before attaching conductors–most rotary or slide dimmers feature three terminals: common (black or brass screw), load (copper or red screw), and ground (green screw). In North American installations, standard color conventions apply: black for hot, white for neutral (if required), red for switched hot (on multi-location dimmers), and bare copper or green for safety earth. For single-pole setups, attach the black hot wire to the common terminal and the red or black switched conductor to the load terminal. If integrating with a neutral-reliant smart dimmer, connect white directly to the corresponding terminal without interruption.
For three-way configurations, identify the traveler wires–typically red and black or red and white–then secure one traveler to the dimmer’s designated terminal (often marked “3-way” or with a brass screw) and the other to the matching terminal on the second control device. European installations frequently use brown for live, blue for neutral, and green/yellow striped for grounding; always cross-reference local electrical codes. Never reverse load and line connections–doing so risks device malfunction or immediate failure. Use a non-contact voltage tester to confirm power is off before handling any exposed terminals.
