Step-by-Step Guide to Creating a Safe Home Electrical Wiring Plan
Before modifying or inspecting any circuit, locate your main service panel and shut off power to the target branch using the corresponding breaker. Use a non-contact voltage tester to confirm the circuit is dead–hold the probe near wires and junction points without touching metal contacts. If voltage readings persist, revisit the breaker or consider a faulty main disconnect. Label every breaker with the area or appliance it controls; update these labels when adding new loads.
Start by sketching a basic schematic of your residence’s circuits. Note each outlet, switch, and fixture connected to a specific breaker. Use standardized symbols: open circles for outlets, slashes for switches, and triangles for ceiling lights. Record wire colors at each connection–black for hot, white for neutral, green or bare copper for ground. Cross-reference with manufacturer manuals if appliances require dedicated circuits (e.g., refrigerators, microwaves).
For wiring splices in junction boxes, ensure connections are secured with wire nuts and wrapped with electrical tape. Strip exactly 3/4 inch of insulation from each conductor–excessive stripping exposes too much bare wire, increasing short-circuit risk. When extending a circuit, match the wire gauge to the breaker amperage: 14 AWG for 15-amp circuits, 12 AWG for 20-amp. Overloading smaller gauge wire on a 20-amp breaker creates a fire hazard.
When installing three-way switches, track the traveler wires–typically red and black–between switch locations. Connect the common terminal (usually darker) to the circuit’s hot wire at the source and to the load (e.g., light) at the other end. Confirm proper function by toggling both switches; if the fixture behaves unpredictably, check for misplaced travelers or a loose neutral. For GFCI protection in kitchens and bathrooms, install outlets with LINE and LOAD terminals–LINE feeds power in, LOAD extends protection downstream.
If expanding circuits beyond 12 outlets, verify local codes–some regions cap outlets per circuit or require arc-fault circuit interrupters (AFCIs) in living areas. AFCIs detect hazardous arcing, tripping before overheating occurs. Replace damaged insulation immediately; frayed wires risk shorting against metal junction boxes. Use cable staples every 4.5 feet when running new conductors through studs, and maintain 1.25 inches of clearance from sharp edges to prevent abrasion.
Creating a Safe Electrical Layout for Your Home

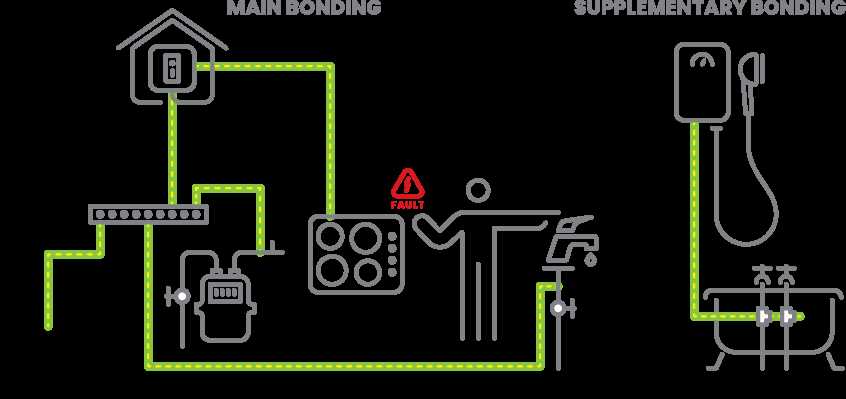

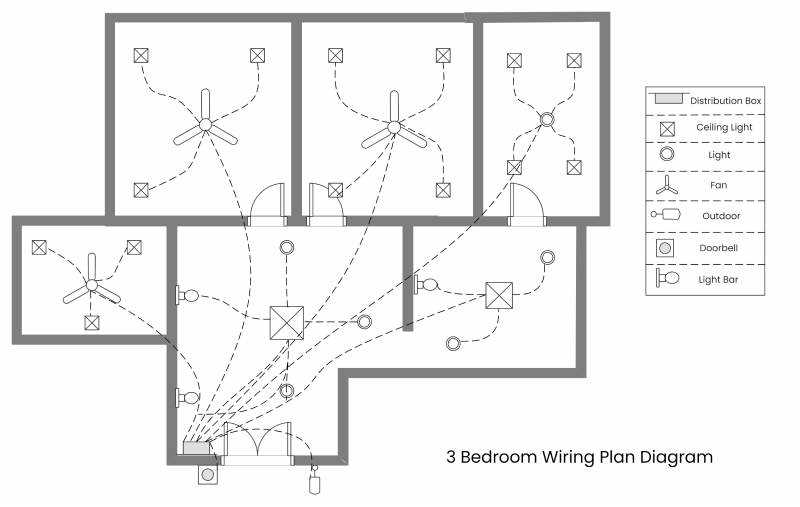

Start by sketching a floor plan with all rooms, noting where major appliances, outlets, and switches will be placed. Mark the service panel location–ideally near the utility meter but away from moisture or high-traffic areas. Use colored pencils or digital tools to differentiate circuits: red for kitchen circuits, blue for living areas, and green for dedicated high-load devices like water heaters. Each circuit should support no more than 12 outlets or 15 amps to prevent overloads.
Label every wire path from the panel to its endpoint. For 120V circuits, run 12-gauge NM-B cable; for 240V appliances (ovens, dryers), use 10-gauge THHN wire in conduit. Avoid running cables through stud bays shared with plumbing or behind drywall without protective plates. In multi-story layouts, vertical runs should align with load-bearing walls to simplify installation and future upgrades.
Key Safety Checks Before Finalizing
Verify all planned outlets comply with local codes: 12-inch spacing for kitchens, 6-foot intervals for living spaces, and GFCI protection within 6 feet of water sources. Dedicate separate circuits for refrigerators, microwaves, and sump pumps–shared circuits risk nuisance tripping. Label the breaker panel clearly: “Basement Lights – 15A,” “Master Bedroom – 20A.” Use arc-fault circuit interrupters (AFCIs) for bedrooms and living rooms to reduce fire risks.
Calculate total load by summing wattages of all devices on each circuit. Ensure the main panel capacity (typically 100 or 200 amps) exceeds this by at least 25%. For homes with electric vehicles or workshops, plan a subpanel near the garage or external charging station. Include a 10% buffer in wire gauges to account for voltage drop over distances exceeding 50 feet.
Test the layout with a licensed electrician before wiring begins. They’ll check for code violations like missing junction box covers, improper cable supports (straps every 4.5 feet), or insufficient grounding. Keep a digital copy of the final schematic in a waterproof folder with emergency contacts–useful for troubleshooting or resale inspections.
Standard Symbols in Residential Electrical Blueprints
Always begin by memorizing the IEC or ANSI symbols–these are the foundation of accurate circuit layouts. A filled circle with a cross represents a ceiling light fixture, while a simple circle indicates a wall-mounted lamp. For switches, a straight line intersecting a T-shape denotes a single-pole switch, whereas a double-T marks a three-way switch. Use these distinctions to prevent miswiring during installation.
Outlets follow consistent rules: a semicircle with two horizontal lines signifies a duplex receptacle, while a grounded variant adds a vertical line below. GFCI outlets incorporate a residual current symbol–a wavy line–next to the semicircle. Always verify symbols match the local code; for example, European schematics often replace horizontal lines with diagonal ones for outlets.
Circuit breakers are depicted as a rectangle with a diagonal slash. A single-pole breaker uses one slash, while a double-pole employs two parallel slashes. Panelboards appear as a larger rectangle subdivided into smaller sections–label each with its amp rating (e.g., 15A, 20A) to ensure compatibility with connected loads.
Wires in layouts are color-coded via lines: solid red or blue for hot conductors, dashed or dotted for neutrals, and green or a green/yellow stripe for grounding. Always cross-reference colors with the legend–some regions invert neutral and ground representations. For conduits, a thick dashed line suggests buried wiring, while a dotted line denotes surface-mounted paths.
Less Common but Critical Symbols

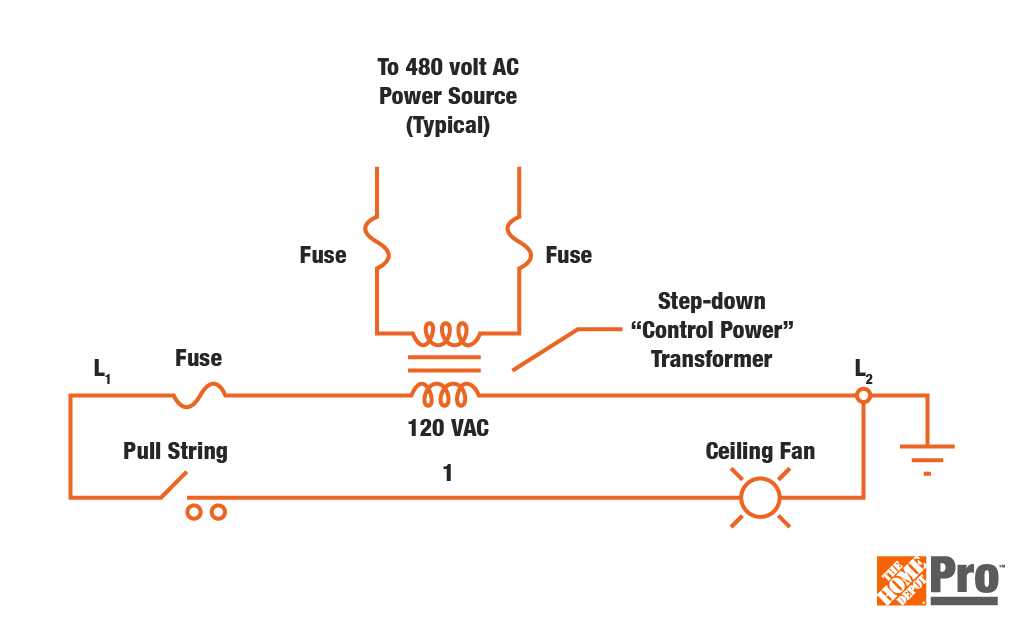

A triangle with a wavy base indicates a transformer, often used for doorbells or HVAC systems. Smoke detectors are shown as a circle with a diagonal arrow, while a thermostat appears as a rectangle with a temperature symbol (°C or °F). Confusing these can lead to incorrect sensor placement or code violations.
For motor-driven devices like fans or pumps, a circle with an “M” suffices. Dimmer switches add a zigzag to the standard switch symbol. Always pair symbols with component labels (e.g., “Furnace Blower,” “Whole-House Fan”)–this prevents ambiguity in multi-device circuits. Double-check all symbols against the manufacturer’s datasheet before finalizing layouts.

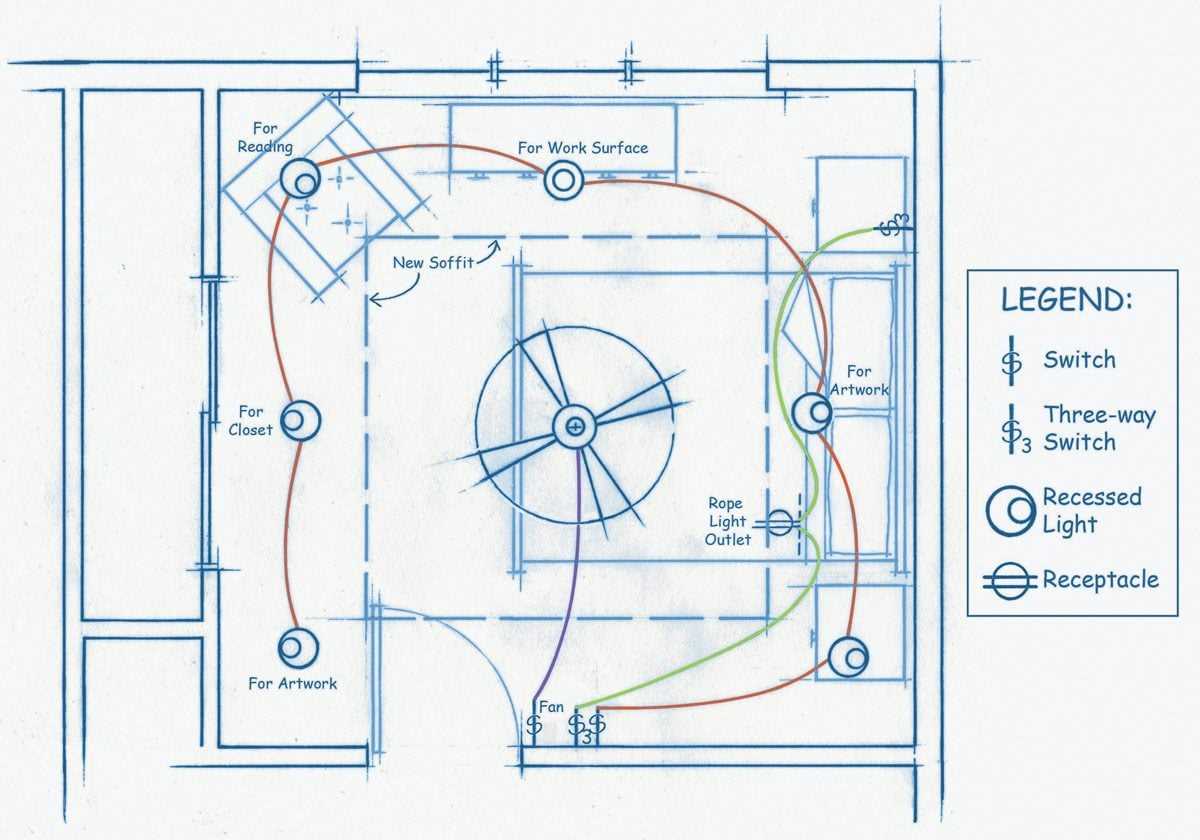

Step-by-Step Guide to Sketching a Room Electrical Layout
Begin by measuring the room’s perimeter and marking structural elements like doors, windows, and fixed furniture on graph paper. Use a scale of 1:20 (1 cm = 20 cm) for clarity. Record exact dimensions, including ceiling height, as this affects outlet and switch placement.
Identify all required electrical points: lighting fixtures, switches, sockets, and appliances. Group them logically–place switches near doorways at 105–120 cm from the floor and sockets 30–45 cm above baseboards. Dedicate separate circuits for high-load devices like refrigerators or space heaters, adhering to a 16A breaker for standard outlets and 20A for kitchen appliances.
Draw circuit paths using straight lines, avoiding diagonal runs for clarity. Route cables along walls or ceilings, maintaining a 15 cm clearance from water pipes and a minimum 30 cm gap from heating vents. Use 1.5 mm² copper wire for lighting and 2.5 mm² for outlets. Label each circuit at the distribution board with its purpose (e.g., “Bedroom Outlets”).
| Device Type | Wire Gauge (mm²) | Max Load (A) | Breaker Rating (A) |
|---|---|---|---|
| Lighting | 1.5 | 10 | 10 |
| Standard Outlets | 2.5 | 16 | 16 |
| Kitchen Appliances | 4.0 | 25 | 20 |
Install ground fault circuit interrupters (GFCIs) for sockets within 1.5 m of sinks, bathtubs, or outdoor areas. Overhead lighting should include a neutral wire for future smart bulbs or dimmers. For rooms over 20 m², divide lighting into two circuits to avoid total darkness if one fails.
Indicate wire colors directly on the sketch: brown (live), blue (neutral), green/yellow (ground). Note junction box locations (required every 8 m of cable run or where paths split). Ensure all boxes are accessible, not buried behind drywall or under flooring.
Verify local codes before finalizing–some regions mandate arc-fault circuit interrupters (AFCIs) for bedroom circuits or specify outlet spacing (e.g., no point on a wall should be more than 1.8 m from a socket). Submit the final plan to an inspector if required, attaching a list of materials including wire lengths, conduit types, and breaker specifications.
Test all connections with a multimeter before enclosing walls. Energize circuits one at a time, checking for voltage drop (>3% indicates undersized wires) and proper grounding. Label the distribution board clearly and store the sketch in a project binder for future maintenance.
Calculating Correct Conductor Size for Receptacle and Illumination Branches
Begin with the circuit’s load demand in amperes. For 120V residential branches, standard receptacles typically draw 15A or 20A. Verify device specifications–some appliances (e.g., window AC units) may require dedicated 20A circuits regardless of outlet rating. Lighting branches rarely exceed 15A unless supporting high-wattage fixtures like track systems or exterior floodlights.
Refer to NEC Table 310.16 for copper conductor ampacity. At 60°C, 14 AWG carries 15A, 12 AWG handles 20A, and 10 AWG supports 30A. Adjust for ambient temperature: above 30°C, derate ampacity by 12–35% depending on insulation type (THHN/THWN). In attics or crawl spaces, 12 AWG often becomes the minimum due to heat buildup.
Voltage Drop Constraints
Calculate voltage drop for branch length using the formula: VD = (2 × L × I × R) / 1000, where L is one-way circuit length in feet, I is current in amperes, and R is conductor resistance per 1000 ft (from NEC Chapter 9 Table 8). For 120V circuits, target ≤3% drop (≤3.6V); 240V circuits tolerate ≤5% (≤12V). Example: A 50 ft, 20A 12 AWG branch (R=1.98 Ω/1000 ft) yields 3.96V drop–upsize to 10 AWG if continuous load.
Factor in simultaneous loads. A 15A circuit with eight 180W LED luminaires (12A total) might seem adequate, but resistive loads like heating pads or motors introduce inrush currents 2–6× steady-state. For such mixed-use branches, oversize conductors by one gauge (e.g., 12 AWG instead of 14 AWG) to prevent nuisance tripping.
Grounding and Box Fill Exceptions
Grounding conductors share the branch’s gauge but must meet NEC 250.122: 15A circuits tolerate 14 AWG copper, while 20A circuits require 12 AWG. Junction boxes impose volume restrictions–NEC Table 314.16(B) dictates fill capacity. Example: A 4″×4″×1.5″ box allows 10 wires of 12 AWG; exceeding this mandates upsizing, which may necessitate deeper conduit.
Avoid aluminum conductors for
Test proposed conductor sizes with a multimeter post-installation. Measure voltage at the farthest outlet under full load. A drop >5% indicates undersized wire–recheck lengths, connections, or upsize. Document calculations on circuit directory labels per NEC 408.4 to simplify future troubleshooting.
