Step-by-Step Guide to Designing a DC to AC Inverter Circuit

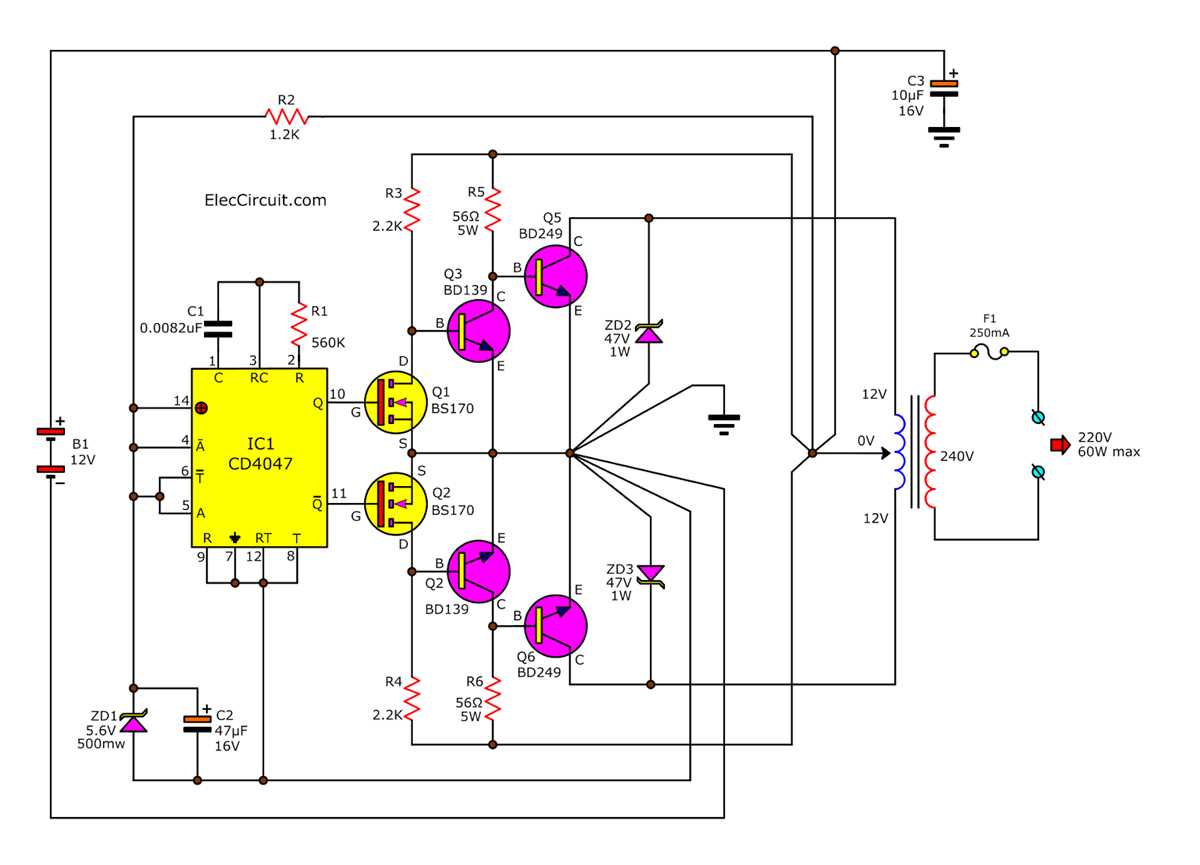

Start with a push-pull configuration for reliable switching. Use two power transistors (e.g., MOSFETs like IRF3205) driven by a 555 timer IC set to astable mode at 50–60 Hz. This generates a square wave–simple but effective for basic loads like LEDs or small motors. For sine-wave outputs, add an LC filter (a 10 mH inductor and 10 µF capacitor) to smooth edges. Keep traces thick (2 oz copper) to handle current spikes, especially if targeting 220V outputs.

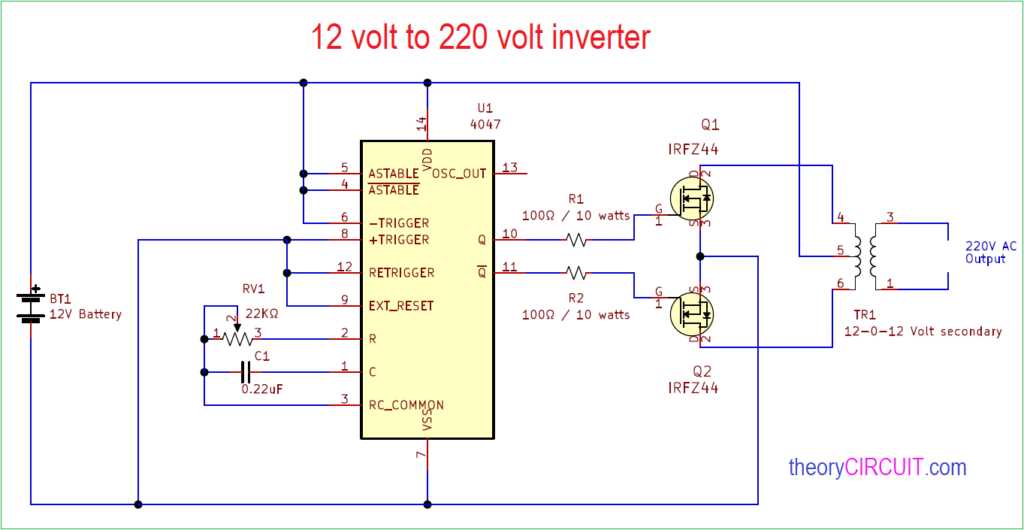

Isolation matters. Place a 1:1 isolation transformer between the switching stage and output to separate low-voltage DC input (12V battery) from high-voltage AC. Without it, grounding faults risk damage. For higher efficiency, replace the 555 timer with a dedicated PWM controller like SG3525, which supports adjustable frequency and dead-time control to prevent cross-conduction.
Bypass capacitors (100 nF) near each MOSFET reduce voltage spikes during switching transitions. Test with an oscilloscope–measure rise/fall times (target <1 µs) and check for ringing. For inductive loads (e.g., fans), add a flyback diode (1N4007) across the output to clamp voltage surges. Safety first: fuse the DC input (10A for 12V) and use a GFCI for AC outputs.
Scaling up? Swap the push-pull for a full-bridge topology with four MOSFETs (e.g., IRFP260N). Drive them with complementary signals from a gate driver IC (IR2110) to avoid shoot-through. Increase the transformer core size (ferrite EE42 for 300W+) and wind primary/secondary with 0.5 mm magnet wire. Heatsinks on MOSFETs prevent thermal throttling–calculate dissipation based on RDS(on) and load current.
Designing an Inverter Schematic for Power Transformation
Begin with a full-bridge inverter topology using four power transistors–MOSFETs or IGBTs–arranged in an H-configuration. Each pair controls polarity reversal, requiring complementary switching: when Q1/Q4 conduct, Q2/Q3 must block, and vice versa. For 220V AC output, a DC link voltage of at least 310V (220V * √2) is necessary, accounting for peak amplitude. Include gate drivers like IR2110 or UCC27423 to ensure clean, isolated control signals, preventing shoot-through failures.
Component Selection for Stable Output
Select capacitors for the DC bus based on ripple current specs; a 1000µF electrolytic per 50W load minimizes voltage sag during high-demand phases. Use polyester or polypropylene film capacitors for snubber circuits across switches to suppress transient spikes exceeding 400V. For frequency generation, a microcontroller like STM32F103 with PWM outputs simplifies sine-wave modulation, while a dedicated SPWM IC (e.g., TL494) reduces software overhead. Ensure heat sinks on transistors can dissipate at least 0.5W per ampere of continuous current.
Implement a low-pass filter on the AC output–inductors (e.g., 10mH) in series with capacitors (e.g., 0.1µF)–to attenuate switching harmonics below 1%. The cutoff frequency should sit around 5% of the switching rate; for 20kHz PWM, target ~1kHz. Add an isolation transformer if galvanic separation is required, matching turns ratio to step up/down voltage as needed. Core material (ferrite or iron powder) dictates efficiency; ferrite excels at higher frequencies but demands tighter winding precision.
Include protection mechanisms: a varistor across the output clamps overvoltage spikes, while a fuse on the DC input disconnects during current surges. For soft-start functionality, add a thermistor inrush limiter to ramp up current gradually, preventing transformer saturation. Test the assembly with an oscilloscope, verifying sine-wave purity and ensuring total harmonic distortion stays below 5%. Adjust dead-time between transistor switching (typically 1-2µs) to prevent cross-conduction, balancing efficiency against waveform distortion.
Choosing the Right Inverter Topology for Your DC to AC Power Transformation
Opt for a square wave inverter only when cost constraints outweigh performance needs. These designs, while simple, generate harsh harmonics and inefficient power delivery–suitable for resistive loads like incandescent bulbs but unsuitable for motors or sensitive electronics. Expect total harmonic distortion (THD) exceeding 40%, which degrades equipment lifespan and introduces audible noise in inductive loads. Reserve this topology for temporary or ultra-low-budget setups where waveform purity is non-critical.
Modified sine wave inverters strike a balance for mid-range applications, offering improved efficiency over square wave variants while avoiding the cost of pure sine designs. Their stepped waveform approximates a sinusoid, reducing THD to 10-20%–acceptable for laptops, power tools, and basic appliances. However, avoid deploying them with medical devices, audio equipment, or variable-speed drives, as residual harmonics can cause overheating or malfunction. Prioritize models with filtering stages if compatibility with reactive loads is required.
For precision-sensitive systems–solar grids, electric vehicle chargers, or telecom infrastructure–pure sine wave inverters are non-negotiable. Their low THD (below 3%) and clean output prevent voltage spikes and electromagnetic interference, ensuring compliance with IEEE 519 standards. Despite higher upfront costs, they reduce long-term maintenance by eliminating harmonic-related wear. Match inverter capacity to the continuous load: undersized units overheat, while oversized ones suffer from reduced efficiency due to no-load losses.
Key Topology Trade-Offs
Evaluate H-bridge configurations for single-phase output under 5 kW. Their modular design simplifies repairs but requires careful dead-time control to prevent shoot-through faults, which destroy MOSFETs or IGBTs. For three-phase systems, three-leg inverters (with a split DC bus) halve the switching devices compared to six-leg variants but introduce neutral-point voltage fluctuations. Mitigate this with active neutral-point clamping or larger DC-link capacitors (film type, not electrolytic, for longevity).
Multilevel inverters (e.g., cascaded H-bridge, flying capacitor) excel in high-voltage applications by synthesizing near-perfect waveforms with fewer harmonics and lower switching stress. However, their complexity demands robust gate drivers and isolated power supplies for each level. Use them in grid-tied systems or industrial drives where minimizing filter size is critical, but weigh against higher component count–each additional level adds failure points. For 10 kW+ installations, consider neutral-point-clamped (NPC) topologies for better voltage utilization at the cost of uneven switching losses.
Avoid resonant link inverters unless zero-voltage switching (ZVS) is mandatory for your application. While they eliminate switching losses and allow high-frequency operation (ideal for compact designs), energy stored in resonant tanks complicates transient response. Overcurrent protection must be faster than traditional PWM inverters, and custom magnetics are required, increasing costs. These are niche solutions, justified only in aerospace or high-speed motor drives where thermal management is a limiting factor.
Component Selection and Failure Risks
Prioritize silicon carbide (SiC) MOSFETs over IGBTs for frequencies above 20 kHz, as they halve switching losses and enable smaller heatsinks. Yet SiC’s fast transients demand PCB layouts with controlled impedance (90 Ω differential trace pairs) and gate resistors (

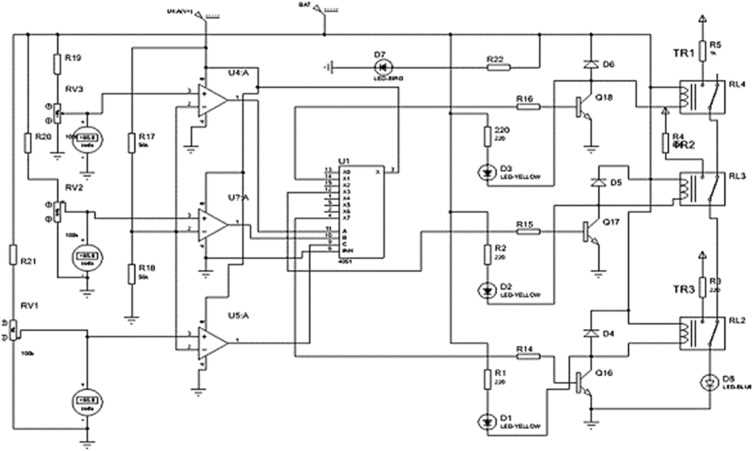

Overlook relay-based bypass mechanisms in uninterruptible power supplies; solid-state relays (SSRs) handle surge currents better but introduce 2-3% forward voltage drop, wasting energy. For thermal design, assume 70% inverter efficiency at full load–use aluminum extrusions with a fin density of 30 fins/inch for passive cooling, or forced-air fans rated for 50,000 hours MTBF. Always oversize wiring by 20% to account for skin effect at high frequencies, and isolate analog control signals from power traces to prevent false triggering.
Step-by-Step Wiring Guide for a Basic H-Bridge Configuration
Begin by arranging four power transistors–two NPN and two PNP types–on a breadboard or prototyping board. Pair each NPN unit with a PNP directly opposite, forming two symmetrical branches. Ensure the collector of each NPN connects to the emitter of its corresponding PNP, establishing the core switching nodes. Apply a 5V logic-level signal to the base of each NPN; this dictates the conduction path for bidirectional current flow.
Secure the load–such as a small DC motor–between the central junctions of the two branches. Verify polarity matches the transistor pairs: one branch drives forward rotation, the other reverses it. Insert flyback diodes across each transistor to suppress voltage spikes when the load switches off. Use 1N4007 diodes for this purpose, positioning the cathode toward the positive supply line.
Connect the positive supply rail to the free emitter of the upper PNP pairs and the negative rail to the free collector of the lower NPN pairs. Limit the input voltage to avoid exceeding transistor ratings–typical configurations support 6–12V. Employ a current-limiting resistor (470Ω–1kΩ) in series with each base lead to protect from excessive current. Test the setup with a 1Hz signal generator before applying continuous control.
Implement a microcontroller or dual-toggle switch to alternate activation between the two branches. Triggering one branch disengages the other to prevent shoot-through, which risks shorting the supply. Monitor waveforms with an oscilloscope if available; expect square pulses at the load terminals reflecting the input control pattern. Adjust resistor values if signal distortion appears, ensuring clean switching transitions.
