Step-by-Step Guide to Drawing Arduino Circuit Diagrams for Projects
Begin by listing all components required for your prototype: resistors, LEDs, sensors, switches, and power sources. Each element must have a defined role–verify pin assignments on the datasheet before placement. A 220Ω resistor prevents LED burnout; 10kΩ pull-ups stabilize sensor inputs. Use a 5V or 3.3V supply based on board specifications–never exceed voltage ratings.
Select a schematic editor tailored for embedded projects: KiCad, Fritzing, or Eagle. KiCad offers open-source flexibility with no paywall restrictions; Fritzing streamlines beginner workflows. Avoid generic diagram tools–they lack essential libraries for microcontroller compatibility. Download official component footprints from manufacturer websites to ensure accuracy.

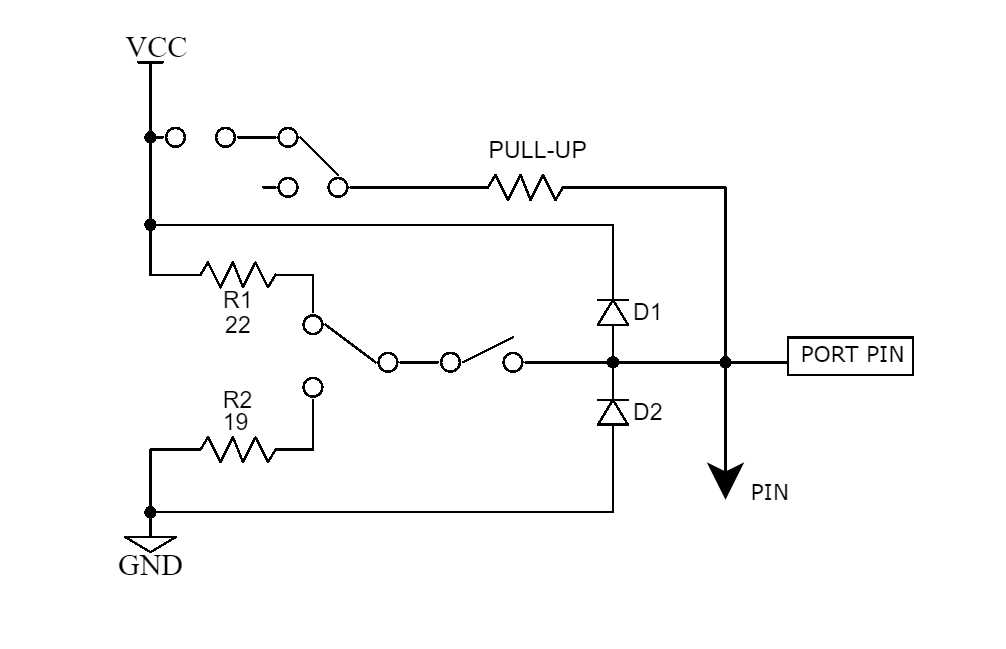

Connect pins logically: digital outputs to actuators, analog to sensors, and power rails to correct voltage levels. Label every wire with descriptive names–D7 for a digital pin, A2 for analog–to avoid confusion during testing. Ground all unused inputs to prevent floating states. Double-check connections against the board’s pinout reference; mismatches cause permanent damage.
Integrate power regulation early: a 7805 voltage regulator delivers stable 5V from a 9V battery. Add decoupling capacitors (100nF) near each IC to filter noise. For complex projects, segregate the schematic into blocks–power, processing, and peripherals–using net labels for clarity. Export the final design as a PDF or PNG for documentation; PNG files lose detail when scaled.
Before prototyping, simulate the schematic using LTspice or Tinkercad Circuits. Tinkercad’s real-time virtual breadboard validates behavior without hardware risk. If simulation fails, re-examine connections–swap components rather than assuming software errors. Once verified, transfer the design to a breadboard first, then PCB, to isolate issues step-by-step.
Constructing Schematic Layouts for Microcontroller Prototypes
Choose Fritzing or KiCad for drafting–Fritzing suits beginners with its drag-and-drop interface for breadboard visuals, while KiCad offers precision for PCB-level designs with component libraries exceeding 10,000 symbols. Label every pin connection explicitly: use “SCL” for I2C, “TX/RX” for serial, and avoid generic terms like “signal” or “data.” Place GND symbols at the bottom of the layout to mirror real-world PCB conventions, reducing routing errors during assembly.
Select components based on current draw–Arduino Uno tolerates 40mA per pin, 200mA total–exceeding this risks board damage. For resistors, calculate values via Ohm’s law: a 220Ω resists an LED’s 20mA with a 5V supply. Capacitors stabilize power rails: 10µF electrolytic near voltage regulators, 0.1µF ceramic adjacent to ICs. Use polarized components (electrolytic caps, diodes) with clear orientation markers to prevent reverse polarity failures.
Validating and Documenting the Design
Simulate the schematic in Tinkercad or Proteus before physical assembly–verifying logic with virtual LEDs or serial monitors catches 80% of wiring misconfigurations. Document power requirements, signal paths, and component values directly on the diagram using text labels, not separate notes. Export in SVG or PDF for scalability, avoiding raster formats that pixelate at high zoom levels.
Selecting the Right Components for Your Microcontroller Build
Begin with the microcontroller board itself–opt for an ATmega328P-based variant if low power consumption and sufficient GPIO pins are priorities. Boards like the Arduino Nano offer 22 digital I/O pins, 8 analog inputs, and a compact footprint, making them ideal for sensor networks or embedded systems. For projects requiring Wi-Fi or Bluetooth, ESP8266 or ESP32 modules provide built-in wireless capabilities without sacrificing processing power, though they demand careful power management.
Passive components like resistors and capacitors must match both the voltage rating and tolerance of your power supply. A 5V system, common in most setups, tolerates 1% metal film resistors well, while ceramic capacitors in the 0.1µF to 10µF range stabilize voltage fluctuations near the microcontroller’s power pins. Always verify the voltage derating curve for capacitors–electrolytic types fail prematurely under continuous voltage stress, even if within nominal limits. Below is a selection guide for key components:
| Component | Recommended Specifications | Use Case |
|---|---|---|
| Resistor (1/4W) | 1% tolerance, ±100 ppm/°C | Current limiting, pull-ups, voltage dividers |
| Ceramic Capacitor | X7R or X5R dielectric, 10V+ rating | Power rail decoupling, noise filtering |
| Polymer Tantalum Capacitor | 6.3V–16V, 10–470µF, ESR < 100mΩ | High-current transient smoothing |
| Schottky Diode | 1N5817–1N5822, 1A–3A, 20V–40V reverse voltage | Reverse polarity protection, flyback suppression |
| Logic Level MOSFET | IRLZ44N, VGS(th) < 2V, RDS(on) < 25mΩ | Low-side switching for motors, LEDs |
Sensor selection should prioritize compatibility with the microcontroller’s voltage levels. I2C sensors like the BME280 (temperature, humidity, pressure) require pull-up resistors on SDA/SCL lines–typically 4.7kΩ to 10kΩ–while SPI devices like the MPU6050 (accelerometer/gyroscope) demand attention to trace lengths to prevent signal degradation. For analog sensors, ensure the ADC resolution (10-bit on most boards) aligns with the signal range to avoid loss of precision.
Power delivery dictates long-term reliability. Linear regulators (e.g., AMS1117) suit low-noise applications but waste excess voltage as heat, requiring heatsinks above 500mA loads. Switching regulators (e.g., LM2596) achieve 80–90% efficiency at higher currents, though they introduce switching noise that may interfere with sensitive analog measurements. Always include input and output capacitors sized for the regulator’s transient response specifications.
Connectivity choices depend on range and power constraints. Wired interfaces like UART or RS-485 excel in industrial settings due to noise immunity, while wireless options split into short-range (NRF24L01+, ~100m range, 250kbps) and long-range (LoRa, ~10km, 0.3–50kbps). The NRF24L01+ draws ~12mA during transmission, making it suitable for battery-powered nodes, whereas LoRa’s sub-mA sleep current extends deployments but demands careful antenna design.
Mechanical components should align with the project’s lifecycle. Tactile switches with 50,000+ cycle ratings resist contact bounce better than cheaper alternatives, while potentiometers with cermet elements outlast carbon types in high-vibration environments. For motorized builds, choose brushed DC motors with stall currents under 2A for direct microcontroller drive, or opt for brushedless varieties with an ESC if efficiency outweighs complexity.
Creating a Basic Electrical Layout: A Practical Walkthrough
Select schematic software optimized for microcontroller projects. Fritzing, KiCad, or Tinkercad Circuits offer pre-loaded component libraries matching Arduino-compatible parts. Verify that libraries include:
- Atmega328P microcontroller footprint
- Header connectors (male/female)
- Basic passive elements (resistors, capacitors, LEDs)
- Voltage regulators (LM7805, AMS1117)
- Transistors (2N2222, BC547)
Interface these tools with single-click net labeling to reduce errors during layout-to-PCB conversion.
Start placement by positioning the processing unit in the center of the workspace. Align power rails vertically, ground horizontally for clarity. Connect regulated 5V output from the voltage converter to the VCC pin immediately, followed by decoupling caps (0.1µF ceramic) between VCC/GND. Route critical signals–reset, crystal (16MHz), serial pins (RX/TX)–before peripheral connections. Use orthogonal paths only, avoiding diagonal traces unless unavoidable. Label every net with concise identifiers (e.g., “PWM_OUT_3” instead of “OUT3”).
Layer stacking prevents overlap errors:
- Power distribution layer (top)
- Signal routing layer (middle)
- Ground plane (bottom)
For breadboard-compatible designs, export the layout in SVG or PNG with grid visibility enabled (1mm grid for Atmega boards). Validate electrical rules–short circuits, unconnected pins–using built-in DRC checks before finalizing the file. Save project templates with predefined grid spacing and component spacing (minimum 0.2mm clearance) to accelerate future designs.
Export formats should align with downstream tasks:
- Fritzing → .fzz for breadboard visualization
- KiCad → .kicad_sch for PCB fabrication
- SVG → For documentation or laser cutting (paths expanded 0.1mm)
Annotate every symbol with MPN (Manufacturer Part Number) or datasheet references. Embed component values into graphical elements–e.g., “10kΩ” directly above resistor symbol–rather than relying on separate BOM files for quick verification.
Visual Prototyping Tools: Fritzing vs Tinkercad for Electronic Schematics

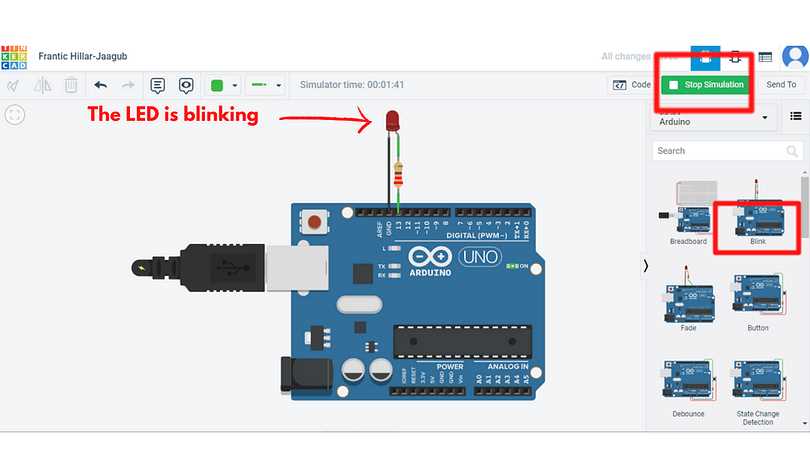

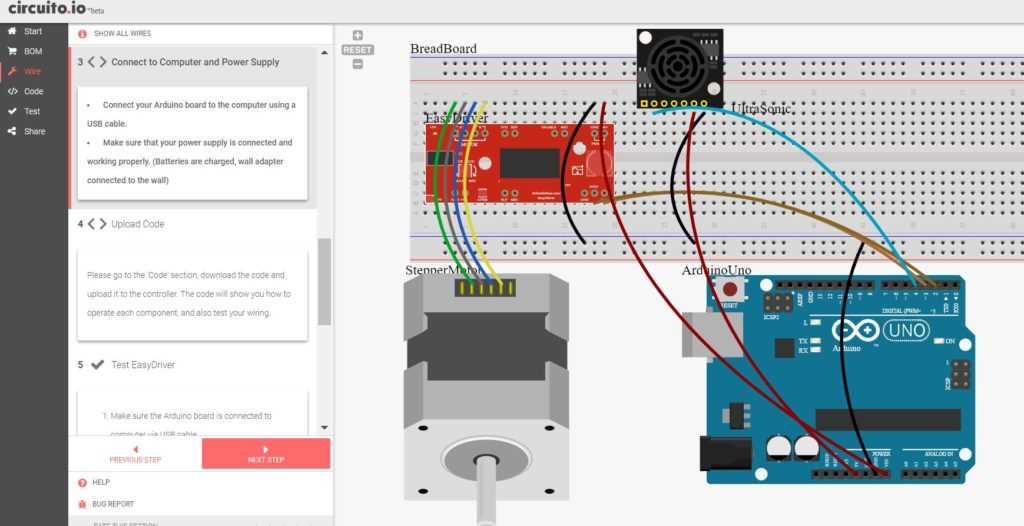

Begin with Tinkercad Circuits if your priority is rapid iteration and browser-based convenience. Its drag-and-drop interface requires no installation, exports PNG/SVG files instantly, and includes an integrated simulator that verifies connections before physical assembly. Use the component search (press Ctrl+F) to locate resistors, ICs, or custom modules like HC-SR04 sensors without manual scrolling.

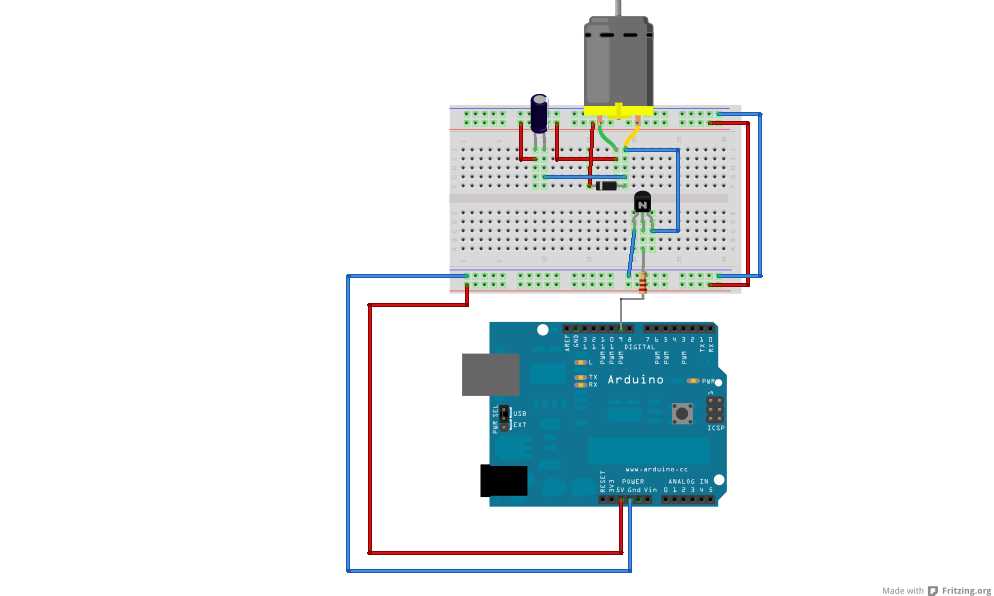

Fritzing excels when documenting projects for tutorials or PCB fabrication. Three key advantages:

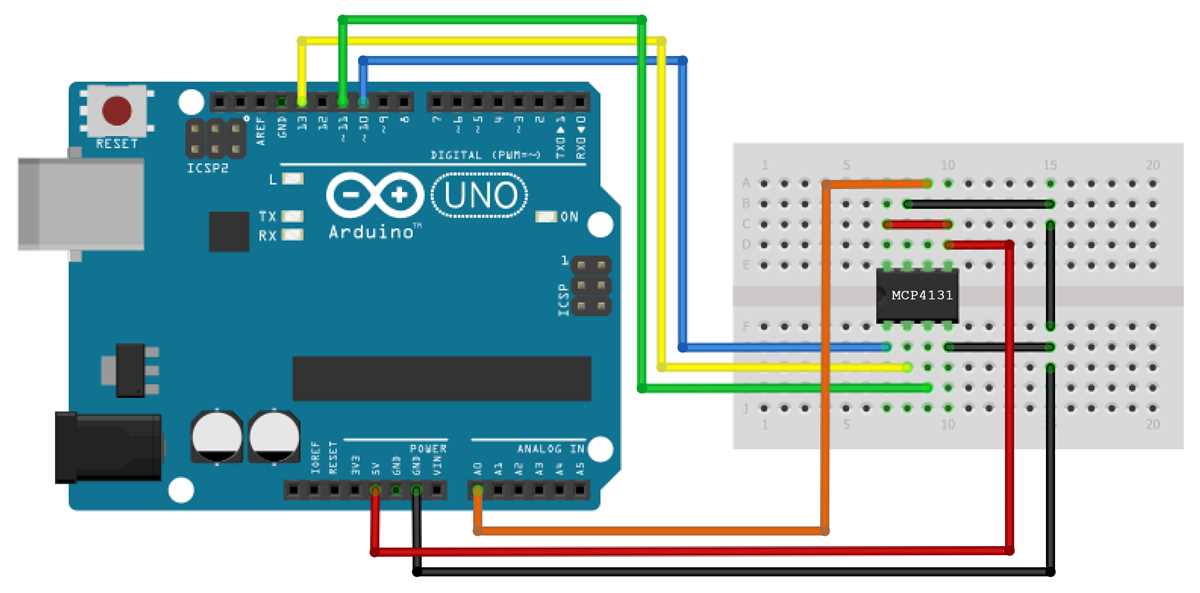

- Breadboard View: Snap components into place as they appear on physical boards–ideal for replicating real-world layouts.
- Schematic Editor: Generate clean, standardized diagrams compatible with KiCad or Eagle after minor cleanup.
- PCB Design: Export Gerber files directly to services like JLCPCB with automated trace routing.
For Tinkercad’s limits, note the library constraints: only common elements like Arduino Uno, LEDs, and potentiometers are available. Missing parts (e.g., ESP32 or custom breakouts) force users to import SVGs, which disrupts workflows. Fritzing’s broader library includes Arduino Nano/Mega variants, motor drivers (L298N), and even Raspberry Pi, but requires manual part addition for newer modules.
Optimize Fritzing by enabling Grid Snap (View > Grid) at 0.1-inch intervals to align headers with breadboard holes. Assign custom colors to wires via the Inspector panel–red for power rails, blue for ground–to match standard engineering conventions. Tinkercad lacks this feature, but compensates with real-time voltage/current annotations during simulation.
Collaboration demands differ sharply. Tinkercad permits shared links and embedding simulations in websites (Share > Embed), while Fritzing saves locally (.fzz files) or exports SVGs requiring external hosting. For version control, Fritzing’s files integrate with Git; Tinkercad relies on auto-saved cloud snapshots.
Simulation gaps in Fritzing make it unsuitable for debugging. Tinkercad’s live circuit tester handles basic logic (AND/OR gates, serial communication) but fails with analog sensors like PIR motion detectors–verify readings manually. For intermediate projects, combine both: draft in Tinkercad, then refine schematics in Fritzing for final documentation.
Installation notes: Fritzing runs as a standalone app (Mac/Windows/Linux) with separate downloads for part libraries (e.g., fritzing-parts repository). Tinkercad operates entirely online, with offline access limited to Chrome’s Save Page As (no functionality preserved). Both tools export to PDF for physical printouts–Fritzing includes page templates for A4/Letter sizes.
