Step-by-Step Guide to Creating Schematic Diagrams for Research Papers

Begin by selecting a tool that supports vector-based outputs–options like TikZ (LaTeX), Inkscape, or Draw.io ensure scalability without pixelation. Avoid rasterized software if clarity at higher magnifications is non-negotiable. Define the core elements of your illustration first: label each component with precision, using consistent typography (e.g., 8–10 pt sans-serif for clarity). Group related parts into modular sections to simplify adjustments later.

Adhere to disciplinary conventions. Electrical engineering? Use IEEE symbols. Biological pathways? Follow SBGN notation. For abstract models, prioritize hierarchical layout–start with the primary process at the center, branching outward to secondary details. Limit colors to a palette of 3–4 shades (e.g., grayscale with one accent hue) to avoid visual noise. Test legibility by printing at 50% size; if labels blur, revise.

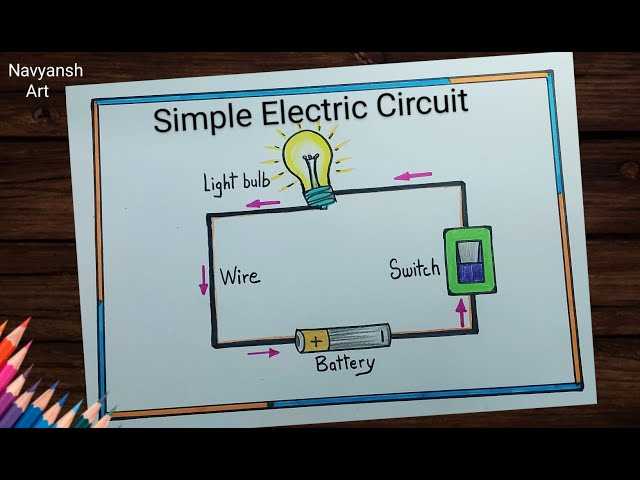

Structure the flow logically: left-to-right or top-to-bottom sequences work best for causal relationships. For cyclic processes, arrange components in a closed loop with arrows indicating direction. Include a legend only if symbols deviate from standard norms–explain abbreviations once, either in the caption or directly beside the element. Export as PDF/EPS for LaTeX submissions; SVG retains editability for future revisions.

Optimize file size by removing hidden layers or redundant vectors before finalizing. Embed font subsets if using non-standard typefaces to prevent rendering errors. Cite the source of borrowed templates (e.g., “Adapted from Smith et al., 2022”) or mark original designs as “This figure was created by the authors” to clarify ownership. Validate the illustration by asking a peer unfamiliar with the topic to interpret it–ambiguities revealed here require refinement.

Constructing Concise Visual Representations in Academic Works

Begin by defining the core relationships your illustration must convey–limit components to three primary levels of hierarchy to prevent clutter. Use standardized symbols: rectangles for processes, arrows for directional flows (solid for direct, dashed for conditional), and ovals exclusively for start/end nodes. Label each element with concise, unambiguous terminology (maximum 3 words per label) aligned horizontally above or to the right to improve readability. Maintain consistent spacing: 0.8x line height between related blocks, 1.2x between distinct sections. Prioritize left-to-right or top-down flow unless cultural or disciplinary conventions dictate otherwise (e.g., right-to-left for Arabic script contexts).

• Select tools offering vector-based export (SVG/PDF) to ensure scalability without resolution loss–avoid raster formats unless embedding as supplementary material.
• Apply a monochromatic palette for primary submissions (black/grayscale) with optional single-color accents for electronic versions, using color contrast ratios ≥4.5:1 for accessibility compliance.
• Number all figures sequentially in the caption (e.g., Fig. 2), cross-referencing in-text with precise page citations during initial drafts to avoid post-submission displacement.
• Include a legend only if symbols deviate from ISO/IEC 10646 standards or field-specific norms (e.g., electrical engineering vs. biomolecular pathways).
• Validate clarity by removing the illustration from context–if a colleague unfamiliar with the subject cannot interpret ≥70% of its logic within 15 seconds, revise mercilessly.

Selecting Optimal Software for Illustrating Conceptual Figures in Scholarly Publications

Prioritize vector-based editors like Inkscape for academic illustrations–its open-source licensing eliminates cost barriers while providing precision tools for scaling, alignment, and export formats crucial for publication-quality output. The software handles complex node structures, which proves invaluable when depicting interconnected processes or hierarchical frameworks common in theoretical models. Configure grid snapping early (View → Grid) to maintain consistency in spacing and alignment across elements.

Adobe Illustrator remains the industry benchmark despite its subscription model, offering seamless integration with LaTeX workflows through the `pdf_tex` export option. This feature separates labels from illustrations, enabling direct LaTeX typesetting of mathematical notation within figures. For users generating multiple versions of the same figure (e.g., color vs. grayscale for print), Illustrator’s layers and artboards streamline modifications without redrawing. Explore third-party scripts like “IllustratorToLaTeX” to automate export processes further.

For those requiring diagrammatic representations of algorithms or workflows, Graphviz presents a text-based alternative that compiles dot language into visual outputs. This approach excels in reproducibility–figure definitions can be version-controlled alongside manuscript text. The tool’s directed graph layout algorithms automatically resolve node positioning, eliminating manual adjustments for even large-scale diagrams. Compile examples via:

dot -Tpdf input.dot -o output.pdf

while specifying rankdir=LR for left-to-right flow orientation.

Comparison of Feature Sets Across Primary Tools

Attribute	Inkscape	Illustrator	Graphviz	TikZ
Math notation integration	via extensions	native (pdf_tex)	external	direct
Automatic layout	manual	manual	algorithm-driven	manual/programmatic
Version control friendly	SVG files	AI files	dot scripts	TeX files
Learning curve	moderate	steep	low (syntax)	high (LaTeX)
Output formats	SVG/PDF/PNG	PDF/EPS/AI	PDF/SVG/PNG	PDF only

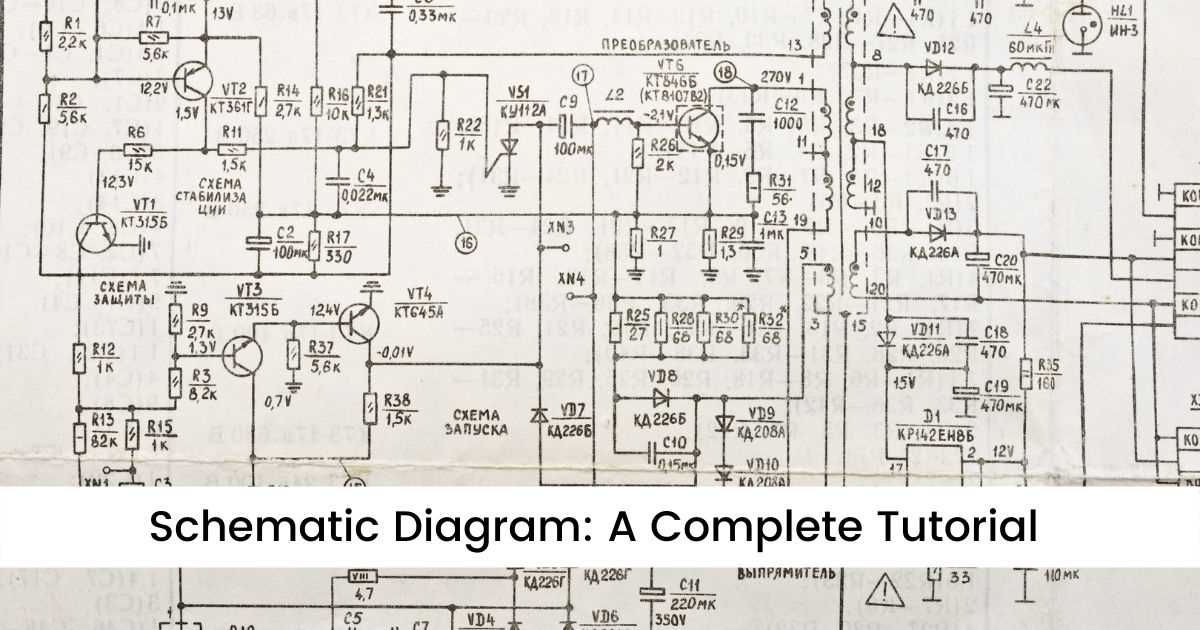

TikZ emerges as the preferred solution for academics already immersed in LaTeX ecosystems. The package’s native integration with TeX engines ensures consistent font rendering across documents and figures, while its programmatic approach facilitates parameterization–ideal for iterating between figure variations. For electrical circuit representations, TikZ’s `circuitikz` library provides ready-made symbols adhering to IEEE standards. Embed figures directly within manuscripts using:

 ckage{tikz}
begin{figure}
begin{tikzpicture}
% TikZ commands here
end{tikzpicture}
caption{}
end{figure}

OmniGraffle’s strength lies in templated diagramming, particularly useful when adhering to publisher-specific layout requirements. Create reusable stencil sets for domain-specific symbols (e.g., molecular biology pathways) and apply consistent styling via shared layers. The software exports to PDF while preserving editable text layers, allowing last-minute label edits without re-exporting. Note the macOS-only limitation and consider its cost against Inkscape’s free alternative.

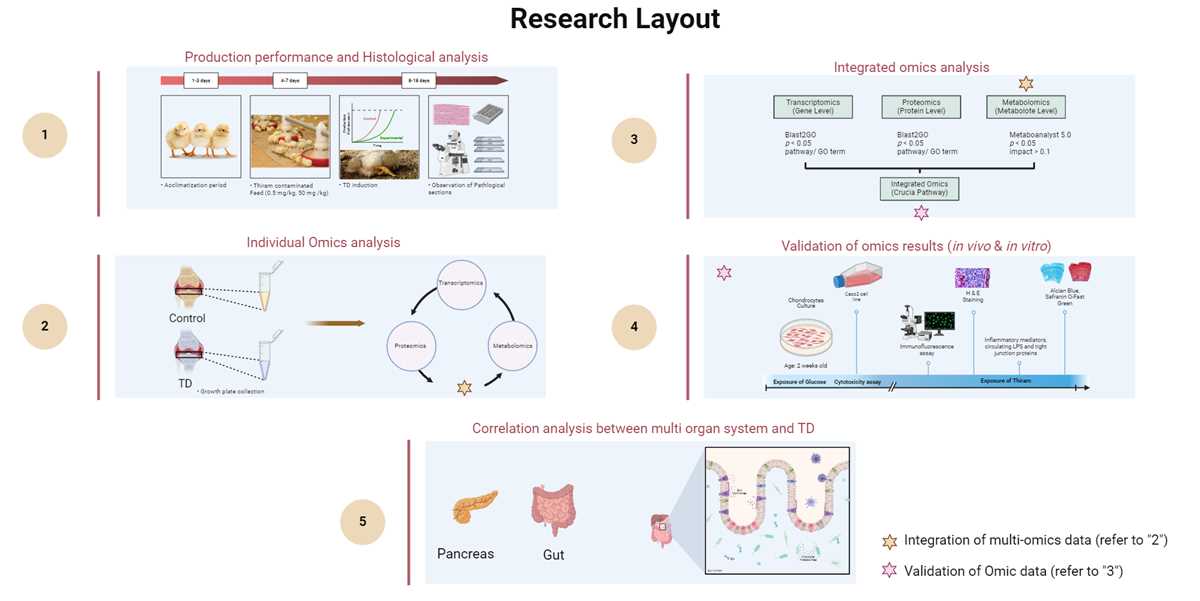

BioRender offers specialized asset libraries for scientific visuals, particularly in biological and medical domains. The web-based platform includes pre-approved symbols for cellular processes, experimental setups, and statistical graphics, with built-in compliance checks for journal submission requirements. While not suitable for highly customized figures, BioRender accelerates initial drafts through drag-and-drop functionality. Export restrictions apply to free-tier accounts, necessitating timely upgrades for publication use.

For systems engineering representations, PlantUML generates architectural diagrams from text descriptions via:

@startuml
component A
component B
A --> B
@enduml

The human-readable syntax integrates easily into Markdown-based documentation systems and enables rapid iteration of complex component relationships without visual rearrangements. Configuration files can deterministic output formats regardless of local software versions, ensuring consistency across research teams.

When selecting software, prioritize the following:

1. Output format compatibility with target journals (PDF/EPS first)
2. Version control integration for collaborative workflows
3. Mathematical typesetting capabilities via LaTeX or native tools
4. Domain-specific symbol libraries matching research focus

Evaluate each option through pilot figure creation before committing to manuscript-wide adoption–some tools excel at flowcharts but falter with quantum mechanics notation or anatomical illustrions.

Optimizing Visual Layouts for Scientific Communication

Group elements by hierarchical relevance: primary processes or variables occupy the top tier, flanked by secondary and tertiary details in descending order. Label each segment with concise, jargon-free terminology–prefer “input stream” over “initial phase data influx”–and align text horizontally to prevent misreading. Use uniform spacing (3–5 mm between nodes) to distinguish connections without visual clutter, and apply consistent line weights (0.5 pt for major flows, 0.25 pt for auxiliary links). Color-code functional zones (e.g., blue for data sources, green for transformation steps) but limit the palette to 4 hues maximum to avoid cognitive overload. Incorporate directional arrows only where the sequence is non-intuitive, replacing them with proximity for self-explanatory progressions.

Integrate a legend within the figure boundaries–never as a separate box–positioned in underutilized whitespace (e.g., lower right). Annotate directly above or below each node with brief explanatory text (≤ 12 words) if the component’s role isn’t universally understood. For multi-stage systems, subdivide the layout into modular quadrants, each representing a discrete phase, and use dotted borders to indicate optional or conditional paths. Validate clarity by testing with an unfamiliar audience: if more than 15% request clarifications, revise spacing or reallocate details to an appendix.
