Beginner’s Guide to Understanding Circuit Diagrams Step by Step

Start by identifying power sources–batteries, voltage rails, or ground symbols–at the edges of the layout. These define the flow’s origin and endpoint. Trace connections from these points inward, noting how lines intersect or split. Straight lines represent direct conduction; junctions marked with dots confirm electrical continuity, while gaps signal no connection.

Components are standardized: a zigzag denotes resistors, two overlapping curves symbolize capacitors, and a diode’s arrow shows current direction. Integrated circuits (ICs) appear as rectangles with labeled pins–pin 1 is usually marked with a dot, indentation, or notch. Cross-reference pinouts with datasheets early to avoid misalignment.

Switches toggle paths open or closed. A mechanical switch’s position isn’t fixed on paper–assume it’s drawn in the default state (on/off). Relays display coils and contacts separately; follow coil activation to determine which contacts engage. Transistors combine three lines–collector, base, emitter–with arrows indicating NPN or PNP types.

Color-coding or thick lines often highlight high-power routes. Thin lines typically carry signals or control currents. Dashed outlines may denote components on the board’s reverse side. If a layout spans multiple sheets, connectors labeled “JP1” or “CON_A” link corresponding labels across pages.

Measure voltage at key nodes. A meter’s probes on highlighted test points verify expected drops. If values deviate, retrace each leg–check resistors’ bands, capacitors’ polarity, diodes’ orientation. Breadboard prototypes mirror schematics directly; stripboard traces require jumpers where lines cross.

Symbols vary slightly by standard–ANSI favors simple block graphics, IEC adds subtle notches. Consistency matters within a single document: if a document uses IEC’s open-collector notation, apply the same convention throughout. Keep a reference sheet of regional variations.

Mastering Schematic Blueprints: A Practical Guide

Begin by identifying the power source symbols–typically a battery or DC/AC supply icon. Note the polarity marks (+ and -) to avoid reverse connections that can damage components. Most schematics place the power source on the left or top edge, acting as the entry point for voltage flow. If multiple voltages exist, trace each path independently to prevent confusion between, for example, 5V logic and 12V motor supplies.

Locate ground references–depicted as a downward-pointing triangle or horizontal line branches. All grounds in a single schematic form a common reference point, so verify they connect directly or through chassis if not explicitly drawn. In complex designs, separate analog and digital grounds to minimize noise interference; failure to isolate them can introduce erratic behavior in sensors or microcontrollers.

Recognize passive elements: resistors appear as zigzag lines, capacitors as parallel lines (one curved for electrolytic types), and inductors as coiled loops. Active components include transistors (three-terminal symbols with arrow directions indicating current flow) and ICs represented as rectangles with pin labels. Cross-reference each symbol with the legend if unfamiliar–many projects annotate components like R1, C3, or Q2 for clarity.

Label critical nodes with voltage expectations or signal names written adjacent to wires. For instance, a line marked “SDA” suggests I2C data communication, while “+3.3V” flags a regulated supply rail. Tracing these labels backward to their origin confirms circuit logic before prototyping. Ferrules or net ties highlight intentional short circuits, distinguishing them from accidental missing connections.

Scan for off-page connectors–small numbered circles or triangles linking separated sections. Match identical numbers across sheets to reconstruct the entire signal chain without overlooking intermediary stages like filters or protection diodes. Schematics split into functional blocks (power, control, output) simplify troubleshooting; focus on one segment at a time, verifying each part operates within tolerance before integration.

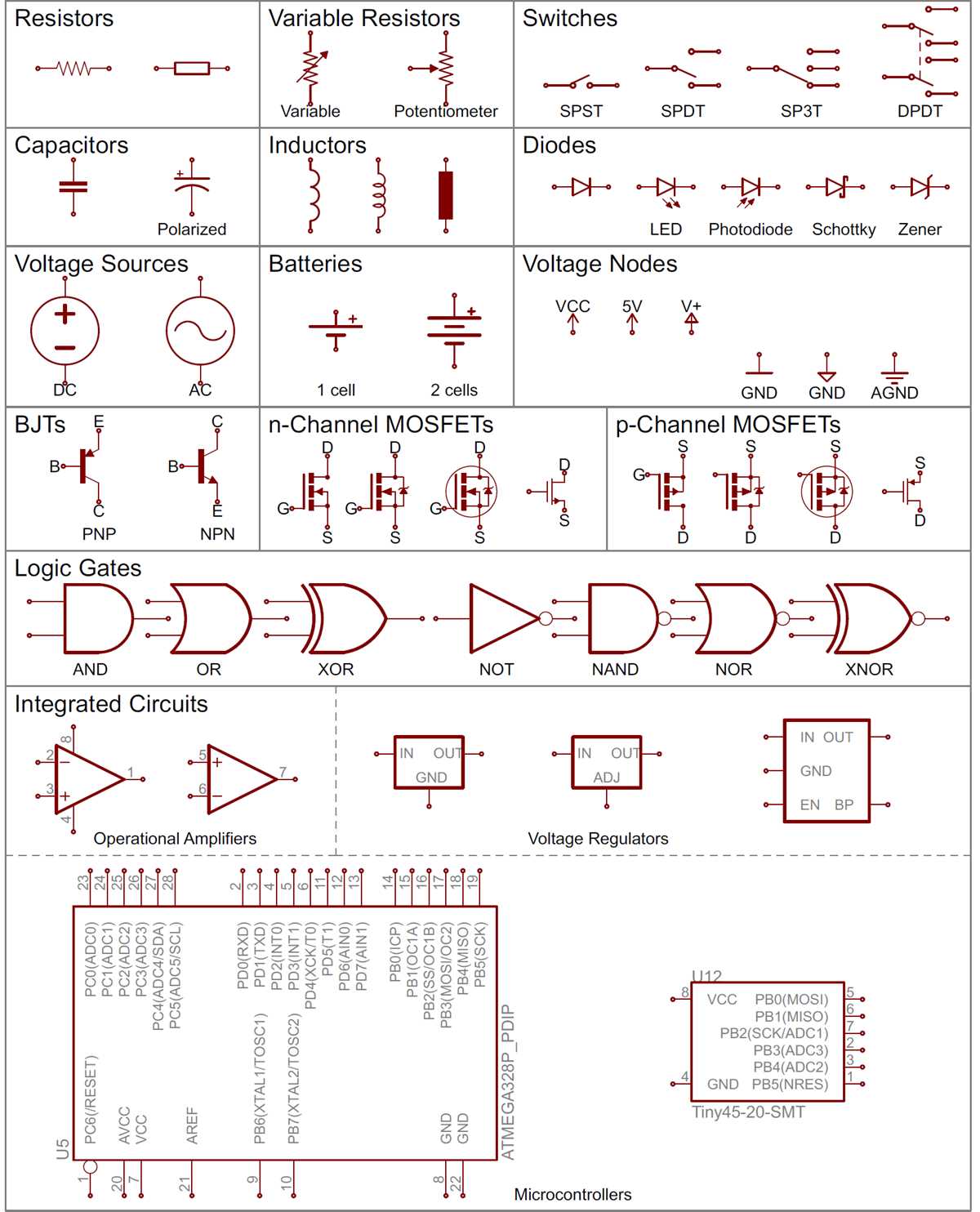

Key Electronic Symbols in Schematic Blueprints

Memorize these core symbols immediately–they form the foundation of any technical design:

• Resistors: Depicted as a zigzag line (ANSI) or rectangle (IEC). Label with R and resistance value (e.g., R1 10k). Wirewound resistors add a diagonal line.
• Capacitors: Parallel lines for non-polarized; curved line (negative) + straight line (ANSI) or + symbol (IEC) for electrolytic. Mark with C and capacitance (e.g., C2 47µF).
• Inductors: Coiled line (simple) or series of loops (air-core). High-frequency variants show ferrite or iron core as dashed or solid vertical lines. Prefix L (e.g., L1 100µH).
• Diodes: Triangle (anode) pointing to a line (cathode). LED symbols add two small arrows. Zener diodes append a Z shape inside. Label with D (e.g., D3 1N4007).

Active Components

Transistors and ICs demand precise symbol recognition:

• BJTs: Vertical line (collector) connected to a central bar (base), angled line (emitter). NPN adds outward arrow; PNP inward. Prefix Q (e.g., Q1 BC547).
• MOSFETs: Three terminals (gate, drain, source) with a separated channel. Depletion/enhancement modes use solid/dashed lines. Label T or M (e.g., M2 IRFZ44N).
• Operational Amplifiers: Inverted triangle with + (non-inverting) and - (inverting) inputs. Power pins often omitted. Prefix U (e.g., U1 LM358).
• Logic Gates: Distinct shapes–AND (flat oval), OR (curved front), NOT (triangle with circle). Combine for NAND/NOR. Suffix G (e.g., G4 74HC00).

Connectors and discrete elements follow geometric patterns:

• Switches: Mechanical SPST (single line break), SPDT (switchable paths). Solid-state variants replace the break with a T symbol. Rotary switches show radial connections.
• Power Sources: Battery symbol (uneven parallel lines) or circle with +/-. AC sources add sine wave (~). Label VCC, GND, or voltage (e.g., V1 5V).
• Fuses: Rectangle with line through center. Current rating noted alongside (F1 1A). PTC resettable fuses show PTC annotation.
• Crystals: Two parallel lines with caps (resonators add R inside). Label frequency (e.g., Y1 16MHz). MEMS oscillators use a dotted rectangle.

Master these variations to decode 90% of boards:

• Polarized components (e.g., electrolytic caps, diodes) always orient symbols with marked terminals (striped line, + symbol).
• Surface-mount devices shrink symbols proportionally but retain unique traits (e.g., SMD resistors/diodes merge into rectangles with beveled edges).
• Military/aerospace schematics use discontinued symbols–check MIL-STD 15-1 for alternatives like MIL-C-39003 capacitors.
• Manufacturer-specific ICs often substitute generic op-amp/timer symbols (e.g., NE555 uses a custom block). Refer to datasheets.

Step-by-Step Current Tracing in Schematics

Locate the power source–battery, supply rails, or generator–and mark its positive and negative terminals clearly. Current departs from the positive terminal, so follow the conductor leading away from it with a highlighter or pencil. Identify every junction where the path splits; label each branch sequentially to avoid confusion. Voltage drops across resistive elements, so anticipate the direction shift after each load.

Each component–resistor, LED, capacitor, motor–alters charge movement. Note values: resistors restrict flow proportional to their resistance; diodes permit it in only one direction. Use Ohm’s Law (V = IR) to calculate expected behavior when values are known. For complex paths, isolate sections: disable adjacent branches temporarily by mentally removing or bypassing them to focus on the segment in question.

Switches introduce deliberate interruption or redirection. Trace through their poles and throws, distinguishing normally open from normally closed states. Transistors behave as dynamic gates; base current initiates collector-emitter conduction. Relays extend this principle mechanically–coil excitation flips internal contacts altering primary paths.

Ground symbols indicate return paths to the negative terminal. In single-supply arrangements, current completes the loop here; in dual supplies, it splits between positive and negative rails. Avoid treating ground as a universal sink–each connection forms distinct loops. Verify continuity by checking that every path eventually leads back to the source without gaps.

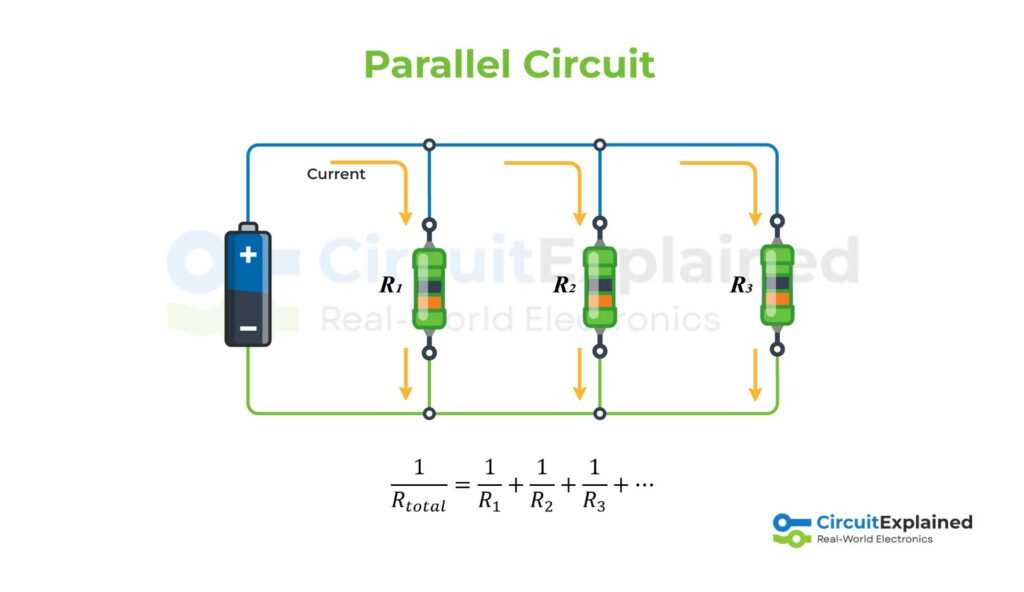

Parallel branches distribute current inversely to their resistance. Sum the inverse resistances (1/R_total = 1/R1 + 1/R2) to determine combined impedance, then apply Kirchhoff’s Current Law at junctions–the algebraic sum of inflowing and outflowing charge equals zero. Measure with a multimeter to confirm predicted splits if uncertainty persists.

Document each step with annotations directly on the drawing. Note voltage readings at entry and exit points of components, observed polarity, and current magnitude where possible. Cross-reference against expected behaviors; discrepancies often reveal faulty assumptions or diagram errors. Repeat tracing for alternate paths activated under different conditions–power modes, switch toggles, or external stimuli–to map the entire operational envelope.

Locating Ground and Power Connections in Schematics

Identify ground symbols first–typically a vertical line with three descending horizontal lines, the bottom one longest. In complex layouts, grounds cluster near the bottom edge or connect to thick horizontal bars. Look for labels like “GND,” “0V,” or “VSS” in lowercase or uppercase variants. If absent, trace components like capacitors or voltage regulators backward; their reference pins often link to ground.

Power lines appear as plus symbols (+), arrows pointing upward, or labels such as “VCC,” “VDD,” “V+,” or “+5V.” High-current paths use thicker lines or multiple parallel traces. Check integrated circuits (ICs)–their power pins (e.g., pin 8 on a 555 timer or pin 14 on a 74LS00) require direct or decoupled connections. Below is a quick reference for common IC power pins:

IC Type	Power Pin	Ground Pin
555 Timer	8 (VCC)	1 (GND)
74LS00 (Quad NAND)	14 (VCC)	7 (GND)
LM317 (Regulator)	Input (IN)	Adjust (ADJ)
ATmega328P	7 (VCC), 20 (AVCC)	8 (GND), 22 (AGND)

Batteries and power supplies mark connections with clear polarity–positive (+) and negative (-) terminals. For DC jacks, the inner pin is often positive; verify with a multimeter if unclear. Switch-mode power supplies (SMPS) use distinct symbols: a zigzag line for inductors paired with FETs or diodes, where the input side links to mains and the output feeds the load.

Decoupling capacitors sit adjacent to IC power pins, usually 0.1µF or 10µF. Their purpose is noise filtering, so their placement confirms nearby power nodes. In microcontroller schematics, look for “VUSB” or “VBAT”–these denote separate power domains. Ground planes may appear as hatched areas or wide grey bands; they reduce interference and simplify routing.

If symbols are ambiguous, consult datasheets–manufacturers specify power and ground conventions. For open-source projects, GitHub repositories often include interactive schematics (e.g., KiCad files) where hovering over nets reveals connection details. Always cross-check against physical prototyping; a single misrouted ground can cause erratic behavior.
