Practical Guide to Reading and Interpreting Electrical Circuit Diagrams
Begin by identifying the power rails. Locate the battery symbol or voltage source–typically marked with a plus (+) and minus (–) sign. Trace the thickest lines on the layout; these represent ground (GND) and VCC/VDD connections. Most designs follow a convention: positive voltage flows from the source to components, while the negative side connects to ground. Deviations from this pattern often signal specialized configurations like negative voltage rails or split supplies.
Break the scheme into functional blocks. Look for clusters of symbols–resistors (zigzag lines), capacitors (parallel lines), transistors (three-legged shapes), and ICs (rectangles with numbered pins). Each cluster performs a distinct role: amplification, filtering, logic operations, or power regulation. Label each block mentally: “power supply,” “sensor input,” “microcontroller core.” This segmentation simplifies analysis, especially in complex layouts with dozens of elements.
Memorize symbol conventions. A resistor’s value (e.g., 10k, 220Ω) is often adjacent to its symbol. Capacitors use units like µF or pF, while inductors show coil symbols. Diodes point in the direction of current flow (anode → cathode), and LEDs include a small arrow. Integrated circuits list pin numbers around their perimeter; cross-reference these with datasheets for clarity. Schematics from different regions may invert ground symbols–verify with the legend.
Follow the signal path methodically. Start at the input (e.g., a sensor, antenna, or switch) and trace the route to the output (speaker, motor, display). Note every component the signal encounters–resistors attenuate, capacitors couple/decouple, transistors switch/amplify. Voltage dividers (two resistors in series) create reference points; measure these first if debugging. Avoid assumptions about default states–confirm logic levels (HIGH/LOW) using a multimeter at key nodes.
Watch for hidden interactions. A single electrolytic capacitor might stabilize voltage across multiple ICs, while a diode could protect against reverse polarity. Trace shared grounds; loops here introduce noise. Oscillators (crystal symbols with feedback loops) demand precise component values for correct frequency. In microcontroller-based designs, decoupling capacitors (0.1µF) near power pins prevent glitches–omissions cause erratic behavior. Use a highlighter to mark critical paths.
Compare against reference designs. Manufacturers provide schematics for evaluation boards (e.g., Arduino Uno, Raspberry Pi). Match symbol-for-symbol to spot discrepancies. Open-source projects (GitHub, EEVblog forums) often include annotated versions–study these for real-world tweaks. If a layout feels illogical, consult the bill of materials (BOM); components may have been substituted during prototyping.
Test with step-by-step power-up. Apply voltage to one function block at a time, checking for heat, smoke, or unexpected readings. A thermistor should change resistance with temperature; an op-amp’s output must swing between rail voltages. Use an oscilloscope to verify waveforms–square waves should have sharp edges, sine waves no clipping. Keep a logbook for measured voltages and observed behavior–patterns emerge faster with recorded data.
Decoding Electrical Blueprints: A Practical Guide
Start by identifying the power source–batteries, AC mains, or voltage rails are typically marked with clear labels like “+”, “-“, “VCC”, or “GND”. Trace their connections first, as they define the flow of current. Components directly linked to these points often serve as entry or exit routes for the signal.
Symbols follow standardized conventions, but variations exist. Resistors appear as zigzag lines or rectangles with “R” prefixes; capacitors use two parallel lines or curved plates labeled “C”. Transistors show three leads (emitter, base, collector) with distinct shapes–NPN and PNP types differ by arrow direction. Keep a reference sheet for uncommon symbols like inductors (coils), transformers (intertwined coils), or logic gates (AND/OR shapes).
Scan for ground symbols–a downward-pointing arrow, three parallel lines, or “GND”. These points act as reference voltages for the entire scheme. Improper grounding leads to noise, erratic behavior, or damage. Look for star connections where multiple components share a ground node; this prevents interference between circuits.

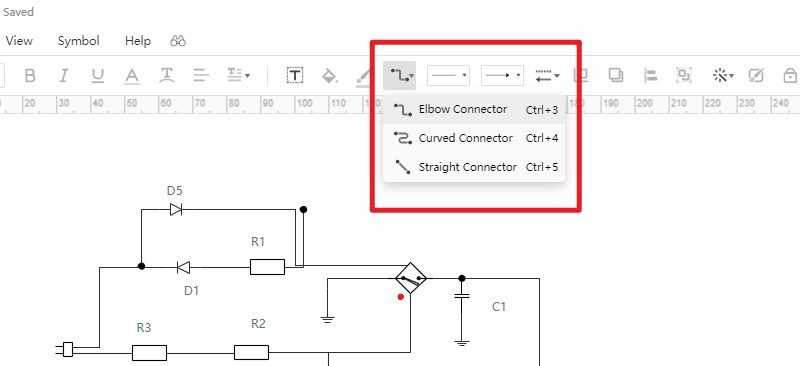

Follow the signal path by observing the lines connecting elements. Solid lines indicate direct connections; dashed or dotted lines denote optional, shielded, or virtual links (e.g., I²C buses). Jumpers (marked “J” or “JP”) show configurable sections–some may be open or closed depending on the setup. Cross-reference these with labels on physical boards when troubleshooting.
Key Patterns to Recognize
- Series vs. parallel: Components in a single line share current; those branching off the same nodes share voltage. Series resistors divide voltage; parallel resistors reduce total resistance.
- Feedback loops: Operational amplifiers or regulators often use resistors/capacitors connecting output to input. These stabilize gain or filter frequencies–look for “R_f” or “C_f” labels.
- Pull-up/down resistors: Small resistors (1kΩ–10kΩ) tied to VCC or GND ensure logic pins remain in defined states. Absent pull-ups on open-drain outputs (e.g., I²C SDA/SCL) cause floating values.
- Decoupling capacitors: Placed near IC power pins (e.g., 0.1µF ceramic), they suppress high-frequency noise. Missing these leads to erratic chip behavior.
Labeling conventions reveal component values and roles. “R1 10k” means resistor 1 with 10 kilo-ohms; “C2 22p” is capacitor 2 at 22 picofarads. Polarized capacitors show “+” near the positive lead; diodes have a band marking the cathode. ICs include pin numbers in squares–verify against datasheets for correct orientation.
Split complex layouts into functional blocks. Power supply sections center around regulators (7805, LM317) with input/output capacitors. Microcontroller units occupy dense areas with multiple connected pins (GPIO, ADC, UART). Sensors or actuators reside at the periphery, linked via traces to the MCU. Annotate each block with its purpose to simplify analysis.
Test points (marked “TP” or as filled circles) provide accessible nodes for probing. Use these to measure voltages, signals, or continuity without damaging traces. For PCBs, overlay the schematic with the physical board–flipped or rotated layers can misalign components, so verify X-ray images or Gerber files if available.
Common Pitfalls
- Assuming all crosses are connections–dots indicate junctions; T-intersections are often overlaps.
- Ignoring thermal relief pads on high-current paths–these prevent solder starvation.
- Overlooking parasitic elements: traces have resistance/inductance; long parallel lines create capacitive coupling.
- Misinterpreting net names–”V_BAT” may differ from “VCC” if separate regulators exist.
- Forgetting silkscreen errors–always cross-check with the bill of materials (BOM).
Interpreting Key Schematic Symbols and Their Roles
Begin by memorizing resistor symbols–their zigzag lines or small rectangles with labeled values instantly indicate current-limiting components. Note tolerance bands or decimal codes (like “4R7” for 4.7 ohms) to identify precise ratings without relying on scale.
Identify capacitors by their parallel lines or curved plates. Polarized types display a marked positive terminal; non-polarized omit this. Look for voltage ratings (e.g., “16V”) above the symbol–ignore them and risk failure under load.
Transistors require verifying pinouts: arrows on bipolar junction types show emitter direction, while MOSFET symbols use a broken line for the gate. Check datasheets for pin assignments–schematics often assume knowledge of standard configurations like TO-92 or SOT-23 packages.
Recognizing Power and Signal Elements
DC sources use long/short lines (+/-) for batteries or circles with “V” for voltage rails. AC depictions include sine waves or arrows for transformers–confirm polarity for proper grounding. Missing this reverses connections, damaging sensitive ICs.
Inductors appear as loops or coiled lines. Ferrite-core types may include dashed lines; microwave inductors use zigzag patterns. Note values in henries (µH, nH) and verify against PCB traces–low-value inductors often serve as filters in high-frequency paths.
Diodes and LEDs share a triangle-plus-line symbol but differ in annotation. Standard diodes may lack labels; LEDs include “D” or “LED” prefixes. Schottky diodes add an “S,” Zener types specify breakdown voltage (e.g., “5V1”). Reverse polarity here can block intended current flow entirely.
Switches divide into momentary (shown with parentheses) and latching (solid lines) types. Look for actuator labels (“SW1,” “RESET”)–omissions force manual tracing of board routes. Rotary encoders combine switch symbols with arrowheads to indicate multi-position operation.
Step-by-Step Method to Analyze Signal Pathways
Identify the starting component connected to the power source or input terminal. Label this as Point A. Follow the conductor–wire, trace, or connection–extending from Point A to the next element in sequence, marking each juncture with ascending letters (B, C, D). Use a multimeter in continuity mode to confirm connectivity if the schematic lacks clear annotations. Discrepancies between paper and physical layouts often occur at junctions where breadboards introduce hidden resistance; test these systematically.
Map each stage’s function using this key for reference:
| Symbol | Component | Behavior Impact |
|---|---|---|
| ─│┐ | Resistor | Attenuates current, drops voltage |
| ─┤├─ | Capacitor | Blocks DC, passes AC |
| ─┘─ | Inductor | Opposes current changes, stores energy |
| ─▷─ | Diode | Permits one-way flow |
| ─▷│─ | LED | Emits light when forward-biased |
Highlight feedback loops by scanning for paths returning to upstream nodes. These often create unintended oscillations or latching behavior; disconnect one end of the suspected loop to isolate the effect. For integrated modules–op-amps, microcontrollers–pinpoint the input/output leads via datasheets before tracing internal paths. Mark decoupling capacitors located near IC power pins, as these stabilize transient currents critical for digital switching.
Critical Checks for Common Pitfalls
Verify ground paths first–they commonly fragment into separate reference planes on PCBs, causing erratic operation. Measure resistance between supposed common grounds; values above 0.5Ω indicate problematic splits. Inspect power rails for shared traces: analog and digital supplies should remain isolated beyond the voltage regulator output. Use highlighters on printed schematics to distinguish signal, power, and ground networks.
