Complete HP Pavilion G4 Laptop Schematic Diagram and Circuit Analysis Guide

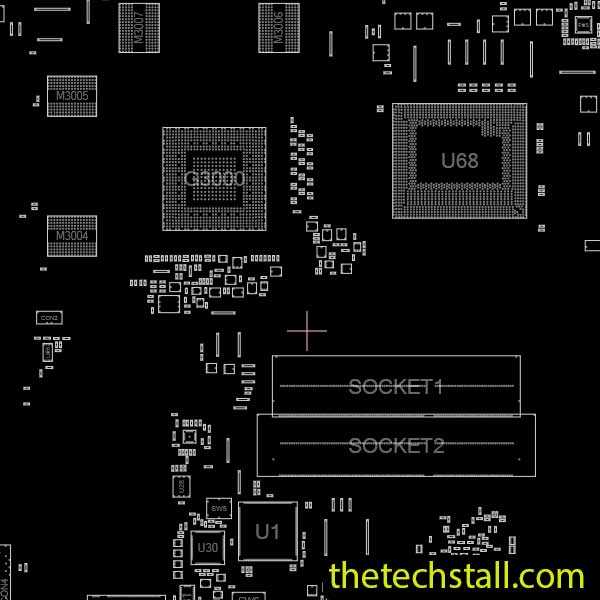

If your HP G4 device fails to power on or exhibits intermittent hardware issues, the internal circuit layout is the first resource to consult. The official hardware reference manual for this model–spare part number 603850-001 (Rev. A)–contains critical voltage rails, signal paths, and component placement details. Locate the DC jack input section on the PCB map (marked J800); a faulty connection here is the most common cause of charging failures. Verify continuity between the jack and Q810 MOSFET using a multimeter set to diode mode. A reading above 0.5V indicates a broken trace requiring jumper wire repair.

The EC (Embedded Controller) chip–labeled ITE IT8572–controls power sequencing and fan speed. Access its pinout on page 12 of the electrical schematic; pins KBRST# (71) and PWRBTN# (72) directly interface with the power button. If the device boots but ignores input, probe these pins for 3.3V when pressed. Absent voltage suggests a failed PQ54 transistor (SSM3K7002) or corroded vias near the RTC circuit. Replace the transistor with an exact match–substitutes like 2N7002 disrupt timing sequences.

For overheating issues, focus on the thermal sensor network. The LM95245 (U82) monitors CPU and GPU temps via I2C lines. Check resistors R850 (4.7kΩ) and R851 (4.7kΩ) for open circuits–common after liquid damage. GPU throttling often stems from a degraded MX25L3206E firmware chip; reprogram it using the BIOS update file from HP’s support site (02228.fd) and a CH341A programmer. Avoid generic dump files–HP’s UEFI contains custom PCH configurations that third-party variants corrupt.

Onboard RAM failures frequently trace back to cracked DDR3L solder balls under the Hynix HMT41GS6AFR8A modules. Use a reflow station set to 220°C with no-clean flux (e.g., MG Chemicals 8341-10M) to repair. For persistent BSODs, verify the CPU PLL filter circuit (capacitors C111–C114); bulging or leaking caps here cause erratic clock signals. Replace with 10µF 6.3V X5R units–anything above 16V risks improper voltage regulation.

When disassembling, note that the Wi-Fi antenna cables (white/black) route along the left hinge. Accidental pinched wires cause signal dropouts; reattach with T2 Torx screws (not Phillips) to avoid stripping. For backlight issues, test Q805 (AO4407) and Q806 (AO4407)–these MOSFETs switch the LCD inverter. A shorted pair draws >1.2A; replace both even if one fails to prevent cascading damage. Always disconnect the battery before probing–the BQ24780S charger IC lacks overcurrent protection and may ignite flammable traces.

Critical Circuit Paths in HP G4 Portable Hardware Blueprints

Begin by isolating the power distribution network on the main board layout–trace the +5VALW, +3VALW, and +VBAT lines from their origin at the charger IC (usually the BQ24780 or equivalent) to the voltage regulators. These paths are prone to corrosion or solder fatigue, especially near the DC jack and MOSFET clusters. Use a multimeter in diode mode to verify continuity; readings above 0.5V indicate potential opens requiring reflow or jumper wiring.

The EC (embedded controller) interface demands attention: locate the IT8570E or similar chip and cross-reference its pinout with the service manual’s signal maps. Pay special attention to pins handling SMBus communication and keyboard matrix scanning–failed traces here manifest as unresponsive keys or BIOS boot loops. Probe for 3.3V on the EC’s VCC pins; absence suggests a faulty LDO or broken trace.

Examine the GPU and CPU power rails next–identify the MXM connector (for discrete models) or the soldered GPU array beneath the heatsink. The GPU_CORE line typically operates at 1.05V, while the CPU_VCC ranges between 0.8V to 1.2V depending on load. Use an oscilloscope to check for voltage ripple exceeding 20mV; higher values indicate failing capacitors or insufficient filtering. Replace any swollen MLCCs near these rails immediately.

Memory interface errors often stem from the DDR3/L lines–identify the two main chips and their associated termination resistors. Probe the CLK, DQS, and CMD lines for consistent 1.5V signals; deviations suggest corrupted addressing or timing issues. If the device fails POST, swap SODIMMs first–if unresolved, reflow or replace the northbridge chip (Intel HM76 or alike).

For display failures, follow the LVDS/eDP lanes from the GPU to the connector; corrosion here is common in units exposed to moisture. Check for 3.3V on the backlight inverter circuit–absence indicates a blown fuse (often marked F1) or damaged LED driver (e.g., TPS61165). Replace the fuse with equivalent rating (typically 1A/32V) and inspect nearby inductors for burns.

Where to Locate HP G4 Notebook Service Blueprints for Hardware Servicing

HP’s official Service Media Library remains the primary source for verified technical layouts. Access it via support.hp.com–navigate to “Drivers & Software,” then filter by “Manuals” for your specific G4 model variant (e.g., G4-2320tx, G4-2233cl). Select “Hardware Reference Guide” or “Service Manual” to retrieve PDFs containing board-level layouts, component pinouts, and voltage rails. These documents often include exploded views of assemblies like the keyboard, display hinges, and system board.

Avoid third-party repositories like RapidShare or generic forum posts–these frequently host outdated or tampered files. Instead, cross-reference HP’s offerings with Intel’s ARK database for chipset details (e.g., HM76, HM86) if tracing USB or SATA controller paths. For BIOS-level signal tracing, procure the Maintenance and Service Guide specific to your G4’s product number (found on the underside label), as it includes connector schematics absent in user-facing manuals.

Electronics repair platforms such as BadCaps Forum sometimes archive HP’s internal schematics if removed from public circulation. Search for “HP G4 schematic site:badcaps.net” to locate threads where members share verified circuit paths. Alternatively, EDAboard hosts discussions linking to HP’s discontinued FTP archives, accessible via direct download if you possess the full model identifier (e.g., HP 2000-2b19WM).

For discrete component analysis, use ECAD viewers like KiCad or Altium Designer to import HP’s gerber files if available–these reveal PCB layer stacks and thermal pads for troubleshooting VRM failures. Some models (e.g., ProBook 4540s G4) offer gerber outputs in the HP Developers Portal under “Firmware” sections, though access may require a free account. Failing that, desolder suspect ICs (e.g., EC controller) and reference datasheets from LCSC or Octopart for pin assignments matching HP’s board layouts.

If official sources yield no results, inspect the G4’s UEFI/BIOS update packages–some HP firmware archives embed schematic fragments in .bin or .rom files. Extract these using binwalk or UEFITool, then parse the output for voltage regulator diagrams (e.g., ISL6236) or GPU power rails. For legacy models (e.g., 6560b G4), HP’s Legacy Product Support page retains archived schematics under “Obsolete Devices,” accessible only via direct URL manipulation (append “&filter=legacy”).

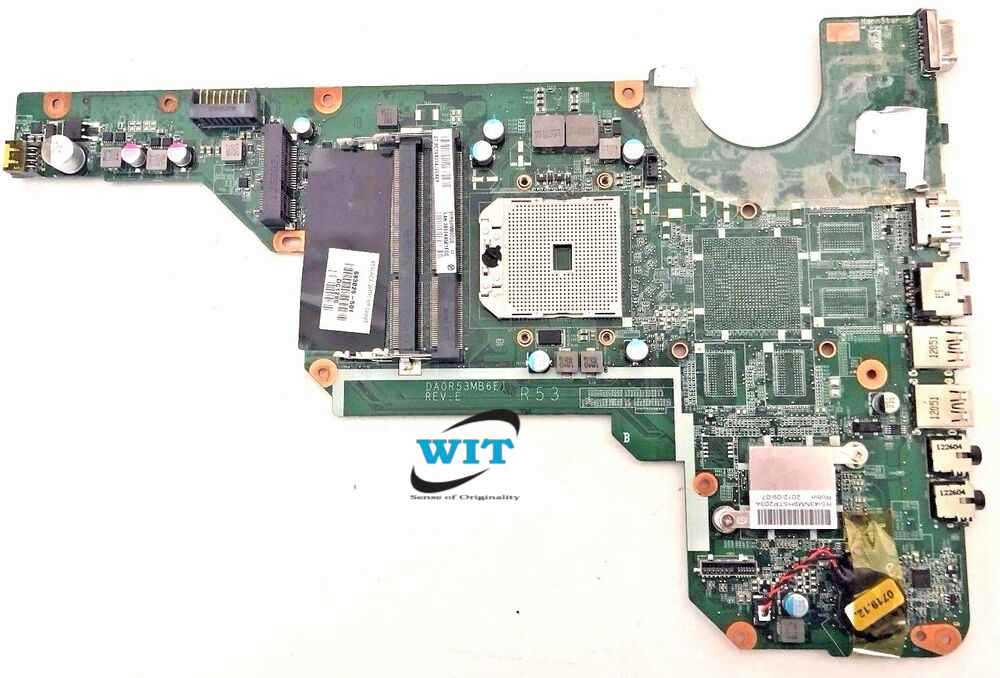

Key Components Identified in HP G4 Motherboard Layouts

Start repairs by locating the BIOS chip on the HP G4’s PCB–marked U23 near the DDR3 memory slots. This 8-pin SOIC component stores firmware critical for POST sequences. Verify its integrity with a multimeter: pins 5 and 8 should read 3.3V. If voltages deviate ±0.2V, consider reflashing using a CH341A programmer with the original binary from HP’s service partition.

Power Delivery Network

The primary buck converter, labeled PU1 (Texas Instruments TPS51218), manages the 5V/3.3V rail distribution. Its adjacent capacitors–C568 (22µF, 6.3V) and C570 (10µF, 16V)–must show ESR values below 50mΩ. Replace any swollen components with polymer tantalum equivalents. Trace the enable line from PU1 to the EC (U31, ITE IT8572E), ensuring continuity with a continuity tester; a break here causes sudden shutdowns.

• EC Firmware Hub: The embedded controller (U31) bridges keyboard inputs and thermal management. Its firmware (1MB SPI flash) interacts with the Super I/O chip (U19, Nuvoton NCT6776D). Probe pins 1–4 during boot: a high-to-low transition on pin 3 confirms correct initialization.
• GPU Power Rails: The AMD Radeon HD 7420G relies on filtered 1.1V and 1.5V inputs generated by PU3 (Richtek RT8206). Check coils L5/L6 for shorts–DC resistance should exceed 0.5Ω. Failing rails often cause artifacting or black screens.

Signal integrity hinges on the clock generator (U12, IDT CV118-2). This 28-pin TSSOP component synchronizes PCIe and SATA interfaces. Measure output frequencies with an oscilloscope: PCIe lanes should peak at 100MHz ±50kHz. Replace U12 if jitter exceeds 80ps; counterfeit chips frequently underperform in HP G4 revisions.

1. Disconnect the CMOS battery before probing the RTC circuit (U16, M4T28-BR12SH1). This 32.768kHz oscillator feeds the EC; drift here desynchronizes fan curves.
2. Inspect the DDR3 termination resistors (R56-R63, 22Ω 5%). Corrosion on these 0402 components mimics memory errors–clean with isopropyl alcohol or replace preemptively.
3. Enable test points TP18 (VSUS) and TP19 (VCORE) during BIOS updates. A stable 1.05V at TP19 confirms CPU voltage regulation.

For intermittent charging issues, focus on the BQ24733 charger IC (U4). Its MOSFET drivers (Q1/Q2, AO4407) degrade after 2000 cycles. Verify gate voltages: Q1’s gate should toggle between 0V and 12V when AC power connects. If stuck at 6V, replace both MOSFETs and recalibrate charge thresholds via EC registers 0x1E–0x22.
