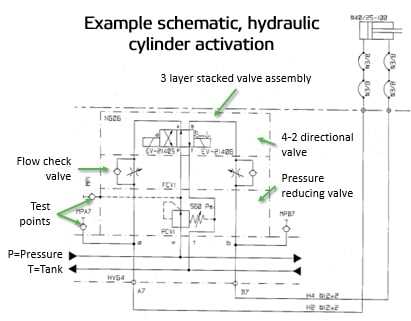

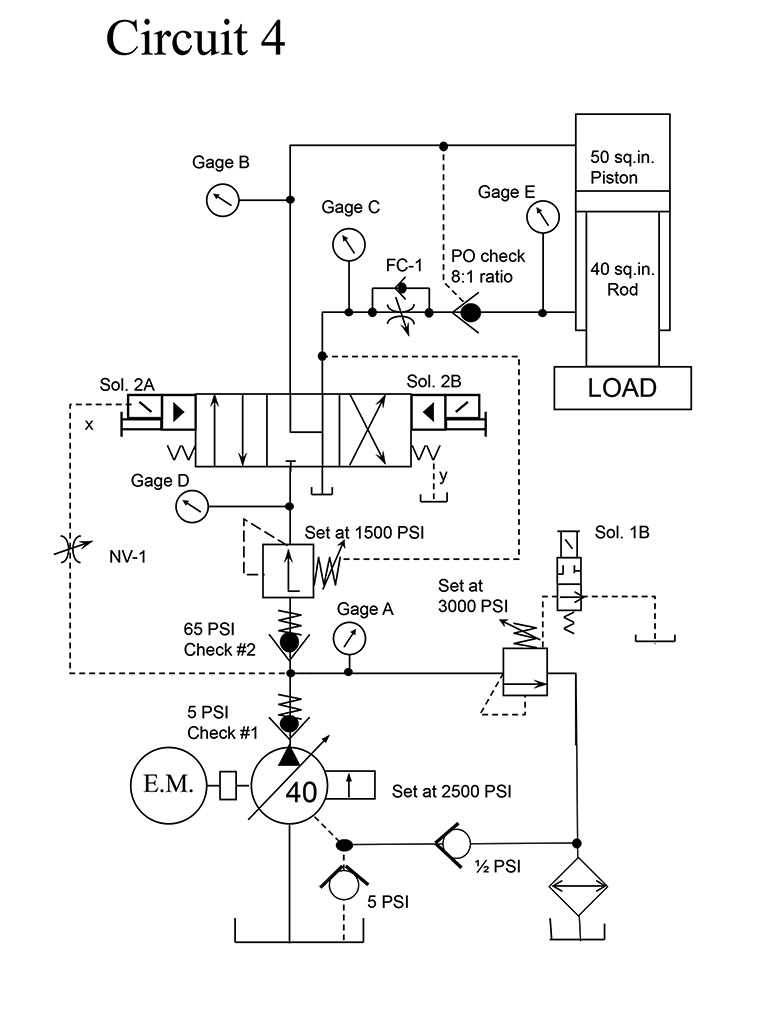

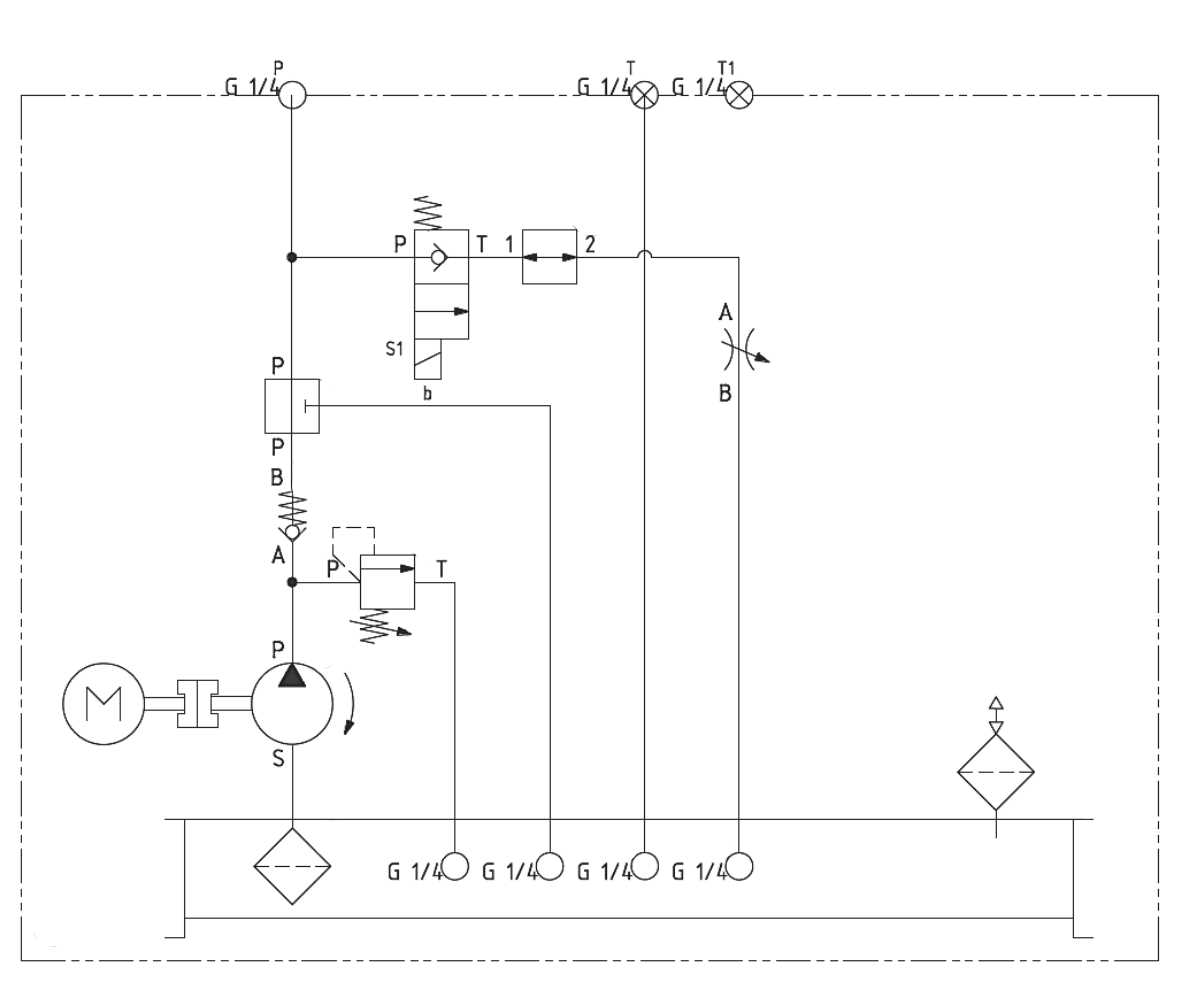

Key Components and Schematic Layout of Hydraulic Cylinder Circuits

Begin by selecting a 4/3 directional control valve with spring-centered neutral for most linear force transmission setups. This configuration ensures fail-safe operation–returning the piston to a locked or float position when no input is applied. Pair it with a tandem-centered valve if load holding priority is critical, as this design blocks actuator ports while allowing pump flow to bypass back to the reservoir.

Install pressure relief valves downstream of the pump and upstream of each actuator branch. Set the primary relief at 10–15% above the system’s maximum operating pressure; secondary relays should activate at 50–70% of this threshold to protect individual branches. Use quick-release couplings on pilot lines to simplify troubleshooting–these prevent fluid loss during disconnection and shorten response times by maintaining pre-charged circuits.

Mount flow control valves in meter-out or bleed-off configurations based on precision demands. Meter-out is ideal for maintaining consistent speed under varying loads; bleed-off suits low-power applications where minor leakage is acceptable. Always place check valves immediately downstream of flow controls to prevent reverse flow through the orifice, which can cause cavitation and erratic movement.

Label every line with color-coded sleeves: red for pressure, blue for return, and yellow for pilot signals. Standardize port markings–P (pump), T (tank), A/B (work ports)–on valves and connectors. For high-cycle applications, incorporate accumulators rated at 20% above system pressure to absorb pressure spikes and provide emergency power. Charge them with dry nitrogen to 90% of minimum operating pressure.

Use modular sub-plates for valves to simplify maintenance and upgrades. Stack valves vertically to reduce footprint and limit external leak points. Ensure all seals are compatible with the fluid type–mineral oils demand nitrile or Viton, while water-glycol requires EPDM or polyurethane. Replace seals annually or at 2,000 operational hours, whichever comes first.

Test circuits with a digital pressure gauge and flow meter before connecting actuators. Isolate each branch and verify relief valve settings in 5 MPa increments. Monitor temperature–ideal range is 40–60°C–to prevent viscosity fluctuations that degrade response times. Document all settings, including valve spool types (e.g., open-center, closed-center), for future reference.

Visualizing Fluid Power System Layouts

Start by sketching the actuator’s stroke path first–mark extension and retraction ports clearly. Label inlet and outlet lines with directional arrows showing oil flow during each motion phase. Use standardized symbols for pumps, valves, and reservoirs to eliminate ambiguity in interpretation.

Place a directional control assembly directly between the pump outlet and the actuator. Select a 4-way, 3-position valve for bidirectional control if load holding is critical; spring-centered neutral locks fluid in both chambers when inactive.

• For load-induced drift prevention, integrate a counterbalance module downstream of the control valve.
• Include pressure relief units at pump discharge to cap system pressure at 120% of operational maximum.
• Add a 10-micron filter on the return line to trap contaminants before fluid reaches the reservoir.

Connect the return line to the reservoir with a sight gauge for real-time fluid level monitoring. Use elbow fittings sparingly–straight unions reduce turbulence and pressure drop. Color-code hoses: red (pressure), blue (return), yellow (pilot).

Test the layout under no-load conditions first. Activate the pump, shift the valve to extend the ram fully, then measure time to full extension–record baseline speed. Repeat with a 50% load; compare speed loss to manufacturer specs for troubleshooting.

Optimize efficiency by minimizing hose length between components. Position the pump within 12 inches of the control valve; longer runs increase parasitic losses. Mount the accumulator adjacent to the actuator for rapid response during peak demand.

Critical Safety Features

Incorporate a pilot-operated check assembly in the circuit to prevent uncontrolled descent under load. Set the relief threshold to 10% above working pressure to allow margin for thermal expansion. Install a manual override lever on the control valve for emergency retraction.

1. Verify all threaded connections with torque wrench: 20 ft-lbs for 3/8″ fittings, 30 ft-lbs for 1/2″.
2. Pressure-test the system at 1.5x operational limit before commissioning.
3. Fluid selection: ISO VG 46 mineral-based for ambient 0–40°C; switch to synthetic blend if operating below -10°C.

Document every component’s specifications: bore diameter, rod diameter, stroke length, valve flow rating, pump displacement, and reservoir capacity. Save the schematic as a layered vector file–separate layers for power lines, pilot circuits, and safety interlocks for future modifications.

Essential Elements of a Fluid Power Actuator System

Start with a directional control valve rated for at least 20% above the peak flow requirements. Use a solenoid-operated spool valve with a response time under 50 milliseconds for precision applications, avoiding manually operated types in automated setups due to latency. Ensure the valve’s pressure rating exceeds the pump’s maximum output by 1.5 times to prevent failure during pressure spikes.

Select actuator seals based on operating temperature and fluid compatibility. Nitrile works for standard mineral oils up to 100°C, while Viton handles synthetic fluids and temperatures up to 150°C. For extreme conditions (above 200°C), PTFE seals with glass or bronze fillers resist chemical degradation but require precise groove tolerances (0.05mm tolerance for rod seals) to avoid extrusion failures.

Incorporate a load-holding valve directly mounted to the actuator’s port to prevent uncontrolled movement. Choose a pilot-operated check valve with a cracking pressure of 3-5 bar for load stability; avoid direct-acting types in vertical applications due to risk of drift. For dynamic loads, integrate a counterbalance valve with adjustable pressure settings (min. 5% above system pressure) to dampen oscillations.

Use a suction strainer with a mesh size of 100-150 microns to protect the pump from contaminants. For high-flow systems (above 50 L/min), install a bypass valve on the strainer to prevent cavitation during cold starts. Replace strainers every 500 operating hours or when pressure drop exceeds 0.5 bar, whichever comes first.

Install pressure gauges at both the pump outlet and near the actuator’s extend/retract ports to monitor performance. Use glycerin-filled gauges for vibration-prone environments; avoid dry gauges as they fail prematurely under pulsating pressures. Position gauges within 500mm of the monitored point to minimize pressure drop inaccuracies.

Choose hoses with a burst pressure at least 4 times the working pressure. For mobile equipment, use thermoplastic hoses with abrasion-resistant covers; in stationary setups, opt for reinforced steel-braided hoses. Secure hoses with clamps every 300-400mm to prevent whipping under pressure. Replace hoses every 3 years or immediately if surface cracks or wire exposure appear.

Integrate a heat exchanger when operating temperatures exceed 60°C. Air-cooled radiators suit low-duty cycles (

Include a fluid reservoir sized at 3-5 times the pump flow rate per minute. Use baffles to separate return and suction lines, preventing aeration. For synthetic fluids, ensure the reservoir is stainless steel or epoxy-coated; standard carbon steel reacts with water-based fluids, causing corrosion and sludge formation.

Building a Fluid Power System: Assembly Walkthrough

Secure the pump base to a rigid mounting plate using grade-8 bolts torqued to 45 ft-lbs to prevent vibration-induced misalignment. Verify the motor shaft and pump spline alignment within 0.002 inches using a dial indicator before final fastening.

Connect the pump suction line using schedule-80 steel pipe threaded with PTFE tape applied counter-clockwise. Maintain a minimum 1:4 slope downward toward the reservoir to eliminate air pockets. Install a 100-mesh strainer at the pipe inlet to trap debris above 0.006 inches.

Route the pressure line from the pump outlet to the directional control valve using stainless steel braided hose rated for 1.5x the system’s maximum working pressure. Ensure bends exceed a 6x hose inner diameter radius to prevent collapse. Secure hose clamps at 12-inch intervals.

Mount the valve manifold on a vertical surface with absorption pads to isolate operational noise. Connect inlet and work ports using JIC-37° flare fittings tightened to 80 ft-lbs. Label each port with embossed tags indicating flow direction and pressure rating.

Attach actuator lines to the valve ports using swivel joints to avoid torque stress. For extending forces above 10,000 lbs, use double-acting actuators with chrome-plated piston rods and nitrile seals rated for 250°F. Install velocity fuses with a 1.2 GPM trigger flow rate to prevent runaway loads.

Plumb the return line back to the tank through a 25-micron filter with a bypass valve set at 15 psi. Mount the filter above fluid level to facilitate air bleeding. Include a heat exchanger if operating temperatures exceed 140°F, sized for 10°F ΔT at maximum flow.

Fill the reservoir with ISO VG 46 mineral oil through a 5-micron breather filter. Purge air by cycling the actuator at half stroke until smooth motion is observed. Verify system pressure using a glycerin-filled gauge with a snubber to dampen pulsations. Adjust relief valve to 110% of working pressure before operational testing.
