How to Build a Reliable Inrush Current Limiter Step-by-Step Circuit Guide

Start with a properly sized negative temperature coefficient (NTC) thermistor for initial suppression. Choose a part rated for 5Ω–10Ω cold resistance at ambient temperature, ensuring it can dissipate 2–3 times the steady-state load power without overheating. Example: a 10Ω/10A NTC (e.g., Ametherm SL10 10006) works reliably under 50W continuous draw while handling surges up to 120W for 50ms.

For high-power applications exceeding 300W, replace the thermistor with a bypass relay and series resistor. Use a 12VDC relay (e.g., Omron G5LE-1) triggered by a timing circuit–a 555 timer in monostable mode set for 150–200ms–so the resistor engages only during startup. Select a resistor value between 1–3Ω based on peak voltage and load impedance; a 2Ω/25W wirewound resistor suits most 48V systems.

Parallel a metal-oxide varistor (MOV) across the input if transient spikes exceed 2× the nominal line voltage. Choose an MOV clamping voltage 30% above the max expected (e.g., 68V for 48V nominal) and energy rating exceeding 10J. Example: Littefuse V320LA20AP handles 20kA surges while adding minimal leakage current.

Place a 1μF/100V X2-class capacitor immediately after the surge protection component to filter residual high-frequency noise. Ensure component placement minimizes trace loop area; keep thermistor/resistor leads under 15mm and ground the MOV case directly to chassis for best performance.

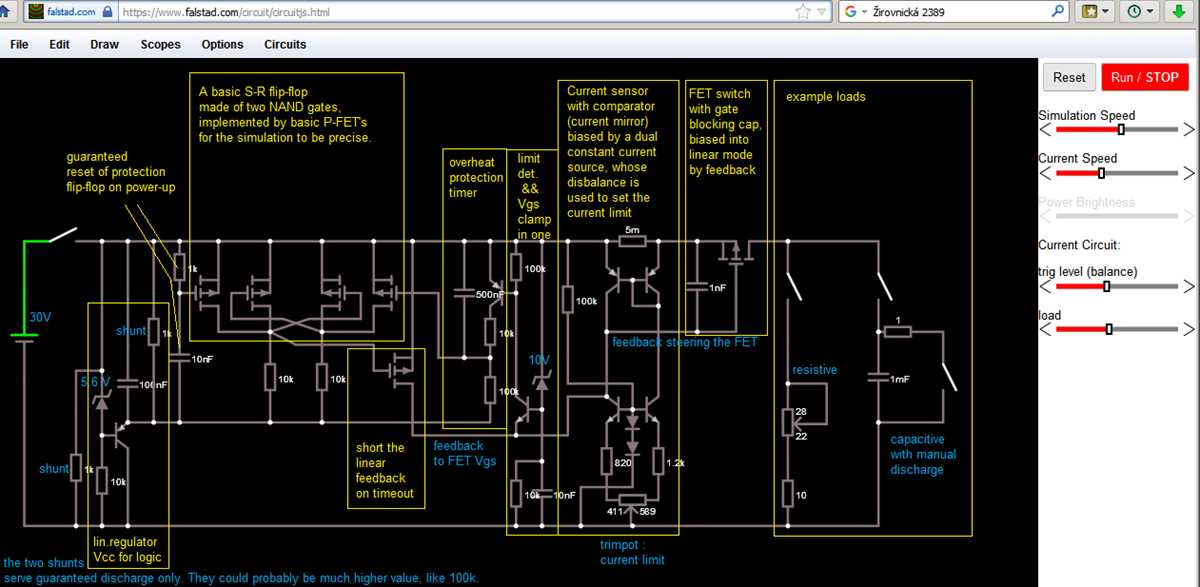

Designing a Surge Protector Schematic for Power Systems

Place a thermistor (NTC) at the primary stage of the input path to absorb initial energy spikes. Use a 5–10 Ω NTC rated for 10–20 A to handle transient loads effectively. Ensure the component’s thermal mass matches the expected surge duration–typically 5–50 ms for standard applications.

For higher-power demands, integrate a soft-start relay in parallel with the NTC. Activate it after 50–100 ms to bypass the thermistor, preventing prolonged heat buildup. Select a relay with a coil voltage matching the system’s supply and contacts rated for 1.5× the steady-state amperage.

Series resistors offer precise control in low-power designs. A 2–5 Ω, 10 W wirewound resistor can limit startup bursts in audio amplifiers or small motors. Calculate dissipation based on peak voltage: P = (V²/R) × duty cycle. Overrate by 30% to avoid failure.

Combine a triac with a zero-crossing detector for AC systems requiring rapid response. Trigger the triac at the next zero-crossing after 20–30 ms to reduce arcing. Use an MOC3041 optocoupler for isolation, ensuring gate drive current stays below 10 mA.

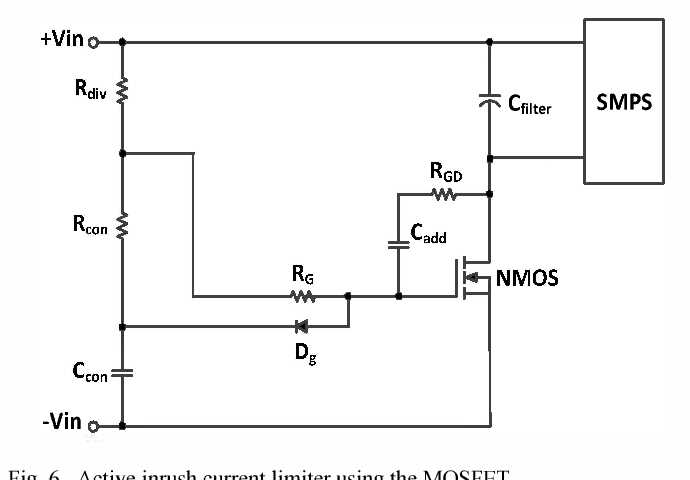

In DC applications, a MOSFET with controlled gate ramp achieves smooth activation. Use a 2N7000 for signals under 60 V or IRF540 for 100+ V rails. Implement an RC network (R = 10 kΩ, C = 1 µF) at the gate to extend turn-on time to 10–50 ms, preventing voltage spikes.

Fuse selection must account for transient overshoot. A slow-blow fuse (e.g., 1.25× nominal current) prevents nuisance tripping while shielding downstream components. For repetitive surges, upgrade to a polyswitch (e.g., Raychem RXE065) that resets after cooling.

For EMI-sensitive setups, add a snubber network (R = 47 Ω, C = 0.1 µF) across switching elements. This dampens high-frequency oscillations during transitions. Position the snubber as close as possible to the switching node to minimize loop inductance.

Test the design with an oscilloscope probing the input path. Trigger on the rising edge, setting a delay of 5 ms to capture the transient profile. Verify peak amplitudes stay below 2× the nominal line voltage; adjust component values if clipping occurs.

How to Select the Right NTC Thermistor for Surge Suppression

Calculate the peak initial surge magnitude before choosing a thermistor. Measure the load’s stored energy (e.g., capacitor charge) or transformer inrush amplitude using an oscilloscope or transient recorder. A 10 A transient demands a thermistor rated for at least 3× that value–opt for a 30 A model to cover tolerances plus future load increases. Thermal derating curves from manufacturers reveal real-world performance: verify that the selected part stays below 70% of its maximum permissible surge at your ambient temperature.

Match the thermistor’s resistance at ambient to the power source’s output impedance. Low-impedance supplies (≤ 1 Ω) need thermistors with ≥ 5 Ω resistance at 25 °C, ensuring the surge drops below 5% of the steady-state level within 100 ms. Higher impedance sources pair best with thermistors between 1–3 Ω to prevent excessive steady-state power loss. Always cross-reference the thermistor’s temperature coefficient–typical NTC values are –3% to –5% per °C–against your environmental extremes; a 25 Ω/25 °C thermistor may deliver only 12.5 Ω at 50 °C.

Evaluate the steady-state dissipation requirements. Thermistors exceeding 2 W continuous will require heatsinking or airflow; ceramic materials with 5 W capacity exist but cost rises exponentially beyond 3 W. For 24/7 operation, multiply expected load voltage by thermistor current at operating temperature, then select a package with dissipation margins ≥ 120%. Axial-leaded devices often suit low-density boards, while radial-leaded parts fit high-density assemblies where heat spreading is limited.

• Cold resistance tolerance: ±20% nominal value is standard; tighter ±10% specs cost 40% more.
• Diameter dictates surge capacity: 5 mm handles 15 J, 10 mm jumps to 40 J, 15 mm reaches 80 J.
• Response time: 1–3 s thermal time constant prevents nuisance reset; verify against relay or fuse actuation times.
• Max surface temperature: 150 °C absolute, 125 °C recommended for long-term stability.

Shortlist parts after filtering by form factor and mounting constraints. Surface-mount 0805 or 1206 packages simplify automated assembly but limit surge capacity to 10 J–adequate for USB hubs or LED drivers. Through-hole alternatives, especially 13 mm disks, support 100 J for industrial motor drives or server PSUs. Verify lead spacing matches existing board layouts to avoid redesign; thermistors spacing 5 mm apart need wider pads for manual soldering.

Simulate worst-case scenarios to confirm transient suppression effectiveness. Use SPICE models or vendor-provided simulation tools that include thermistor self-heating equations. A 230 VAC input feeding a 300 µF capacitor demands a thermistor that drops initial surge from 25 A to 5 A within 20 ms; validate this with scope captures before finalizing the BOM. Surge events exceeding 5× the thermistor’s rated capacity will shorten lifespan–plan for derating or parallel protection schemes.

Review agency certifications early: UL 1412 for North America, IEC 60730 for EU appliances, or MIL-PRF-23648 for defense gear. Certified thermistors carry an eighth-digit suffix denoting approvals–absence of this mark signals non-compliance, risking board-level rejections. Stock lead times stretch to 12 weeks for custom resistance-temperature profiles; opt for standard values (±15 Ω, ±22 Ω, ±33 Ω) to reduce procurement delays.

Step-by-Step Wiring Guide for Surge Protection Resistor

Begin by selecting a power-dissipating resistor with values tailored to your load’s demands. For most 12V-24V DC applications, a 10Ω to 50Ω, 5W-10W wirewound resistor ensures safe initial charging without overheating. Verify the resistor’s wattage rating against peak energy draw–undersized components risk failure during transient spikes.

Position the resistor in series with the primary feed line, ideally between the power source and the input capacitor. This placement forces the initial surge through the resistor, softening the immediate load on downstream components. For high-power setups, consider a relay or NTC thermistor in parallel to bypass the resistor once steady-state voltage is reached, preventing long-term heat buildup.

Critical Wiring Connections

Component	Wire Gauge (AWG)	Soldering Temp (°C)	Insulation Type
Resistor Lead	18-22	350-380	Silicone or PTFE
Power Input	14-16	320-360	PVC or Cross-Linked Polyethylene
Ground Return	12-14	340-370	Bare or Tinned Copper

Strip wires to expose 8-10mm of conductor, twist strands tightly, and apply rosin flux before soldering. Use heat-shrink tubing or liquid electrical tape to seal joints, maintaining at least 2mm clearance from adjacent components to avoid thermal stress. For aluminum chassis mounts, employ a star washer and anti-oxidation compound to prevent galvanic corrosion.

Test the assembly with an oscilloscope probing between the resistor’s output and ground. Expected behavior includes a gradual voltage ramp (50-200ms) before reaching stable operation. Voltage sag below 80% of nominal during startup signals insufficient resistance–adjust values incrementally until transients smooth. For 230V AC systems, isolate the resistor in a fire-rated enclosure and bond the chassis to earth ground.

Troubleshooting Initial Spikes

If the resistor overheats within seconds, confirm proper thermal dissipation–attach a finned heat sink using thermally conductive epoxy. Verify no short circuits exist downstream; a multimeter in continuity mode should show infinite resistance between supply rails when disconnected. For repeated failures, substitute a timed relay circuit programmed to shunt the resistor after 100-150ms, reducing sustained power loss.

Document all modifications, including resistor specs, wiring paths, and test waveforms. Store records alongside schematics to expedite future repairs or upgrades. For industrial setups, integrate a current sensor in series with the resistor, logging data via microcontroller to detect irregular surges over time.
