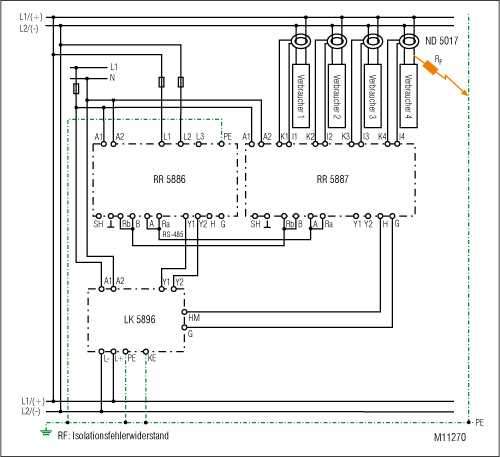

Practical Guide to Designing an Insulation Resistance Monitoring Circuit

Start with an isolation transformer rated for at least 1.5× the expected leakage current threshold. A 1:1 ratio suffices for most low-voltage systems, but step-up configurations amplify sensitivity in high-resistance faults. Use a toroidal core to minimize stray inductance–ferrite outperforms laminated steel in frequency response above 1 kHz. Connect the secondary winding in series with a precision burden resistor of 10–100 kΩ, scaled to your maximum permissible fault current. Avoid carbon-film resistors; metal-film types (±1% tolerance) maintain stability under thermal drift.

For signal acquisition, deploy a differential amplifier with >90 dB CMRR. The AD8221 offers low input bias current (150 pA max) and rail-to-rail output, critical for detecting microamp-level faults. AC-couple the input through a 1 µF film capacitor (polypropylene) to block DC offsets while passing 50/60 Hz leakage signatures. Insert a 1 MΩ discharge resistor across the capacitor to prevent charge buildup–omitting this risks false trips. Power the amplifier from a dual ±12 V supply to handle common-mode voltages exceeding ±10 V.

Couple the amplifier output to a comparator circuit using an LM311. Set the threshold via a 10-turn potentiometer (Bourns 3006P) wired as a voltage divider. A 0.1% reference voltage (REF192) ensures temperature stability (±2 ppm/°C). Add hysteresis with a 10 kΩ feedback resistor from comparator output to non-inverting input–this prevents chatter during borderline faults without degrading response time below 5 ms. For digital integration, use an optocoupler (HCPL-3700) to interface with 3.3 V logic; its built-in noise margin filter eliminates false triggers from transient spikes.

Grounding demands isolation. Use a star topology for all analog returns, tying them to a single point at the transformer center tap. Bond this node to chassis via a 1 nF Y-capacitor (Class II dielectric) to suppress EMI without compromising safety. Never combine signal and power grounds–this creates ground loops that obscure measurements. For HV systems (>1 kV), add a 500 Ω current-limiting resistor in series with probe leads to protect against arc flash. Test fault detection by injecting a calibrated 100 µA leakage current through a precision resistor (Vishay Z201) between line and ground.

Designing a Fault Detection Mechanism: Key Electrical Layouts

Start with a differential amplifier setup at the core of your detection unit. Use an AD8221 instrumentation amp with a gain of 100 to process leakage signals as low as 1mV. Connect the inputs across a 1MΩ sensing resistor tied to the system’s neutral and ground. This configuration ensures direct measurement of stray currents without false triggers from minor voltage fluctuations.

Implement a two-stage filtering approach to separate noise from genuine faults. The first stage should include a 10Hz low-pass Sallen-Key filter (using TL072 op-amps) to eliminate transient spikes from switching loads. Follow this with a 50Hz notch filter (twin-T network) to suppress power-line interference, preserving signal integrity for downstream analysis.

• Voltage divider: Place a 10kΩ resistor in series with a 1kΩ resistor across the DC bus to scale high voltages (up to 1000V) for safe ADC input (
• Isolation: Use ISO124 precision isolators to decouple the sensing circuit from the main system, preventing ground loops.
• ADC selection: Opt for a 16-bit MCP3421 with 3.75 samples/second to capture slow-drifting faults without aliasing.

Add a microcontroller-driven threshold comparator using a PIC18F45K22. Program it to trigger an alarm when the ADC reading deviates ±5% from a calibrated baseline. Store baselines in EEPROM to account for system aging–update them quarterly during maintenance checks. Include a watchdog timer to reset the unit if the MCU locks up, ensuring continuous protection.

For redundancy, integrate a hardware fail-safe using a dual-comparator LM393. Set one comparator to trip at 90% of the ADC’s maximum range (2.25V for a 2.5V scale) and the second at 110%. Tie their outputs to an AND gate (74HC08)–only a simultaneous trip from both comparators should activate a solid-state relay (CPC1966), cutting power to the faulty segment within 10ms.

Validate the design with these specific tests:

1. Inject a 1μA current through a 1GΩ resistor across the sensing points; the unit should detect it in under 200ms.
2. Apply a 50V/60Hz noise signal directly to the inputs; alarms must remain inactive.
3. Simulate an MCU failure by holding the reset line low–the hardware fail-safe must engage.

Document all component tolerances (±1% resistors, ±5% capacitors) and temperature coefficients (

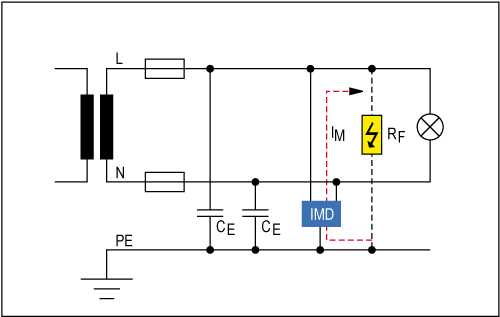

Key Elements of a Fault Detection System

Select an AC coupling capacitor with a value between 0.1µF and 1µF to block DC offsets while allowing fault signals to pass. Polypropylene film capacitors offer superior stability under high-voltage transients compared to ceramic types, reducing false triggers. Ensure the capacitor’s voltage rating exceeds the system’s peak voltage by at least 50% to prevent dielectric breakdown during surges.

The core of the system relies on a differential amplifier with a high common-mode rejection ratio (CMRR) of at least 90 dB. A precision op-amp like the AD8610 or OPA2188 minimizes noise interference and maintains accuracy across temperature variations. Configure the amplifier’s gain between 10x and 100x, depending on the expected fault current range, balancing sensitivity and dynamic range.

Component	Typical Value	Critical Parameter
Coupling Capacitor	0.1µF–1µF	Voltage rating ≥ 1.5× system peak
Differential Amplifier	AD8610/OPA2188	CMRR ≥ 90 dB
Isolation Barrier	ADuM3190	5 kV RMS isolation
Reference Resistor	10 kΩ–100 kΩ	Tolerance ≤ 0.1%

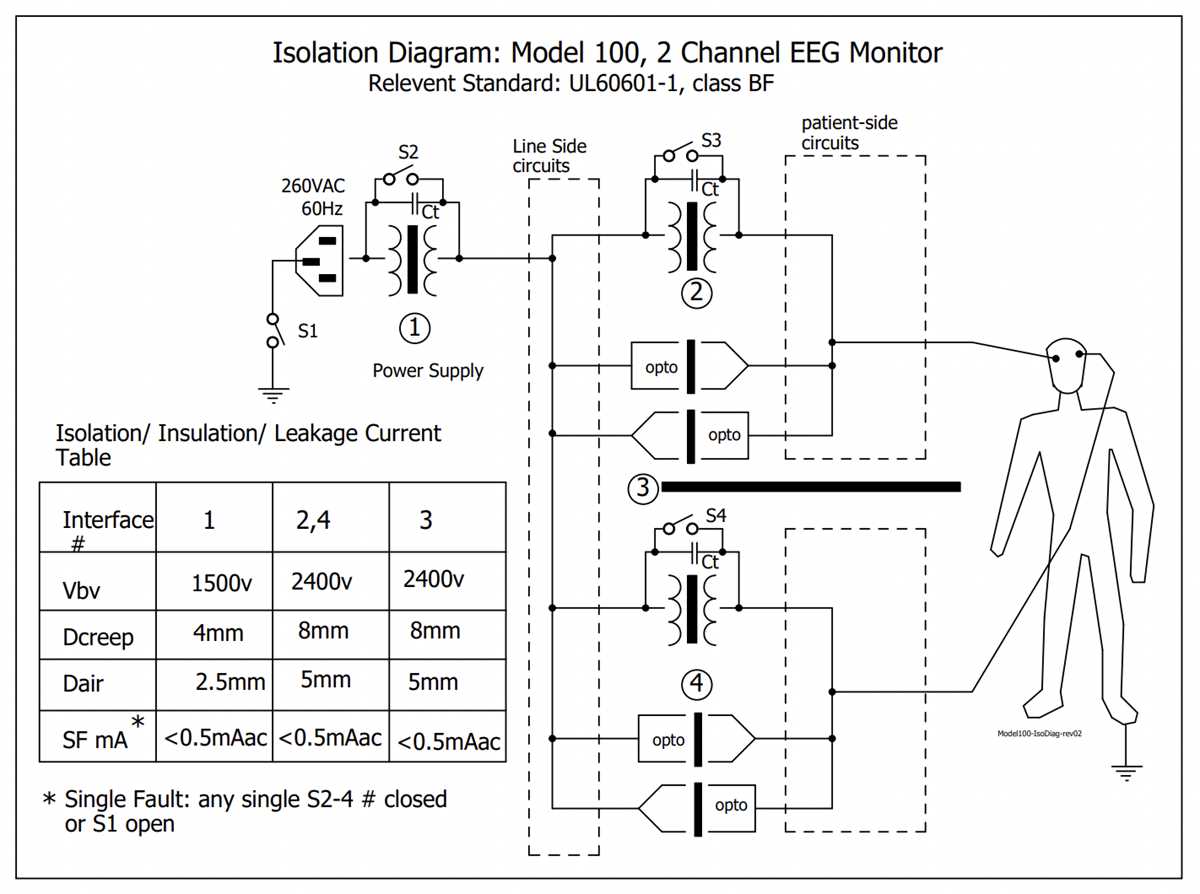

An isolation barrier is mandatory to separate high-voltage sections from low-voltage control logic. Digital isolators such as the ADuM3190 provide 5 kV RMS isolation with minimal propagation delay, ensuring safety without compromising response time. For analog systems, opt for reinforced insulation relays or transformers with a creepage distance exceeding 8 mm to comply with IEC 60664 standards.

Reference resistors should have tolerance ≤ 0.1% to maintain measurement accuracy. Use metal film resistors rated for pulse loads if transient currents are expected. For systems with varying loads, implement a calibration loop with a 12-bit ADC or better to compensate for resistor drift over time. Avoid wirewound resistors in high-frequency setups due to their inductive properties.

Implement a dual-threshold comparator for fault detection to distinguish between minor deviations and critical failures. A hysteresis of 5–10% prevents false toggling from noise, while adjustable thresholds allow customization for different system tolerances. Output the comparator signal to an optocoupler or solid-state relay to drive higher-power warning indicators or shutdown circuits.

Step-by-Step Assembly of the Measurement Bridge

Begin with precision resistors rated at 0.1% tolerance or better to ensure balanced impedance in the Wheatstone configuration. Select components with a temperature coefficient below 10 ppm/°C to minimize drift during operation. Place R1 and R2 on the upper arms, ensuring their resistance values match within 0.05% of each other, while R3 and Rx (the sensor element) form the lower arms. Secure connections using silver-plated or gold-plated terminals to reduce contact resistance below 1 mΩ.

Verify the excitation source delivers a stable DC voltage between 5V and 12V, calibrated to ±0.01% stability over a 24-hour period. Use a low-noise linear regulator or a precision voltage reference IC–avoid switching supplies due to ripple interference. Apply the voltage across the bridge’s input terminals through a current-limiting resistor (e.g., 10 kΩ) to protect the circuit from transient surges. Measure the output at the midpoint with a high-impedance differential amplifier (input impedance >10 GΩ) to prevent loading errors.

Shield sensitive traces with grounded copper pours to suppress electromagnetic interference, keeping them at least 3 mm apart from high-current paths. For signal integrity, route differential output lines as a twisted pair with a pitch of 1 mm per twist. Ground the bridge’s common reference point to the system’s analog ground plane via a star topology, avoiding shared return paths with digital or power components. Test continuity with a 4-wire Kelvin measurement to confirm resistance deviations stay within ±0.02% of the nominal value.

Calibrate the assembly by replacing Rx with a decade resistance box, adjusting until the output voltage nulls at 0V ±10 µV. Document zero-point drift over temperature by cycling the setup from -10°C to 50°C in 5°C increments, using a thermostatically controlled chamber. Record deviations and apply polynomial correction coefficients if non-linearity exceeds 0.1% of full scale. Finalize the enclosure with EMI-absorbing gaskets and a Faraday cage if operating in high-noise environments, ensuring RF attenuation exceeds 60 dB from 1 MHz to 1 GHz.

Voltage Reference and Detection Threshold Configuration

Set the reference voltage at 2.5V ±50mV for stable fault identification in high-impedance networks, using a low-drift bandgap regulator like the Texas Instruments LM4040.

Configure detection levels with precision resistors to create a 3:1 ratio between alert (75% of reference) and critical (50% of reference) thresholds. Example values for a 2.5V reference:

• Alert: 1.875V (75kΩ + 25kΩ divider)
• Critical: 1.25V (100kΩ + 100kΩ divider)

Account for temperature drift by selecting resistors with ±50ppm/°C tolerance or better. For applications above 60°C, replace fixed resistors with temperature-compensated networks using NTC thermistors.

Implement hysteresis of 100–200mV between activation and deactivation points to prevent noisy toggling near boundaries. A simple comparator circuit with positive feedback achieves this:

1. Calculate feedback resistor as R_hyst = (R_input × V_ref) / V_hyst
2. Example: For R_input = 100kΩ, V_ref = 2.5V, V_hyst = 0.1V → R_hyst ≈ 2.5MΩ

Validate thresholds through transient testing with simulated leakage paths ranging from 10kΩ to 1MΩ. Use an adjustable load bank to confirm:

• Consistent trigger points within ±2% of calculated values
• No false triggers during 5ms rise/fall time pulses

Isolated vs Non-Isolated Configurations

Optocouplers like Vishay SFH6345 introduce 2–3μs propagation delay; compensate with faster comparators (e.g., MAX961) or digital debounce (5ms minimum). For non-isolated designs, ensure galvanic separation via differential sensing with isolated amplifiers (Analog Devices AD215).

Power Supply Considerations

Avoid exceeding 60% of the reference regulator’s load capacity. For LM4040 (20mA max), keep total current below 12mA. When sharing reference across multiple comparators:

• Buffer reference output with unity-gain op-amp (MCP6002) to prevent loading effects
• Add 4.7μF tantalum capacitor at reference output for noise reduction
• Route reference trace separate from switching components (minimum 3mm clearance)
