How to Create and Understand Internet Cable Connection Schematics

Start with Cat6 or higher cabling for backbone segments–this ensures 1 Gbps throughput over distances up to 100 meters without signal degradation. Use shielded twisted pair (STP) where electromagnetic interference is present, such as industrial environments or near heavy machinery. For residential setups, unshielded twisted pair (UTP) suffices if routing avoids power lines and fluorescent lighting.

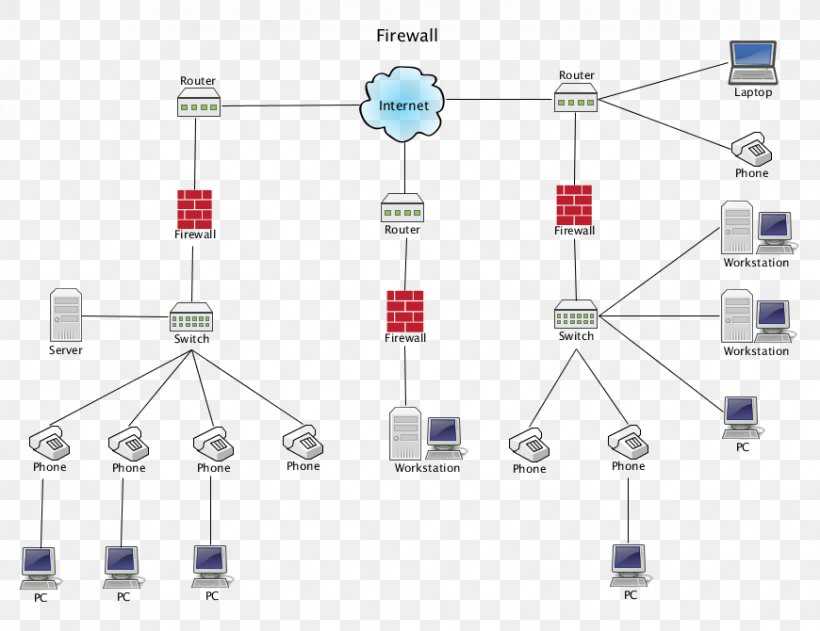

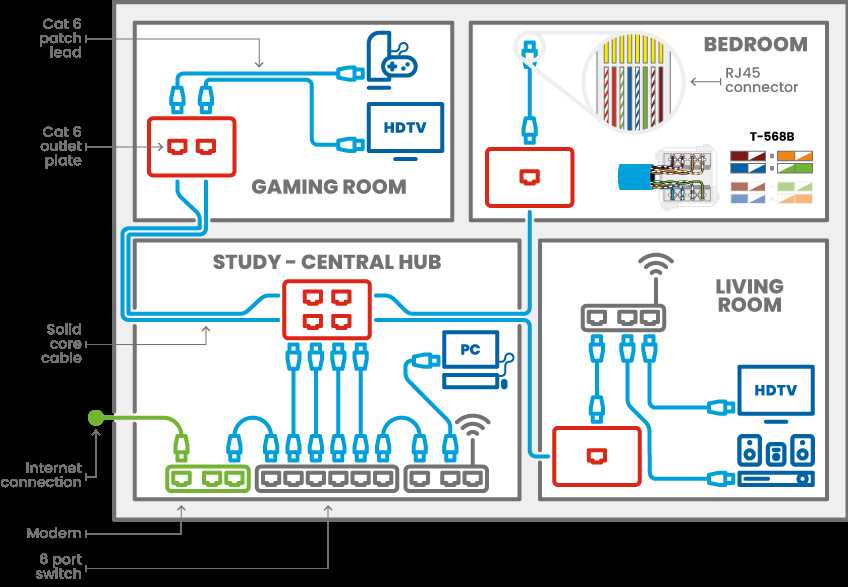

Position the router at the geometric center of the layout to minimize cable runs and latency. If coverage spans multiple floors, install Gigabit switches on each level to act as hubs rather than daisy-chaining devices. Label every cable at both ends–use color-coded tags (e.g., blue for workstations, red for servers) to simplify troubleshooting. Avoid sharp bends in cables; maintain a minimum radius of 4x the cable diameter to prevent signal loss.

For PoE (Power over Ethernet) devices like IP cameras or Wi-Fi access points, verify IEEE 802.3at/af compliance. A 30W PoE injector supports most endpoints, but 60W+ injectors are required for high-power devices like pan-tilt-zoom cameras. Test each link with a fluke tester before finalizing connections–check for crosstalk, attenuation, and correct pinouts (T568A or T568B, but never mix them).

Patch panels should have 20% spare ports to accommodate future expansions. Use fiber optic cables for links exceeding 100 meters or where electrical isolation is critical. Single-mode fiber supports 10 km+ ranges with minimal loss, while multi-mode is sufficient for short-distance backbone connections (up to 500 meters). Ground all racks and enclosures to a dedicated earth point–this prevents static buildup and equipment damage.

Document every component: port assignments, IP schemes, and VLAN configurations. Store this in two physical locations (e.g., local server and encrypted cloud backup). During outages, isolate faults by checking physical connections first–loose plugs, damaged cables, and misconfigured ports account for 70% of failures. Replace any cable with visible wear immediately; temporary fixes (like electrical tape) degrade performance over time.

Practical Steps for Structured Network Layouts

Begin with a cable management plan that accounts for port density. For a 24-port switch, reserve ports 1–4 for critical uplinks, 5–12 for workstations, and 13–24 for peripherals like printers or access points. Use Cat6 for runs under 55 meters and Cat6a for distances up to 100 meters to maintain 10 Gbps throughput. Label both ends of each cable with a unique identifier (e.g., “R1-P05” for Rack 1, Port 5) and document in a spreadsheet with columns: Port Number, Device Type, MAC Address, and VLAN ID.

Common Pitfalls and Mitigation

Issue	Symptom	Solution
Near-end crosstalk	Packet loss at gigabit speeds	Replace solid-core cables with shielded twisted pair (STP) for runs over 80 meters
Incorrect termination	LED fails to light on port	Verify T568B wiring standard: white-orange (1), orange (2), white-green (3), blue (4), white-blue (5), green (6), white-brown (7), brown (8)
Patch panel overload	Bent pins in keystone jacks	Use 1U panels per 24 ports and leave 20% spare capacity for future expansion

For PoE devices, calculate power budgets before deployment. A standard 24-port PoE switch delivers 30W per port (IEEE 802.3af). If four security cameras require 15W each, total draw is 60W–leaving 380W for other devices. Use a spreadsheet to track: Device Name (e.g., “Front Lobby Camera”), Power Requirement (watts), and Port Assignment. Test all connections with a cable certifier; acceptable signal-to-noise ratio for Cat6a is ≥25 dB at 500 MHz.

Selecting Optimal Cables for Residential Network Infrastructure

For Gigabit speeds, use Cat 6 cables–rated for 250 MHz, they handle up to 10 Gbps over short distances (

Shielded twisted pair (STP) cables outperform unshielded (UTP) in high-noise environments–ideal near power lines or fluorescent lighting. F/UTP (foil overall) offers balanced protection at lower cost than S/FTP (braided + foil). Ensure connectors match shielding type; mismatches create grounding issues. Outdoor installations require direct burial-rated cables (CMX or gel-filled) to resist moisture and UV damage.

Key Specifications by Cable Category

Cat 6: Cost-effective for most homes–1 Gbps reliably, 10 Gbps under 55m. Cat 6a: Supports 10 Gbps full length (100m), better alien crosstalk resistance. Cat 7: Overkill for residential use; requires proprietary connectors (not RJ45) and targets enterprise networks. Cat 5e: Only suitable for legacy 100 Mbps setups; replacement recommended within 3 years.

Plenum-rated cables (CMP) mandatory for installations in air-handling spaces–fire code compliance outweighs higher cost. Riser-rated (CMR) suffices for walls; avoid general-purpose (CM) for risers. Verify local regulations; some jurisdictions prohibit CM cables between floors. Patch cables should mirror solid-core wiring–mismatched pairs (stranded vs. solid) cause attenuation.

For PoE (Power over Ethernet) applications, use Cat 6 or higher–thicker conductors dissipate heat better than Cat 5e. Maximum power loads: 25.5W (Type 2), 71W (Type 4). Solid-core cables preferred; stranded variants risk overheating under sustained loads. Test cable resistance with a multimeter; exceeds 12.5 ohms/100m indicate poor quality.

Installation Best Practices

Pull cables at ≤25 lbs tension to prevent stretching; use fish tape for tight turns. Bend radius: minimum 4× outer diameter (≈1 inch for Cat 6). Leave slack (1–2 feet) at termination points; avoid stress on connectors. Label both ends immediately–color-coding saves troubleshooting time later. Use keystone jacks with 50-micron gold plating for corrosion resistance.

VoIP and video streaming prioritize low latency–choose cables with ≤50 ns delay skew. HDMI-over-Ethernet extenders require Cat 6 or better; signal degradation begins at 50 meters on Cat 5e. For fiber-to-the-home, single-mode OS2 cables support 10+ km; multimode OM3/OM4 handles 1–2 km. Test links with a cable certifier; “pass” on a basic tester doesn’t guarantee bandwidth compliance.

Step-by-Step Ethernet Cable Setup for Modem to Router Link

Use a Cat 5e or higher twisted-pair cable for this connection–shorter runs (under 50 meters) tolerate Cat 5, but Cat 6 or 6a ensures future compatibility with gigabit speeds and minimizes interference on longer distances.

Power down both the modem and router before attaching any cables to avoid potential electrostatic discharge or hardware damage. Leave devices off for at least 30 seconds to ensure full reset.

Required Tools and Materials

• RJ45 crimping tool (if creating custom-length cables)
• Wire cutters/strippers
• Pre-terminated Ethernet patch cable (recommended) or bulk cable + connectors
• T568B standard color-code reference (ANSI/TIA-568-C.2)
• Cable tester (optional but advised for verification)

Connect one end of the cable to the modem’s Ethernet port–typically labeled “Ethernet,” “10/100/1000,” or “LAN.” Push until the connector clicks securely. Route the cable away from power lines, fluorescent lights, or other sources of electromagnetic interference to prevent signal degradation.

Attach the opposite end to the router’s WAN/uplink port (often distinct by color, label, or location–consult the device manual if uncertain). Avoid using LAN ports for this link, as it disrupts network segmentation and DHCP assignment.

Post-Connection Verification

1. Power on the modem first, wait 60 seconds for full initialization and ISP handshake.
2. Power on the router, observe LED indicators (typically flashing then steady) to confirm link establishment.
3. Access the router’s admin interface via a browser (default gateway IP, e.g., 192.168.1.1) to verify WAN IP acquisition from the modem.
4. Check for DNS resolution using ping 8.8.8.8 from a connected device–if successful, the setup is operational.

For environments with persistent speed issues, test cable integrity with a dedicated tester. Replace cables exhibiting packet loss, excessive crosstalk, or impedance mismatches. Avoid coiling excess cable tightly, as this increases signal reflection–store slack in loose loops no smaller than 10 cm in diameter.

If Gigabit speeds are required, confirm both endpoints support auto-negotiation (most modern devices do) and that the cable length does not exceed 100 meters. For PoE applications, use Cat 6 or higher to prevent voltage drop and ensure consistent power delivery.

Structuring Connection Points and Hardware Across Multi-Zone Layouts

Label each outlet with alphanumeric identifiers matching zones: A1, B3, etc., and align them to wall plates before running cables. Assign a separate color to each zone–red for workspace, blue for living areas, green for storage–and mark corresponding patch panel ports. Maintain a 1:1 ratio between outlet IDs, switch ports, and patch panel labels to eliminate mapping errors during troubleshooting.

Use segment-based naming conventions for hardware: SW-LIV-24P (switch in living room, 24 ports), AP-STR-AC (access point in storage, dual-band). Record MAC addresses, port speeds (1G/2.5G/10G), and power requirements (PoE/PoE+). Store this data in a spreadsheet with columns: Device ID, Model, Port Allocation, VLAN, Bandwidth Needs.

• Central equipment room: position all switches, routers, and fiber terminators within 3 meters of each other to minimize latency from patch cable lengths.
• Edge zones: place wall jacks at 120cm from floor for desks, 30cm for TV/media setups, avoiding drywall studs.
• Outdoor areas: seal connection points with gel-filled enclosures rated for IP68 and use direct burial cable (CMX) for underground runs.

Trace cable routes on a scaled floor plan (1:50 ratio) with solid lines for copper, dashed for fiber, and arrows indicating direction of signal flow. Note conduit sizes, bend radii (minimum 4x cable diameter), and pull box locations (1 per 30m). Include a legend: Cat6 = orange, Cat6a = purple, OM4 = blue, Power = red.

Test every link post-installation with Fluke DSX-8000 for insertion loss, return loss, and crosstalk. Document pass/fail thresholds: -12dB for return loss, 57dB for NEXT at 100MHz. Save autotest reports as [OutletID]_[Date].pdf. For fiber, verify OTDR traces with 0.3dB/km attenuation benchmark.

Deploy VLANs by function–not location–to simplify reconfiguration. Example groupings: VLAN 10 (VoIP phones), VLAN 20 (workstations), VLAN 30 (IoT devices). Use color-coded patch cords at the switch (orange for LAN, green for VoIP) and configure port isolation on untrusted IoT VLANs to block east-west traffic. Update labels whenever hardware is relocated or repurposed.
