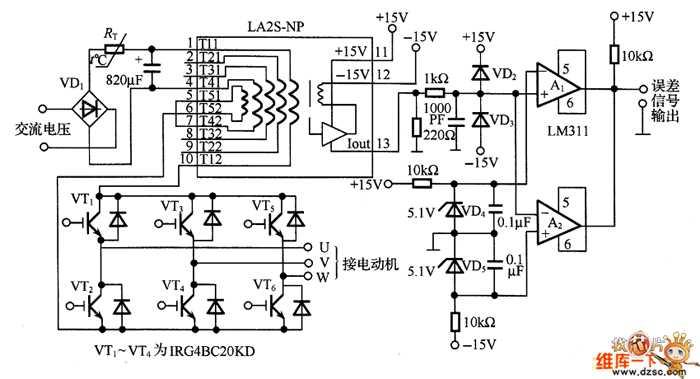

Practical Inverter Overload Protection Circuit Design and Implementation

Start with a current-sensing resistor rated for at least 1.5× the continuous operating wattage. Place it directly in series with the DC input line, ensuring minimal trace impedance and thermal dissipation. Select a resistor value that generates 75–150 mV drop at nominal load; this provides measurable headroom for trigger thresholds while avoiding excessive power loss. For a 2 kW converter running on 48 VDC, a 0.005 Ω shunt satisfies these requirements.

Next, amplify the sensed voltage using a precision differential amplifier–an AD8221 or equivalent–configured with a fixed gain of 20. This scales the millivolt signal into a 1.5–3 V range compatible with most logic circuits while maintaining immunity to common-mode noise inherent in high-current switching environments. Mount the amplifier within 3 cm of the shunt resistor to prevent EMI coupling into the high-impedance traces.

Feed the amplified signal into a Schmitt-trigger comparator, such as the LM393, set to trip at 2.7 V. This threshold corresponds to ~130% of nominal load, striking a balance between nuisance trips and delayed response. Add a 10 µs RC filter at the comparator input to suppress high-frequency transients from PWM edges, which can falsely trigger safety shutdowns. Route the comparator output to a MOSFET gate driver, which isolates and buffers the signal for driving a 20 A N-channel device like the IRF3205.

Integrate a soft-start capacitor across the comparator’s reference pin, sized to ramp the trip threshold over 50 ms. This prevents false triggers during converter startup when inrush currents can transiently exceed steady-state limits. For auxiliary outputs, cascade a second comparator stage with a 2.4 V trip threshold–this engages at 115% load, activating fan cooling or PWM throttling before full shutdown occurs.

Install a manual reset switch wired to bypass the comparator delay circuit for 100 ms on closure. This feature allows immediate re-engagement of the converter after an overload is cleared, avoiding prolonged downtime. Connect a 1N4148 diode across the MOSFET gate to prevent voltage spikes above 15 V, which can damage the gate oxide. Finally, validate all thresholds under actual loading conditions using an adjustable power supply and oscilloscope–adjust the 2.7 V trip threshold up or down in 50 mV increments to match observed transient behavior.

Designing a Robust Current-Limiting Safety Mechanism

Start by integrating a bi-directional power MOSFET (e.g., IRF540N) in series with the DC bus, paired with a shunt resistor (0.01–0.05Ω, 5W minimum) to monitor real-time current draw. Configure a comparator IC (LM393 or OPA333) to trigger when the voltage across the shunt exceeds 75mV–this threshold translates to a precise current limit tailored to your system’s nominal load. Add a feedback loop with a 10kΩ resistor and 100nF capacitor to the comparator’s output to prevent false tripping from transient spikes, ensuring a stable cutoff delay of 50–100μs.

Key Component Selection Criteria

• MOSFET: Choose a device with R_DS(on) ≤ 0.05Ω and V_GS(th) below 4V to minimize conduction losses while allowing low-voltage logic control (e.g., from a microcontroller).
• Shunt Resistor: Use a manganin or constantan alloy for temperature stability; wirewound types introduce inductance and should be avoided unless shielded.
• Comparator Hysteresis: Implement a 100kΩ pull-up resistor to the positive rail and a 1MΩ feedback resistor between output and non-inverting input to create a 5–10% hysteresis, preventing chatter near the trip point.
• Gate Driver: Isolate the MOSFET gate from the comparator output with a totem-pole driver (e.g., TC4427) or optocoupler (PC817) if noise immunity is critical, especially in high-frequency switching applications.

Thermal management is non-negotiable: mount the MOSFET on a heatsink with R_θJA ≤ 5°C/W if continuous currents exceed 5A. For rapid fault detection, bypass the comparator with a thyristor or SCR (MCR100-6) in parallel with the shunt–this latches the system off until manually reset, protecting against sustained overcurrent even if the comparator fails. Test the setup with a programmable electronic load (e.g., Chroma 6310A), stepping the current gradually to verify the response time aligns with your design’s 1ms fault clearance requirement. Document the exact trip current by logging the shunt voltage with an oscilloscope to confirm consistency across temperature ranges (-40°C to +85°C).

Critical Elements for Safeguarding Power Conversion Systems

Start with a high-speed semiconductor switch–preferably a MOSFET or IGBT rated 20-30% above the maximum operational current. Choose devices with low R_DS(on) values under 10 mΩ for minimal conduction losses during normal operation. Pair them with ultrafast recovery diodes (trr

Current sensing should employ a shunt resistor (

Thermal and Reactance Considerations

Thermal cutoffs demand a dual-pronged approach: attach a negative temperature coefficient (NTC) thermistor (10kΩ @ 25°C) near power semiconductors, and implement a software hysteresis loop (e.g., 80°C trip, 60°C reset). For parallel devices, derate each by 15% to account for thermal imbalance. DC link capacitors must use film or electrolytic types with ripple current ratings exceeding 1.5x the RMS input current; place them within 2 cm of switching nodes to minimize stray inductance.

Input/output filtering requires differential and common-mode chokes. For differential noise, use toroidal inductors with cores sized for 1 kΩ at 1 MHz. Ground the filter chassis through a star point to the DC bus negative terminal, avoiding loops that could couple noise into control circuitry.

Snubber networks across switching devices limit voltage spikes from parasitic inductance. Use an RCD snubber with resistor values calculated as R = V_peak/I_leakage (typical 10-100 Ω), and a capacitor sized via C = L_stray·I_pk²/ΔV² (ΔV ≈ 50V). For IGBTs, prioritize turn-off snubbers to reduce tail-current losses. Test snubber effectiveness with a double-pulse setup at worst-case conditions (max current, min input voltage).

Fault handling logic must prioritize hardware interrupts over software polling. Use a dedicated comparator (e.g., LM393) to monitor sensed current, triggering a latch circuit that immediately disables gate drivers. For microcontroller-based systems, configure the watchdog timer to reset the device if main control loops stall. Store fault codes in non-volatile memory (EEPROM/flash) with timestamps, and design recovery sequences to ramp outputs gradually post-fault (slope ~10% rated power per ms) to prevent inrush currents.

Step-by-Step Wiring Guide for Current Sensing Configurations

Begin by selecting a precision shunt resistor rated for at least 1.5 times the expected peak load. A 0.01Ω resistor with a 5W power rating suits most 10A applications, ensuring minimal voltage drop while maintaining thermal stability. Mount it directly on a copper pour or heatsink for dissipation–avoid PCB traces thinner than 2mm to prevent localized heating.

Connect the sensing leads to the resistor’s terminals using twisted 22AWG pair wires, reducing electromagnetic interference. Keep the loop area under 5mm² to minimize noise pickup. Use shielded cables if the layout exceeds 10cm, grounding the shield at the measurement reference point only to avoid ground loops.

Choose an operational amplifier with a common-mode voltage range exceeding the system’s supply rail. The LT1007 or AD8675 provides sub-microvolt input offset drift, critical for low-current readings. Configure the op-amp in a non-inverting topology with a gain of 100, balancing signal amplification and bandwidth–target a closed-loop bandwidth of at least 100kHz for dynamic loads.

Decouple the op-amp’s power pins with 0.1µF ceramic capacitors placed within 2mm of the IC. Add a 10µF tantalum capacitor in parallel for low-frequency stability. Route the feedback and input resistors–0.1% tolerance metal film–away from switching nodes to prevent coupling.

For digital conversion, select an ADC with at least 12-bit resolution and a sampling rate double the highest expected transient frequency. The ADS1115 offers programmable gain and 15-bit resolution, suitable for sensing ranges from microamps to tens of amperes. Connect the op-amp’s output to the ADC via a 100Ω series resistor to dampen ringing, using a 1nF capacitor to ground if overshoot exceeds 5%.

Calibrate the configuration using a precision current source. Apply a known 1A load and adjust the gain resistor until the ADC reads 100 counts per ampere. Verify linearity by sweeping the current from 100mA to 10A in 1A increments–deviation should not exceed 0.5% across the range.

Isolate the sensing path from high-current paths using guard traces on the PCB. Route the signal traces over a solid ground plane, avoiding slots or splits that can act as antennas. If galvanic isolation is required, use an AMC1301 isolated amplifier with a 1mm creepage distance for 1kV safety compliance.

Test the setup under pulsed loads by applying a 0–10A square wave at 1kHz. Measure the output settling time–it should remain under 10µs for a 1% accuracy. If ringing occurs, increase the decoupling capacitor to 2.2nF or reduce the feedback resistor’s value by 20%. Document the final configuration, including component values, trace lengths, and calibration offsets, for repeatable deployments.

Selecting Optimal Fuse Ratings for Excess Current Events

Start with a fuse rated at 125–150% of the continuous current draw under typical operating conditions. For a system pulling 10 A, use a 12.5–15 A fuse. Fast-acting ceramic fuses respond within milliseconds, making them suitable for sensitive electronics, while slow-blow variants tolerate brief surges up to 200% of rated current for 1–5 seconds without nuisance tripping.

Measure transient spikes during startup or load changes. If peak currents reach 20 A for 200 ms, a 16 A fast-blow fuse prevents premature failure. For inductive loads, increase the rating by 30% to compensate for inrush currents–e.g., a 10 A load with 25 A spikes requires a 16–20 A slow-blow fuse. Always cross-reference the fuse’s I²t rating with the device’s surge tolerance.

Ambient temperature affects fuse performance. A 25°C-rated fuse in a 50°C environment may trip at 80% of its nominal value. Derate by 0.5% per °C above 25°C. For high-altitude applications, reduce the rating by 0.7% per 100 meters above 1,000 m to account for reduced air cooling. Use manufacturer derating curves for precise adjustments.

• Fast-acting vs. time-delay: Fast-acting fuses (e.g., 5×20 mm) clear faults in <10 ms, ideal for semiconductors. Time-delay fuses (e.g., 3AB) handle 500% overloads for 100 ms, suited for motors or transformers.
• Fuse type selection:
  1. Glass (low current, general purpose, <10 A).
  2. Ceramic (high breaking capacity, up to 100 kA).
  3. Resettable PTC (self-recovery, <1 A).
  4. Semiconductor-specific (ultra-fast, <300 µs).
• Voltage rating: Never use a fuse with a voltage rating below the system’s maximum. A 600 VDC fuse in a 480 VAC system lacks arc suppression under fault conditions.

Test fuse coordination with downstream devices. If a 5 A fuse protects a branch circuit, ensure upstream fuses (e.g., 15 A) have a 2:1 selective ratio to prevent cascading failures. For MOSFET-based designs, verify the fuse’s melting I²t is below the transistor’s pulse rating–e.g., a 30 A²s fuse with a 50 A²s MOSFET.

For pulsed loads, calculate RMS current rather than peak values. A 1 A load with 10 ms pulses at 100 Hz and 50% duty cycle has an RMS current of 0.707 A–use a 1 A fuse. Ignoring RMS leads to nuisance tripping or insufficient guarding.

Common Pitfalls to Avoid

Misapplying fuse classes wastes resources:

• Class gG: General purpose, 1.6× rated current for 1 h. Overkill for DC microcircuits.
• Class aR: Semiconductor-specific, <5 ms response. Avoid for AC inductive loads.
• Class gPV: Designed for photovoltaics, 1.3× rated current for 1 h. Not suitable for 50/60 Hz systems.

Always match the fuse class to the application. A gG fuse in a PV system will fail prematurely due to low trip thresholds.

Field validation is critical. Install a current logger for 24–48 hours under real-world conditions. If the logger shows 8 A steady-state with 15 A spikes, select a 10 A fast-blow fuse with a 20 A breaking capacity. Document the fuse model, lot number, and test conditions for traceability. Replace fuses after a single trip event–even if they appear intact–as internal damage may not be visible.
