Step-by-Step IR Thermometer Circuit Design and Schematic Guide

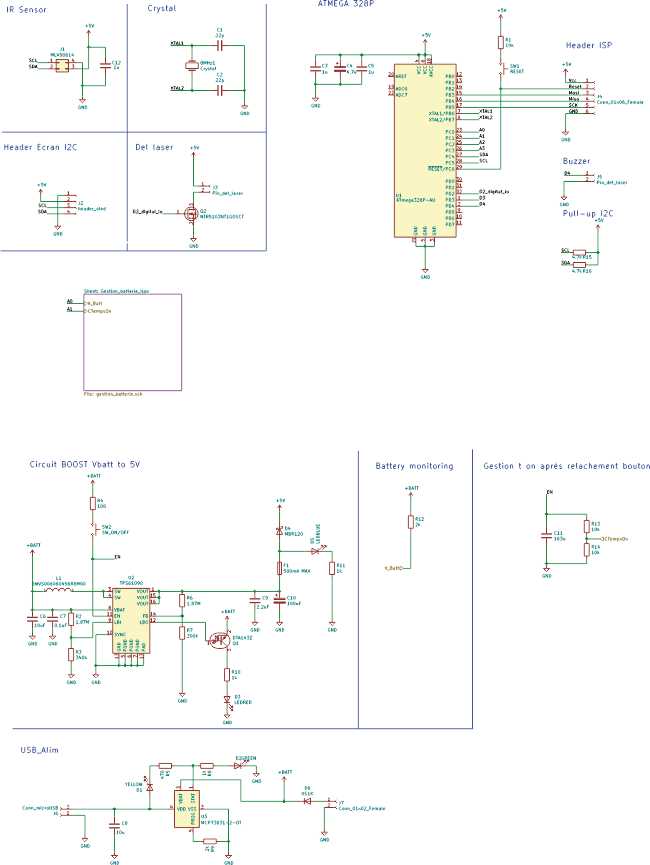

Start with the MLX90614–a non-contact sensor module that measures radiated infrared energy from surfaces. Pair it with an ATmega328P microcontroller for processing, or opt for an ESP8266 if wireless data transmission is required. The sensor’s standard output voltage swings between 0–3.3V, so ensure your microcontroller’s ADC can handle this range without clipping.
For power, use a 3.3V linear regulator like the AP2112 or AMS1117 to stabilize input from a LiPo battery or USB. Bypass capacitors (0.1µF ceramic + 10µF tantalum) on both input and output of the regulator prevent voltage spikes from corrupting readings. The MLX90614 draws 2mA during active measurement–design the power delivery network to handle transient loads without droop.
Signal conditioning requires a precise voltage divider if the sensor’s output exceeds the microcontroller’s ADC range. Resistors R1=10kΩ and R2=20kΩ will scale the voltage down to 67% of the original signal. Add a 10nF capacitor between the sensor’s analog output and ground to filter high-frequency noise, critical for readings below 0.5°C resolution.
Communication with the MLX90614 relies on I²C. Keep pull-up resistors on SDA/SCL lines at 4.7kΩ–value can drop to 2.2kΩ if trace lengths exceed 10cm. Clock speeds above 100kHz may introduce errors; limit to 50kHz if long wires or multiple devices are present on the bus.
For display, use a basic 16×2 LCD or an SSD1306 OLED. The OLED requires peak current–power it through a P-channel MOSFET (e.g., IRF9540N) if the microcontroller’s GPIO can’t supply sufficient current. Alternatively, log data wirelessly via the ESP8266’s Wi-Fi to a local HTTP server, avoiding screen integration entirely.
Calibration: Offset drift occurs over temperature shifts. Place the sensor in a blackbody cavity (or a boiling water cup) at 100°C and adjust firmware coefficients to match the theoretical Stefan-Boltzmann law output. For lower-cost builds, a DS18B20 contact probe next to the IR sensor provides a reference point–compare readings to gauge accuracy.

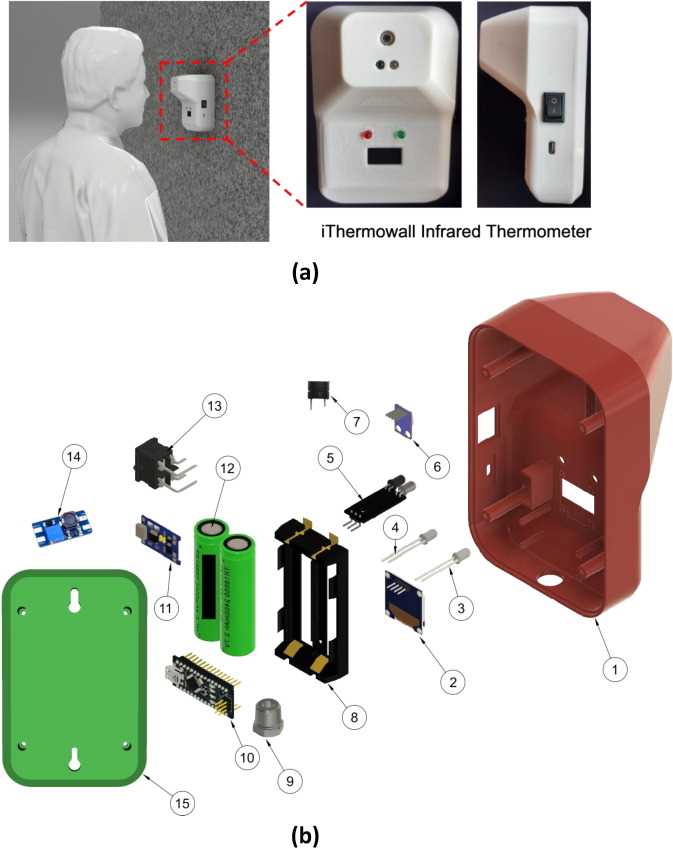

Building a Precision Non-Contact Temperature Sensor: Core Components
Select an MLX90614 infrared sensor module for accurate readings within -70°C to 380°C, ensuring ±0.5°C precision at ambient temperatures. This component outputs raw data via I2C, eliminating complex signal conditioning needs. Pair it with an STM32F103 microcontroller to handle the 10-bit ADC conversion and temperature calculation algorithms–its 72 MHz clock speed ensures real-time processing without latency.
Critical power requirements include:
- 3.3V linear regulator (AP2112K) to maintain stable sensor operation, avoiding voltage fluctuations that distort readings.
- Low-ESR capacitors (10µF ceramic) at the regulator output to suppress high-frequency noise.
- Ferrite bead on the sensor’s supply line to block EMI from nearby switching components.
Skip generic buck converters–linear regulation is mandatory for noise-sensitive applications.
Signal integrity demands proper PCB layout:
- Separate analog and digital ground planes, connecting them only at the sensor’s ground pin to prevent ground loops.
- Keep I2C traces (SCL/SDA) under 10 cm and route them away from clock signals to avoid cross-talk.
- Add 4.7 kΩ pull-up resistors on the I2C lines (not the default 1.5 kΩ) to balance rise time and power consumption.
Omit these steps and risk erratic readings or sensor lock-ups.
For display integration, use an SSD1306 OLED (128×64) with SPI interface–its 12 MHz clock ensures smooth refresh rates. Implement a moving average filter (10-sample window) in firmware to smooth ambient noise without introducing lag. Calibrate the device by measuring a known reference (e.g., boiling water at 100°C) and adjusting the emissivity coefficient (default 0.95) in the MLX90614’s EEPROM via I2C commands.

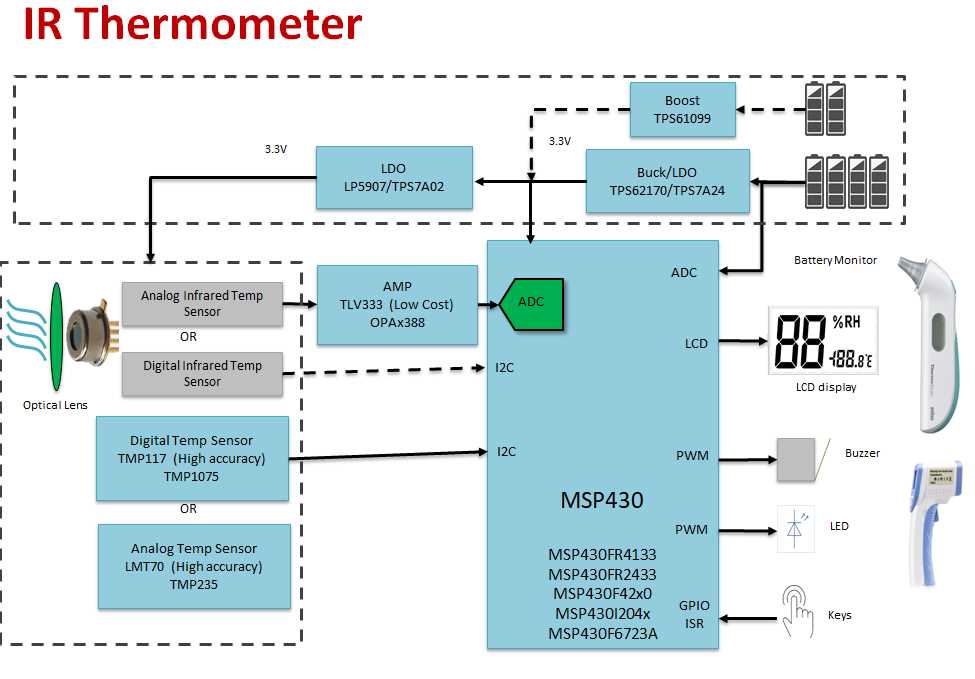

Core Elements for Constructing an Infrared Temperature Sensing Device
Select an infrared sensor with a spectral response tailored to your target temperature range. The Melexis MLX90614 operates between -40°C to 85°C with a 17-bit resolution, making it ideal for medical applications. For industrial use, the Texas Instruments TMP006 covers -40°C to 125°C and integrates signal conditioning circuitry on-chip, reducing external component requirements.
Ensure the analog front-end amplifier has a low input offset voltage. The OPA333 from Texas Instruments offers 25 μV maximum offset and 1.8 μV/°C drift, preserving signal integrity from the sensor’s microvolt-level outputs. For higher gain applications, consider the AD8630, which provides 10 μA supply current while achieving 150 kHz bandwidth–sufficient for filtering 0.1 Hz to 10 Hz sensor noise.
Use a microcontroller with dedicated ADC inputs optimized for low-noise performance. The STM32H7 series includes a 16-bit ADC with 3.6 MSPS sampling, critical for capturing rapid thermal transients. Alternatives like the PIC32MK feature dual ADC modules, allowing simultaneous sampling of ambient and object temperature channels to improve measurement accuracy.
| Component | Model | Key Specification | Typical Application |
|---|---|---|---|
| IR Sensor | MLX90614 | 0.5°C accuracy (typical) | Medical devices |
| Amplifier | OPA333 | 25 μV offset voltage | Precision signal conditioning |
| ADC | ADS1256 (External) | 24-bit, 30 kSPS | Industrial high-resolution readings |
Incorporate a high-precision ADC if the microcontroller’s built-in converter lacks resolution. The ADS1256 provides 24-bit output at 30 kSPS, enabling detection of 0.0078°C changes–a necessity for non-contact surface monitoring. For lower-cost builds, the MCP3421 offers 18-bit resolution in a single-channel configuration, adequate for consumer-grade devices.
Implement optimal power management to minimize thermal drift in sensitive components. Linear regulators like the LT3045 deliver 0.8 μV RMS noise and 0.25% voltage accuracy, preventing measurement errors from supply fluctuations. Switching converters, while efficient, must be filtered; a 10 μF ceramic capacitor on the output of an LM27313 reduces ripple below 10 mVpp to avoid sensor interference.
Choose an emissivity calibration method suited to your target material. Blackbody coatings achieve near-unity emissivity (0.98–0.99) but require controlled environments. For variable surfaces, store reference values in EEPROM; the 24LC256 offers 256 Kb capacity, allowing storage of emissivities for 50+ materials (e.g., skin: 0.98, aluminum: 0.1–0.2).
Verify the optical system’s field of view (FOV) aligns with your application. A 5° FOV sensor like the ZTP-135SR captures narrow targets (e.g., human forehead), while a 90° FOV unit such as the Heimann HMSZ1100 suits broad-area measurements. Use germanium or silicon lenses; a 1.5 mm germanium window transmits 95% of 8–14 μm radiation, critical for long-wave IR sensors.
Design the PCB layout to isolate analog signal paths from digital traces. Keep sensor power lines separate from microcontroller clocks, using a polygonal pour with vias stitching every 5 mm. For clocks faster than 1 MHz, adhere to impedance-matching guidelines: 50 Ω traces for SPI lines, 100 nF decoupling capacitors placed within 1 mm of power pins.
Step-by-Step Wiring of MLX90614 Sensor to Microcontroller
Connect the MLX90614’s VDD pin to a stable 3.3V power supply from your microcontroller’s voltage regulator. Avoid using 5V directly – while the sensor tolerates it, prolonged exposure increases noise and degrades accuracy. For best results, place a 10µF capacitor between VDD and GND as close to the sensor as physically possible to suppress voltage spikes.
Attach the sensor’s SDA and SCL pins to the microcontroller’s corresponding I2C lines. Use pull-up resistors between 4.7kΩ and 10kΩ if they aren’t already integrated on your board. If your controller runs at 5V logic, confirm it supports 3.3V I2C – otherwise, use a logic level converter to prevent bus damage. Check the I2C address with an I2C scanner sketch; MLX90614 defaults to 0x5A but can shift if the AD pin is tied to VDD.
Route the GND pin directly to the microcontroller’s ground plane. Avoid daisy-chaining grounds through other components – do a star topology back to a single ground point to minimize electrical interference. If powering the sensor from a battery, bypass the capacitor with a 0.1µF ceramic capacitor in parallel for high-frequency noise suppression.
Configuring I2C Communication
Initialize the I2C bus at 100kHz standard mode, even though the MLX90614 supports 400kHz fast mode. Slower speeds reduce transmission errors caused by cable length or poor connections. After wiring, run an I2C scanner to confirm device detection; if nothing appears, recheck SDA/SCL connections and pull-up resistor values.
Load a library supporting MLX90614, like Adafruit_MLX90614, or write direct register reads using Wire.h. Read the ambient and object temperature registers (0x06 and 0x07) every 100ms to avoid self-heating the sensor. Never write to EEPROM registers unless necessary; accidental changes can lock the device permanently.
If readings fluctuate, add filtering: take 10 consecutive samples, discard the highest and lowest, then average the middle eight. Shield signal wires with twisted-pair cables if routing near motors, relays, or switching power supplies. For outdoor use or dusty environments, place a thin IR-transparent lens (germanium or silicon) over the sensor’s aperture – regular plastic or glass blocks long-wave infrared.
