Complete Jeep TJ Fuel Pump Wiring Guide with Detailed Diagram
Begin troubleshooting by locating the relay in the under-hood power distribution box–positioned on the driver’s side near the firewall. The relay responsible for the supply circuit is labeled “ASD” (Automatic Shutdown). Pin 85 connects to the engine control module, while pin 86 ties to chassis ground via a 15-amp fuse. Verify continuity between relay pin 30 and the sender unit harness connector; resistance should read below 0.5 ohms.
Disconnect the in-tank module connector before proceeding. Probe terminal B (dark green/orange stripe) with a 12V test light–illumination confirms the ignition feed. Terminal C (white/light blue stripe) carries the sender signal to the instrument cluster; voltage swings between 0.5V at empty and 4.5V at full. A reading outside this range indicates a faulty level sensor or corroded harness plug.
Trace the feed wire (violet with white tracer) from the main harness to the frame rail ground stud. Remove paint or rust beneath the mounting bolt to ensure proper grounding–poor grounding is the leading cause of intermittent failures. Check the inline fuse holder near the rear axle for a 20-amp fuse; replace with an identical rating if blown.
For 1997-2003 models, locate the inertia switch beneath the driver’s seat kick panel. Press the reset button only after confirming no external damage–false activation can occur from vibration. The switch interrupts power during impacts; bypassing it without inspecting the wiring risks fire.
Use a multimeter set to DC voltage to test the output wire (gray/black) at the connector. With the ignition on, measure steady 12V supply–fluctuations suggest a faulty relay or voltage drop across the circuit. If voltage is absent, inspect the harness for chafing near the rear driveshaft support bracket where wires are prone to wear.
TJ Off-Road Vehicle Electrical Flow: Hands-On Manual
Locate the main relay panel under the driver-side dashboard–it houses the power distribution module critical for component activation. Probe pin 87 on the relay socket with a multimeter set to 12V DC; ignition-on should yield a steady reading. If absent, trace the orange wire with red stripe (C105 connector) back to the PCM for continuity checks. Corrosion at this junction mimics system failure, so scrape terminals with a small wire brush before reassessing.
Key harness routes: The primary feed (12-gauge, yellow/light blue) exits the tank sender unit, runs along the frame rail above the rear axle, then merges into the firewall bulkhead connector C3 near the brake master cylinder. Disconnect C3, inspect both sides for pin push-out, and verify crimp integrity on the gray/black wire–this line carries the safety switch signal that grounds when the engine stops. A faulty crimp here creates intermittent operation.
For aftermarket installs, splice the new sender’s red (positive) lead into the factory orange feed at a junction point under the left rear quarter panel. Use a waterproof butt connector rated for 20A minimum; solder and heat-shrink all joins to prevent voltage drop. Route the black (negative) return through a dedicated grounding block mounted to bare chassis metal–avoid sheet metal screws; tap into an existing bolt hole instead.
Relay swap trick: Swap the horn relay with the control module relay temporarily–identical pin layout lets you rule out relay failure in 60 seconds without tools. If the component activates, replace the suspect relay with an OEM-spec unit (Tyco V23111-C1001-X029); cheaper aftermarket relays often lack the suppression diode, causing sporadic drops.
Pressure test before electrical work: attach a gauge to the Schraeder valve on the fuel rail and crank the engine. Below 35 psi indicates either a mechanical failure or a tripped inertia switch–locate the reset button tucked behind the right taillight housing and press firmly until it clicks. No pressure? The module’s fuse block (slot 11, 20A) could be loose; reseat it while monitoring voltage at the green/orange wire (pin 30 on relay).
Diagnosing no-start? Probe the dark green wire at the sender while cycling the key–each cycle should produce a two-second hum from the tank unit. Silence points to an open circuit; follow the wire loom up the transfer case tunnel, checking for chafing against the driveshaft. Secure looms with UV-resistant zip ties spaced every 8 inches to prevent vibration damage.
Final safety check: verify the inertia switch reset state before dropping the tank. Disconnect the battery negative terminal, then reinstall the sender flange gasket–ensure the new seal sits flat to prevent vapor leaks that trigger false codes. Reconnect power, cycle the key five times, and listen for the pump’s characteristic whine; silence here mandates re-checking ground connections at the chassis and sender.
Finding the Power Delivery Switch in a TJ Electrical Layout
The relay controlling the energy supply to the internal combustion delivery unit is housed in the Power Distribution Center (PDC) under the hood. Open the driver-side front compartment cover and locate the black box secured with two clips. Remove the lid by releasing the latches–inside, you’ll find a grid of labeled slots. The relevant module is typically marked “ASD RELAY OUTPUT” or “PWR MOD” in factory service manuals, though aftermarket diagrams may shortcut this to “F/P.”
Refer to this reference table for exact placement across model years:
| Production Year | Relay Position | Label Variations |
|---|---|---|
| 1997–2000 | Slot 6 (upper row, third from left) | ASD RELAY OUTPUT, PWR MOD |
| 2001–2003 | Slot 8 (upper row, fifth from left) | F/P, FUEL SYS RELAY |
| 2004–2006 | Slot 11 (lower row, second from right) | PWR MODULE, AUTO SHUTDOWN |
If labeling is worn or missing, count slots starting from the top-left corner–most replacement guides use a grid system where rows are numbered top to bottom and columns left to right. The correct module is a cube-shaped component roughly 1.5 inches per side, often dark gray or black with four or five prongs. Avoid confusing it with similar-looking relays; the energy supply switch has a distinct resistance rating (standard 85–120 ohms) measurable with a multimeter.
Before testing, ensure battery voltage sits above 12.4V–low charge skews readings. Probe the relay socket’s terminals: terminal 30 (constant 12V), 85 (ground trigger), 86 (ECU signal), and 87 (output to delivery unit). A non-responsive switch will show open circuit between 87 and 30 when energized. Swap with a known-functional module (e.g., horn or A/C relay) to isolate faults–if the issue persists, inspect the wiring harness for corroded connectors, particularly near the frame rail where moisture accumulates.
Common failure points include burned contacts inside the relay or melted plastic from overheating. Signs include intermittent stalling, extended crank times, or no-start conditions. Replace the module if internal resistance exceeds 150 ohms or if contact burn marks are visible under magnification. Use OEM Mopar part #05035344AA or a direct-fit aftermarket equivalent like Bosch 0332014153–avoid universal relays lacking proper amperage ratings (standard 30A).
After installation, clear diagnostic trouble codes with an OBD-II scanner–persistent P0230 or P1682 codes indicate deeper circuit issues. Trace wires back to the ECU connector C2, pin 3 (pink/black stripe), checking for shorts to ground or voltage leaks. Secure all connections with dielectric grease to prevent oxidation, especially in snowy or coastal climates where corrosion accelerates.
Direct Installation Guide for 1997–2006 TJ Electrical Hookups
Begin by locating the OEM relay harness beneath the driver-side dashboard–pin 30 receives constant 12V from the battery via a 20A fuse (F22). Verify power at the relay socket with a multimeter before proceeding; readings below 11.8V indicate a faulty fuse or corroded junction point at the main harness connector (C100).
Route the replacement harness along the factory wire loom, securing it with zip ties at 8-inch intervals to prevent chafing against the transmission tunnel. Connect the gray/black-striped lead (terminal 87) to the sending unit’s positive terminal, ensuring the crimp uses a sealed butt connector rated for 16AWG–soldering risks melting insulation under prolonged load. The brown/white-striped wire (terminal 85) grounds to the chassis at G103, a pre-tapped location 3 inches forward of the transfer case mount. Clean paint from the mounting surface with a wire brush to achieve resistance below 0.2 ohms.
Test the circuit by cycling the ignition to the “run” position without starting the engine–listen for a 2-second activation pulse at the tank assembly. Absence of noise suggests a swapped relay pin (86 to ignition-switched 12V) or an open in the pink/black-striped feed wire, which traces back to the PCM under the passenger kick panel. Probe splice S133 to confirm signal integrity; voltage should rise to 12V for 2 seconds then drop to zero if no crank signal is detected.
Finalize by reinstalling the rear seat cushion and pressure-testing the system at 3 psi–leaks at the tank seal or AN fittings mandate replacement of the O-ring (PN 52108689AA) before road testing. Drive cycles exceeding 15 minutes require rechecking relay temperature; sustained heat above 180°F indicates undersized wiring or a mislocated ground connection.
Diagnosing Voltage Anomalies in the TJ Delivery System Circuit
Start by testing the relay socket with a multimeter. Pin 85 should show 12V when the ignition is on; if not, check the feed wire from the ignition switch or PCM. Pin 86 must ground properly–probe it against chassis ground; resistance above 0.5 ohms means a corroded connection or broken trace in the engine bay fuse box. Swap the relay with a known-good one; if voltage appears at pin 30 but not at 87, replace the relay immediately.
Next, inspect the inertia switch. Pry off the passenger kick panel trim to access it. Press the red reset button firmly while listening for a click–no click means the switch failed and must be bypassed. Use a 16-gauge jumper wire to bridge the two spade terminals; if the circuit now energizes, the switch is defective and should be permanently bypassed or replaced.
Identifying Hidden Corrosion Points

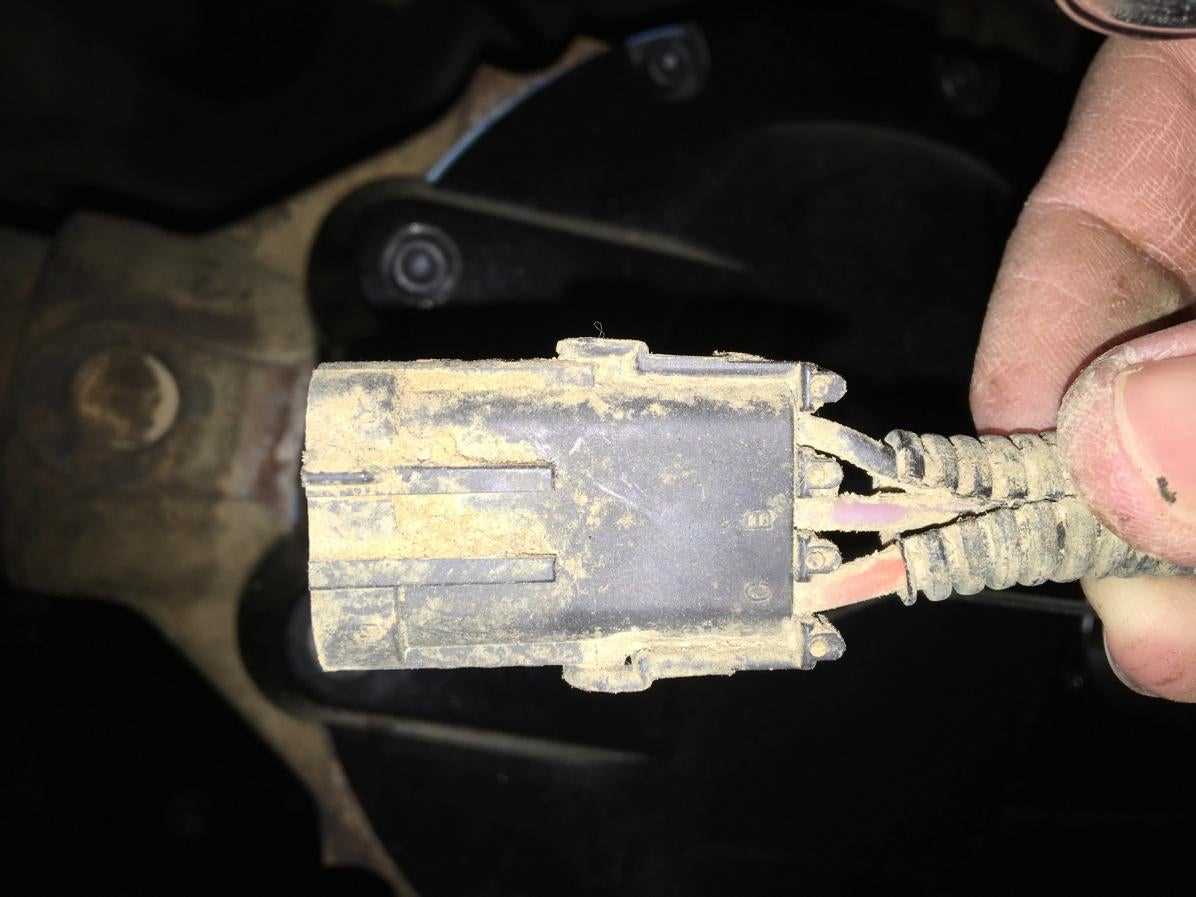

At the tank sender connector, unplug the harness and examine both the male pins and female sockets. Darkened or greenish deposits indicate corrosion–clean them with electrical contact cleaner and a brass brush, then apply dielectric grease. Probe the gray/red wire (sender feed) with the ignition on; voltage below 11.8V suggests a broken conductor inside the main harness conduit between the tank and the frame rail. Slice open the loom at the frame bend behind the rear axle to locate the break.
Under the hood, detach the power distribution center cover. Check the violet/white wire terminal at fuse 16–burnt plastic or melted insulation confirms thermal damage from a loose fuse clip. Replace the entire mini-fuse holder assembly if the plastic is warped. Tighten the fuse clip screws to 3.5 inch-pounds with a torque screwdriver to prevent future overheating.
Quick Voltage Drop Tests Under Load
With the engine off and ignition on, measure voltage drop across the circuit while a second person cranks the starter. Maximum drop between the tank connector and the PCM should not exceed 0.2V on the purple/orange wire. Drops above 0.3V indicate a partial open in the harness–run a parallel 14-gauge wire along the frame rail from the relay socket directly to the tank connector to confirm the fix before splicing it in permanently.
If no voltage reaches the tank connector, back-probe the PCM output at pin C2-57 (purple/orange). Voltage must toggle from 0V to 12V within two seconds of ignition on–absence of toggling points to PCM failure or corrupted programming. Re-flash the PCM with the latest calibration using a J2534 tool; if the issue persists, swap the PCM with a known-good unit before condemning the harness.
