Complete JVC Car Stereo Wiring Guide with Color Codes and Connections

Start by locating the vehicle-specific harness adapter matched to your aftermarket receiver’s pin configuration. Most installation kits include a color-coded map that cross-references original factory plugs with the new unit’s terminals–verify this against your manual before making any splices. Incorrect pairing risks short circuits, especially on high-current outputs like amplified signals or constant power sources rated above 10 amps.

Identify the ground lead first, typically a black or brown wire with a diameter of at least 16 AWG. Secure it directly to the chassis using a self-tapping screw, ensuring bare metal contact free of paint or corrosion. A poor ground will introduce noise, dimming displays, or intermittent power loss. For systems with active crossovers or subwoofer outputs, prioritize shielded cables with twisted pairs to minimize interference from nearby ignition or alternator pulses.

Confirm the memory wire (often yellow or orange) maintains continuous 12V even when the ignition is off. This prevents resetting clock, presets, or equalizer settings. Use a multimeter to test for 12.6V at the wire’s termination–voltages below 11.8V indicate a weak battery or insufficient gauge size. For amplifiers, route the remote turn-on wire (typically blue or blue/white) through a relay if the current exceeds 500mA to avoid overloading the receiver’s internal circuit.

Solder all splices instead of relying on crimp connectors. Apply heat-shrink tubing to insulate joints completely, preventing oxidation or accidental shorts. For fiberglass-filled doors or tight dash spaces, bundle wires with spiral wrap to avoid pinching, which can fracture copper strands over time. Always disconnect the negative battery terminal before handling any connections to prevent accidental shorts or damage to sensitive components like microprocessors.

Connecting Your Car Audio System: A Practical Reference

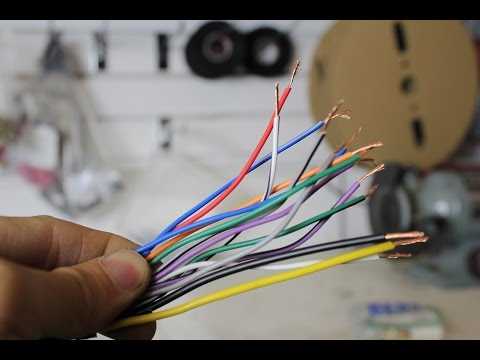

Start by identifying the color-coded leads on your head unit’s harness. Standard schemes include:

• Red – 12V ignition (live when key is turned)
• Yellow – Constant 12V (memory/power)
• Black – Ground
• Blue/White – Remote turn-on for amplifier
• Orange – Illumination dimmer
• Green/Brown – Rear speakers (striped = negative)
• White/Purple – Front speakers (striped = negative)

Use a multimeter to verify voltages before making connections. Probe the red and yellow wires–both should register 12V; if yellow drops below 11V, check battery voltage or fuse. Secure ground by scraping paint off chassis metal; a weak ground causes hum or erratic behavior.

Match the harness to your vehicle’s adapter. Toyota, Honda, and Ford each use proprietary plugs; aftermarket adapters bridge factory and aftermarket pins. For instance:

1. Locate the vehicle-side plug under the dash.
2. Align adapter pins–misalignment risks permanent damage.
3. Splice only if no adapter exists, using solder and heat-shrink tubing.
4. Test each channel with a 1 kHz tone before securing trim panels.

Amplifier integration requires additional steps. Route the blue/white remote lead to the amp’s trigger input; omit this, and the amp won’t power on. For subwoofers:

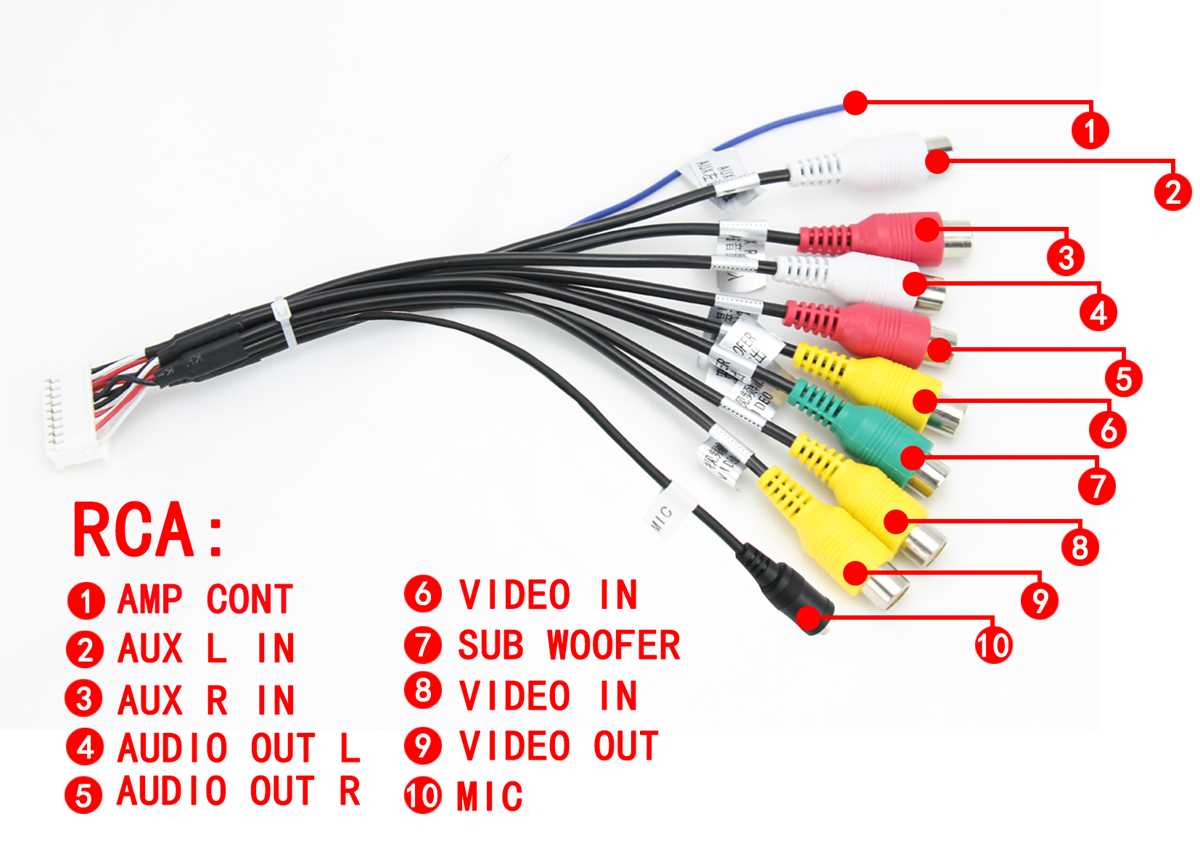

• Use RCA preouts (typically white = front, red = rear, gray = sub).
• Set head unit’s low-pass filter to 80–120 Hz.
• Adjust amp’s gain with an oscilloscope or distortion meter–clipping destroys tweeters.
• Power cables must be 4 AWG for 50W+ RMS; thinner wire overheats.

Parking brake and reverse signal wires (pink/light blue) disable video unless grounded–required by law for safety. Fuse both constant power (yellow) and amp power within 18 inches of the battery; use ANL or mini fuses rated 1.25x max current. After hookup, cycle through menus to restore equalizer presets and clock settings–these reset when battery is disconnected.

How to Pinpoint the Right Connections in Your Aftermarket Audio Head Unit

Locate the factory harness behind the existing radio–most harnesses include a color-coded legend printed directly on the insulation or attached via a small adhesive label. Cross-reference this legend with the replacement stereo’s pinout guide, noting that solid-colored leads typically carry power and grounds, while striped or two-tone cables handle speakers and accessories. Use a digital multimeter set to DC voltage: probe each pin while the ignition is on accessory mode; a steady 12V reading confirms constant power, an intermittent 12V indicates switched power, and ~4-6V suggests illumination circuits. Speaker outputs can be identified by pulsating DC between 0-5V when audio plays.

• Yellow: Constant 12V (battery)
• Red: Switched 12V (ignition)
• Black: Chassis ground
• Orange/white: Illumination dimmer (often +4-6V when headlights on)
• Gray/black: Right front positive (+)
• White/black: Left front positive (+)
• Green/black: Right rear positive (+)
• Purple/black: Left rear positive (+)
• Brown: Mute/parking brake wire (test with brake engaged)

Verify all grounds share continuity–if any auxiliary grounds show resistance above 0.5 ohms, scrape the chassis contact point to bare metal before reattaching. Avoid relying on aftermarket adapter plugs alone; solder joints and heat-shrink tubing ensure longevity against vibration and moisture ingress.

Step-by-Step Connection of Car Stereo to Upgraded Speaker System

Disconnect the vehicle’s negative battery terminal first to prevent short circuits. Locate the factory harness behind the existing head unit–most modern vehicles use color-coded connectors for power, ground, and audio outputs. Match these to the aftermarket harness supplied with the new receiver. Verify the pinout using a multimeter: red typically carries 12V constant, yellow is ignition-switched power, and black serves as chassis ground. Secure connections with solder or crimp connectors, ensuring no bare wires remain exposed to avoid interference or electrical hazards.

Route speaker wires from the receiver’s rear panel to each aftermarket driver. Use 18-16 gauge oxygen-free copper wire for lengths under 16 feet; thicker 14-12 gauge reduces voltage drop over longer runs. Avoid running wires parallel to power cables to minimize noise. Connect tweeters via crossover networks or directly if the speakers include built-in filters. Observe polarity: white (positive) and white/black (negative) for front channels, gray and gray/black for rear. Confirm impedance ratings match the receiver’s output–most car stereos drive 4-8 ohms safely.

Install an inline fuse (10-20A) within 18 inches of the battery on the positive lead if not pre-installed in the harness. Ground the receiver’s black wire to a bare metal surface free of paint or corrosion; sand the area lightly for better conductivity. For amplified systems, integrate a line output converter if the vehicle retains factory amplifiers–set the converter’s input voltage to match the factory signal level (e.g., 2V, 4V, or 8V). Test connections with a 9V battery before finalizing: tap positive to speaker wires–clicks indicate correct polarity.

Component	Wire Color (Factory)	Wire Color (Aftermarket)	Function
Power (Constant)	Red	Yellow	Memory retention
Ignition	Yellow/Red	Red	Switched power
Ground	Black	Black	Chassis reference
Front Left (+)	White	White	Audio signal
Front Left (-)	White/Black	White/Black	Return path

Adjust the receiver’s settings post-installation. Set fader and balance to center, disable loudness if using equalizers, and enable high-pass filters for component speakers to protect tweeters from low-frequency damage. For subwoofers, configure low-pass filters between 80-120Hz to blend with midrange drivers. Verify factory steering wheel controls compatibility with an adapter module if needed–program buttons using audio prompts or a manufacturer-specific app. Reconnect the battery, power on the system, and play a test track at moderate volume; listen for distortion, rattles, or imbalance, then fine-tune gains and crossover points accordingly.

Frequent Errors in Interpreting Vehicle Audio Connection Schematics and Corrective Measures

Mismatching color codes tops the list of errors. Even experienced installers confuse red and yellow wires–one carries constant power, the other ignition-switched. Verify using a multimeter: red should show 12V when the key is off, yellow only when the ignition is on. Brands often reuse colors across models, but pinouts differ, so always cross-check the manual for the exact unit.

Skipping ground integrity checks leads to intermittent faults. A corroded or loose chassis connection causes noise, distortion, or total failure. Sand the mounting point to bare metal, use star washers, and ensure the bolt tightens to 15-20 Nm. Avoid daisy-chaining grounds; each component should have its own direct path to the chassis.

Overlooking fuse ratings invites fire hazards. A 10A fuse on a 20A circuit won’t blow during normal operation but will melt during a surge. Match the fuse value to the thinnest wire gauge in the circuit: 18AWG requires 7.5A, 16AWG needs 10A. Place the fuse within 15cm of the battery terminal for maximum protection.

Assuming factory harness compatibility without testing causes incompatibility. Many aftermarket head units share the same 16-pin ISO connector but rearrange signal positions. Probe each pin with a test light: illumination-only pins indicate constant power, ignition, or lighting; pulsing signals denote speaker outputs. Label each wire with masking tape before cutting.

Misrouted cables generate interference. Power lines parallel to RCA cables induce alternator whine. Separate them by at least 10cm, route audio cables along the opposite rocker panel from the battery, and use shielded twisted pairs for long runs. Ferrite chokes on both ends of signal lines suppress high-frequency noise.

Neglecting speaker impedance adjustments results in premature amplifier failure. OEM systems often run 2-4Ω speakers; aftermarket amps expect 4-8Ω. Bridging incorrectly doubles the load–verify specs before connecting. A simple ohmmeter test confirms each coil registers within 10% of its rated value before wiring begins.

Forcing connections damages terminals. Crimp connectors properly–strip only 6mm of insulation, insert fully, and compress with the correct die size (blue for 14-16AWG, yellow for 10-12AWG). Heat-shrink tubing prevents oxidation; never use electrical tape as a long-term solution. Loose crimps cause resistance, overheating, and eventual failure.

Disregarding remote turn-on timing overloads the unit. Every amplifier draws 200mA from the remote wire; exceeding 500mA risks burning the trace inside the head unit. Add a relay if connecting more than two amplifiers–coil current from the ignition circuit triggers it, preserving the original remote signal integrity.
